Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PI3A268CZMEXIC SWITCH SPDTX2 400MOHM 10UQFN |
13,670 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 400mOhm (Typ) | 40mOhm | 1.65V ~ 4.3V | - | 50ns, 50ns | 85MHz | 52pC | 21pF | 1µA | -80dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (1.8x1.4) |
|
DG201BDY-E3IC SWITCH SPST-NCX4 85OHM 16SOIC |
15,804 |
|
Datasheet |
- | Tube | Active | SPST - NC | 1:1 | 4 | 85Ohm | 2Ohm | 4.5V ~ 25V | ±4.5V ~ 22V | 300ns, 200ns | - | 1pC | 5pF, 5pF | 500pA | -95dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
TS12A12511DGKRIC SWITCH SPDT X 1 5OHM 8VSSOP |
5,702 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 5Ohm (Typ) | 1Ohm | 2.7V ~ 12V | ±2.7V ~ 6V | 95ns, 50ns | 93MHz | 26pC | 14pF | 1nA | -70dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-VSSOP |
|
TS12A12511DRJRIC SWITCH SPDT X 1 5OHM 8SON |
2,330 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 5Ohm (Typ) | 1Ohm | 2.7V ~ 12V | ±2.7V ~ 6V | 95ns, 50ns | 93MHz | 26pC | 14pF | 1nA | -70dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SON (4x4) |
|
TS3A27518EIPWRQ1IC SWITCH SPDTX6 6.2OHM 24TSSOP |
14,096 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 6 | 6.2Ohm | 300mOhm | 1.65V ~ 3.6V | - | 59ns, 60.6ns | 240MHz | 0.81pC | 13pF, 8.5pF | 1µA | -62dB @ 10MHz | -40°C ~ 85°C (TA) | Automotive | AEC-Q100 | Surface Mount | 24-TSSOP |
|
TS3A27518ETRTWRQ1IC SWITCH SPDT X 6 6.2OHM 24WQFN |
52,140 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 6 | 6.2Ohm | 300mOhm | 1.65V ~ 3.6V | - | 59ns, 60.6ns | 240MHz | 0.81pC | 13pF, 8.5pF | 1µA | -62dB @ 10MHz | -40°C ~ 105°C (TA) | Automotive | AEC-Q100 | Surface Mount | 24-WQFN (4x4) |
|
|
TS3A27518EIRTWRQ1IC SWITCH SPDT X 6 6.2OHM 24WQFN |
18,010 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 6 | 6.2Ohm | 300mOhm | 1.65V ~ 3.6V | - | 59ns, 60.6ns | 240MHz | 0.81pC | 13pF, 8.5pF | 1µA | -62dB @ 10MHz | -40°C ~ 85°C (TA) | Automotive | AEC-Q100 | Surface Mount | 24-WQFN (4x4) |
|
DG9431EDV-T1-GE3IC SWITCH SPDT X 1 25OHM 6TSOP |
5,978 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 1:2 | 1 | 25Ohm | 400mOhm | 2.7V ~ 5.5V | - | 75ns, 50ns | - | -0.78pC | 3.8pF | 100pA | -108dB @ 1MHz | -40°C ~ 85°C | - | - | Surface Mount | 6-TSOP |
|

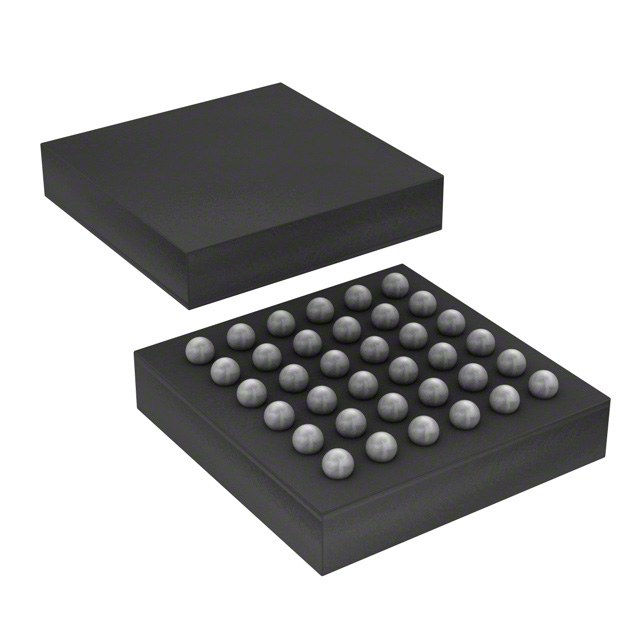

TS5MP645YFPRIC SWITCH SPDTX10 6.5OHM 36DSBGA |
6,572 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | SPDT | 2:1 | 10 | 6.5Ohm | 100mOhm | 1.65V ~ 5.5V | - | - | 1.5GHz | - | 1.5pF | 500nA | -40dB @ 1.25GHz | -40°C ~ 85°C | - | - | Surface Mount | 36-DSBGA |
|
TMUX1119DBVRIC SWITCH SPDT X 1 4OHM SOT23-6 |
11,282 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 4Ohm | 130mOhm | 1.08V ~ 5.5V | - | - | 250MHz | -6pC | 6pF | 80pA | -45dB @ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
|
TMUX1121DGKRIC SWITCH SPST X 2 4OHM 8VSSOP |
6,890 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST | 1:1 | 2 | 4Ohm | 130mOhm | 1.08V ~ 5.5V | - | - | 300MHz | 1.5pC | 6pF, 10pF | 80pA | -90dB @ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-VSSOP |
|
|
TMUX1122DGKRIC SWITCH SPST X 2 4OHM 8VSSOP |
4,444 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST | 1:1 | 2 | 4Ohm | 130mOhm | 1.08V ~ 5.5V | - | - | 300MHz | 1.5pC | 6pF, 10pF | 80pA | -90dB @ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-VSSOP |
|
|
TMUX1123DGKRIC SWITCH SPST X 2 4OHM 8VSSOP |
2,786 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST | 1:1 | 2 | 4Ohm | 130mOhm | 1.08V ~ 5.5V | - | - | 300MHz | 1.5pC | 6pF, 10pF | 80pA | -90dB @ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-VSSOP |
|
|
DG211BDY-T1-E3IC SWITCH SPST-NCX4 85OHM 16SOIC |
22,450 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 85Ohm | 2Ohm | 4.5V ~ 25V | ±4.5V ~ 22V | 300ns, 200ns | - | 1pC | 5pF, 5pF | 500pA | -95dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
PI3USB4000AZUAEXIC MUX 1:2 8OHM 10UQFN |
1,228 |
|
Datasheet |
- | Tape & Reel (TR) | Active | DPDT | 1:2 | 1 | 8Ohm | 500mOhm | 2.7V ~ 6V | - | 100µs, 50ns (Typ) | 1GHz | - | 7pF, 9pF | 1µA | -35dB @ 240MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (1.5x2) |
|
TS12A44514PWRIC SW SPST-NOX4 10OHM 14TSSOP |
12,542 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 10Ohm | 2.5Ohm (Max) | 2.7V ~ 12V | - | 75ns, 45ns | 530MHz | -10.5pC | 8pF, 8pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-TSSOP |
|
DG418DY-T1-E3IC SWITCH SPST-NOX1 35OHM 8SOIC |
2,678 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 1 | 35Ohm | - | 12V | ±15V | 175ns, 145ns | - | 60pC | 8pF, 8pF | 250pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
DG419DY-E3IC SWITCH SPDT X 1 35OHM 8SOIC |
1,618 |
|
Datasheet |
- | Tube | Active | SPDT | 2:1 | 1 | 35Ohm | - | 12V | ±15V | 175ns, 145ns | - | 60pC | 8pF, 8pF | 250pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
DG444DY-T1-E3IC SWITCH SPST-NCX4 85OHM 16SOIC |
22,916 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 85Ohm | - | 5V ~ 36V | ±5V ~ 20V | 250ns, 140ns | - | -1pC | 4pF, 4pF | 500pA | -100dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
DG212BDY-T1-E3IC SWITCH SPST-NOX4 85OHM 16SOIC |
10,270 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 85Ohm | 2Ohm | 4.5V ~ 25V | ±4.5V ~ 22V | 300ns, 200ns | - | 1pC | 5pF, 5pF | 500pA | -95dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
