Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX4524CPDMAX4524 LOW-VOLTAGE, SINGLE-SUPP |
2,986 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MAX4611EPD+IC SW SPSTX4 100OHM 14DIP |
2,368 |
|
Datasheet |
- | Bulk | Active | SPST - Closed | 1:1 | 4 | 100Ohm | 1Ohm | 2V ~ 12V | - | 65ns, 28ns | 300MHz | 1pC | 16pF, 16pF | 100pA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Through Hole | 14-PDIP |
|
|
DG381CJIC SWITCH SPST-NCX2 50OHM 14DIP |
2,156 |
|
Datasheet |
- | Bulk | Active | SPST - NC | 1:1 | 2 | 50Ohm | - | 36V | - | 300ns, 250ns | - | 12pC | 14pF, 14pF | 5nA | - | 0°C ~ 70°C | - | - | Through Hole | 14-PDIP |
|
MAX4636ETB+IC SWITCH SPDT X 2 4OHM 10TDFN |
2,842 |
|
Datasheet |
- | Bulk | Active | SPDT | 2:1 | 2 | 4Ohm | 100mOhm | 1.8V ~ 5.5V | - | 14ns, 6ns | - | 2pC | 9pF | 100pA | -67dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-TDFN-EP (3x3) |
|
MAX4736ETCIC SW SPDT-NO/NCX2 800MOHM 12QFN |
6,396 |
|
Datasheet |
- | Bulk | Active | SPDT - NO/NC | 2:1 | 2 | 800mOhm | 100mOhm | 1.6V ~ 4.2V | - | 25ns, 20ns | 130MHz | 60pC | 33pF, 60pF | 1nA | -78dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-TQFN (3x3) |
|
|
ISL84684IRZ-TIC SWITCH SPDTX2 500MOHM 10TDFN |
82,716 |
|
Datasheet |
- | Bulk | Active | SPDT | 2:1 | 2 | 500mOhm | 55mOhm | 1.65V ~ 3.6V | - | 50ns, 27ns | - | 94pC | 65pF | 4nA | -85dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-TDFN (3x3) |
|
MAX4652EGPIC SWITCH SPSTX4 4OHM 20QFN |
16,154 |
|
Datasheet |
- | Bulk | Active | SPST - Open | 1:1 | 4 | 4Ohm | 50mOhm | 1.8V ~ 5.5V | - | 14ns, 8ns | - | 2pC | 16pF, 16pF | 100pA | -100dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-QFN (5x5) |
|
MAX4651EGEIC SW SPSTX4 4OHM 16QFN |
15,912 |
|
Datasheet |
- | Bulk | Active | SPST - Closed | 1:1 | 4 | 4Ohm | 50mOhm | 1.8V ~ 5.5V | - | 14ns, 8ns | - | 2pC | 16pF, 16pF | 100pA | -100dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QFN (5x5) |
|
|
MAX4634ETBIC SWITCH SP4T X 1 4OHM 10TDFN |
1,830 |
|
Datasheet |
- | Bulk | Active | SP4T | 4:1 | 1 | 4Ohm | 100mOhm | 1.8V ~ 5.5V | - | 18ns, 11ns | - | 2pC | 13pF | 100pA | -52dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-TDFN-EP (3x3) |
|
MAX4628EUT+MAX4628 0.5 OHM , LOW-VOLTAGE, S |
6,060 |
|
Datasheet |
- | Bulk | Active | SPST - NO | 1:1 | 1 | 500mOhm | - | 1.8V ~ 5.5V | - | 50ns, 30ns | - | 40pC | 65pF, 65pF | 2nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
|
MAX4783ETEIC SW SPDT-NO/NCX3 1OHM 16TQFN |
20,206 |
|
Datasheet |
- | Bulk | Active | SPDT - NO/NC | 2:1 | 3 | 1Ohm | 300mOhm | 1.6V ~ 3.6V | - | 25ns, 15ns | - | -110pC | 38pF, 75pF | 2nA | -65dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TQFN-EP (3x3) |
|
MAX4648EUTIC SW SPST-NOX1 25OHM SOT23-6 |
742 |
|
Datasheet |
- | Bulk | Active | SPST - NO | 1:1 | 1 | 25Ohm | 800mOhm | 9V ~ 36V | ±4.5V ~ 20V | 100ns, 100ns | - | 4pC | 6pF, 6pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
|
MAX4523EGEIC SW SPST-NO/NCX4 100OHM 16QFN |
3,182 |
|
Datasheet |
- | Bulk | Active | SPST - NO/NC | 1:1 | 4 | 100Ohm | 1Ohm | 2V ~ 12V | ±2V ~ 6V | 80ns, 30ns | - | 1pC | 2pF, 2pF | 1nA | -90dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QFN (4x4) |
|
MAX4694EBE+SPDT, 4 FUNC, 1 CHANNEL, CMOS, P |
4,060 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
QS4A105QGIC SWITCH 4PST-NOX2 17OHM 20QSOP |
52,706 |
|
Datasheet |
- | Bulk | Active | 4PST - NO | - | 2 | 17Ohm | - | 5V | - | 6.5ns, 6ns | 1.3GHz | 1.5pC | 5pF | 1nA | -70dB @ 5.5MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-QSOP |
|

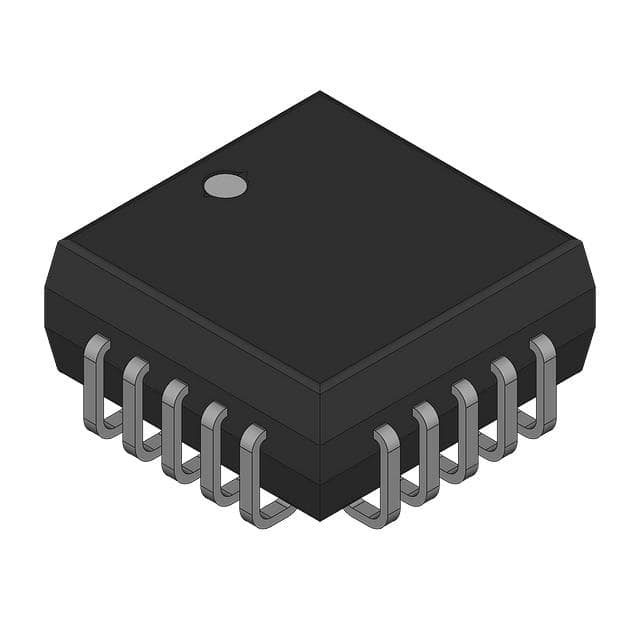

HI4P0508-5SINGLE 8-CHANNEL CMOS ANALOG MUL |
1,272 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
QS4A210QGQS4A210 - QUICKSWITCH HIGH-PERFO |
36,336 |
|
Datasheet |
- | Bulk | Active | SP4T | 4:1 | 2 | 17Ohm | - | 5V | - | 6ns, 6ns | 700MHz | 1.5pC | 5.6pF, 7.4pF | 2nA | -68dB @ 5.5MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QSOP |
|
QS4A110QGQS4A110 - QUICKSWITCH HIGH-PERFO |
17,930 |
|
Datasheet |
- | Bulk | Active | 5PST - NO | - | 2 | 17Ohm | - | 5V | - | 6ns, 6.5ns | 1.8GHz | 1.5pC | 5pF | 1nA | -70dB @ 5.5MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 24-QSOP |
|
M52795FPAUDIO/VIDEO SWITCH, 12 CHANNEL |
1,798 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ISL8499IVZIC SW DPDT, SPDT 250MOHM 16TSSOP |
520 |
|
Datasheet |
- | Tube | Obsolete | DPDT, SPDT | 2:1, 2:2 | 4 | 250mOhm (Typ) | 40mOhm | 1.65V ~ 4.5V | - | 25ns, 23ns | 104MHz | -120pC | 106pF | 50nA | -98dB @ 100kHz | -40°C ~ 85°C | - | - | Surface Mount | 16-TSSOP |
