IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F4100R12N2H3FB11BPSA1LOW POWER ECONO AG-ECONO2B-411 |
6,990 |
|
- |
* | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MIP50R12E2ATN-BPIGBT MODULES 1200V 50A, E2A |
6,024 |
|
- |
- | Module | Bulk | Active | - | Three Phase Inverter | 1200 V | 50 A | 288 W | 2.3V @ 15V, 50A | 1 mA | 2.6 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | E2A |
|
DDB6U180N16RRPB37BPSA1LOW POWER ECONO |
8,524 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DF450R17N2E4PB11BPSA1IGBT MODULE LOW POWER ECONO |
7,338 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FF400R12KT4PBOSA1FF400R12KT4P - 1200 V, 400 A DUA |
2,946 |
|
- |
- | Module | Bulk | Active | Trench Field Stop | Dual, Common Source | 1200 V | 400 A | - | 2.05V @ 15V, 400A | 5 mA | 28000 pF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | AG-62MMHB |
|
|
MSCGLQ200SK65TGPM-IGBT-SP4 |
3,926 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

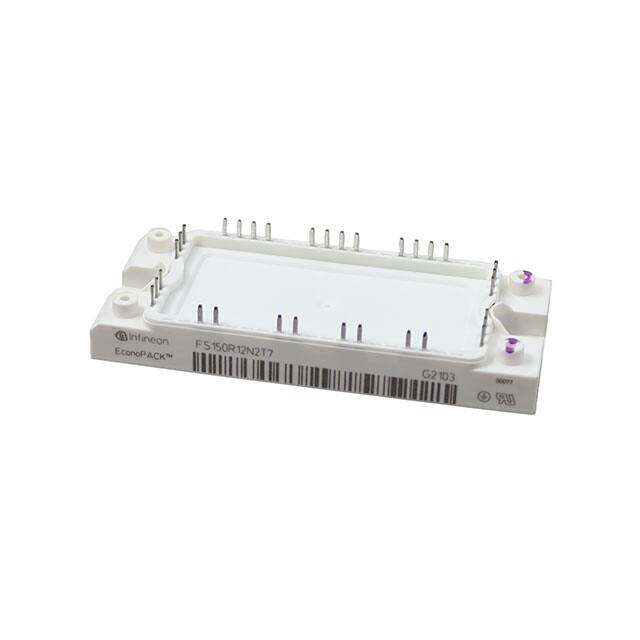

FS150R12N2T7BPSA1LOW POWER ECONO AG-ECONO2-6 |
6,128 |
|
- |
EconoPACK™ 2 | Module | Tray | Discontinued at Digi-Key | Trench Field Stop | Three Level Inverter | 1200 V | 150 A | - | 1.8V @ 15V, 150A | 1.2 µA | 30.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO2 |
|
|
BSM400GA170DLSIGBT MODULE |
2,082 |
|
- |
- | Module | Bulk | Active | - | Single | 1700 V | 800 A | 3120 W | 3.3V @ 15V, 400A | 1 mA | 27 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | Module |
|
|
MIP75R12E2ATN-BPIGBT MODULES 1200V 75A, E2A |
4,608 |
|
- |
- | Module | Bulk | Active | - | Three Phase Inverter | 1200 V | 75 A | 476 W | 2.15V @ 15V, 75A | 1 mA | 4.2 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | E2A |
|
FF300R12KT3EHOSA1IGBT MOD 1200V 480A 1450W |
6,026 |
|
- |
C | Module | Bulk | Not For New Designs | - | 2 Independent | 1200 V | 480 A | 1450 W | 2.15V @ 15V, 300A | 5 mA | 21 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
|
FF300R12KE3B2HOSA1MEDIUM POWER 62MM |
5,602 |
|
- |
- | Module | Bulk | Active | Trench Field Stop | Single Switch | 1200 V | 440 A | 1450 W | 2V @ 15V, 300A | 5 mA | 21000 pF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | Module |
|
|
FS150R12PT4INSULATED GATE BIPOLAR TRANSISTO |
7,624 |
|
- |
EconoPACK™ | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 200 A | 680 W | 2.15V @ 15V, 150A | 1 mA | 9.35 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO4-1-1 |
|
FS100R12KT4GB11BOSA1IGBT MOD 1200V 100A 515W |
16,188 |
|
- |
EconoPACK™ 3 | Module | Bulk | Not For New Designs | Trench Field Stop | Three Phase Inverter | 1200 V | 100 A | 515 W | 2.2V @ 15V, 100A | 1 mA | 6.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FD900R12IP4DBOSA1IGBT MOD 1200V 900A 5100W |
10,860 |
|
- |
PrimePACK™2 | Module | Tray | Active | - | Single Chopper | 1200 V | 900 A | 5100 W | 2.05V @ 15V, 900A | 5 mA | 54 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FF300R17ME4B11BOSA1IGBT MOD 1700V 375A 1800W |
17,738 |
|
- |
EconoDUAL™ 3 | Module | Bulk | Discontinued at Digi-Key | Trench Field Stop | 2 Independent | 1700 V | 375 A | 1800 W | 2.3V @ 15V, 300A | 3 mA | 24.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FF450R06ME3BOSA1MEDIUM POWER ECONO |
3,438 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FP75R17N3E4B11BPSA1IGBT MOD 1700V 150A 20MW |
4,112 |
|
- |
EconoPIM™ 3 | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 1700 V | 150 A | - | 2.3V @ 15V, 75A | 1 mA | 6.8 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FF225R17ME3BOSA1IGBT MOD 1700V 340A 1400W |
11,348 |
|
- |
EconoDUAL™ 3 | Module | Bulk | Not For New Designs | Trench Field Stop | Half Bridge Inverter | 1700 V | 340 A | 1400 W | 2.45V @ 15V, 225A | 3 mA | 20.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
A2F12M12W2-F1ACEPACK 2 POWER MODULE, FOURPACK |
6,948 |
|
- |
- | Module | Tray | Active | - | Full Bridge | - | - | - | - | - | 7 nF @ 800 V | Standard | Yes | 175°C (TJ) | Chassis Mount | ACEPACK™ 2 |
|
BYM300B170DN2HOSA1IGBT MOD 650V 40A 20MW |
8,404 |
|
- |
- | Module | Bulk | Obsolete | Trench Field Stop | 2 Independent | 650 V | 40 A | - | 1.55V @ 15V, 25A | 40 µA | 2.8 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
