Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

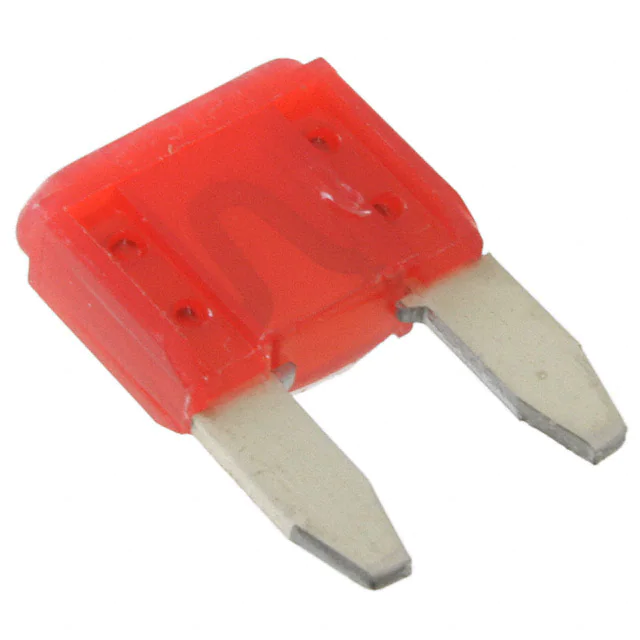

0297010.WXNVFUSE AUTO 10A 32VDC BLADE MINI |
45,868 |
|
Datasheet |
MINI® 297 | Bulk | Active | Requires Holder | Automotive | 10 A | - | 32 V | Fast Blow | 1kA | 93.0 | UR | -40°C ~ 125°C | Red | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
0297003.WXNVFUSE AUTOMOTIVE 3A 32VDC BLADE |
23,412 |
|
Datasheet |
MINI® 297 | Bulk | Active | Requires Holder | Automotive | 3 A | - | 32 V | Fast Blow | 1kA | 9.4 | UR | -40°C ~ 125°C | Violet | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
0297002.WXNVFUSE AUTOMOTIVE 2A 32VDC BLADE |
20,578 |
|
Datasheet |
MINI® 297 | Bulk | Active | Requires Holder | Automotive | 2 A | - | 32 V | Fast Blow | 1kA | 2.8 | UR | -40°C ~ 125°C | Gray | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|

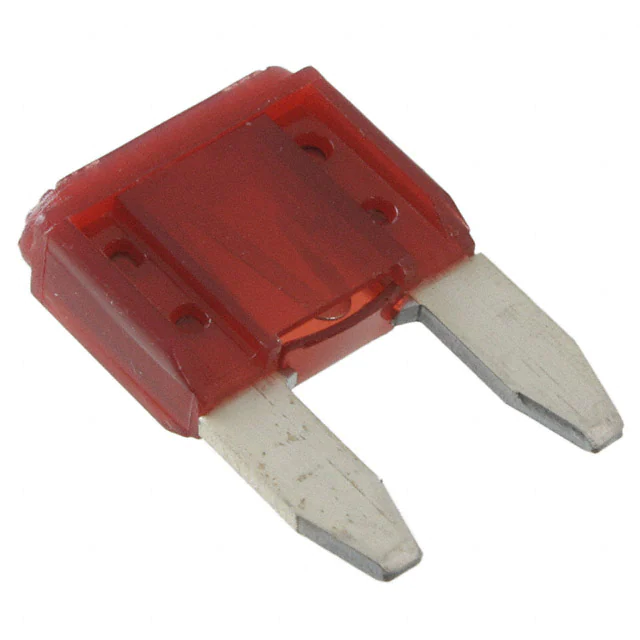

029707.5WXNVFUSE AUTO 7.5A 32VDC BLADE MINI |
7,430 |
|
Datasheet |
MINI® 297 | Bulk | Active | Requires Holder | Automotive | 7.5 A | - | 32 V | Fast Blow | 1kA | 68.0 | UR | -40°C ~ 125°C | Brown | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
0685T3500-01FUSE BRD MNT 3.5A 63VAC/VDC 1206 |
479,220 |
|
Datasheet |
C1T | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 3.5 A | 63 V | 63 V | Slow Blow | 50A | 2.28 | AEC-Q200, CE, cURus | -55°C ~ 125°C | - | 0.126" L x 0.062" W x 0.025" H (3.20mm x 1.58mm x 0.63mm) | |
|
|
0685T1000-01FUSE BRD MNT 1A 63VAC 63VDC 1206 |
290,704 |
|
Datasheet |
C1T | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1 A | 63 V | 63 V | Slow Blow | 50A | 0.12 | AEC-Q200, CE, cURus | -55°C ~ 125°C | - | 0.126" L x 0.062" W x 0.025" H (3.20mm x 1.58mm x 0.63mm) | |
|
C2Q 250FUSE BRD MT 250MA 32VAC 63VDC |
286,522 |
|
Datasheet |
C2Q | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 250 mA | 32 V | 63 V | Fast Blow | 35A AC, 50A DC | 1.0E-5 | CE, cURus | -55°C ~ 125°C | - | 0.063" L x 0.032" W x 0.019" H (1.60mm x 0.82mm x 0.48mm) | |
|
|
0685T2500-01FUSE BRD MNT 2.5A 63VAC/VDC 1206 |
199,190 |
|
Datasheet |
C1T | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 2.5 A | 63 V | 63 V | Slow Blow | 50A | 1.07 | AEC-Q200, CE, cURus | -55°C ~ 125°C | - | 0.126" L x 0.062" W x 0.025" H (3.20mm x 1.58mm x 0.63mm) | |
|
|
C2Q 5FUSE BRD MNT 5A 32VAC 32VDC 0603 |
166,142 |
|
Datasheet |
C2Q | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 5 A | 32 V | 32 V | Fast Blow | 50A | 1.05 | CE, cURus | -55°C ~ 125°C | - | 0.063" L x 0.032" W x 0.019" H (1.60mm x 0.82mm x 0.48mm) | |
|
0685H9100-01FUSE BRD MT 10A 125VAC 32VDC |
116,002 |
|
Datasheet |
C1H | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 10 A | 125 V | 32 V | Fast Blow | 150A | 5.9 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.126" L x 0.062" W x 0.026" H (3.20mm x 1.58mm x 0.65mm) | |
|
|
C2Q 2FUSE BRD MNT 2A 32VAC 63VDC 0603 |
113,882 |
|
Datasheet |
C2Q | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 2 A | 32 V | 63 V | Fast Blow | 35A AC, 50A DC | 0.0063 | CE, cURus | -55°C ~ 125°C | - | 0.063" L x 0.032" W x 0.019" H (1.60mm x 0.82mm x 0.48mm) | |
|
|
0685T3000-01FUSE BRD MNT 3A 63VAC 63VDC 1206 |
112,002 |
|
Datasheet |
C1T | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 3 A | 63 V | 63 V | Slow Blow | 50A | 1.64 | AEC-Q200, CE, cURus | -55°C ~ 125°C | - | 0.126" L x 0.062" W x 0.025" H (3.20mm x 1.58mm x 0.63mm) | |
|
|
0685T1500-01FUSE BRD MNT 1.5A 63VAC/VDC 1206 |
102,294 |
|
Datasheet |
C1T | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1.5 A | 63 V | 63 V | Slow Blow | 50A | 0.23 | AEC-Q200, CE, cURus | -55°C ~ 125°C | - | 0.126" L x 0.062" W x 0.025" H (3.20mm x 1.58mm x 0.63mm) | |
|
|
0685T4000-01FUSE BRD MNT 4A 63VAC 63VDC 1206 |
89,716 |
|
Datasheet |
C1T | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 4 A | 63 V | 63 V | Slow Blow | 50A | 2.56 | AEC-Q200, CE, cURus | -55°C ~ 125°C | - | 0.126" L x 0.062" W x 0.025" H (3.20mm x 1.58mm x 0.63mm) | |
|
|
0685T2000-01FUSE BRD MNT 2A 63VAC 63VDC 1206 |
67,662 |
|
Datasheet |
C1T | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 2 A | 63 V | 63 V | Slow Blow | 50A | 0.63 | AEC-Q200, CE, cURus | -55°C ~ 125°C | - | 0.126" L x 0.062" W x 0.025" H (3.20mm x 1.58mm x 0.63mm) | |
|
|
C2Q 750FUSE BRD MT 750MA 32VAC 63VDC |
67,590 |
|
Datasheet |
C2Q | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 750 mA | 32 V | 63 V | Fast Blow | 35A AC, 50A DC | 0.02 | CE, cURus | -55°C ~ 125°C | - | 0.063" L x 0.032" W x 0.019" H (1.60mm x 0.82mm x 0.48mm) | |
|
|
0685H9300-01FUSE BRD MT 30A 125VAC 32VDC |
15,842 |
|
Datasheet |
C1H | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 30 A | 125 V | 32 V | Fast Blow | 150A AC, 300A DC | 80.5 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.126" L x 0.062" W x 0.026" H (3.20mm x 1.58mm x 0.65mm) | |
|
|
0685T6000-01FUSE BRD MNT 6A 63VAC 63VDC 1206 |
8,386 |
|
Datasheet |
C1T | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 6 A | 63 V | 63 V | Slow Blow | 50A | 6.0 | AEC-Q200, CE, cURus | -55°C ~ 125°C | - | 0.126" L x 0.062" W x 0.025" H (3.20mm x 1.58mm x 0.63mm) | |
|
0686F0500-01FUSE BRD MT 500MA 32VAC 63VDC |
8,122 |
|
Datasheet |
C2F | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 500 mA | 32 V | 63 V | Fast Blow | 35A AC, 50A DC | 3.0E-4 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.063" L x 0.032" W x 0.020" H (1.60mm x 0.81mm x 0.52mm) | |
|
|
0685H9200-01FUSE BRD MT 20A 125VAC 32VDC |
4,228 |
|
Datasheet |
C1H | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 20 A | 125 V | 32 V | Fast Blow | 150A AC, 300A DC | 28.5 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.126" L x 0.062" W x 0.026" H (3.20mm x 1.58mm x 0.65mm) |
