FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI3441BDV-T1-E3MOSFET P-CH 20V 2.45A 6TSOP |
6,950 |
|
- |
TrenchFET® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.45A (Ta) | 2.5V, 4.5V | 90mOhm @ 3.3A, 4.5V | 850mV @ 250µA | 8 nC @ 4.5 V | ±8V | - | - | 860mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
|
TN0200K-T1-E3MOSFET N-CH 20V SOT23-3 |
11,876 |
|
- |
- | TO-236-3, SC-59, SOT-23-3 | Cut Tape (CT) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 730mA (Ta) | - | 400mOhm @ 600mA, 4.5V | 1V @ 50µA | 2 nC @ 4.5 V | - | - | - | - | - | - | - | Surface Mount | SOT-23-3 (TO-236) |
|
|
TN0201K-T1-E3MOSFET N-CH 20V 420MA SOT23-3 |
18,532 |
|
- |
TrenchFET® | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 420mA (Ta) | 4.5V, 10V | 1Ohm @ 300mA, 10V | 3V @ 250µA | 1.5 nC @ 10 V | ±20V | - | - | 350mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 (TO-236) |
|
SI1304BDL-T1-GE3MOSFET N-CH 30V 900MA SC70-3 |
5,034 |
|
Datasheet |
TrenchFET® | SC-70, SOT-323 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 900mA (Tc) | 2.5V, 4.5V | 270mOhm @ 900mA, 4.5V | 1.3V @ 250µA | 2.7 nC @ 4.5 V | ±12V | 100 pF @ 15 V | - | 340mW (Ta), 370mW (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-70-3 |
|
SI4778DY-T1-GE3MOSFET N-CH 25V 8A 8SO |
13,574 |
|
Datasheet |
TrenchFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 8A (Tc) | 4.5V, 10V | 23mOhm @ 7A, 10V | 2.2V @ 250µA | 18 nC @ 10 V | ±16V | 680 pF @ 13 V | - | 2.4W (Ta), 5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
AON7200MOSFET N-CH 30V 15.8A/40A 8DFN |
16,766 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 15.8A (Ta), 40A (Tc) | 4.5V, 10V | 8mOhm @ 20A, 10V | 2.4V @ 250µA | 20 nC @ 10 V | ±20V | 1300 pF @ 15 V | - | 3.1W (Ta), 62W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN-EP (3x3) |
|
|
AON7408MOSFET N-CH 30V 10A/18A 8DFN |
7,108 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 30 V | 10A (Ta), 18A (Tc) | 4.5V, 10V | 20mOhm @ 10A, 10V | 2.6V @ 250µA | 8.6 nC @ 4.5 V | ±20V | 448 pF @ 15 V | - | 3.1W (Ta), 11W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN-EP (3x3) |
|
AON6520MOSFET N-CH 30V 11A/50A 8DFN |
13,242 |
|
Datasheet |
- | 8-PowerSMD, Flat Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta), 50A (Tc) | 4.5V, 10V | 8.5mOhm @ 20A, 10V | 2.5V @ 250µA | 24 nC @ 10 V | ±20V | 1380 pF @ 15 V | - | 1.9W (Ta), 31W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN (5x6) |
|
|
AON7416MOSFET N-CH 30V 14A/40A 8DFN |
8,886 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 14A (Ta), 40A (Tc) | 4.5V, 10V | 8.5mOhm @ 20A, 10V | 1.7V @ 250µA | 32 nC @ 10 V | ±12V | 1900 pF @ 15 V | - | 3.1W (Ta), 25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN-EP (3x3) |
|
SSM3K329R,LFMOSFET N CH 30V 3.5A 2-3Z1A |
16,708 |
|
Datasheet |
U-MOSIII | SOT-23-3 Flat Leads | Tape & Reel (TR) | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 30 V | 3.5A (Ta) | 1.8V, 4V | 126mOhm @ 1A, 4V | 1V @ 1mA | 1.5 nC @ 4 V | ±12V | 123 pF @ 15 V | - | 1W (Ta) | 150°C (TJ) | - | - | Surface Mount | SOT-23F |
|
PMN70XPE,115MOSFET P-CH 20V 3.2A 6TSOP |
4,886 |
|
Datasheet |
- | SC-74, SOT-457 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 3.2A (Ta) | 2.5V, 4.5V | 85mOhm @ 2A, 4.5V | 1.25V @ 250µA | 7.8 nC @ 4.5 V | ±12V | 602 pF @ 10 V | - | 500mW (Ta), 6.25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
|
PMZB300XN,315MOSFET N-CH 20V 1A DFN1006B-3 |
18,302 |
|
Datasheet |
- | 3-XFDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 1A (Ta) | 2.5V, 4.5V | 380mOhm @ 200mA, 4.5V | 1.5V @ 250µA | 0.94 nC @ 4.5 V | ±12V | 51 pF @ 20 V | - | 360mW (Ta), 2.7W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN1006B-3 |
|
|
PMZB380XN,315MOSFET N-CH 30V 930MA DFN1006B-3 |
8,858 |
|
Datasheet |
- | 3-XFDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 930mA (Ta) | 2.5V, 4.5V | 460mOhm @ 200mA, 4.5V | 1.5V @ 250µA | 0.87 nC @ 4.5 V | ±12V | 56 pF @ 25 V | - | 360mW (Ta), 2.7W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN1006B-3 |
|
|
PMZB420UN,315MOSFET N-CH 30V 900MA DFN1006B-3 |
17,386 |
|
Datasheet |
- | 3-XFDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 900mA (Ta) | 1.8V, 4.5V | 490mOhm @ 200mA, 4.5V | 950mV @ 250µA | 0.98 nC @ 4.5 V | ±8V | 65 pF @ 25 V | - | 360mW (Ta), 2.7W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN1006B-3 |
|
|
PMZB790SN,315MOSFET N-CH 60V 650MA DFN1006B-3 |
8,358 |
|
Datasheet |
- | 3-XFDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 650mA (Ta) | 4.5V, 10V | 940mOhm @ 300mA, 10V | 3V @ 250µA | 1.37 nC @ 10 V | ±20V | 35 pF @ 30 V | - | 360mW (Ta), 2.7W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN1006B-3 |
|

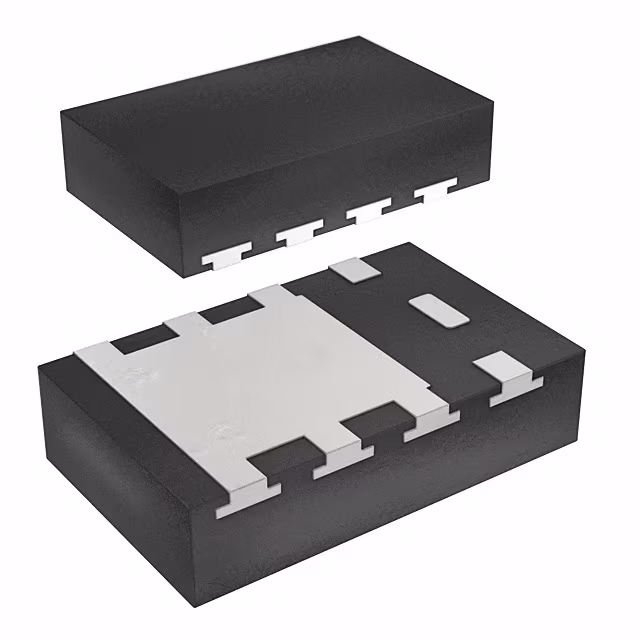

SI5415AEDU-T1-GE3MOSFET P-CH 20V 25A PPAK |
17,634 |
|
Datasheet |
TrenchFET® | PowerPAK® ChipFET™ Single | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 25A (Tc) | 1.8V, 4.5V | 9.6mOhm @ 10A, 4.5V | 1V @ 250µA | 120 nC @ 8 V | ±8V | 4300 pF @ 10 V | - | 3.1W (Ta), 31W (Tc) | -50°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® ChipFet Single |
|
|
AON7400BMOSFET N-CH 30V 18A/40A 8DFN |
11,098 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 18A (Ta), 40A (Tc) | 4.5V, 10V | 7.5mOhm @ 18A, 10V | 2.5V @ 250µA | 26 nC @ 10 V | ±20V | 1440 pF @ 15 V | - | 4.1W (Ta), 24W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN-EP (3x3) |
|
PMCM440VNEZMOSFET N-CH 12V 3.9A 4WLCSP |
14,590 |
|
Datasheet |
- | 4-XFBGA, WLCSP | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 12 V | 3.9A (Ta) | 4.5V | 67mOhm @ 3A, 4.5V | 900mV @ 250µA | 8.2 nC @ 4.5 V | ±8V | 360 pF @ 6 V | - | 400mW (Ta), 12.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 4-WLCSP (0.78x0.78) |
|
MCH3382-TL-WMOSFET P-CH 12V 2A SC70FL/MCPH3 |
19,652 |
|
Datasheet |
- | 3-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 12 V | 2A (Ta) | 1.8V, 4.5V | 198mOhm @ 1A, 4.5V | 900mV @ 1mA | 2.3 nC @ 4.5 V | ±9V | 170 pF @ 6 V | - | 800mW (Ta) | 150°C (TJ) | - | - | Surface Mount | SC-70FL/MCPH3 |
|
PMV65UNEARMOSFET N-CH 20V 2.8A TO236AB |
18,488 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 2.8A (Ta) | 1.8V, 4.5V | 73mOhm @ 2.8A, 4.5V | 1V @ 250µA | 6 nC @ 4.5 V | ±8V | 291 pF @ 10 V | - | 940mW (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-236AB |
