FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FCPF360N65S3R0L-F154POWER MOSFET, N-CHANNEL, SUPERFE |
1,280 |
|
Datasheet |
SuperFET® III | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 10A (Tj) | 10V | 360mOhm @ 5A, 10V | 4.5V @ 200µA | 18 nC @ 10 V | ±30V | 730 pF @ 400 V | - | 27W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F-3 |
|
STL8N80K5MOSFET N-CH 800V 4.5A POWERFLAT |
4,970 |
|
Datasheet |
SuperMESH5™ | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 4.5A (Tc) | 10V | 950mOhm @ 3A, 10V | 5V @ 100µA | 16.5 nC @ 10 V | ±30V | 450 pF @ 100 V | - | 42W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerFlat™ (5x6) |
|
R6020KNXMOSFET N-CH 600V 20A TO220FM |
536 |
|
Datasheet |
- | TO-220-3 Full Pack | Bulk | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 600 V | 20A (Tc) | 10V | 196mOhm @ 9.5A, 10V | 5V @ 1mA | 40 nC @ 10 V | ±20V | 1550 pF @ 25 V | - | 68W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220FM |
|
STF27N60M2-EPMOSFET N-CH 600V 20A TO220FP |
246 |
|
Datasheet |
MDmesh™ M2-EP | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 20A (Tc) | 10V | 163mOhm @ 10A, 10V | 4.75V @ 250µA | 33 nC @ 10 V | ±25V | 1320 pF @ 100 V | - | 30W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220FP |
|
SPA11N80C3XKSA2MOSFET N-CH 800V 11A TO220-3 |
378 |
|
Datasheet |
CoolMOS™ | TO-220-3 Isolated Tab | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 11A (Tc) | 10V | 450mOhm @ 7.1A, 10V | 3.9V @ 680µA | 85 nC @ 10 V | ±20V | 1600 pF @ 100 V | - | 34W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3 |
|
FDMS2D5N08CMOSFET N-CH 80V 166A POWER56 |
5,302 |
|
Datasheet |
PowerTrench® | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 166A (Tc) | 6V, 10V | 2.7mOhm @ 68A, 10V | 4V @ 380µA | 84 nC @ 10 V | ±20V | 6240 pF @ 40 V | - | 138W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | Power56 |
|
STB28N60M2MOSFET N-CH 600V 22A D2PAK |
1,826 |
|
Datasheet |
MDmesh™ II Plus | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 22A (Tc) | 10V | 150mOhm @ 11A, 10V | 4V @ 250µA | 36 nC @ 10 V | ±25V | 1440 pF @ 100 V | - | 170W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
STB85NF55LT4MOSFET N-CH 55V 80A D2PAK |
688 |
|
Datasheet |
STripFET™ II | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 80A (Tc) | 5V, 10V | 8mOhm @ 40A, 10V | 2.5V @ 250µA | 110 nC @ 5 V | ±15V | 4050 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
STF28N60M2MOSFET N-CH 600V 24A TO220FP |
254 |
|
Datasheet |
MDmesh™ II Plus | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 24A (Tc) | 10V | 150mOhm @ 12A, 10V | 4V @ 250µA | 37 nC @ 10 V | ±25V | 1370 pF @ 100 V | - | 30W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220FP |
|
|
STP7NK80ZFPMOSFET N-CH 800V 5.2A TO220FP |
1,566 |
|
Datasheet |
SuperMESH™ | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 5.2A (Tc) | 10V | 1.8Ohm @ 2.6A, 10V | 4.5V @ 100µA | 56 nC @ 10 V | ±30V | 1138 pF @ 25 V | - | 30W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220FP |
|
IPP65R190CFDXKSA2MOSFET N-CH 650V 17.5A TO220-3 |
2,782 |
|
Datasheet |
CoolMOS™ CFD2 | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 17.5A (Tc) | 10V | 190mOhm @ 7.3A, 10V | 4.5V @ 700µA | 68 nC @ 10 V | ±20V | 1850 pF @ 100 V | - | 151W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3 |
|
SUP10250E-GE3MOSFET N-CH 250V 63A TO220AB |
260 |
|
Datasheet |
ThunderFET® | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 63A (Tc) | 7.5V, 10V | - | 4V @ 250µA | 88 nC @ 10 V | ±20V | - | - | 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
IXTY1R6N100D2MOSFET N-CH 1000V 1.6A TO252 |
12,270 |
|
Datasheet |
Depletion | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Active | N-Channel, Depletion Mode | MOSFET (Metal Oxide) | 1000 V | 1.6A (Tc) | - | 10Ohm @ 800mA, 0V | - | 27 nC @ 5 V | ±20V | 645 pF @ 25 V | - | 100W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA |
|
AONS66966MOSFET N-CH 100V 31.3A/100A 8DFN |
10,270 |
|
Datasheet |
AlphaSGT™ | 8-PowerSMD, Flat Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 31.3A (Ta), 100A (Tc) | 6V, 10V | 3.6mOhm @ 20A, 10V | 3.6V @ 250µA | 95 nC @ 10 V | ±20V | 5325 pF @ 50 V | - | 6.2W (Ta), 215W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN (5x6) |
|
SQJQ186ER-T1_GE3AUTOMOTIVE N-CHANNEL 80 V (D-S) |
3,780 |
|
Datasheet |
TrenchFET® Gen IV | 8-PowerSMD, Gull Wing | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 329A (Tc) | 10V | 2.3mOhm @ 20A, 10V | 3.5V @ 250µA | 185 nC @ 10 V | ±20V | 10552 pF @ 25 V | - | 600W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® 8 x 8 |
|
SQD50P04-13L_GE3MOSFET P-CH 40V 50A TO252 |
3,732 |
|
Datasheet |
TrenchFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 50A (Tc) | 4.5V, 10V | 13mOhm @ 17A, 10V | 2.5V @ 250µA | 90 nC @ 10 V | ±20V | 3590 pF @ 20 V | - | 3W (Ta), 136W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA |
|
|
R6030KNXC7G600V 30A TO-220FM, HIGH-SPEED SW |
1,660 |
|
Datasheet |
- | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 30A (Tc) | 10V | 130mOhm @ 14.5A, 10V | 5V @ 1mA | 56 nC @ 10 V | ±20V | 2350 pF @ 25 V | - | 86W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220FM |
|
RSJ400N10FRATLMOSFET N-CH 100V 40A LPTS |
828 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 40A (Tc) | 4V, 10V | 27mOhm @ 40A, 10V | 2.5V @ 1mA | 90 nC @ 10 V | ±20V | 3600 pF @ 25 V | - | 1.35W (Ta), 50W (Tc) | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LPTS |
|

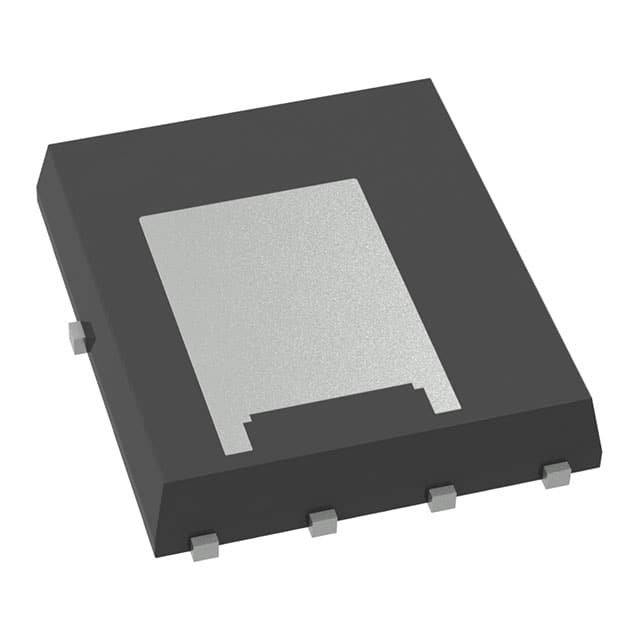

FDMS8320LDCMOSFET N-CH 40V 44A DLCOOL56 |
8,828 |
|
Datasheet |
Dual Cool™, PowerTrench® | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 44A (Ta), 130A (Tc) | 4.5V, 10V | 1.1mOhm @ 44A, 10V | 3V @ 250µA | 170 nC @ 10 V | ±20V | 11635 pF @ 20 V | - | 3.2W (Ta), 125W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PQFN (5x6) |
|
|
R6009JNJGTLMOSFET N-CH 600V 9A LPTS |
6,000 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 9A (Tc) | 15V | 585mOhm @ 4.5A, 15V | 7V @ 1.38mA | 22 nC @ 15 V | ±30V | 645 pF @ 100 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | LPTS |
