FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FDB9403-F085MOSFET N-CH 40V 110A TO263AB |
7,010 |
|
Datasheet |
PowerTrench® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 110A (Tc) | 10V | 1.2mOhm @ 80A, 10V | 4V @ 250µA | 213 nC @ 10 V | ±20V | 12700 pF @ 25 V | - | 333W (Tj) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-263 (D2PAK) |
|
IPP60R099CPAAKSA1MOSFET N-CH 600V 31A TO220-3 |
7,490 |
|
Datasheet |
CoolMOS™ | TO-220-3 | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 31A (Tc) | 10V | 105mOhm @ 18A, 10V | 3.5V @ 1.2mA | 80 nC @ 10 V | ±20V | 2800 pF @ 100 V | - | 255W (Tc) | -40°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3 |
|
IPI60R099CPAAKSA1MOSFET N-CH 600V 31A TO262-3 |
7,160 |
|
Datasheet |
CoolMOS™ | TO-262-3 Long Leads, I2PAK, TO-262AA | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 31A (Tc) | 10V | 105mOhm @ 18A, 10V | 3.5V @ 1.2mA | 80 nC @ 10 V | ±20V | 2800 pF @ 100 V | - | 255W (Tc) | -40°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO262-3 |
|
IRFPF40PBFMOSFET N-CH 900V 4.7A TO247-3 |
592 |
|
- |
- | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 900 V | 4.7A (Tc) | 10V | 2.5Ohm @ 2.8A, 10V | 4V @ 250µA | 120 nC @ 10 V | ±20V | 1600 pF @ 25 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AC |
|
GSFA90R350MOSFET, N-CH, SINGLE, 12.00A, 90 |
1,160 |
|
Datasheet |
- | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 900 V | 12A (Tc) | 10V | 350mOhm @ 6A, 10V | 3.9V @ 250µA | 53.8 nC @ 10 V | ±30V | 2786 pF @ 50 V | - | 219W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 |
|
MTB50P03HDLT4GMOSFET P-CH 30V 50A D2PAK |
26,180 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 50A (Tc) | 5V | 25mOhm @ 25A, 5V | 2V @ 250µA | 100 nC @ 5 V | ±15V | 4900 pF @ 25 V | - | 2.5W (Ta), 125W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D2PAK |
|
2SK3229-EN-CHANNEL POWER MOSFET |
23,776 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FDMS8350LET40MOSFET N-CH 40V 49A/300A POWER56 |
2,196 |
|
Datasheet |
PowerTrench® | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 49A (Ta), 300A (Tc) | 4.5V, 10V | 0.85mOhm @ 47A, 10V | 3V @ 250µA | 219 nC @ 10 V | ±20V | 16590 pF @ 20 V | - | 3.33W (Ta), 125W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-PQFN (5x6) |
|
IRFB3004PBFMOSFET N-CH 40V 195A TO220AB |
942 |
|
Datasheet |
HEXFET® | TO-220-3 | Tube | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 40 V | 195A (Tc) | 10V | 1.75mOhm @ 195A, 10V | 4V @ 250µA | 240 nC @ 10 V | ±20V | 9200 pF @ 25 V | - | 380W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|

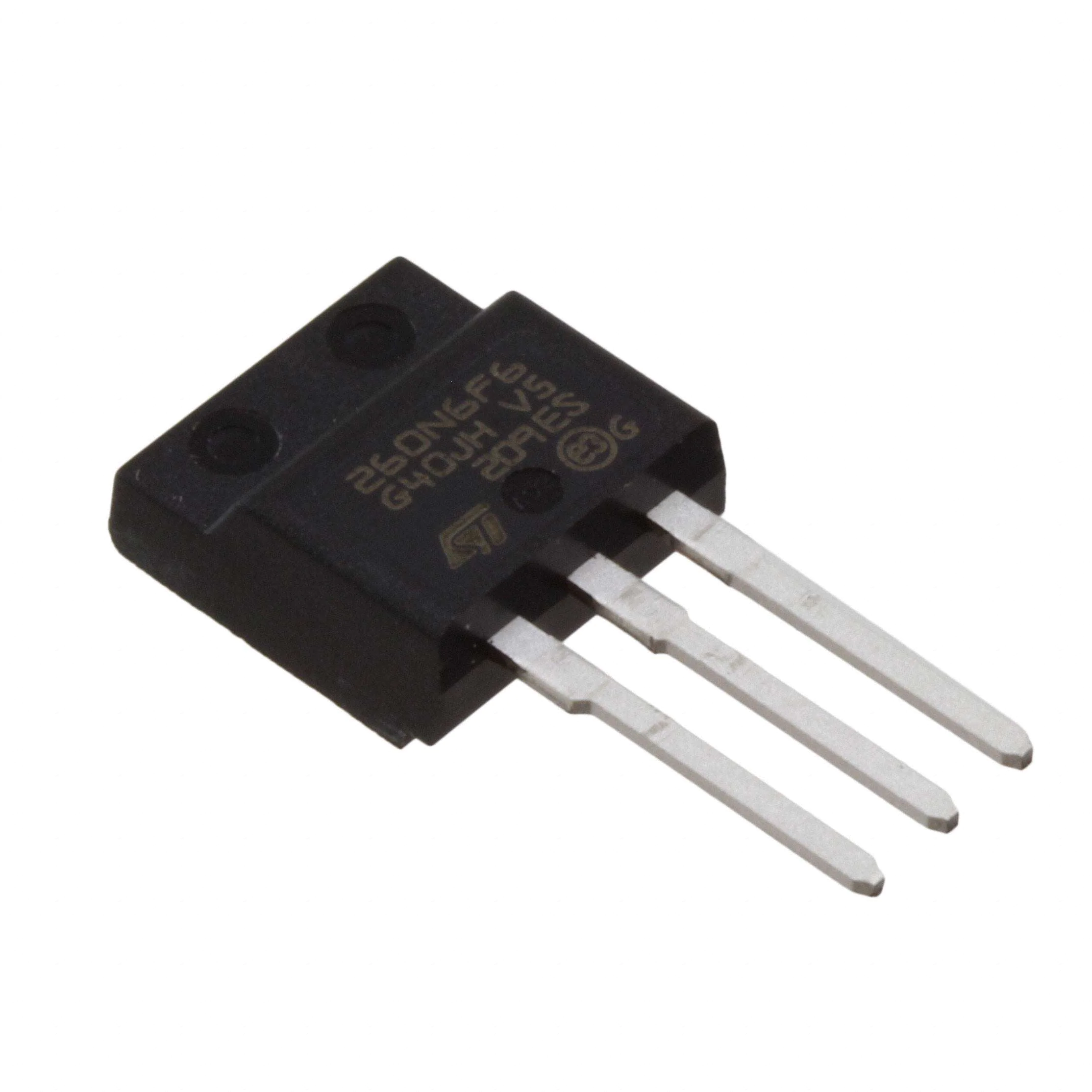

STFI260N6F6MOSFET N-CH 60V 80A I2PAKFP |
594 |
|
Datasheet |
DeepGATE™, STripFET™ VI | TO-262-3 Full Pack, I2PAK | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 80A (Tc) | 10V | 3mOhm @ 60A, 10V | 4V @ 250µA | 183 nC @ 10 V | ±20V | 11400 pF @ 25 V | - | 41.7W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | I2PAKFP (TO-281) |
|
IPZA60R120P7XKSA1MOSFET N-CH 600V 26A TO247-4 |
5,744 |
|
Datasheet |
CoolMOS™ P7 | TO-247-4 | Bulk | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 600 V | 26A (Tc) | 10V | 120mOhm @ 8.2A, 10V | 4V @ 410µA | 36 nC @ 10 V | ±20V | 1544 pF @ 400 V | - | 95W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO247-4 |
|
RJL5014DPP-00#T2N-CHANNEL POWER MOSFET |
1,576 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HUF75842P3MOSFET N-CH 150V 43A TO220-3 |
1,550 |
|
Datasheet |
UltraFET™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 150 V | 43A (Tc) | 10V | 42mOhm @ 43A, 10V | 4V @ 250µA | 175 nC @ 20 V | ±20V | 2730 pF @ 25 V | - | 230W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
2SK1157-EN-CHANNEL POWER MOSFET |
678 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
STI40N65M2MOSFET N-CH 650V 32A I2PAK |
1,622 |
|
Datasheet |
MDmesh™ M2 | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 32A (Tc) | 10V | 99mOhm @ 16A, 10V | 4V @ 250µA | 56.5 nC @ 10 V | ±25V | 2355 pF @ 100 V | - | 250W (Tc) | 150°C (TJ) | - | - | Through Hole | I2PAK |
|
|
SIHG16N50C-E3MOSFET N-CH 500V 16A TO247AC |
924 |
|
Datasheet |
- | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 16A (Tc) | 10V | 380mOhm @ 8A, 10V | 5V @ 250µA | 68 nC @ 10 V | ±30V | 1900 pF @ 25 V | - | 250W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AC |
|
|
IRF9133AUTOMOTIVE HEXFET P-CHANNEL POWE |
400 |
|
Datasheet |
- | TO-204AA, TO-3 | Bulk | Active | P-Channel | MOSFET (Metal Oxide) | 80 V | 10A | - | - | - | - | - | - | - | 88W | - | - | - | Through Hole | TO-204AA (TO-3) |
|
|
SST213 SOT-143 4L ROHSHIGH SPEED N-CHANNEL LATERAL DMO |
396 |
|
Datasheet |
SST213 | TO-253-4, TO-253AA | Cut Tape (CT) | Active | N-Channel | MOSFET (Metal Oxide) | 10 V | 50mA (Ta) | 5V, 25V | 50Ohm @ 1mA, 10V | 1.5V @ 1µA | - | +25V, -15V | - | - | 300mW (Ta) | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-143-4 |
|
|
MTY30N50EN-CHANNEL POWER MOSFET |
15,434 |
|
Datasheet |
- | TO-264-3, TO-264AA | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 30A | 10V | 150mOhm @ 15A, 10V | 4V @ 250µA | 350 nC @ 10 V | ±20V | 10080 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-264 |
|
PSMN3R3-80PS,127MOSFET N-CH 80V 120A TO220AB |
2,000 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 80 V | 120A (Tc) | 10V | 3.3mOhm @ 25A, 10V | 4V @ 1mA | 139 nC @ 10 V | ±20V | 9961 pF @ 40 V | - | 338W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
