FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SQD50N04-5M6L_GE3MOSFET N-CH 40V 50A TO252AA |
8,222 |
|
Datasheet |
TrenchFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 50A (Tc) | 4.5V, 10V | 5.6mOhm @ 20A, 10V | 2.5V @ 250µA | 75 nC @ 10 V | ±20V | 4000 pF @ 25 V | - | 71W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-252AA |
|
SQJA76EP-T1_BE3N-CHANNEL 40-V (D-S) 175C MOSFET |
5,984 |
|
Datasheet |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 75A (Tc) | 10V | 2.4mOhm @ 10A, 10V | 3.5V @ 250µA | 100 nC @ 10 V | ±20V | 5250 pF @ 25 V | - | 68W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® SO-8 |
|

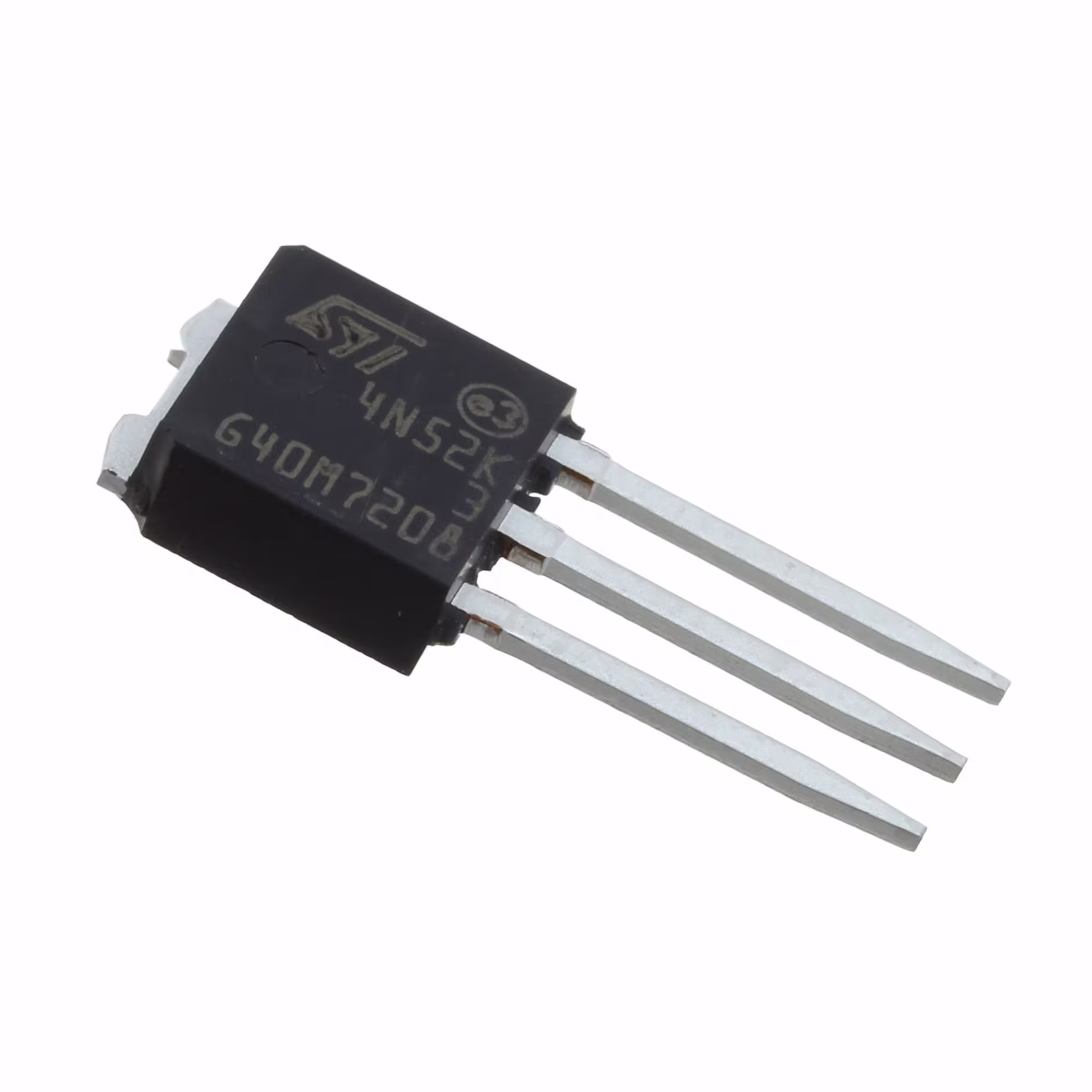

STU4N52K3MOSFET N-CH 525V 2.5A IPAK |
5,026 |
|
Datasheet |
SuperMESH3™ | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 525 V | 2.5A (Tc) | 10V | 2.6Ohm @ 1.25A, 10V | 4.5V @ 50µA | 11 nC @ 10 V | ±30V | 334 pF @ 100 V | - | 45W (Tc) | 150°C (TJ) | - | - | Through Hole | IPAK |
|
BSO130P03SHXUMA1MOSFET P-CH 30V 9.2A 8DSO |
4,742 |
|
Datasheet |
OptiMOS™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Last Time Buy | P-Channel | MOSFET (Metal Oxide) | 30 V | 9.2A (Ta) | 10V | 13mOhm @ 11.7A, 10V | 2.2V @ 140µA | 81 nC @ 10 V | ±25V | 3520 pF @ 25 V | - | 1.56W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-DSO-8 |
|
NTMFS4C10NBT1GMOSFET N-CH 30V 16.4A/46A 5DFN |
2,976 |
|
- |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 16.4A (Ta), 46A (Tc) | 4.5V, 10V | 6.95mOhm @ 30A, 10V | 2.2V @ 250µA | 18.6 nC @ 10 V | ±20V | 987 pF @ 15 V | - | 2.51W (Ta), 23.6W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|
FDP040N06MOSFET N-CH 60V 120A TO220-3 |
1,600 |
|
Datasheet |
PowerTrench® | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 120A (Tc) | 10V | 4mOhm @ 75A, 10V | 4.5V @ 250µA | 133 nC @ 10 V | ±20V | 8235 pF @ 25 V | - | 231W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
IRFIZ24NPBFMOSFET N-CH 55V 14A TO220AB FP |
660 |
|
Datasheet |
HEXFET® | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 14A (Tc) | 10V | 70mOhm @ 7.8A, 10V | 4V @ 250µA | 20 nC @ 10 V | ±20V | 370 pF @ 25 V | - | 29W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB Full-Pak |
|
FQA14N30MOSFET N-CH 300V 15A TO3P |
460 |
|
Datasheet |
QFET® | TO-3P-3, SC-65-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 300 V | 15A (Tc) | 10V | 290mOhm @ 7.5A, 10V | 5V @ 250µA | 40 nC @ 10 V | ±30V | 1360 pF @ 25 V | - | 160W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-3P |
|
IPI100N10S305AKSA1MOSFET N-CH 100V 100A TO262-3 |
9,916 |
|
Datasheet |
OptiMOS™ | TO-262-3 Long Leads, I2PAK, TO-262AA | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 100A (Tc) | 10V | 5.1mOhm @ 100A, 10V | 4V @ 240µA | 176 nC @ 10 V | ±20V | 11570 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | PG-TO262-3 |
|
SPW11N60S5N-CHANNEL POWER MOSFET |
28,018 |
|
Datasheet |
CoolMOS™ | TO-247-3 | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 11A (Tc) | 10V | 380mOhm @ 7A, 10V | 5.5V @ 500µA | 54 nC @ 10 V | ±20V | 1460 pF @ 25 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO247-3-21 |
|
FDD86569-F085MOSFET N-CH 60V 90A DPAK |
27,734 |
|
Datasheet |
PowerTrench® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 90A (Tc) | 10V | 5.7mOhm @ 80A, 10V | 4V @ 250µA | 52 nC @ 10 V | ±20V | 2520 pF @ 30 V | - | 150W (Tj) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-252AA |
|
NVD6495NLT4G-VF01MOSFET N-CH 100V 25A DPAK |
13,704 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 25A (Tc) | 4.5V, 10V | 50mOhm @ 10A, 10V | 2V @ 250µA | 35 nC @ 10 V | ±20V | 1024 pF @ 25 V | - | 83W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DPAK |
|
UPA2750GR(1)-E1-ASMALL SIGNAL N-CHANNEL MOSFET |
10,000 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SPW11N60CFDFKSA1MOSFET N-CH 650V 11A TO247-3 |
10,278 |
|
Datasheet |
CoolMOS™ | TO-247-3 | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 11A (Tc) | 10V | 440mOhm @ 7A, 10V | 5V @ 500µA | 64 nC @ 10 V | ±20V | 1200 pF @ 25 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO247-3-1 |
|
AUIRF3805MOSFET N-CH 55V 160A TO220 |
17,646 |
|
Datasheet |
HEXFET® | TO-220-3 | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 160A (Tc) | 10V | 3.3mOhm @ 75A, 10V | 4V @ 250µA | 290 nC @ 10 V | ±20V | 7960 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220 |
|
|
IRFF9222P-CHANNEL POWER MOSFET |
4,212 |
|
Datasheet |
- | TO-205AF Metal Can | Bulk | Active | P-Channel | MOSFET (Metal Oxide) | 200 V | 2A (Ta) | 10V | 2.4Ohm @ 1.5A, 10V | 4V @ 250µA | 22 nC @ 10 V | ±20V | 350 pF @ 25 V | - | 20W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-205AF (TO-39) |
|
RFP6N50N-CHANNEL POWER MOSFET |
3,586 |
|
Datasheet |
- | TO-220-3 | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 6A (Tc) | 10V | 1.25Ohm @ 3A, 10V | 4V @ 1mA | - | ±20V | 1500 pF @ 25 V | - | 75W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
|
NTMFS4C760NT1GMOSFET N-CH 30V 46A SO8FL |
3,000 |
|
- |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|
IPP65R190E6XKSA1MOSFET N-CH 650V 20.2A TO220-3 |
5,398 |
|
Datasheet |
CoolMOS™ | TO-220-3 | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 20.2A (Tc) | 10V | 190mOhm @ 7.3A, 10V | 3.5V @ 730µA | 73 nC @ 10 V | ±20V | 1620 pF @ 100 V | - | 151W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3 |
|
AUIRFSL3206AUTOMOTIVE HEXFET N CHANNEL |
500 |
|
Datasheet |
HEXFET® | TO-262-3 Long Leads, I2PAK, TO-262AA | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 120A (Tc) | - | 3mOhm @ 75A, 10V | 4V @ 150µA | 170 nC @ 10 V | - | 6540 pF @ 50 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-262 |
