FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IPB65R310CFDAATMA1MOSFET N-CH 650V 11.4A D2PAK |
4,806 |
|
Datasheet |
CoolMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 11.4A (Tc) | 10V | 310mOhm @ 4.4A, 10V | 4.5V @ 440µA | 41 nC @ 10 V | ±20V | 1110 pF @ 100 V | - | 104.2W (Tc) | -40°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PG-TO263-3 |
|
TSM60NE285CIT C0GMOSFET |
4,000 |
|
- |
- | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 9.5A (Tc) | 10V, 12V | 274mOhm @ 3.2A, 12V | 6V @ 1.4mA | 22 nC @ 10 V | ±30V | 894 pF @ 300 V | - | 56W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ITO-220TL |
|
SIHG20N50E-GE3MOSFET N-CH 500V 19A TO247AC |
970 |
|
Datasheet |
- | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 19A (Tc) | 10V | 184mOhm @ 10A, 10V | 4V @ 250µA | 92 nC @ 10 V | ±30V | 1640 pF @ 100 V | - | 179W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AC |
|
|
PJD65N04S-AU_L2_002A140V N-CHANNEL ENHANCEMENT MODE M |
6,000 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 26A (Ta), 167A (Tc) | 4.5V, 10V | 2.5mOhm @ 20A, 10V | 2.3V @ 50µA | 50 nC @ 10 V | ±20V | 3148 pF @ 25 V | - | 3W (Ta), 125W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-252AA |
|
NVMJS0D9N04CLTWGMOSFET N-CH 40V 50A/330A 8LFPAK |
5,974 |
|
Datasheet |
- | SOT-1205, 8-LFPAK56 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 50A (Ta), 330A (Tc) | 4.5V, 10V | 0.82mOhm @ 50A, 10V | 2V @ 190µA | 143 nC @ 10 V | ±20V | 8862 pF @ 25 V | - | 3.8W (Ta), 167W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-LFPAK |
|
|
DMT30M9LPS-13MOSFET BVDSS: 25V-30V POWERDI506 |
4,980 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 100A (Tc) | 4.5V, 10V | 1mOhm @ 25A, 10V | 3V @ 250µA | 160.5 nC @ 10 V | ±20V | 12121 pF @ 20 V | - | 2.6W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerDI5060-8 (Type K) |
|
|
NVMFWS0D7N04XMT1G40V T10M IN S08FL PACKAGE |
2,510 |
|
Datasheet |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 331A (Tc) | 10V | 0.7mOhm @ 50A, 10V | 3.5V @ 180µA | 74.5 nC @ 10 V | ±20V | 4657 pF @ 25 V | - | 134W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount, Wettable Flank | 5-DFNW (4.9x5.9) (8-SOFL-WF) |
|
|
CDMSJ22013.8-650 SLSUPER JUNCTION MOSFETS |
986 |
|
Datasheet |
- | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 13.8A (Tc) | 10V | 280mOhm @ 4.4A, 10V | 4V @ 250µA | 30 nC @ 10 V | 30V | 1040 pF @ 400 V | - | 35.7W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220FP |
|
|
IPW65R420CFDFKSA2MOSFET N-CH 650V 8.7A TO247-3 |
240 |
|
Datasheet |
CoolMOS™ CFD2 | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 8.7A (Tc) | 10V | 420mOhm @ 3.4A, 10V | 4.5V @ 300µA | 31.5 nC @ 10 V | ±20V | 870 pF @ 100 V | - | 83.3W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO247-3-41 |
|

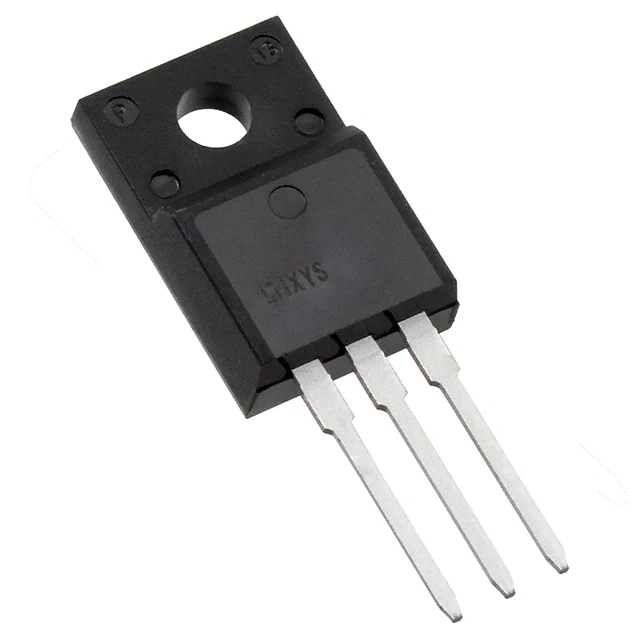

IXFP30N25X3MMOSFET N-CH 250V 30A TO220 |
524 |
|
Datasheet |
HiPerFET™, Ultra X3 | TO-220-3 Full Pack, Isolated Tab | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 30A (Tc) | 10V | 60mOhm @ 15A, 10V | 4.5V @ 500µA | 21 nC @ 10 V | ±20V | 1450 pF @ 25 V | - | 36W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 Isolated Tab |
|
|
TSM60NC165CI C0G600V, 24A, SINGLE N-CHANNEL POWE |
7,978 |
|
Datasheet |
- | TO-220-3 Full Pack, Isolated Tab | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 24A (Tc) | 10V | 165mOhm @ 11.3A, 10V | 5V @ 1mA | 44 nC @ 10 V | ±30V | 1857 pF @ 300 V | - | 89W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ITO-220 |
|
SUM40012EL-GE3MOSFET N-CH 40V 150A TO263 |
4,868 |
|
Datasheet |
TrenchFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 150A (Tc) | 4.5V, 10V | 1.67mOhm @ 30A, 10V | 2.5V @ 250µA | 195 nC @ 10 V | ±20V | 10930 pF @ 20 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
R6010YNX3C16600V 10A TO-220AB, HIGH-SPEED SW |
2,000 |
|
Datasheet |
- | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 10A (Tc) | 10V, 12V | 390mOhm @ 4.2A, 12V | 6V @ 1.2mA | 15 nC @ 10 V | ±30V | 600 pF @ 100 V | - | 92W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
IPB60R210CFD7ATMA1MOSFET N-CH 600V 12A TO263-3 |
1,980 |
|
Datasheet |
CoolMOS™ CFD7 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 12A (Tc) | 10V | 210mOhm @ 4.9A, 10V | 4.5V @ 250µA | 23 nC @ 10 V | ±20V | 1015 pF @ 400 V | - | 64W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO263-3-2 |
|
|
TK9R7A15Q5,S4X150V UMOS10-HSD TO-220SIS 9.7MOH |
776 |
|
Datasheet |
U-MOSX-H | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 49A (Tc) | 8V, 10V | 9.7mOhm @ 24.5A, 10V | 4.5V @ 1.1mA | 50 nC @ 10 V | ±20V | 3690 pF @ 75 V | - | 45W (Tc) | 175°C | - | - | Through Hole | TO-220SIS |
|
|
IQE022N06LM5SCATMA1OPTIMOS 5 POWER-TRANSISTOR 60V |
11,736 |
|
Datasheet |
OptiMOS™ 5 | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 24A (Ta), 151A (Tc) | 4.5V, 10V | 2.2mOhm @ 20A, 10V | 2.3V @ 48µA | 53 nC @ 10 V | ±20V | 4420 pF @ 30 V | - | 2.5W (Ta), 100W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-WHSON-8-1 |
|
|
IQE022N06LM5CGSCATMA1OPTIMOS 5 POWER-TRANSISTOR 60V |
9,302 |
|
Datasheet |
OptiMOS™ 5 | 9-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 24A (Ta), 151A (Tc) | 4.5V, 10V | 2.2mOhm @ 20A, 10V | 2.3V @ 48µA | 53 nC @ 10 V | ±20V | 4420 pF @ 30 V | - | 2.5W (Ta), 100W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-WHTFN-9 |
|
|
PJQ5590-AU_R2_002A1150V N-CHANNEL ENHANCEMENT MODE |
6,000 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
IPP034N08N5AKSA1MOSFET N-CH 80V 120A TO220-3 |
1,828 |
|
Datasheet |
OptiMOS™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 120A (Tc) | 6V, 10V | 3.4mOhm @ 100A, 10V | 3.8V @ 108µA | 87 nC @ 10 V | ±20V | 6240 pF @ 40 V | - | 167W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | PG-TO220-3 |
|
|
MCAC160N06Y-TPMOSFET N-CH 60 160A DFN5060 |
10,000 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 160A (Tc) | 6V, 10V | 2.5mOhm @ 20A, 10V | 4V @ 250µA | 64 nC @ 10 V | ±20V | 3586 pF @ 20 V | - | 150W (Tj) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DFN5060 |
