FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SQA407CEJW-T1_GE3AUTOMOTIVE P-CHANNEL 20 V (D-S) |
11,776 |
|
Datasheet |
TrenchFET® | PowerPAK® SC-70-6 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 9A (Tc) | 2.5V, 4.5V | 25mOhm @ 4.5A, 4.5V | 1.3V @ 250µA | 24 nC @ 4.5 V | ±12V | 2100 pF @ 10 V | - | 13.6W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | PowerPAK®SC-70W-6 |
|
DMP2039UFDE4-7MOSFET P-CH 25V 7.3A 6DFN |
5,870 |
|
Datasheet |
- | 6-PowerXDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 25 V | 7.3A (Ta) | 1.8V, 4.5V | 26mOhm @ 6.4A, 4.5V | 1V @ 250µA | 28.2 nC @ 4.5 V | ±8V | 2530 pF @ 15 V | - | 690mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | X2-DFN2020-6 |
|
DMG7401SFG-13MOSFET P-CH 30V 9.8A PWRDI3333-8 |
2,830 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 9.8A (Ta) | 4.5V, 20V | 11mOhm @ 12A, 20V | 3V @ 250µA | 58 nC @ 10 V | ±25V | 2987 pF @ 15 V | - | 940mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | POWERDI3333-8 |
|
|
NTTFS5C680NLTAGMOSFET N-CH 60V 7.82A/20A 8WDFN |
2,660 |
|
Datasheet |
- | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 7.82A (Ta), 20A (Tc) | 4.5V, 10V | 26.5mOhm @ 10A, 10V | 2.2V @ 13µA | 6 nC @ 10 V | ±20V | 327 pF @ 25 V | - | 3W (Ta), 20W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-WDFN (3.3x3.3) |
|
PJQ4404P_R2_0000130V N-CHANNEL ENHANCEMENT MODE M |
9,996 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 15A (Ta), 60A (Tc) | 4.5V, 10V | 6mOhm @ 10A, 10V | 2.5V @ 250µA | 12 nC @ 4.5 V | ±20V | 1323 pF @ 25 V | - | 2W (Ta), 31W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN3333-8 |
|
|
PJQ4448P-AU_R2_000A140V N-CHANNEL ENHANCEMENT MODE M |
9,580 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 10A (Ta), 42A (Tc) | 4.5V, 10V | 11mOhm @ 8A, 10V | 2.5V @ 250µA | 10 nC @ 4.5 V | ±20V | 1040 pF @ 20 V | - | 2.4W (Ta), 42W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DFN3333-8 |
|
RQ5E030RPTLMOSFET P-CH 30V 3A TSMT3 |
5,800 |
|
Datasheet |
- | SC-96 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 3A (Ta) | 4V, 10V | 75mOhm @ 3A, 10V | 2.5V @ 1mA | 5.2 nC @ 5 V | ±20V | 480 pF @ 10 V | - | 700mW (Ta) | 150°C (TJ) | - | - | Surface Mount | TSMT3 |
|
PJL9414_R2_0000130V N-CHANNEL ENHANCEMENT MODE M |
4,634 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 15A (Ta) | 4.5V, 10V | 6mOhm @ 10A, 10V | 2.5V @ 250µA | 12 nC @ 4.5 V | ±20V | 1323 pF @ 25 V | - | 1.7W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
SIAA02DJ-T1-GE3MOSFET N-CH 20V 22A/52A PPAK |
14,360 |
|
Datasheet |
TrenchFET® Gen IV | PowerPAK® SC-70-6 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 22A (Ta), 52A (Tc) | 2.5V, 10V | 4.7mOhm @ 8A, 10V | 1.6V @ 250µA | 33 nC @ 10 V | +12V, -8V | 1250 pF @ 10 V | - | 3.5W (Ta), 19W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SC-70-6 |
|
|
ACMSP3415-HFMOSFET P-CH 20V 4A SOT23-3 |
5,744 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 4A (Ta) | 1.8V, 4.5V | 50mOhm @ 4A, 4.5V | 1V @ 250µA | 11 nC @ 4.5 V | ±10V | 1600 pF @ 10 V | - | 1.4W (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
DMN4036LK3-13MOSFET N-CH 40V 8.5A TO252-3 |
3,604 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 8.5A (Ta) | 4.5V, 10V | 36mOhm @ 12A, 10V | 3V @ 250µA | 9.2 nC @ 10 V | ±20V | 453 pF @ 20 V | - | 2.12W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252-3 |
|
NTLUS030N03CTAGMOSFET N-CH 30V 4.5A 6UDFN |
3,776 |
|
Datasheet |
µCool™ | 6-PowerUFDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 4.5A (Ta) | 4.5V, 10V | 18mOhm @ 6A, 10V | 2.2V @ 250µA | 8 nC @ 10 V | ±20V | 400 pF @ 15 V | - | 640mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-UDFN (1.6x1.6) |
|
TSM4NB60CH C5GMOSFET N-CH 600V 4A TO251 |
28,632 |
|
Datasheet |
- | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 4A (Tc) | 10V | 2.5Ohm @ 2A, 10V | 4.5V @ 250µA | 14.5 nC @ 10 V | ±30V | 500 pF @ 25 V | - | 50W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-251 (IPAK) |
|

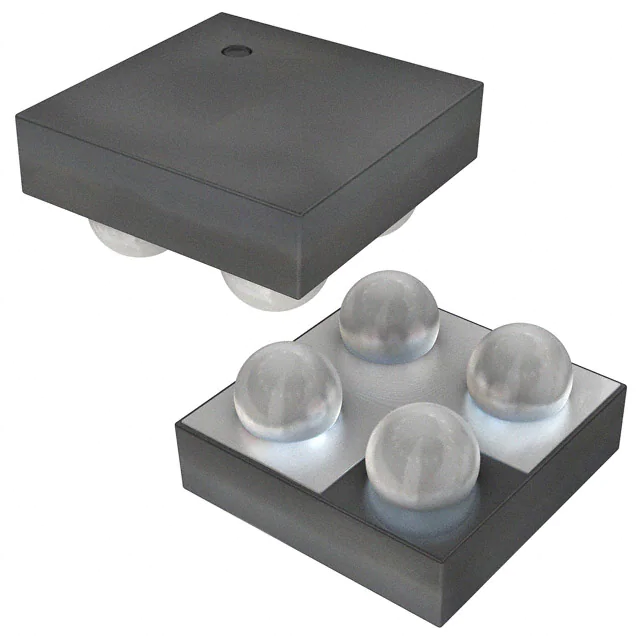

SI8424CDB-T1-E1MOSFET N-CH 8V 4MICROFOOT |
3,960 |
|
Datasheet |
TrenchFET® | 4-UFBGA, WLCSP | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 8 V | 6.3A (Ta) | 1.2V, 4.5V | 20mOhm @ 2A, 4.5V | 800mV @ 250µA | 40 nC @ 4.5 V | ±5V | 2340 pF @ 4 V | - | 1.1W (Ta), 2.7W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 4-Microfoot |
|
SQA446CEJW-T1_GE3AUTOMOTIVE N-CHANNEL 20 V (D-S) |
77,426 |
|
Datasheet |
TrenchFET® | 6-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 9A (Tc) | 2.5V, 4.5V | 17.5mOhm @ 4.5A, 4.5V | 1.3V @ 250µA | 10 nC @ 4.5 V | ±12V | 910 pF @ 10 V | - | 13.6W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | PowerPAK®SC-70W-6 |
|
RF6E045AJTCRMOSFET N-CHANNEL 30V 4.5A TUMT6 |
9,096 |
|
Datasheet |
- | 6-SMD, Flat Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 4.5A (Ta) | 4.5V | 23.7mOhm @ 4.5A, 4.5V | 1.5V @ 1mA | 8.1 nC @ 4.5 V | ±12V | 900 pF @ 15 V | - | 1W (Tc) | 150°C (TJ) | - | - | Surface Mount | TUMT6 |
|
PSMN013-30YLC,115MOSFET N-CH 30V 32A LFPAK56 |
8,876 |
|
Datasheet |
- | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 32A (Tc) | 10V | 13.6mOhm @ 10A, 10V | 1.95V @ 1mA | 8.3 nC @ 10 V | ±20V | 521 pF @ 15 V | - | 26W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK56, Power-SO8 |
|
DMP2066LSS-13MOSFET P-CH 20V 6.5A 8SOP |
7,452 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 6.5A (Ta) | 2.5V, 4.5V | 40mOhm @ 5.8A, 4.5V | 1.2V @ 250µA | - | ±12V | 820 pF @ 15 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
RQ5C025TPTLMOSFET P-CH 20V 2.5A TSMT3 |
5,980 |
|
Datasheet |
- | SC-96 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.5A (Ta) | 2.5V, 4.5V | 95mOhm @ 2.5A, 4.5V | 2V @ 1mA | 7 nC @ 4.5 V | ±12V | 630 pF @ 10 V | - | 700mW (Ta) | 150°C (TJ) | - | - | Surface Mount | TSMT3 |
|
|
RQ5E025SPTLMOSFET P-CH 30V 2.5A TSMT3 |
5,966 |
|
Datasheet |
- | SC-96 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 2.5A (Ta) | 4V, 10V | 98mOhm @ 2.5A, 10V | 2.5V @ 1mA | 5.4 nC @ 5 V | ±20V | 460 pF @ 10 V | - | 700mW (Ta) | 150°C (TJ) | - | - | Surface Mount | TSMT3 |
