FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FDS6930AMOSFET 2N-CH 30V 5.5A 8SOIC |
8,620 |
|
Datasheet |
PowerTrench® | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 30V | 5.5A | 40mOhm @ 5.5A, 10V | 3V @ 250µA | 7nC @ 5V | 460pF @ 15V | 900mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
ECH8604-TL-EMOSFET N-CH |
6,000 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FW4604-TL-2WXNCH+PCH 4.5V DRIVE SERIES |
640,000 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
UPA602T-T1-AMOSFET 2N-CH 50V 0.1A SC-59 |
30,000 |
|
Datasheet |
- | SC-59-6 | Bulk | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 50V | 100mA | 25Ohm @ 10mA, 10V | 1.8V @ 1µA | - | 16pF @ 5V | 300mW | 150°C (TJ) | - | - | Surface Mount | SC-59 |
|
GT060N04D52MOSFET 2N-CH 40V 62A 8DFN |
10,000 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel | - | 40V | 62A (Tc) | 6.5mOhm @ 30A, 10V | 2.3V @ 250µA | 44nC @ 10V | 1276pF @ 20V | 20W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN (4.9x5.75) |
|
|
GSFK0501MOSFET 50V 0.13A SOT363 |
6,000 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | - | - | 50V | 130mA (Ta) | 10Ohm @ 100mA, 5V | 2V @ 1mA | - | 56pF @ 20V | 300mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-363 |
|
|
GSFK0300MOSFET 2N-CH 30V 0.8A SOT363 |
4,824 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Cut Tape (CT) | Active | MOSFET (Metal Oxide) | 2 N-Channel | - | 30V | 800mA (Tc) | 450mOhm @ 300mA, 4.5V | 1.2V @ 250µA | 5.2nC @ 4.5V | 146pF @ 15V | 275mW (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-363 |
|
FDW2511NZMOSFET 2N-CH 20V 7.1A 8TSSOP |
697,172 |
|
Datasheet |
PowerTrench® | 8-TSSOP (0.173", 4.40mm Width) | Bulk | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Common Drain | Logic Level Gate | 20V | 7.1A | 20mOhm @ 7.1A, 4.5V | 1.5V @ 250µA | 17.3nC @ 4.5V | 1000pF @ 10V | 1.6W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-TSSOP |
|

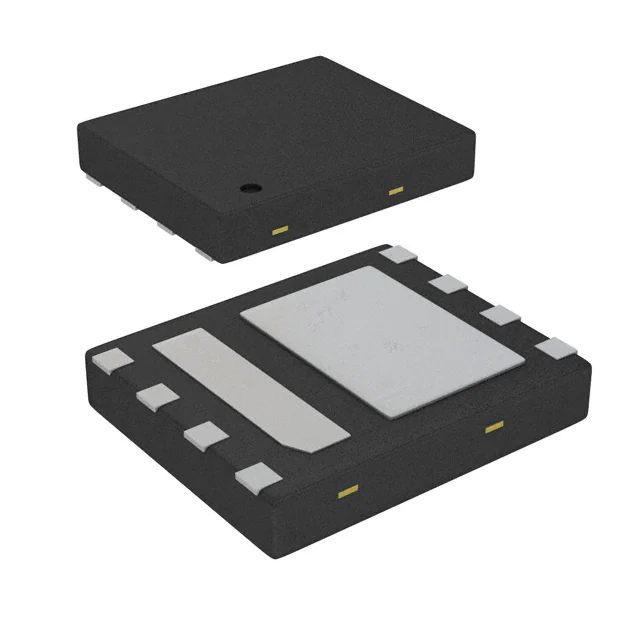

FDMS9620SMOSFET 2N-CH 30V 7.5A/10A 8MLP |
15,928 |
|
Datasheet |
PowerTrench® | 8-PowerWDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 30V | 7.5A, 10A | 21.5mOhm @ 7.5A, 10V | 3V @ 250µA | 14nC @ 10V | 665pF @ 15V | 1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-MLP (5x6), Power56 |
|
|
ECH8667-TL-HX-SAMOSFET P-CH |
78,000 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ECH8617-TL-EPCH+PCH 4V DRIVE SERIES |
12,000 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GSFQ4953MOSFET 2P-CH 30V 5.4A 8SOP |
11,780 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 P-Channel | - | 30V | 5.4A (Ta) | 58mOhm @ 5.3A, 10V | 2.5V @ 250µA | 13nC @ 10V | 514pF @ 15V | 2W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
CSD75204W15MOSFET 2P-CH 3A 9DSBGA |
8,816 |
|
Datasheet |
NexFET™ | 9-UFBGA, DSBGA | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate | - | 3A | - | 900mV @ 250µA | 3.9nC @ 4.5V | 410pF @ 10V | 700mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 9-DSBGA |
|
|
G300C03L6MOSFET N/P-CH 30V 5.6A SOT23-6L |
6,020 |
|
Datasheet |
- | SOT-23-6 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | N and P-Channel | - | 30V | 5.6A, 4.2A (Tc) | 27mOhm @ 3A, 10V, 55mOhm @ 3A, 10V | 1.3V @ 250µA | 16nC @ 10 V, 8.5 nC @ 4.5 V | 547pF @ 15 V, 693pF @ -15 V | 1.4W (Ta), 500mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-6L Dual |
|
ECH8649-TL-HMOSFET 2N-CH 20V 7.5A 8ECH |
8,300 |
|
- |
- | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 20V | 7.5A | 17mOhm @ 4A, 4.5V | - | 10.8nC @ 4.5V | 1060pF @ 10V | 1.5W | 150°C (TJ) | - | - | Surface Mount | 8-ECH |
|
|
ECH8667-TL-HXMOSFET 2P-CH 30V 5.5A 8ECH |
11,052 |
|
- |
- | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 8-ECH |
|
FDZ1905PZMOSFET 2P-CH 6WLCSP |
5,400 |
|
Datasheet |
PowerTrench® | 6-UFBGA, WLCSP | Bulk | Active | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate | - | - | 126mOhm @ 1A, 4.5V | 1V @ 250µA | - | - | 900mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-WLCSP (1x1.5) |
|
IRFR1109AMOSFET 100V 4.7A |
5,000 |
|
Datasheet |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ECH8653-S-TL-HMOSFET 2N-CH 20V 7.5A ECH8 |
180,000 |
|
- |
- | 8-SMD, Flat Leads | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 8-ECH |
|
|
UPA611TA-T1-AMOSFET 2N-CH 30V 0.1A SC-74 |
33,406 |
|
Datasheet |
- | SC-74, SOT-457 | Bulk | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 30V | 100mA | 5Ohm @ 10mA, 10V | - | - | 9pF @ 3V | 300mW | 150°C (TJ) | - | - | Surface Mount | SC-74-6, (Mini Mold) |
