FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BUK9K35-60RAXMOSFET 2N-CH 60V 22A LFPAK56D |
5,042 |
|
Datasheet |
- | SOT-1205, 8-LFPAK56 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 60V | 22A (Ta) | 32mOhm @ 5A, 10V | 2.1V @ 1mA | 7.8nC @ 5V | 1081pF @ 25V | 38W (Ta) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK56D |
|
SIZ926DT-T1-GE3MOSFET 2N-CH 25V 40A 8POWERPAIR |
5,000 |
|
Datasheet |
TrenchFET® Gen IV | 8-PowerWDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 25V | 40A (Tc), 60A (Tc) | 4.8mOhm @ 5A, 10V, 2.2mOhm @ 8A, 10V | 2.2V @ 250µA | 19nC @ 10V, 41nC @ 10V | 925pF @ 10V, 2150pF @ 10V | 20.2W, 40W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PowerPair® (6x5) |
|
SQJB60EP-T1_BE3MOSFET 2N-CH 60V 30A PPAK SO8 |
8,860 |
|
Datasheet |
TrenchFET® | PowerPAK® SO-8 Dual | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 60V | 30A (Tc) | 12mOhm @ 10A, 10V | 2.5V @ 250µA | 30nC @ 10V | 1600pF @ 25V | 48W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® SO-8 Dual Asymmetric |
|
SIZ256DT-T1-GE3MOSFET 2N-CH 70V 11.5A 8PWRPAIR |
6,000 |
|
Datasheet |
TrenchFET® Gen IV | 8-PowerWDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 70V | 11.5A (Ta), 31.8A (Tc) | 17.6mOhm @ 7A, 4.5V | 1.5V @ 250µA | 27nC @ 10V | 1060pF @ 35V | 4.3W (Ta), 33W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PowerPair® (3.3x3.3) |
|

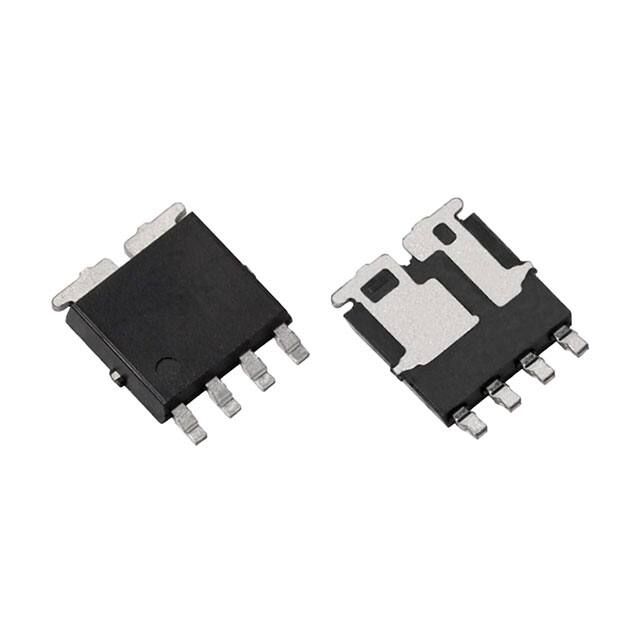

SQJ202EP-T2_GE3MOSFET 2N-CH 12V 20A PPAK SO8 |
18,000 |
|
Datasheet |
TrenchFET® | PowerPAK® SO-8 Dual | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 12V | 20A (Tc), 60A (Tc) | 6.5mOhm @ 15A, 10V, 3.3mOhm @ 20A, 10V | 2V @ 250µA | 22nC @ 10V, 54nC @ 10V | 975pF @ 6V, 2525pF @ 6V | 27W (Tc), 48W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® SO-8 Dual Asymmetric |
|
TQM150NB04DCR RLGMOSFET 2N-CH 40V 9A 8PDFNU |
3,340 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 40V | 9A (Ta), 39A (Tc) | 15mOhm @ 9A, 10V | 4V @ 250µA | 18nC @ 10V | 1135pF @ 20V | 2.4W (Ta), 48W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount, Wettable Flank | 8-PDFNU (5x6) |
|
IPG20N06S2L35ATMA1MOSFET 2N-CH 55V 20A 8TDSON |
28,880 |
|
Datasheet |
OptiMOS™ | 8-PowerVDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 55V | 20A | 35mOhm @ 15A, 10V | 2V @ 27µA | 23nC @ 10V | 790pF @ 25V | 65W | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PG-TDSON-8-4 |
|
NTMFD020N06CT1GMOSFET 2N-CH 60V 8A 8DFN |
2,540 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 60V | 8A (Ta), 27A (Tc) | 20.3mOhm @ 4A, 10V | 4V @ 20µA | 5.8nC @ 10V | 355pF @ 30V | 3.1W (Ta), 31W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-DFN (5x6) Dual Flag (SO8FL-Dual) |
|
|
NTMFD2D4N03P8MOSFET 2N-CH 30V 17A 8PQFN |
18,000 |
|
Datasheet |
- | 8-PowerWDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Asymmetrical | - | 30V | 17A (Ta), 56A (Tc), 25A (Ta), 84A (Tc) | 5mOhm @ 17A, 10V, 2.4mOhm @ 25A, 10V | 3V @ 250µA, 3V @ 1mA | 24nC @ 10V, 55nC @ 10V | 1715pF @ 15V, 3825pF @ 15V | 1W (Ta), 23W (Tc), 1.1W (Ta), 25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PQFN (5x6) |
|
SIRB40DP-T1-GE3MOSFET 2N-CH 40V 40A PPAK SO8 |
18,000 |
|
Datasheet |
TrenchFET® | PowerPAK® SO-8 Dual | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 40V | 40A (Tc) | 3.25mOhm @ 10A, 10V | 2.4V @ 250µA | 45nC @ 4.5V | 4290pF @ 20V | 46.2W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 Dual |
|
SQJ990EP-T1_GE3MOSFET 2N-CH 100V 34A PPAK SO8 |
17,950 |
|
Datasheet |
TrenchFET® | PowerPAK® SO-8 Dual | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 100V | 34A (Tc) | 40mOhm @ 6A, 10V, 19mOhm @ 10A, 10V | 2.5V @ 250µA | 30nC @ 10V, 15nC @ 10V | 1390pF @ 25V, 650pF @ 25V | 48W | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® SO-8 Dual Asymmetric |
|
PSMN013-40VLDXMOSFET 2N-CH 40V 42A LFPAK56D |
11,866 |
|
Datasheet |
- | SOT-1205, 8-LFPAK56 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 40V | 42A (Ta) | 13.6mOhm @ 10A, 10V | 2.2V @ 1mA | 19.4nC @ 10V | 1160pF @ 25V | 46W (Ta) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK56D |
|
|
TQM250NB06DCR RLGMOSFET 2N-CH 60V 6A 8PDFNU |
14,790 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 60V | 6A (Ta), 30A (Tc) | 25mOhm @ 6A, 10V | 3.8V @ 250µA | 24nC @ 10V | 1398pF @ 30V | 2.5W (Ta), 58W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | 8-PDFNU (5x6) |
|
IPG20N06S2L35AATMA1MOSFET 2N-CH 55V 20A 8TDSON |
29,400 |
|
Datasheet |
OptiMOS™ | 8-PowerVDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 55V | 20A (Tc) | 35mOhm @ 15A, 10V | 2V @ 27µA | 23nC @ 10V | 790pF @ 25V | 65W | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | PG-TDSON-8-10 |
|
|
IPG20N10S4L35AATMA1MOSFET 2N-CH 100V 20A 8TDSON |
6,190 |
|
Datasheet |
OptiMOS™ | 8-PowerVDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 100V | 20A | 35mOhm @ 17A, 10V | 2.1V @ 16µA | 17.4nC @ 10V | 1105pF @ 25V | 43W | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | PG-TDSON-8-10 |
|
|
BUK9K13-40HXMOSFET 2N-CH 40V 42A LFPAK56D |
5,930 |
|
Datasheet |
TrenchMOS™ | SOT-1205, 8-LFPAK56 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 40V | 42A (Ta) | 13.6mOhm @ 10A, 10V | 2.2V @ 1mA | 19.4nC @ 10V | 1160pF @ 25V | 46W (Ta) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK56D |
|
SH8KA2GZETBMOSFET 2N-CH 30V 8A 8SOP |
5,006 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Not For New Designs | - | 2 N-Channel (Dual) | - | 30V | 8A | 28mOhm @ 8A, 10V | 2.5V @ 1mA | 8nC @ 10V | 330pF @ 15V | 2.8W | 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
CSD87384MTMOSFET 2N-CH 30V 30A 5PTAB |
1,614 |
|
Datasheet |
NexFET™ | 5-LGA | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | Logic Level Gate | 30V | 30A | 7.7mOhm @ 25A, 8V | 1.9V @ 250µA | 9.2nC @ 4.5V | 1150pF @ 15V | 8W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 5-PTAB (5x3.5) |
|
CSD87351Q5DMOSFET 2N-CH 30V 32A 8LSON |
23,322 |
|
Datasheet |
NexFET™ | 8-PowerLDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 30V | 32A | 7.6mOhm @ 20A, 8V | 2.1V @ 250µA | 7.7nC @ 4.5V | 1255pF @ 15V | 12W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-LSON (5x6) |
|
|
SQJ940EP-T1_GE3MOSFET 2N-CH 40V 15A PPAK SO8 |
16,698 |
|
Datasheet |
TrenchFET® | PowerPAK® SO-8 Dual | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 40V | 15A (Ta), 18A (Tc) | 16mOhm @ 15A, 10V | 2.5V @ 250µA | 20nC @ 20V | 896pF @ 20V | 48W, 43W | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® SO-8 Dual Asymmetric |
