FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SH8K39GZETBMOSFET 2N-CH 60V 8A 8SOP |
4,848 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Not For New Designs | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 60V | 8A (Ta) | 21mOhm @ 8A, 10V | 2.7V @ 200µA | 25nC @ 10V | 1240pF @ 30V | 1.4W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
CSD86330Q3DMOSFET 2N-CH 25V 20A 8LSON |
40,906 |
|
Datasheet |
NexFET™ | 8-PowerLDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | Logic Level Gate | 25V | 20A | 9.6mOhm @ 14A, 8V | 2.1V @ 250µA | 6.2nC @ 4.5V | 920pF @ 12.5V | 6W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-LSON (3.3x3.3) |
|
STL66DN3LLH5MOSFET 2N-CH 30V 78.5A POWERFLAT |
3,890 |
|
Datasheet |
STripFET™ V | 8-PowerVDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 30V | 78.5A | 6.5mOhm @ 10A, 10V | 3V @ 250µA | 12nC @ 4.5V | 1500pF @ 25V | 72W | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerFlat™ (5x6) |
|
SI4904DY-T1-GE3MOSFET 2N-CH 40V 8A 8SOIC |
8,532 |
|
Datasheet |
TrenchFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Last Time Buy | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 40V | 8A | 16mOhm @ 5A, 10V | 2V @ 250µA | 85nC @ 10V | 2390pF @ 20V | 3.25W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
AOE6930MOSFET 2N-CH 30V 22A 8DFN |
4,162 |
|
Datasheet |
AlphaMOS | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Asymmetrical | - | 30V | 22A (Tc), 85A (Tc) | 4.3mOhm @ 20A, 10V, 0.83mOhm @ 30A, 10V | 2.1V @ 250µA, 1.9V @ 250µA | 15nC @ 4.5V, 65nC @ 4.5V | 1075pF @ 15V, 5560pF @ 15V | 24W, 75W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN (5x6) |
|
SH8JB5TB1MOSFET 2P-CH 40V 8.5A 8SOP |
22,818 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | - | 40V | 8.5A (Ta) | 15.3mOhm @ 8.5A, 10V | 2.5V @ 1mA | 51nC @ 10V | 2870pF @ 20V | 1.4W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
|
SH8JC5TB1MOSFET 2P-CH 60V 7.5A 8SOP |
9,536 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | - | 60V | 7.5A (Ta) | 32mOhm @ 7.5A, 10V | 2.5V @ 1mA | 50nC @ 10V | 2630pF @ 30V | 1.4W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|

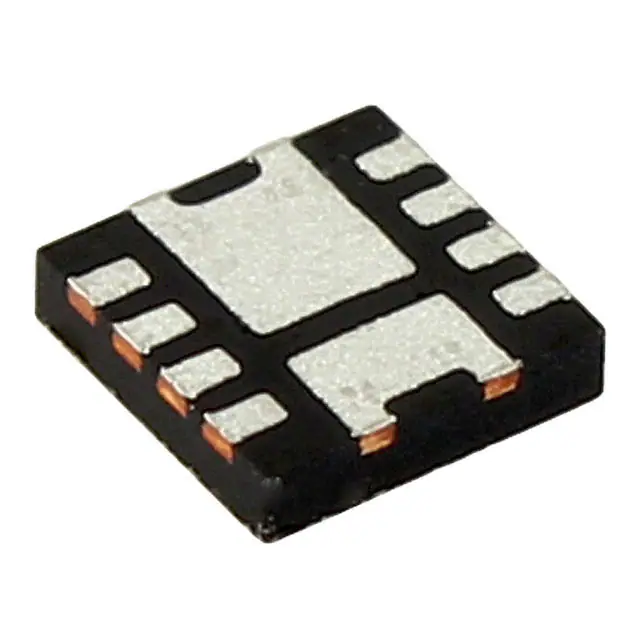

FDPC8013SMOSFET 2N-CH 30V 13A PWRCLIP-33 |
2,524 |
|
Datasheet |
PowerTrench® | 8-PowerWDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 30V | 13A, 26A | 6.4mOhm @ 13A, 10V | 3V @ 250µA | 13nC @ 10V | 827pF @ 15V | 800mW, 900mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | Powerclip-33 |
|

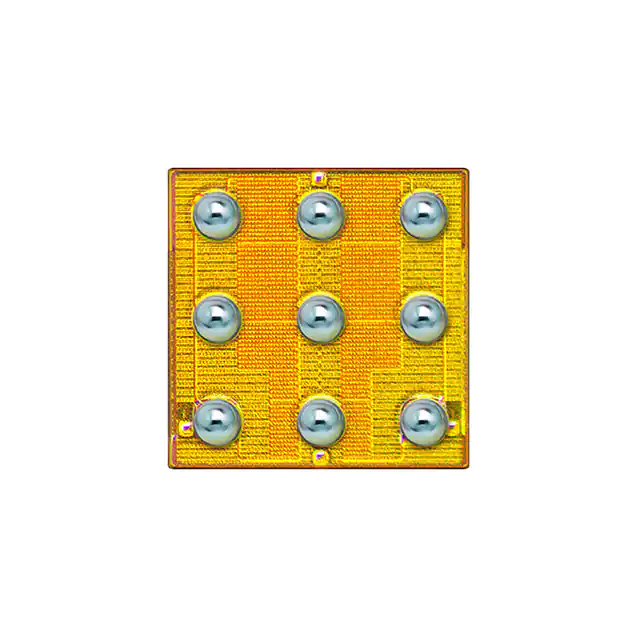

EPC2110MOSFET 2N-CH 120V 3.4A DIE |
24,608 |
|
Datasheet |
eGaN® | Die | Tape & Reel (TR) | Active | GaNFET (Gallium Nitride) | 2 N-Channel (Dual) Common Source | - | 120V | 3.4A | 60mOhm @ 4A, 5V | 2.5V @ 700µA | 0.8nC @ 5V | 80pF @ 60V | - | -40°C ~ 150°C (TJ) | - | - | - | Die |
|
IRFI4019H-117PXKMA1MOSFET 2N-CH 150V 8.7A TO220-5 |
726 |
|
Datasheet |
- | TO-220-5 Full Pack, Formed Leads | Tube | Last Time Buy | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 150V | 8.7A (Tc) | 95mOhm @ 5.2A, 10V | 4.9V @ 50µA | 20nC @ 10V | 810pF @ 25V | 18W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-5 Full-Pak |
|
IRFH4253DTRPBFMOSFET 2N-CH 25V 64A/145A PQFN |
9,374 |
|
Datasheet |
HEXFET® | 8-PowerVDFN | Tape & Reel (TR) | Not For New Designs | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 25V | 64A, 145A | 3.2mOhm @ 30A, 10V | 2.1V @ 35µA | 15nC @ 4.5V | 1314pF @ 13V | 31W, 50W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PQFN (5x6) |
|
NVMFD6H840NLT1GMOSFET 2N-CH 80V 14A 8DFN |
3,004 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 80V | 14A (Ta), 74A (Tc) | 6.9mOhm @ 20A, 10V | 2V @ 96µA | 32nC @ 10V | 2002pF @ 40V | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-DFN (5x6) Dual Flag (SO8FL-Dual) |
|
SQJQ910EL-T1_GE3MOSFET 2N-CH 100V 70A PPAK8X8 |
11,596 |
|
Datasheet |
TrenchFET® | PowerPAK® 8 x 8 Dual | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 100V | 70A (Tc) | 8.6mOhm @ 10A, 10V | 2.5V @ 250µA | 58nC @ 10V | 2832pF @ 50V | 187W | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® 8 x 8 Dual |
|
EPC2221MOSFET 2N-CH 100V 5A DIE |
8,126 |
|
Datasheet |
- | Die | Tape & Reel (TR) | Active | GaNFET (Gallium Nitride) | 2 N-Channel (Dual) Common Source | - | 100V | 5A | - | - | - | - | - | 150°C (TJ) | - | - | Surface Mount | Die |
|
|
IRFI4020H-117PXKMA1MOSFET 2N-CH 200V 9.1A TO220-5 |
1,536 |
|
Datasheet |
- | TO-220-5 Full Pack, Formed Leads | Tube | Last Time Buy | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 200V | 9.1A (Tc) | 100mOhm @ 5.5A, 10V | 4.9V @ 100µA | 29nC @ 10V | 1240pF @ 25V | 21W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-5 Full-Pak |
|
SI7942DP-T1-GE3MOSFET 2N-CH 100V 3.8A PPAK SO8 |
9,842 |
|
Datasheet |
TrenchFET® | PowerPAK® SO-8 Dual | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 100V | 3.8A | 49mOhm @ 5.9A, 10V | 4V @ 250µA | 24nC @ 10V | - | 1.4W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 Dual |
|
|
SI7942DP-T1-E3MOSFET 2N-CH 100V 3.8A PPAK SO8 |
5,874 |
|
Datasheet |
TrenchFET® | PowerPAK® SO-8 Dual | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 100V | 3.8A | 49mOhm @ 5.9A, 10V | 4V @ 250µA | 24nC @ 10V | - | 1.4W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 Dual |
|
FDMQ8403MOSFET 4N-CH 100V 3.1A 12MLP |
29,778 |
|
Datasheet |
GreenBridge™ PowerTrench® | 12-WDFN Exposed Pad | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 100V | 3.1A | 110mOhm @ 3A, 10V | 4V @ 250µA | 5nC @ 10V | 215pF @ 15V | 1.9W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 12-MLP (5x4.5) |
|

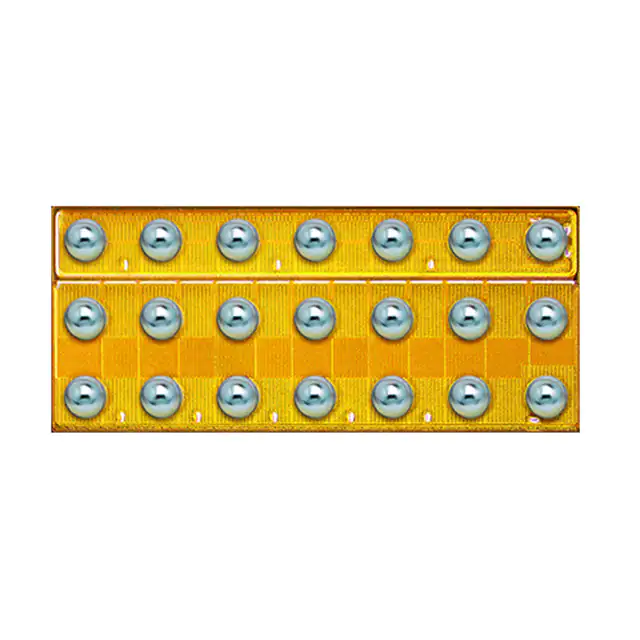

EPC2111MOSFET 2N-CH 30V 16A DIE |
38,302 |
|
Datasheet |
- | Die | Tape & Reel (TR) | Active | GaNFET (Gallium Nitride) | 2 N-Channel (Half Bridge) | - | 30V | 16A (Ta) | 19mOhm @ 15A, 5V, 8mOhm @ 15A, 5V | 2.5V @ 5mA | 2.2nC @ 5V, 5.7nC @ 5V | 230pF @ 15V, 590pF @ 15V | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | Die |
|
ALD1117SALMOSFET 2P-CH 10.6V 8SOIC |
390 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | MOSFET (Metal Oxide) | 2 P-Channel (Dual) Matched Pair | - | 10.6V | - | 1800Ohm @ 5V | 1.2V @ 1µA | - | 3pF @ 5V | 500mW | 0°C ~ 70°C (TJ) | - | - | Surface Mount | 8-SOIC |
