FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AON7812MOSFET 2N-CH 30V 6A 8DFN |
17,130 |
|
Datasheet |
- | 8-PowerSMD, Flat Leads | Bulk | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Asymmetrical | - | 30V | 6A | 14.5mOhm @ 6A, 10V | 2.2V @ 250µA | 15nC @ 10V | 600pF @ 15V | 4.1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN (3x3) |
|
AON7932_101MOSFET 2N-CH 30V 6.6A/8.1A 8DFN |
16,646 |
|
Datasheet |
- | 8-WDFN Exposed Pad | Bulk | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 30V | 6.6A, 8.1A | 20mOhm @ 6.6A, 10V | 2.4V @ 250µA | 6.5nC @ 10V | 460pF @ 15V | 1.4W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN-EP (3x3) |
|
SSM6N48FU,RF(DMOSFET 2N-CH 30V 0.1A US6 |
11,846 |
|
- |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate, 2.5V Drive | 30V | 100mA (Ta) | 3.2Ohm @ 10mA, 4V | 1.5V @ 100µA | - | 15.1pF @ 3V | 300mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | US6 |
|
BSL205NH6327XTSA1MOSFET 2N-CH 20V 2.5A TSOP6-6 |
5,288 |
|
Datasheet |
OptiMOS™ | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate, 4.5V Drive | 20V | 2.5A | 50mOhm @ 2.5A, 4.5V | 1.2V @ 11µA | 3.2nC @ 4.5V | 419pF @ 10V | 500mW | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PG-TSOP6-6 |
|
|
BSL207NH6327XTSA1MOSFET 2N-CH 20V 2.1A 6TSOP |
18,908 |
|
Datasheet |
OptiMOS™ | SC-74, SOT-457 | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate, 2.5V Drive | 20V | 2.1A | 70mOhm @ 2.1A, 4.5V | 1.2V @ 11µA | 2.1nC @ 4.5V | 419pF @ 10V | 500mW | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PG-TSOP-6-1 |
|
|
BSL214NH6327XTSA1MOSFET 2N-CH 20V 1.5A TSOP6-6 |
10,676 |
|
Datasheet |
OptiMOS™ | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate, 2.5V Drive | 20V | 1.5A | 140mOhm @ 1.5A, 4.5V | 1.2V @ 3.7µA | 0.8nC @ 5V | 143pF @ 10V | 500mW | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PG-TSOP6-6 |
|
|
BSL314PEH6327XTSA1MOSFET 2P-CH 30V 1.5A TSOP6-6 |
8,658 |
|
Datasheet |
OptiMOS™ | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate, 4.5V Drive | 30V | 1.5A | 140mOhm @ 1.5A, 10V | 2V @ 6.3µA | 2.9nC @ 10V | 294pF @ 15V | 500mW | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PG-TSOP6-6 |
|
IPG20N06S415ATMA1MOSFET 2N-CH 60V 20A 8TDSON |
7,262 |
|
Datasheet |
OptiMOS™ | 8-PowerVDFN | Tape & Reel (TR) | Discontinued at Digi-Key | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 60V | 20A | 15.5mOhm @ 17A, 10V | 4V @ 20µA | 29nC @ 10V | 2260pF @ 25V | 50W | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PG-TDSON-8-4 |
|
|
IPG20N06S4L14ATMA1MOSFET 2N-CH 60V 20A 8TDSON |
6,336 |
|
Datasheet |
OptiMOS™ | 8-PowerVDFN | Tape & Reel (TR) | Discontinued at Digi-Key | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 60V | 20A | 13.7mOhm @ 17A, 10V | 2.2V @ 20µA | 39nC @ 10V | 2890pF @ 25V | 50W | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PG-TDSON-8-4 |
|
MCCD2004-TPMOSFET 2N-CH 20V 10A 6DFN |
5,894 |
|
Datasheet |
- | 6-WFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Common Drain | - | 20V | 10A | 10mOhm @ 8A, 10V | 1V @ 250µA | 18.5nC @ 4.5V | 1955pF @ 10V | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN2030-6 |
|
|
MCCD2005-TPMOSFET 2N-CH 20V 8A 6DFN |
6,468 |
|
Datasheet |
- | 6-WFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Common Drain | - | 20V | 8A | 13mOhm @ 8A, 10V | 1V @ 250µA | 17.9nC @ 4.5V | 1800pF @ 10V | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN2030-6 |
|
|
MCCD2007-TPMOSFET 2N-CH 20V 7A 6DFN |
10,654 |
|
Datasheet |
- | 6-WFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Common Drain | - | 20V | 7A | 20mOhm @ 7A, 10V | 1V @ 250µA | 15nC @ 4.5V | 1150pF @ 10V | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN2030-6 |
|
CAS325M12HM2MOSFET 2N-CH 1200V 444A MODULE |
13,870 |
|
- |
Z-REC™ | Module | Bulk | Obsolete | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 444A (Tc) | 4.3mOhm @ 400A, 20V | 4V @ 105mA | 1127nC @ 20V | 19500pF @ 1000V | 3000W | 175°C (TJ) | - | - | - | Module |
|
|
AO5600ELMOSFET N/P-CH 20V 0.6A SC89-6 |
17,390 |
|
- |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel Complementary | - | 20V | 600mA, 500mA | 650mOhm @ 500mA, 4.5V | 1V @ 250µA | 1nC @ 4.5V | 45pF @ 10V | 380mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-89-6 |
|
FDMD8580MOSFET 2N-CH 80V 16A POWER56 |
9,344 |
|
Datasheet |
PowerTrench® | 8-PowerWDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 80V | 16A (Ta), 82A (Tc) | 4.6mOhm @ 16A, 10V | 4.5V @ 250µA | 80nC @ 10V | 5875pF @ 40V | 2.3W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | Power56 |
|
|
APTSM120AM08CT6AGMOSFET 2N-CH 1200V 370A SP6 |
6,546 |
|
- |
- | SP6 | Bulk | Active | Silicon Carbide (SiC) | 2 N-Channel (Dual), Schottky | - | 1200V (1.2kV) | 370A (Tc) | 10mOhm @ 200A, 20V | 3V @ 10mA | 1360nC @ 20V | - | 2300W | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP6 |
|
|
RJM0603JSC-00#13MOSFET 3N/3P-CH 60V 20A 20HSOP |
16,696 |
|
- |
- | 20-SOIC (0.433", 11.00mm Width) Exposed Pad | - | Obsolete | MOSFET (Metal Oxide) | 3 N and 3 P-Channel (3-Phase Bridge) | Logic Level Gate, 4.5V Drive | 60V | 20A | 20mOhm @ 10A, 10V | 2.5V @ 1mA | 43nC @ 10V | 2600pF @ 10V | 54W | 175°C | Automotive | AEC-Q101 | Surface Mount | 20-HSOP |
|
|
RJM0603JSC-00#12MOSFET 3N/3P-CH 60V 20A 20HSOP |
11,848 |
|
Datasheet |
- | 20-SOIC (0.433", 11.00mm Width) Exposed Pad | Tray | Active | MOSFET (Metal Oxide) | 3 N and 3 P-Channel (3-Phase Bridge) | Logic Level Gate, 4.5V Drive | 60V | 20A | 20mOhm @ 10A, 10V | 2.5V @ 1mA | 43nC @ 10V | 2600pF @ 10V | 54W | 175°C | Automotive | AEC-Q101 | Surface Mount | 20-HSOP |
|

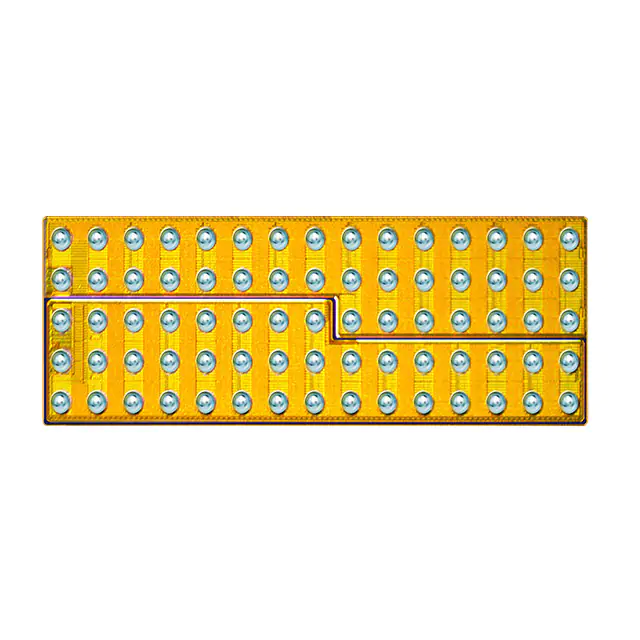

EPC2104ENGRTMOSFET 2N-CH 100V 23A DIE |
5,152 |
|
Datasheet |
eGaN® | Die | Tape & Reel (TR) | Discontinued at Digi-Key | GaNFET (Gallium Nitride) | 2 N-Channel (Half Bridge) | - | 100V | 23A | 6.3mOhm @ 20A, 5V | 2.5V @ 5.5mA | 7nC @ 5V | 800pF @ 50V | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | Die |
|

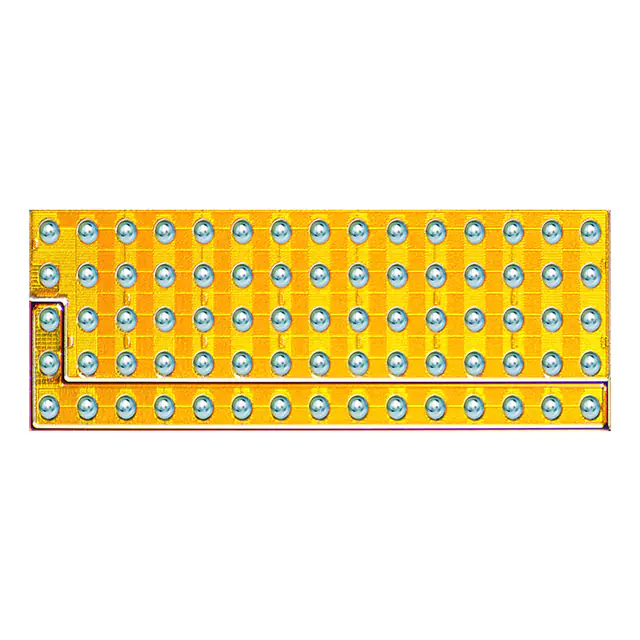

EPC2105ENGRTMOSFET 2N-CH 80V 9.5A DIE |
18,218 |
|
Datasheet |
eGaN® | Die | Tape & Reel (TR) | Discontinued at Digi-Key | GaNFET (Gallium Nitride) | 2 N-Channel (Half Bridge) | - | 80V | 9.5A | 14.5mOhm @ 20A, 5V | 2.5V @ 2.5mA | 2.5nC @ 5V | 300pF @ 40V | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | Die |
