FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

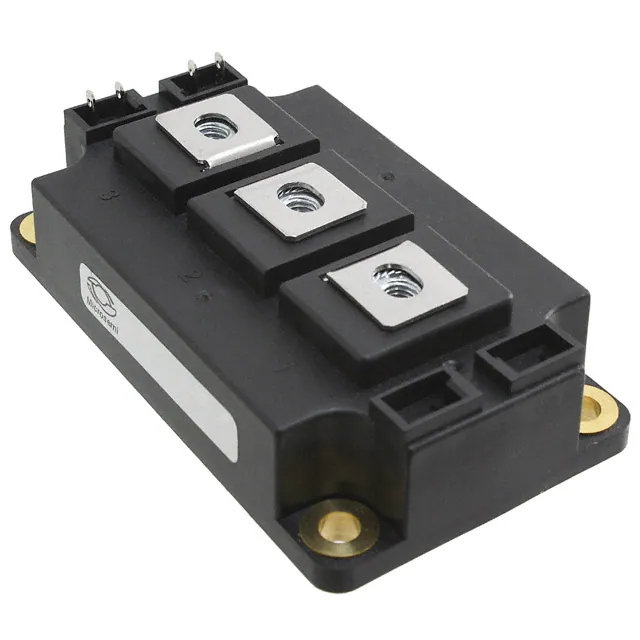

APTMC120AM16CD3AGMOSFET 2N-CH 1200V 131A D3 |
5,280 |
|
Datasheet |
- | D-3 Module | Bulk | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 131A (Tc) | 20mOhm @ 100A, 20V | 2.2V @ 5mA (Typ) | 246nC @ 20V | 4750pF @ 1000V | 625W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | D3 |
|
APTMC120AM55CT1AGMOSFET 2N-CH 1200V 55A SP1 |
7,782 |
|
Datasheet |
- | SP1 | Bulk | Last Time Buy | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 55A (Tc) | 49mOhm @ 40A, 20V | 2.2V @ 2mA (Typ) | 98nC @ 20V | 1900pF @ 1000V | 250W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP1 |
|

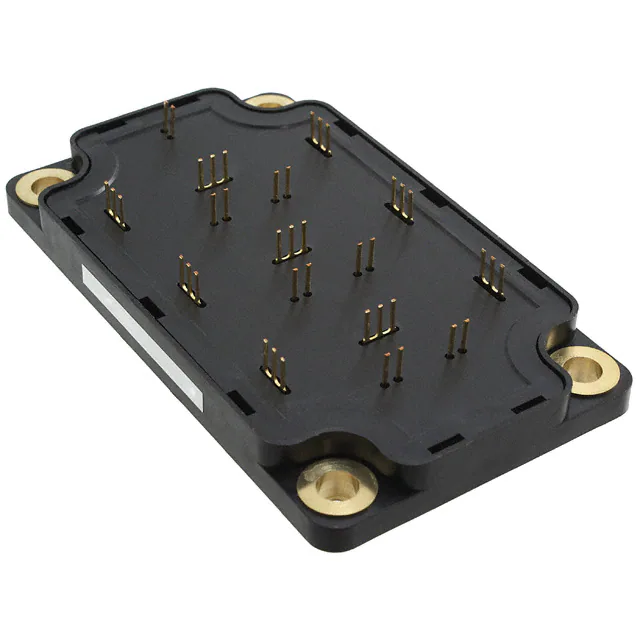

APTMC120TAM33CTPAGMOSFET 6N-CH 1200V 78A SP6-P |
19,076 |
|
Datasheet |
- | SP6 | Bulk | Active | Silicon Carbide (SiC) | 6 N-Channel (3-Phase Bridge) | - | 1200V (1.2kV) | 78A (Tc) | 33mOhm @ 60A, 20V | 2.2V @ 3mA (Typ) | 148nC @ 20V | 2850pF @ 1000V | 370W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6-P |
|
FDMD82100LMOSFET 2N-CH 100V 7A 12POWER |
4,032 |
|
Datasheet |
PowerTrench® | 12-PowerWDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 100V | 7A | 19.5mOhm @ 7A, 10V | 3V @ 250µA | 24nC @ 10V | 1585pF @ 50V | 1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 12-Power3.3x5 |
|
FPF1C2P5BF07AMOSFET 5N-CH 650V 36A F1 |
6,930 |
|
- |
- | F1 Module | Tray | Obsolete | MOSFET (Metal Oxide) | 5 N-Channel (Solar Inverter) | - | 650V | 36A | 90mOhm @ 27A, 10V | 3.8V @ 250µA | - | - | 250W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | F1 |
|
AOC2804MOSFET 2N-CH 4DFN |
18,554 |
|
- |
AlphaMOS | 4-XDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Common Drain | - | - | - | - | - | 9.5nC @ 4.5V | - | 700mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 4-DFN (1.5x1.5) |
|
FDMD85100MOSFET 2N-CH 100V 10.4A POWER56 |
19,982 |
|
Datasheet |
PowerTrench® | 8-PowerWDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 100V | 10.4A | 9.9mOhm @ 10.4A, 10V | 4V @ 250µA | 31nC @ 10V | 2230pF @ 50V | 2.2W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | Power56 |
|
DMP2060UFDB-13MOSFET 2P-CH 20V 3.2A 6UDFN |
8,248 |
|
Datasheet |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | - | 20V | 3.2A | 90mOhm @ 2.9A, 4.5V | 1.4V @ 250µA | 18nC @ 8V | 881pF @ 10V | 1.4W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | U-DFN2020-6 (Type B) |
|
EPC2106ENGRTMOSFET 2N-CH 100V 1.7A DIE |
9,292 |
|
Datasheet |
eGaN® | Die | Tape & Reel (TR) | Discontinued at Digi-Key | GaNFET (Gallium Nitride) | 2 N-Channel (Half Bridge) | - | 100V | 1.7A | 70mOhm @ 2A, 5V | 2.5V @ 600µA | 0.73nC @ 5V | 75pF @ 50V | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | Die |
|
TMC1320-LAMOSFET N/P-CH 30V 7.3A 8PQFN |
17,722 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel, Common Drain | - | 30V | 7.3A, 5.3A | 30mOhm @ 4A, 10V | 3V @ 250µA | 7.2nC @ 4.5V | 400pF @ 25V | 2.5W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PQFN (3x3) |
|
|
TMC1420-LAMOSFET N/P-CH 40V 8.8A/7.3A PQFN |
8,734 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel | - | 40V | 8.8A, 7.3A | 26.5mOhm @ 7A, 10V | 3V @ 250µA | 11.2nC @ 4.5V | 1050pF @ 15V | 3.57W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PQFN (5x6) |
|
NTMFD4C85NT3GMOSFET 2N-CH 30V 15.4A 8DFN |
18,508 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Asymmetrical | - | 30V | 15.4A, 29.7A | 3mOhm @ 20A, 10V | 2.1V @ 250µA | 32nC @ 10V | 1960pF @ 15V | 1.13W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN (5x6) |
|
|
NTMFD4C87NT3GMOSFET 2N-CH 30V 11.7A 8DFN |
14,334 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Asymmetrical | - | 30V | 11.7A, 14.9A | 5.4mOhm @ 30A, 10V | 2.2V @ 250µA | 22.2nC @ 10V | 1252pF @ 15V | 1.1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN (5x6) |
|
|
NTMFD4C88NT3GMOSFET 2N-CH 30V 11.7A 8DFN |
12,150 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Asymmetrical | - | 30V | 11.7A, 14.2A | 5.4mOhm @ 10A, 10V | 2.2V @ 250µA | 22.2nC @ 10V | 1252pF @ 15V | 1.1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN (5x6) |
|
ECH8654-TL-HQMOSFET 2P-CH 20V 5A ECH8 |
13,746 |
|
- |
* | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 8-ECH |
|
EMH2308-TL-HMOSFET 2P-CH 20V 3A 8EMH |
12,286 |
|
Datasheet |
- | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate, 1.8V Drive | 20V | 3A | 85mOhm @ 3A, 4.5V | - | 4nC @ 4.5V | 320pF @ 10V | 1W | 150°C (TJ) | - | - | Surface Mount | 8-EMH |
|
|
MCH6606-TL-EMOSFET PCH DUAL MCPH6 |
16,188 |
|
- |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
NTZD3154NT1HMOSFET 2N-CH 20V 0.54A SOT563 |
8,084 |
|
Datasheet |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 20V | 540mA | 550mOhm @ 540mA, 4.5V | 1V @ 250µA | 2.5nC @ 4.5V | 150pF @ 16V | 250mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-563 |
|
LN60A01EP-LFMOSFET 3N-CH 600V 0.08A 8DIP |
19,862 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | MOSFET (Metal Oxide) | 3 N-Channel, Common Gate | - | 600V | 80mA | 190Ohm @ 10mA, 10V | 1.2V @ 250µA | - | - | 1.3W | -20°C ~ 125°C (TJ) | - | - | Through Hole | 8-PDIP-7B |
|
LN60A01ES-LFMOSFET 3N-CH 600V 0.08A 8SOIC |
7,054 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | MOSFET (Metal Oxide) | 3 N-Channel, Common Gate | - | 600V | 80mA | 190Ohm @ 10mA, 10V | 1.2V @ 250µA | - | - | 1.3W | -20°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
