FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FMM65-015PMOSFET 2N-CH 150V 65A I4-PAC |
17,080 |
|
Datasheet |
- | i4-Pac™-5 | Tube | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 150V | 65A | 22mOhm @ 50A, 10V | 4V @ 1mA | 230nC @ 10V | - | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | ISOPLUS i4-PAC™ |
|
|
IXTL2X200N085TMOSFET 2N-CH 85V 112A I5-PAK |
5,098 |
|
- |
TrenchMV™ | ISOPLUSi5-PAK™ | Tube | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 85V | 112A | 6mOhm @ 50A, 10V | 4V @ 250µA | 152nC @ 10V | 7600pF @ 25V | 150W | -55°C ~ 175°C (TJ) | - | - | Through Hole | ISOPLUSi5-Pak™ |
|
|
IXTL2X220N075TMOSFET 2N-CH 75V 120A I5-PAK |
18,250 |
|
- |
TrenchMV™ | ISOPLUSi5-PAK™ | Tube | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 75V | 120A | 5.5mOhm @ 50A, 10V | 4V @ 250µA | 165nC @ 10V | 7700pF @ 25V | 150W | -55°C ~ 175°C (TJ) | - | - | Through Hole | ISOPLUSi5-Pak™ |
|

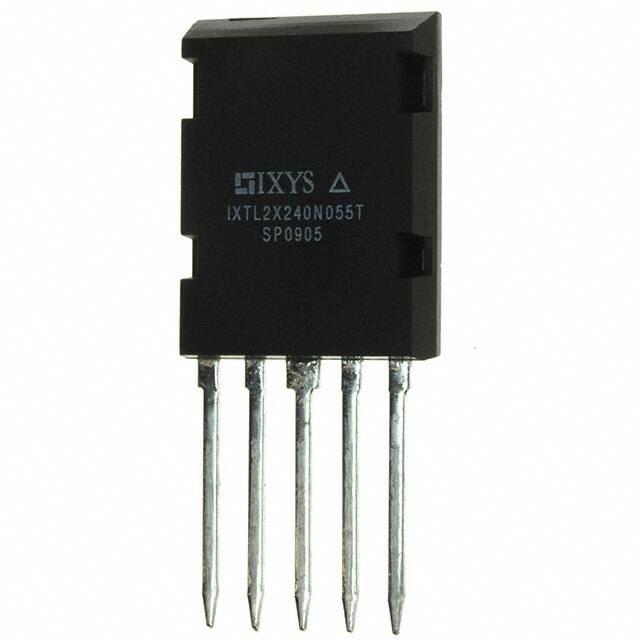

IXTL2X240N055TMOSFET 2N-CH 55V 140A I5-PAK |
7,952 |
|
- |
TrenchMV™ | ISOPLUSi5-PAK™ | Tube | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 55V | 140A | 4.4mOhm @ 50A, 10V | 4V @ 250µA | 170nC @ 10V | 7600pF @ 25V | 150W | -55°C ~ 175°C (TJ) | - | - | Through Hole | ISOPLUSi5-Pak™ |
|
|
VHM40-06P1MOSFET 2N-CH 600V 38A ECO-PAC2 |
13,018 |
|
- |
- | ECO-PAC2 | Box | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 600V | 38A | 70mOhm @ 25A, 10V | 5.5V @ 3mA | 220nC @ 10V | - | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | ECO-PAC2 |
|
VMM1000-01PMOSFET 2N-CH 100V 1000A Y3-LI |
5,232 |
|
Datasheet |
- | Y3-Li | Box | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 100V | 1000A | 1.2mOhm @ 800A, 10V | 4V @ 10mA | 2355nC @ 10V | - | - | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | Y3-Li |
|
|
VMM85-02FMOSFET 2N-CH 200V 84A Y4-M6 |
15,110 |
|
Datasheet |
HiPerFET™ | Y4-M6 | Box | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 200V | 84A | 25mOhm @ 500mA, 10V | 4V @ 8mA | 450nC @ 10V | 15000pF @ 25V | 370W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | Y4-M6 |
|
|
VWM200-01PMOSFET 6N-CH 100V 210A V2-PAK |
7,854 |
|
Datasheet |
- | V2-PAK | Box | Obsolete | MOSFET (Metal Oxide) | 6 N-Channel (3-Phase Bridge) | - | 100V | 210A | 5.2mOhm @ 100A, 10V | 4V @ 2mA | 430nC @ 10V | - | - | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | V2-PAK |
|
SI4933DY-T1-E3MOSFET 2P-CH 12V 7.4A 8SOIC |
5,940 |
|
- |
TrenchFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate | 12V | 7.4A | 14mOhm @ 9.8A, 4.5V | 1V @ 500µA | 70nC @ 4.5V | - | 1.1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
SI6943BDQ-T1-E3MOSFET 2P-CH 12V 2.3A 8TSSOP |
18,138 |
|
- |
TrenchFET® | 8-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate | 12V | 2.3A | 80mOhm @ 2.5A, 4.5V | 800mV @ 250µA | 10nC @ 4.5V | - | 800mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-TSSOP |
|
SI7501DN-T1-E3MOSFET N/P-CH 30V 5.4A PPAK 1212 |
4,872 |
|
- |
- | PowerPAK® 1212-8 Dual | Cut Tape (CT) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel, Common Drain | Logic Level Gate | 30V | 5.4A, 4.5A | 35mOhm @ 7.7A, 10V | 3V @ 250µA | 14nC @ 10V | - | 1.6W | - | - | - | Surface Mount | PowerPAK® 1212-8 Dual |
|
SI7872DP-T1-E3MOSFET 2N-CH 30V 6.4A PPAK SO8 |
13,948 |
|
Datasheet |
LITTLE FOOT® | PowerPAK® SO-8 Dual | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | Logic Level Gate | 30V | 6.4A | 22mOhm @ 7.5A, 10V | 3V @ 250µA | 11nC @ 4.5V | - | 1.4W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 Dual |
|
|
SI7962DP-T1-E3MOSFET 2N-CH 40V 7.1A PPAK SO8 |
19,128 |
|
- |
TrenchFET® | PowerPAK® SO-8 Dual | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 40V | 7.1A | 17mOhm @ 11.1A, 10V | 4.5V @ 250µA | 70nC @ 10V | - | 1.4W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 Dual |
|
|
SI7964DP-T1-E3MOSFET 2N-CH 60V 6.1A PPAK SO8 |
17,794 |
|
Datasheet |
TrenchFET® | PowerPAK® SO-8 Dual | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 60V | 6.1A | 23mOhm @ 9.6A, 10V | 4.5V @ 250µA | 65nC @ 10V | - | 1.4W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 Dual |
|
SI8900EDB-T2-E1MOSFET 2N-CH 20V 5.4A 10MFP |
11,590 |
|
- |
TrenchFET® | 10-UFBGA, CSPBGA | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Common Drain | Logic Level Gate | 20V | 5.4A | - | 1V @ 1.1mA | - | - | 1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 10-Micro Foot™ CSP (2x5) |
|

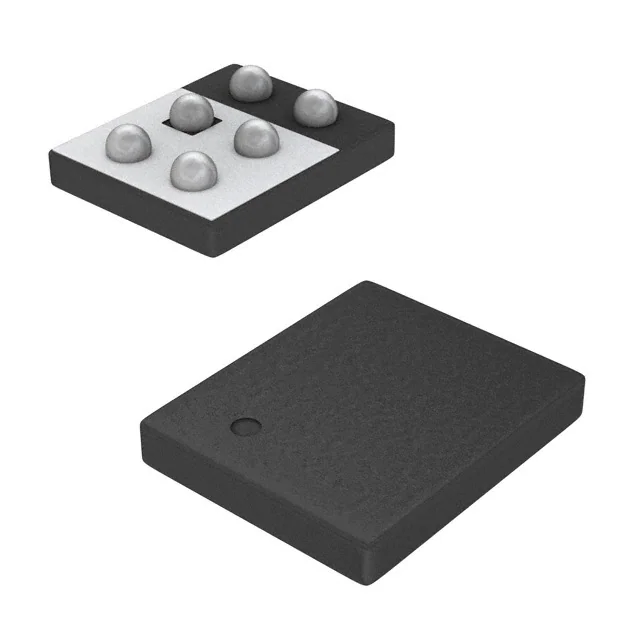

SI8901EDB-T2-E1MOSFET 2P-CH 20V 3.5A 6MICROFOOT |
16,570 |
|
- |
TrenchFET® | 6-MICRO FOOT®CSP | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) Common Drain | Logic Level Gate | 20V | 3.5A | - | 1V @ 350µA | - | - | 1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-Micro Foot™ (2.36x1.56) |
|
FDMJ1023PZMOSFET 2P-CH 20V 2.9A SC75 |
12,082 |
|
Datasheet |
PowerTrench® | 6-WFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate | 20V | 2.9A | 112mOhm @ 2.9A, 4.5V | 1V @ 250µA | 6.5nC @ 4.5V | 400pF @ 10V | 700mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-75, MicroFET |
|
NTGD4161PT1GMOSFET 2P-CH 30V 1.5A 6TSOP |
6,694 |
|
Datasheet |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate | 30V | 1.5A | 160mOhm @ 2.1A, 10V | 3V @ 250µA | 7.1nC @ 10V | 281pF @ 15V | 600mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
|
NTHD4102PT3GMOSFET 2P-CH 20V 2.9A CHIPFET |
9,232 |
|
Datasheet |
- | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate | 20V | 2.9A | 80mOhm @ 2.9A, 4.5V | 1.5V @ 250µA | 8.6nC @ 4.5V | 750pF @ 16V | 1.1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | ChipFET™ |
|
NTJD4158CT2GMOSFET N/P-CH 30V/20V 0.25A SC88 |
6,074 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel | Logic Level Gate | 30V, 20V | 250mA, 880mA | 1.5Ohm @ 10mA, 4.5V | 1.5V @ 100µA | 1.5nC @ 5V | 33pF @ 5V | 270mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-88/SC70-6/SOT-363 |
