FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

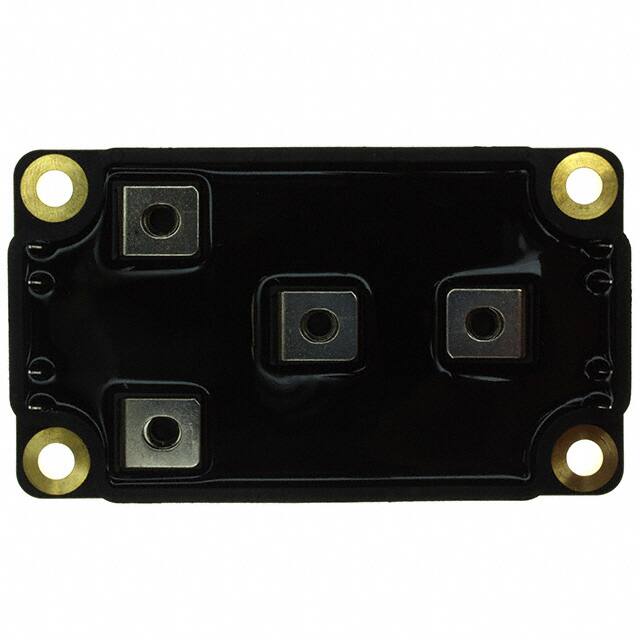

APTM120H29FGMOSFET 4N-CH 1200V 34A SP6 |
17,848 |
|
Datasheet |
POWER MOS 7® | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 1200V (1.2kV) | 34A | 348mOhm @ 17A, 10V | 5V @ 5mA | 374nC @ 10V | 10300pF @ 25V | 780W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|
APTM100TA35SCTPGMOSFET 6N-CH 1000V 22A SP6-P |
16,478 |
|
Datasheet |
POWER MOS 7® | Module | Bulk | Active | MOSFET (Metal Oxide) | 6 N-Channel (3-Phase Bridge) | - | 1000V (1kV) | 22A | 420mOhm @ 11A, 10V | 5V @ 2.5mA | 186nC @ 10V | 5200pF @ 25V | 390W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6-P |
|
|
CAS100H12AM1MOSFET 2N-CH 1200V 168A MODULE |
8,848 |
|
- |
Z-FET™ | Module | Bulk | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 168A | 20mOhm @ 20A, 20V | 3.1V @ 50mA | - | 9500pF @ 800V | 568W | - | - | - | Chassis Mount | Module |
|
|
CAS110M12BM2SIC 1200V 110A |
6,810 |
|
Datasheet |
- | Module | Bulk | Not For New Designs | Silicon Carbide (SiC) | - | - | 1200V (1.2kV) | 110A | - | - | - | - | - | - | - | - | Chassis Mount | - |
.jpg)
|
MSCSM120HM16CT3AGMOSFET 4N-CH 1200V 173A SP3F |
19,510 |
|
Datasheet |
- | Module | Tube | Active | Silicon Carbide (SiC) | 4 N-Channel | - | 1200V (1.2kV) | 173A (Tc) | 16mOhm @ 80A, 20V | 2.8V @ 2mA | 464nC @ 20V | 6040pF @ 1000V | 745W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP3F |
|
|
QJD1210SA1MOSFET 2N-CH 1200V 100A MODULE |
9,114 |
|
Datasheet |
- | Module | Bulk | Obsolete | Silicon Carbide (SiC) | 2 N-Channel (Dual) | - | 1200V (1.2kV) | 100A | 17mOhm @ 100A, 15V | 1.6V @ 34mA | 330nC @ 15V | 8200pF @ 10V | 520W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | Module |
|
|
QJD1210SB1SIC 1200V 10A MOD |
15,048 |
|
- |
* | - | Bulk | Discontinued at Digi-Key | Silicon Carbide (SiC) | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
APTC60TAM21SCTPAGMOSFET 6N-CH 600V 116A SP6-P |
11,892 |
|
Datasheet |
CoolMOS™ | Module | Bulk | Active | MOSFET (Metal Oxide) | 6 N-Channel (3-Phase Bridge) | - | 600V | 116A | 21mOhm @ 88A, 10V | 3.6V @ 6mA | 580nC @ 10V | 13000pF @ 100V | 625W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6-P |
|
|
CCS050M12CM2MOSFET 6N-CH 1200V 87A MODULE |
10,322 |
|
- |
Z-FET™ Z-Rec™ | Module | Bulk | Obsolete | Silicon Carbide (SiC) | 6 N-Channel (3-Phase Bridge) | - | 1200V (1.2kV) | 87A (Tc) | 34mOhm @ 50A, 20V | 2.3V @ 2.5mA | 180nC @ 20V | 2810pF @ 800V | 337W | 150°C (TJ) | - | - | Chassis Mount | Module |
|
|
WAS110M12BM2RF MOSFET 1200V |
11,934 |
|
- |
- | - | Bulk | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
QJD1210SA2MOSFET 2N-CH 1200V 100A MODULE |
8,700 |
|
Datasheet |
- | Module | Bulk | Obsolete | Silicon Carbide (SiC) | 2 N-Channel (Dual) | - | 1200V (1.2kV) | 100A | 17mOhm @ 100A, 15V | 1.6V @ 34mA | 330nC @ 15V | 8200pF @ 10V | 415W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | Module |
|
|
APTMC170AM60CT1AGMOSFET 2N-CH 1700V 50A SP1 |
19,706 |
|
Datasheet |
- | SP1 | Bulk | Obsolete | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 1700V (1.7kV) | 50A (Tc) | 60mOhm @ 50A, 20V | 2.3V @ 2.5mA (Typ) | 190nC @ 20V | 3080pF @ 1000V | 350W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP1 |
|
|
MSCSM70HM05CAGSIC MOSFET |
4,428 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MSCSM70TAM10CTPAGMOSFET 6N-CH 700V 238A SP6-P |
7,024 |
|
Datasheet |
- | Module | Tube | Active | Silicon Carbide (SiC) | 6 N-Channel (3-Phase Bridge) | - | 700V | 238A (Tc) | 9.5mOhm @ 80A, 20V | 2.4V @ 8mA | 430nC @ 20V | 9000pF @ 700V | 674W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP6-P |
|

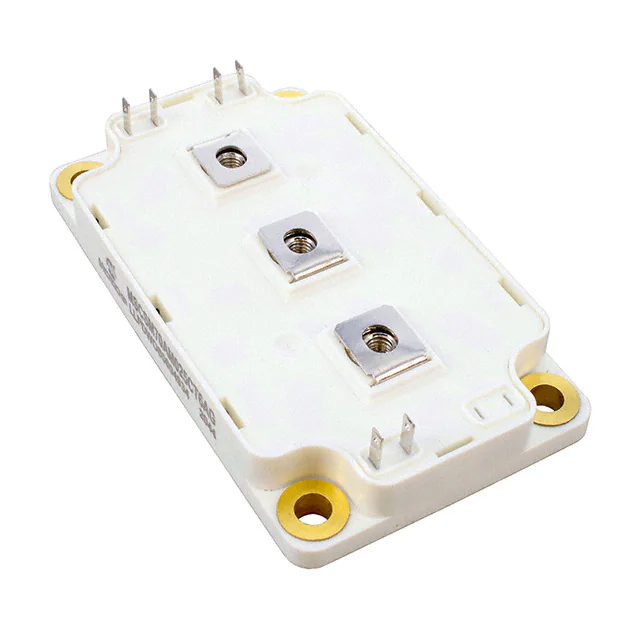

MSCSM70AM025CT6AGMOSFET 700V 538A SP6C |
17,836 |
|
Datasheet |
- | Module | Tube | Active | Silicon Carbide (SiC) | - | - | 700V | 538A (Tc) | - | - | - | - | - | - | - | - | Chassis Mount | SP6C |
|

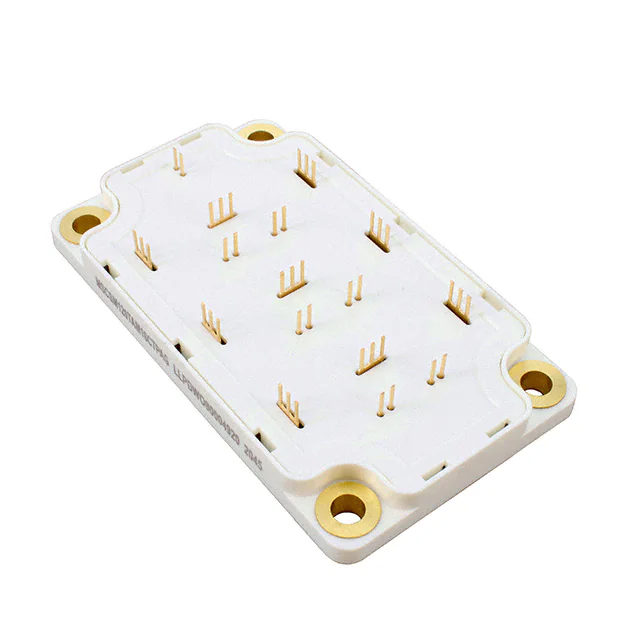

MSCSM120TAM16CTPAGMOSFET 6N-CH 1200V 171A SP6-P |
16,110 |
|
Datasheet |
- | Module | Tube | Active | Silicon Carbide (SiC) | 6 N-Channel (3-Phase Bridge) | - | 1200V (1.2kV) | 171A (Tc) | 16mOhm @ 80A, 20V | 2.8V @ 2mA | 464nC @ 20V | 6040pF @ 1000V | 728W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP6-P |
|
|
MSCSM120HM083CAGSIC MOSFET |
7,044 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MSCSM120AM042CT6AGMOSFET 2N-CH 1200V 495A SP6C |
14,888 |
|
Datasheet |
- | Module | Tube | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 1200V (1.2kV) | 495A (Tc) | 5.2mOhm @ 240A, 20V | 2.8V @ 6mA | 1392nC @ 20V | 18.1pF @ 1000V | 2.031kW (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP6C |
|
MSCSM70AM025CT6LIAGMOSFET 2N-CH 700V 689A SP6C LI |
17,312 |
|
Datasheet |
- | Module | Tube | Active | Silicon Carbide (SiC) | 2 N-Channel | - | 700V | 689A (Tc) | 3.2mOhm @ 240A, 20V | 2.4V @ 24mA (Typ) | 1290nC @ 20V | 27000pF @ 700V | 1882W (Tc) | - | - | - | Chassis Mount | SP6C LI |
|
|
QJD1210010MOSFET 2N-CH 1200V 100A MODULE |
5,898 |
|
Datasheet |
- | Module | Bulk | Discontinued at Digi-Key | Silicon Carbide (SiC) | 2 N-Channel (Dual) | - | 1200V (1.2kV) | 100A (Tc) | 25mOhm @ 100A, 20V | 5V @ 10mA | 500nC @ 20V | 10200pF @ 800V | 1080W | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | Module |
