FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FDMD8260LET60MOSFET 2N-CH 60V 15A 12POWER |
14,544 |
|
Datasheet |
PowerTrench® | 12-PowerWDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 60V | 15A | 5.8mOhm @ 15A, 10V | 3V @ 250µA | 68nC @ 10V | 5245pF @ 30V | 1.1W | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 12-Power3.3x5 |
|
ALD212908APALMOSFET 2N-CH 10.6V 0.08A 8PDIP |
14,218 |
|
Datasheet |
EPAD®, Zero Threshold™ | 8-DIP (0.300", 7.62mm) | Tube | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Matched Pair | Logic Level Gate | 10.6V | 80mA | - | 20mV @ 10µA | - | - | 500mW | 0°C ~ 70°C (TJ) | - | - | Through Hole | 8-PDIP |
|
ALD310704PCLMOSFET 4P-CH 8V 16PDIP |
7,456 |
|
Datasheet |
EPAD®, Zero Threshold™ | 16-DIP (0.300", 7.62mm) | Tube | Active | MOSFET (Metal Oxide) | 4 P-Channel, Matched Pair | - | 8V | - | - | 380mV @ 1µA | - | 2.5pF @ 5V | 500mW | 0°C ~ 70°C | - | - | Through Hole | 16-PDIP |
|
|
ALD310708PCLMOSFET 4P-CH 8V 16PDIP |
6,632 |
|
Datasheet |
EPAD®, Zero Threshold™ | 16-DIP (0.300", 7.62mm) | Tube | Active | MOSFET (Metal Oxide) | 4 P-Channel, Matched Pair | - | 8V | - | - | 780mV @ 1µA | - | 2.5pF @ 5V | 500mW | 0°C ~ 70°C | - | - | Through Hole | 16-PDIP |
|
|
ALD1101BPALMOSFET 2N-CH 10.6V 8PDIP |
6,792 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Matched Pair | - | 10.6V | - | 75Ohm @ 5V | 1V @ 10µA | - | - | 500mW | 0°C ~ 70°C (TJ) | - | - | Through Hole | 8-PDIP |
|
|
ALD1102BPALMOSFET 2P-CH 10.6V 8PDIP |
10,066 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | MOSFET (Metal Oxide) | 2 P-Channel (Dual) Matched Pair | - | 10.6V | - | 270Ohm @ 5V | 1.2V @ 10µA | - | 10pF @ 5V | 500mW | 0°C ~ 70°C (TJ) | - | - | Through Hole | 8-PDIP |
|
ALD110808ASCLMOSFET 4N-CH 10.6V 16SOIC |
9,958 |
|
Datasheet |
EPAD® | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | MOSFET (Metal Oxide) | 4 N-Channel, Matched Pair | - | 10.6V | 12mA, 3mA | 500Ohm @ 4.8V | 810mV @ 1µA | - | 2.5pF @ 5V | 500mW | 0°C ~ 70°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
|
ALD114804APCLMOSFET 4N-CH 10.6V 16PDIP |
15,588 |
|
Datasheet |
EPAD® | 16-DIP (0.300", 7.62mm) | Tube | Active | MOSFET (Metal Oxide) | 4 N-Channel, Matched Pair | Depletion Mode | 10.6V | 12mA, 3mA | 500Ohm @ 3.6V | 380mV @ 1µA | - | 2.5pF @ 5V | 500mW | 0°C ~ 70°C (TJ) | - | - | Through Hole | 16-PDIP |
|
IRF7530TRMOSFET 2N-CH 20V 5.4A MICRO8 |
12,072 |
|
Datasheet |
HEXFET® | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 20V | 5.4A | 30mOhm @ 5.4A, 4.5V | 1.2V @ 250µA | 26nC @ 4.5V | 1310pF @ 15V | 1.3W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | Micro8™ |
|
|
SD5000N PDIP 16L ROHSMOSFET 4N-CH 20V 0.05A 16DIP |
9,592 |
|
Datasheet |
- | 16-DIP (0.300", 7.62mm) | Obsolete | MOSFET (Metal Oxide) | 4 N-Channel | - | 20V | 50mA (Ta) | 70Ohm @ 1mA, 5V | 1.5V @ 1µA | - | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Through Hole | 16-DIP | |
|

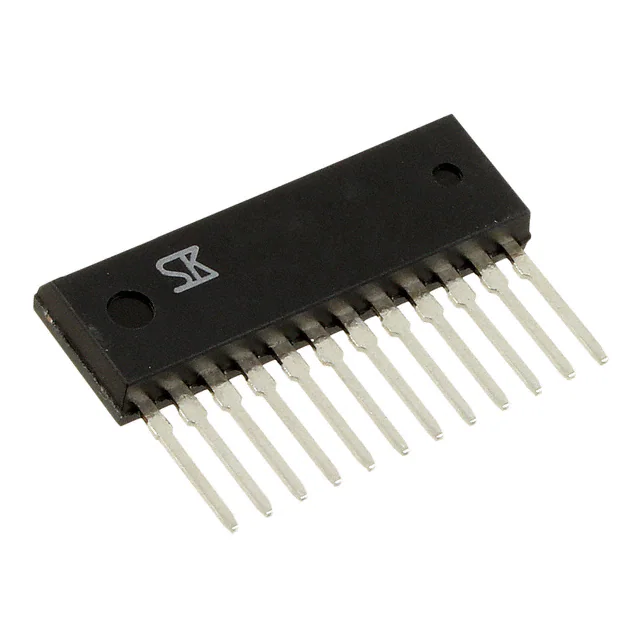

SMA5118MOSFET 6N-CH 500V 5A 12SIP |
5,546 |
|
Datasheet |
- | 12-SIP | Tube | Active | MOSFET (Metal Oxide) | 6 N-Channel (3-Phase Bridge) | - | 500V | 5A | 1.4Ohm @ 2.5A, 10V | 4V @ 1mA | - | 770pF @ 10V | 4W | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|
|
SMA5112MOSFET 6N-CH 250V 7A 12SIP |
7,746 |
|
Datasheet |
- | 12-SIP | Tube | Active | MOSFET (Metal Oxide) | 6 N-Channel (3-Phase Bridge) | - | 250V | 7A | 500mOhm @ 3.5A, 10V | 4V @ 1mA | - | 450pF @ 10V | 4W | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|
|
ALD110808APCLMOSFET 4N-CH 10.6V 16PDIP |
5,956 |
|
Datasheet |
EPAD® | 16-DIP (0.300", 7.62mm) | Tube | Active | MOSFET (Metal Oxide) | 4 N-Channel, Matched Pair | - | 10.6V | 12mA, 3mA | 500Ohm @ 4.8V | 810mV @ 1µA | - | 2.5pF @ 5V | 500mW | 0°C ~ 70°C (TJ) | - | - | Through Hole | 16-PDIP |
|
SLA5037MOSFET 4N-CH 100V 10A 12SIP |
18,542 |
|
Datasheet |
- | 12-SIP Exposed Tab | Tube | Active | MOSFET (Metal Oxide) | 4 N-Channel | Logic Level Gate | 100V | 10A | 80mOhm @ 5A, 10V | 2V @ 250mA | - | 1630pF @ 10V | 5W | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|
|
ALD310702APCLMOSFET 4P-CH 8V 16PDIP |
6,840 |
|
Datasheet |
EPAD®, Zero Threshold™ | 16-DIP (0.300", 7.62mm) | Tube | Active | MOSFET (Metal Oxide) | 4 P-Channel, Matched Pair | - | 8V | - | - | 180mV @ 1µA | - | 2.5pF @ 5V | 500mW | 0°C ~ 70°C | - | - | Through Hole | 16-PDIP |
|
|
ALD310704APCLMOSFET 4P-CH 8V 16PDIP |
6,578 |
|
Datasheet |
EPAD®, Zero Threshold™ | 16-DIP (0.300", 7.62mm) | Tube | Active | MOSFET (Metal Oxide) | 4 P-Channel, Matched Pair | - | 8V | - | - | 380mV @ 1µA | - | 2.5pF @ 5V | 500mW | 0°C ~ 70°C | - | - | Through Hole | 16-PDIP |
|
|
ALD310708APCLMOSFET 4P-CH 8V 16PDIP |
8,370 |
|
Datasheet |
EPAD®, Zero Threshold™ | 16-DIP (0.300", 7.62mm) | Tube | Active | MOSFET (Metal Oxide) | 4 P-Channel, Matched Pair | - | 8V | - | - | 780mV @ 1µA | - | 2.5pF @ 5V | 500mW | 0°C ~ 70°C | - | - | Through Hole | 16-PDIP |
|
|
SLA5041MOSFET 4N-CH 200V 10A 12SIP |
18,118 |
|
Datasheet |
- | 12-SIP Exposed Tab | Tube | Active | MOSFET (Metal Oxide) | 4 N-Channel | Logic Level Gate | 200V | 10A | 175mOhm @ 5A, 10V | 4V @ 1mA | - | 850pF @ 10V | 5W | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|
EPC2100ENGRTMOSFET 2N-CH 30V 10A DIE |
13,480 |
|
Datasheet |
eGaN® | Die | Tape & Reel (TR) | Obsolete | GaNFET (Gallium Nitride) | 2 N-Channel (Half Bridge) | - | 30V | 10A (Ta), 40A (Ta) | 8.2mOhm @ 25A, 5V, 2.1mOhm @ 25A, 5V | 2.5V @ 4mA, 2.5V @ 16mA | 4.9nC @ 15V, 19nC @ 15V | 475pF @ 15V, 1960pF @ 15V | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | Die |
|
|
ALD1101APALMOSFET 2N-CH 10.6V 8PDIP |
9,048 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Matched Pair | - | 10.6V | - | 75Ohm @ 5V | 1V @ 10µA | - | 10pF @ 5V | 500mW | 0°C ~ 70°C (TJ) | - | - | Through Hole | 8-PDIP |
