FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRF8313TRMOSFET 2N-CH 30V 9.7A 8SOIC |
17,314 |
|
Datasheet |
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
TSM6502CRMOSFET N/P-CH 60V 24A 8PDFN |
8,250 |
|
- |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | N and P-Channel | - | 60V | 24A (Tc), 18A (Tc) | 34mOhm @ 5.4A, 10V, 68mOhm @ 4A, 10V | 2.5V @ 250µA | 10.3nC @ 4.5V, 9.5nC @ 4.5V | 1159pF @ 30V, 930pF @ 30V | 40W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PDFN (5x6) |
|
SI4539ADY-T1-E3MOSFET N/P-CH 30V 4.4A 8SOIC |
17,306 |
|
- |
TrenchFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel | Logic Level Gate | 30V | 4.4A, 3.7A | 36mOhm @ 5.9A, 10V | 1V @ 250µA (Min) | 20nC @ 10V | - | 1.1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
SI4965DY-T1-GE3MOSFET 2P-CH 8V 8SOIC |
9,784 |
|
- |
TrenchFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate | 8V | - | 21mOhm @ 8A, 4.5V | 450mV @ 250µA (Min) | 55nC @ 4.5V | - | 2W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
SI3586DV-T1-E3MOSFET N/P-CH 20V 2.9A 6TSOP |
9,002 |
|
- |
TrenchFET® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel | Logic Level Gate | 20V | 2.9A, 2.1A | 60mOhm @ 3.4A, 4.5V | 1.1V @ 250µA | 6nC @ 4.5V | - | 830mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
|
|
SI4618DY-T1-E3MOSFET 2N-CH 30V 8A/15.2A 8SOIC |
11,654 |
|
Datasheet |
TrenchFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 30V | 8A, 15.2A | 17mOhm @ 8A, 10V | 2.5V @ 1mA | 44nC @ 10V | 1535pF @ 15V | 1.98W, 4.16W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|

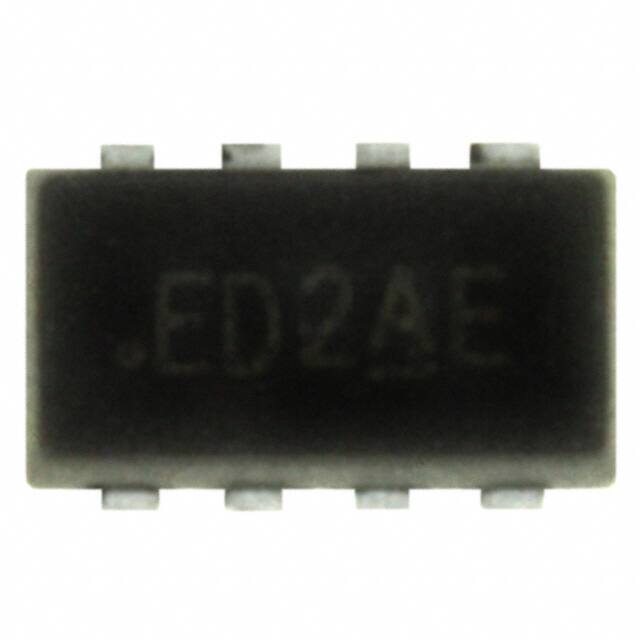

SI5509DC-T1-E3MOSFET N/P-CH 20V 6.1A 1206-8 |
11,270 |
|
- |
TrenchFET® | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel | Logic Level Gate | 20V | 6.1A, 4.8A | 52mOhm @ 5A, 4.5V | 2V @ 250µA | 6.6nC @ 5V | 455pF @ 10V | 4.5W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 1206-8 ChipFET™ |
|
|
IRF7905TRPBFMOSFET 2N-CH 30V 7.8A/8.9A 8SO |
17,392 |
|
Datasheet |
HEXFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 30V | 7.8A, 8.9A | 21.8mOhm @ 7.8A, 10V | 2.25V @ 25µA | 6.9nC @ 4.5V | 600pF @ 15V | 2W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
IRF8852TRPBFMOSFET 2N-CH 25V 7.8A 8TSSOP |
17,146 |
|
Datasheet |
HEXFET® | 8-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 25V | 7.8A | 11.3mOhm @ 7.8A, 10V | 2.35V @ 25µA | 9.5nC @ 4.5V | 1151pF @ 20V | 1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-TSSOP |
|
|
SI3586DV-T1-GE3MOSFET N/P-CH 20V 2.9A 6TSOP |
13,556 |
|
- |
TrenchFET® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel | Logic Level Gate | 20V | 2.9A, 2.1A | 60mOhm @ 3.4A, 4.5V | 1.1V @ 250µA | 6nC @ 4.5V | - | 830mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
|
AON6980MOSFET 2N-CH 30V 18A/27A 8DFN |
12,342 |
|
Datasheet |
SRFET™ | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Asymmetrical | Logic Level Gate | 30V | 18A, 27A | 6.8mOhm @ 20A, 10V | 2.2V @ 250µA | 22nC @ 10V | 1095pF @ 15V | 3.5W, 4.1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN (5x6) |
|
TT8K1TRMOSFET 2N-CH 20V 2.5A 8TSST |
17,040 |
|
Datasheet |
- | 8-SMD, Flat Leads | Tape & Reel (TR) | Last Time Buy | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate, 1.5V Drive | 20V | 2.5A | 72mOhm @ 2.5A, 4.5V | 1V @ 1mA | 3.6nC @ 4.5V | 260pF @ 10V | 1W | 150°C (TJ) | - | - | Surface Mount | 8-TSST |
|
|
DMN32M6LCA8-7MOSFET 2N-CH 30V 30A X4-DSN6025 |
12,180 |
|
Datasheet |
- | 8-SMD, No Lead | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel, Common Drain | - | 30V | 30A (Ta) | 2.6mOhm @ 10A, 10V | 2.2V @ 1mA | 42.7nC @ 4.5V | 2780pF @ 15V | 1.1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | X4-DSN6025-8 |
|
|
TSM680P06DPQ56MOSFET 2P-CH 60V 12A 8PDFN |
5,776 |
|
- |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 P-Channel | - | 60V | 12A (Tc) | 68mOhm @ 6A, 10V | 2.5V @ 250µA | 16.4nC @ 10V | 870pF @ 30V | 3.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PDFN (5x6) |
|
DMN2041UFDB-7MOSFET 2N-CH 20V 4.7A 6UDFN |
4,340 |
|
Datasheet |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 20V | 4.7A | 40mOhm @ 4.2A, 4.5V | 1.4V @ 250µA | 15nC @ 8V | 713pF @ 10V | 1.4W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | U-DFN2020-6 (Type B) |
|
|
AONX38320MOSFET 2N-CH 30V 27A 8DFN |
16,376 |
|
- |
- | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Asymmetrical | - | 30V | 27A (Ta), 66A (Tc), 57A (Ta), 233A (Tc) | 3.5mOhm @ 20A, 10V, 0.8mOhm @ 20A, 10V | 2.1V @ 250µA, 1.9V @ 250µA | 26nC @ 10V, 123nC @ 10V | 1220pF @ 15V, 6260pF @ 15V | 4.1W (Ta), 24W (Tc), 4.4W (Ta), 73W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN (5x6) |
|
|
AONX36320MOSFET 2N-CH 30V 22A 8DFN |
16,858 |
|
- |
- | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Asymmetrical | - | 30V | 22A (Ta), 22A (Tc), 60A (Ta), 85A (Tc) | 4.25mOhm @ 20A, 10V, 0.82mOhm @ 30A, 10V | 2.1V @ 250µA, 1.9V @ 250µA | 25nC @ 10V, 150nC @ 10V | 1070pF @ 15V, 5550pF @ 15V | 4.1W (Ta), 24W (Tc), 5W (Ta), 75W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN (5x6) |
|
FDS8958AMOSFET N/P-CH 30V 7A/5A 8SOIC |
15,164 |
|
Datasheet |
PowerTrench® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel | Logic Level Gate | 30V | 7A, 5A | 28mOhm @ 7A, 10V | 3V @ 250µA | 16nC @ 10V | 575pF @ 15V | 900mW | - | - | - | Surface Mount | 8-SOIC |
.jpg)
|
TSM6866SDCA RVGMOSFET 2N-CH 20V 6A 8TSSOP |
5,244 |
|
- |
- | 8-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 20V | 6A (Ta) | 30mOhm @ 6A, 4.5V | 600mV @ 250µA | 5nC @ 4.5V | 565pF @ 8V | 1.6W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-TSSOP |
|
|
TSM8568CSMOSFET N/P-CH 30V 15A 8SOP |
8,732 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | N and P-Channel | - | 30V | 15A (Tc), 13A (Tc) | 16mOhm @ 8A, 10V, 24mOhm @ 7A, 10V | 2.5V @ 250µA | 7nC @ 4.5V, 11nC @ 4.5V | 646pF @ 15V, 1089pF @ 15V | 6W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
