FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI4834BDY-T1-GE3MOSFET 2N-CH 30V 5.7A 8SOIC |
18,486 |
|
- |
TrenchFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 30V | 5.7A | 22mOhm @ 7.5A, 10V | 3V @ 250µA | 11nC @ 4.5V | - | 1.1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
FDS3912MOSFET 2N-CH 100V 3A 8SOIC |
17,096 |
|
Datasheet |
PowerTrench® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 100V | 3A | 125mOhm @ 3A, 10V | 4V @ 250µA | 20nC @ 10V | 632pF @ 50V | 900mW | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
STS3DNE60LMOSFET 2N-CH 60V 3A 8SOIC |
10,028 |
|
Datasheet |
STripFET™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 60V | 3A | 80mOhm @ 1.5A, 10V | 1V @ 250µA | 13.5nC @ 4.5V | 815pF @ 25V | 2W | 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
FDD8426HMOSFET N/P-CH 40V 12A/10A TO252 |
10,856 |
|
Datasheet |
PowerTrench® | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel | Logic Level Gate | 40V | 12A, 10A | 12mOhm @ 12A, 10V | 3V @ 250µA | 53nC @ 10V | 2735pF @ 20V | 1.3W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
|
|
FW811-TL-EMOSFET 2N-CH 35V 8A 8SOP |
4,194 |
|
Datasheet |
- | 8-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 35V | 8A | 24mOhm @ 8A, 10V | 2.6V @ 1mA | 13nC @ 10V | 660pF @ 20V | 2.2W | 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
|
SH8M70TB1MOSFET N/P-CH 250V 3A/2.5A 8SOP |
16,402 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel | - | 250V | 3A, 2.5A | 1.63Ohm @ 1.5A, 10V | 4V @ 1mA | 5.2nC @ 10V | 180pF @ 25V | 2W | 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
SI3585DV-T1-E3MOSFET N/P-CH 20V 2A/1.5A 6TSOP |
17,428 |
|
- |
TrenchFET® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel | Logic Level Gate | 20V | 2A, 1.5A | 125mOhm @ 2.4A, 4.5V | 600mV @ 250µA (Min) | 3.2nC @ 4.5V | - | 830mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
|
AO6804MOSFET 2N-CH 20V 4A 6TSOP |
17,932 |
|
Datasheet |
- | SC-74, SOT-457 | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Common Drain | Logic Level Gate | 20V | 4A | 32mOhm @ 5A, 4.5V | 1.2V @ 250µA | 7.7nC @ 4.5V | 725pF @ 10V | 800mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
|
PJS6832_S2_00001MOSFET 2N-CH 30V 1.6A SOT23-6 |
17,380 |
|
Datasheet |
- | SOT-23-6 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 30V | 1.6A (Ta) | 200mOhm @ 1.6A, 4.5V | 1.3V @ 250µA | 1.5nC @ 4.5V | 93pF @ 15V | 1.25W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-6 |
|
DMTH10H025LPDW-13MOSFET 2N-CH 100V 28A PWRDI50 |
13,104 |
|
- |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel | - | 100V | 28A (Tc) | 23mOhm @ 20A, 10V | 3V @ 250µA | 22nC @ 10V | 1463pF @ 50V | 3.4W (Ta), 40W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PowerDI5060-8 (Type UXD) |
|

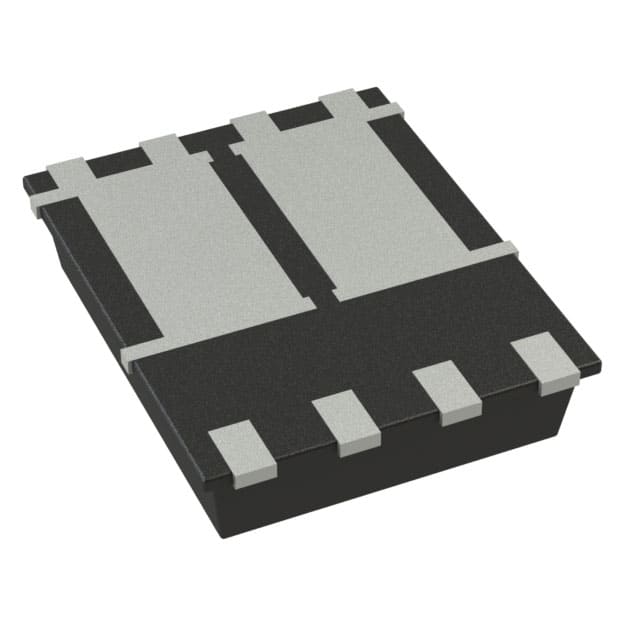

IRF40H233XTMA1MOSFET 2N-CH 40V 8TDSON |
9,386 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 40V | - | - | - | - | - | - | - | - | - | Surface Mount | PG-TDSON-8-900 |
|
|
SI4830ADY-T1-GE3MOSFET 2N-CH 30V 5.7A 8SOIC |
19,616 |
|
Datasheet |
LITTLE FOOT® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | Logic Level Gate | 30V | 5.7A | 22mOhm @ 7.5A, 10V | 3V @ 250µA | 11nC @ 4.5V | - | 1.1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
MMDF2N02ER2MOSFET 2N-CH 25V 3.6A 8SOIC |
17,918 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 25V | 3.6A | 100mOhm @ 2.2A, 10V | 3V @ 250µA | 30nC @ 10V | 532pF @ 16V | 2W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
MMDF2N02ER2GMOSFET 2N-CH 25V 3.6A 8SOIC |
10,750 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 25V | 3.6A | 100mOhm @ 2.2A, 10V | 3V @ 250µA | 30nC @ 10V | 532pF @ 16V | 2W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
IRF7901D1TRMOSFET 2N-CH 30V 6.2A 8SO |
11,994 |
|
Datasheet |
FETKY™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 30V | 6.2A | 38mOhm @ 5A, 4.5V | 1V @ 250µA | 10.5nC @ 5V | 780pF @ 16V | 2W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
SI6966DQ-T1-E3MOSFET 2N-CH 20V 4A 8TSSOP |
7,724 |
|
- |
TrenchFET® | 8-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 20V | 4A | 30mOhm @ 4.5A, 4.5V | 1.4V @ 250µA | 20nC @ 4.5V | - | 830mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-TSSOP |
|
|
SI6966DQ-T1-GE3MOSFET 2N-CH 20V 4A 8TSSOP |
14,638 |
|
- |
TrenchFET® | 8-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 20V | 4A | 30mOhm @ 4.5A, 4.5V | 1.4V @ 250µA | 20nC @ 4.5V | - | 830mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-TSSOP |
|
|
SI6966EDQ-T1-E3MOSFET 2N-CH 20V 8TSSOP |
14,016 |
|
- |
- | 8-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 20V | - | 30mOhm @ 5.2A, 4.5V | 600mV @ 250µA (Min) | 25nC @ 4.5V | - | 1.25W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-TSSOP |
|
|
SI6966EDQ-T1-GE3MOSFET 2N-CH 20V 8TSSOP |
6,170 |
|
- |
- | 8-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 20V | - | 30mOhm @ 5.2A, 4.5V | 600mV @ 250µA (Min) | 25nC @ 4.5V | - | 1.25W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-TSSOP |
|
|
HUFA76407DK8TMOSFET 2N-CH 60V 8SOIC |
16,798 |
|
Datasheet |
UltraFET™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 60V | - | 90mOhm @ 3.8A, 10V | 3V @ 250µA | 11.2nC @ 10V | 330pF @ 25V | 2.5W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
