FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSCSM120HRM052NGMOSFET 4N-CH 1200V/700V 472A |
10,838 |
|
Datasheet |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 4 N-Channel (Three Level Inverter) | - | 1200V (1.2kV), 700V | 472A (Tc), 442A (Tc) | 5.2mOhm @ 240A, 20V, 4.8mOhm @ 160A, 20V | 2.8V @ 18mA, 2.4V @ 16mA | 1392nC @ 20V, 860nC @ 20V | 18100pF @ 1000V, 18000pF @ 700V | 1.846kW (Tc), 1.161kW (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
|
|
FS03MR12A7MA2BHPSA1MOSFET 6N-CH 1200V 310A |
16,794 |
|
Datasheet |
HybridPACK™ | Module | Box | Active | Silicon Carbide (SiC) | 6 N-Channel | Silicon Carbide (SiC) | 1200V (1.2kV) | 310A | 2.54mOhm @ 310A, 18V | 4.55V @ 120mA | 870nC @ 18V | 25900pF @ 750V | - | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
|
|
CAB003M09DM3MOSFET 2N-CH 900V 518A MODULE |
4,372 |
|
Datasheet |
- | Module | Bulk | Active | SiCFET (Silicon Carbide) | 2 N-Channel (Half Bridge) | - | 900V | 518A (Tc) | 3.25mOhm @ 400A, 15V | 3.5V @ 130mA | 840nC @ 15V | 20.4pF @ 900V | 1.163kW (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | Module |
|

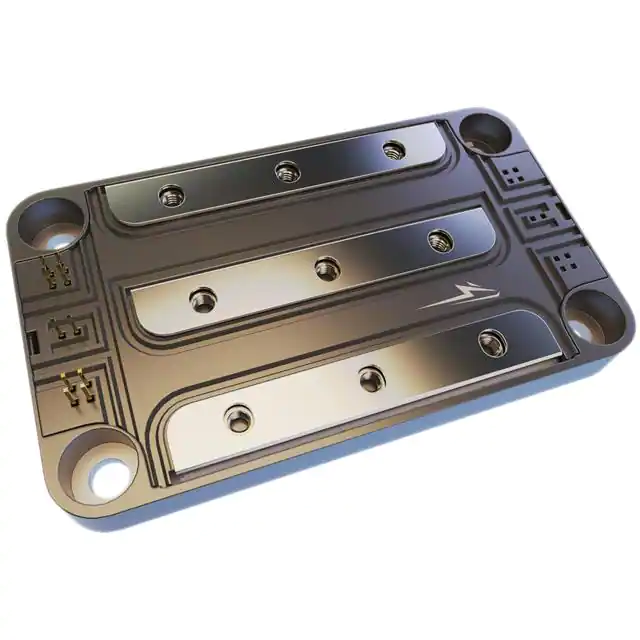

CAR600M12HN6MOSFET 2N-CH 1200V 908A MODULE |
3,458 |
|
Datasheet |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 908A (Tc) | - | - | - | 45300pF @ 0V | - | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | Module |
|
|
CAR600M17HN6MOSFET 2N-CH 1700V 986A MODULE |
15,462 |
|
Datasheet |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1700V (1.7kV) | 986A (Tc) | - | - | - | 55700pF @ 0V | - | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | Module |
|
|
FF4000UXTR33T2M1BPSA1XHP HV |
6,924 |
|
Datasheet |
XHP™2 | Module | Tray | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 3300V (3.3kV) | 500A (Tc) | 4.8mOhm @ 500A, 15V | 5.55V @ 450mA | 2500nC @ 15V | 101000pF @ 1800V | - | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | AG-XHP2K17 |
|
|
FF2000UXTR33T2M1BPSA1MOSFET 2N-CH 3300V 9AG-XHP2K33 |
2,178 |
|
Datasheet |
CoolSiC™ | Module | Box | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | Silicon Carbide (SiC) | 3300V (3.3kV) | 925A (Tc) | 2.4mOhm @ 1kA, 15V | 5.55V @ 900mA | 5000nC @ 15V | 203000pF @ 1.8kV | - | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | AG-XHP2K33 |
|
|
SI6303KDWS-TPMOSFET 2N-CH 30V 0.5A SOT-363S |
16,234 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel | - | 30V | 500mA (Ta) | 500mOhm @ 500mA, 4.5V | 1.5V @ 250µA | 0.55nC @ 4.5V | 34pF @ 25V | 300mW (Tj) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-363S |
|
|
DMN31D5UDR4-7MOSFET 2N-CH 30V 0.5A 6DFN |
8,402 |
|
- |
- | 6-XFDFN Exposed Pad | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel | - | 30V | 500mA (Ta) | 1.5Ohm @ 100mA, 4.5V | 900mV @ 250µA | 50pC @ 4.5V | 22.2pF @ 15V | 370mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | X2-DFN1010-6 (Type UXC) |
|
|
DMN31D5UDR4-7RMOSFET 2N-CH 30V 0.5A 6DFN |
5,308 |
|
- |
- | 6-XFDFN Exposed Pad | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel | - | 30V | 500mA (Ta) | 1.5Ohm @ 100mA, 4.5V | 900mV @ 250µA | 50pC @ 4.5V | 22.2pF @ 15V | 370mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | X2-DFN1010-6 (Type UXC) |
|
|
2N7002KDW-13PMOSFET 2N-CH 60V 0.34A SOT363 |
13,334 |
|
- |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel | - | 60V | 340mA (Ta) | 3Ohm @ 500mA, 10V | 2.5V @ 1mA | 880pC @ 10V | 16pF @ 10V | 300mW (Tj) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-363 |
|
|
DMN31D5UDW-13MOSFET 2N-CH 30V 0.43A SOT363 |
14,748 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel | - | 30V | 430mA (Ta) | 1.5Ohm @ 100mA, 4.5V | 900mV @ 250µA | 0.3nC @ 4.5V | 15.4pF @ 15V | 330mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-363 |
|
|
DMP32D9UDAQ-7BMOSFET 2P-CH 30V 0.22A 6DFN |
13,740 |
|
Datasheet |
- | 6-SMD, No Lead | Bulk | Active | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | - | 30V | 220mA (Ta) | 5Ohm @ 100mA, 4.5V | 1V @ 250µA | 350nC @ 4.5V | 21.8pF @ 15V | 360mW (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | X2-DFN0806-6 |
|
|
DMC31D5UDAQ-7BMOSFET N/P-CH 30V 0.4A 6DFN |
4,452 |
|
Datasheet |
- | 6-SMD, No Lead | Bulk | Active | MOSFET (Metal Oxide) | N and P-Channel Complementary | - | 30V | 400mA (Ta), 220mA (Ta) | 1.5Ohm @ 100mA, 4.5V, 5Ohm @ 100mA, 4.5V | 1V @ 250µA | 0.38nC @ 4.5V, 0.35nC @ 4.5V | 22.6pF @ 15V, 21.8pF @ 15V | 370mW (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | X2-DFN0806-6 |
|
|
DMN31D5UDAQ-7BMOSFET 2N-CH 30V 0.4A 6DFN |
9,046 |
|
Datasheet |
- | 6-SMD, No Lead | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel | - | 30V | 400mA (Ta) | 1.5Ohm @ 100mA, 4.5V | 1V @ 250µA | 0.38nC @ 4.5V | 22.6pF @ 15V | 370mW (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | X2-DFN0806-6 |
|
|
DMP22D5UDA-7BMOSFET 2P-CH 20V 0.35A 6DFN |
11,874 |
|
Datasheet |
- | 6-SMD, No Lead | Bulk | Active | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | - | 20V | 350mA (Ta) | 1.9Ohm @ 100mA, 4.5V | 1V @ 250µA | 0.3nC @ 4.5V | 17pF @ 15V | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | X2-DFN0806-6 |
|
BSS138DWK-13MOSFET 2N-CH 50V 0.31A SOT363 |
12,236 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 50V | 310mA (Ta) | 2.6Ohm @ 200mA, 10V | 1.5V @ 250µA | 0.8nC @ 10V | 22pF @ 25V | 330mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-363 |
|
|
DMN61D9UDWQ-13MOSFET 2N-CH 60V 0.318A SOT363 |
5,556 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 60V | 318mA (Ta) | 2Ohm @ 50mA, 5V | 1V @ 250µA | 0.6nC @ 4.5V | 39pF @ 30V | 370mW (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-363 |
|
|
DMN3401LV-13MOSFET 2N-CH 30V 0.8A SOT563 |
19,070 |
|
Datasheet |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel | - | 30V | 800mA (Ta) | 400mOhm @ 590mA, 10V | 1.6V @ 100µA | 1.2nC @ 10V | 50pF @ 15V | 490mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-563 |
|
|
DMP31D7LV-13MOSFET 2P-CH 30V 0.62A SOT563 |
10,684 |
|
Datasheet |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 P-Channel | - | 30V | 620mA (Ta) | 900mOhm @ 420mA, 10V | 2.6V @ 250µA | 0.8nC @ 10V | 19pF @ 15V | 500mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-563 |
