FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSCSM120TAM11CTPAGMOSFET 6N-CH 1200V 251A SP6-P |
6,462 |
|
Datasheet |
- | Module | Tube | Active | Silicon Carbide (SiC) | 6 N-Channel (3-Phase Bridge) | - | 1200V (1.2kV) | 251A (Tc) | 10.4mOhm @ 120A, 20V | 2.8V @ 3mA | 696nC @ 20V | 9060pF @ 1000V | 1.042kW (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP6-P |
|
MSCSM120AM03CT6LIAGMOSFET 2N-CH 1200V 805A SP6C LI |
9,910 |
|
Datasheet |
- | Module | Tube | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 1200V (1.2kV) | 805A (Tc) | 3.1mOhm @ 400A, 20V | 2.8V @ 10mA | 2320nC @ 20V | 30200pF @ 1kV | 3.215kW (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP6C LI |
|
MSCSM170AM039CD3AGMOSFET 2N-CH 1700V 523A |
4,164 |
|
Datasheet |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 1700V (1.7kV) | 523A (Tc) | 5mOhm @ 270A, 20V | 3.3V @ 22.5mA | 1602nC @ 20V | 29700pF @ 1000V | 2.4kW (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
|
BSM600D12P3G001MOSFET 2N-CH 1200V 600A MODULE |
8,998 |
|
Datasheet |
- | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 600A (Tc) | - | 5.6V @ 182mA | - | 31000pF @ 10V | 2450W (Tc) | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | Module |
|
|
FS03MR12A6MA1LBBPSA1MOSFET 6N-CH 1200V AG-HYBRIDD |
5,094 |
|
Datasheet |
HybridPACK™ | Module | Tray | Active | Silicon Carbide (SiC) | 6 N-Channel (3-Phase Bridge) | - | 1200V (1.2kV) | 400A | 3.7mOhm @ 400A, 15V | 5.55V @ 240mA | 1320nC @ 15V | 42500pF @ 600V | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | AG-HYBRIDD-2 |
|

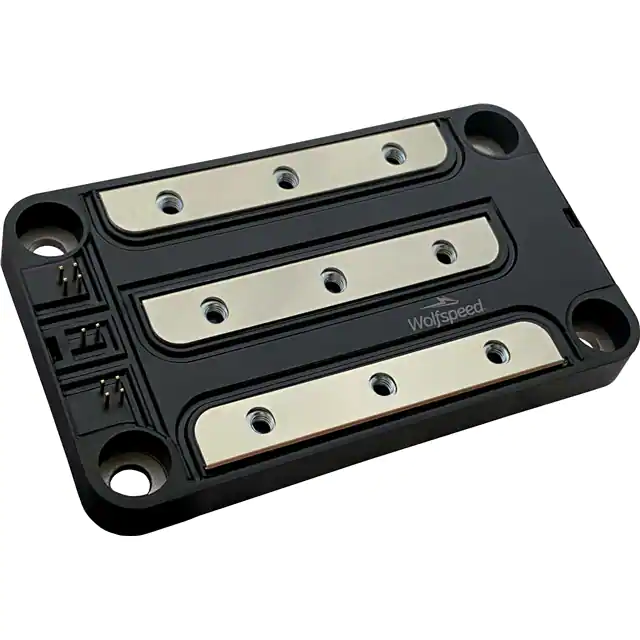

CAS480M12HM3MOSFET 2N-CH 1200V 640A MODULE |
7,816 |
|
Datasheet |
- | Module | Box | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 640A (Tc) | 2.97mOhm @ 480A, 15V | 3.6V @ 160mA | 1590nC @ 15V | 43100pF @ 800V | - | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | Module |
|
MCQ4503B-TPMOSFET N/P-CH 30V 5.6A 8SOP |
724 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | N and P-Channel | - | 30V | 5.6A (Ta), 4.4A (Ta) | 25mOhm @ 5.6A, 10V | 1.5V @ 250µA, 1.4V @ 250µA | 4.8nC @ 4.5V, 7.2nC @ 10V | 535pF @ 15V, 680pF @ 15V | 2W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
DMN2028UFDH-7MOSFET 2N-CH 20V 6.8A POWERDI |
236 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Common Drain | Logic Level Gate | 20V | 6.8A | 20mOhm @ 4A, 10V | 1V @ 250µA | 8.5nC @ 4.5V | 151pF @ 10V | 1.1W | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerDI3030-8 |
|
SIS932EDN-T1-GE3MOSFET 2N-CH 30V 6A PPAK 1212 |
1,486 |
|
Datasheet |
TrenchFET® | PowerPAK® 1212-8 Dual | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 30V | 6A (Tc) | 22mOhm @ 10A, 4.5V | 1.4V @ 250µA | 14nC @ 4.5V | 1000pF @ 15V | 2.6W (Ta), 23W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8 Dual |
|
CSD87333Q3DTMOSFET 2N-CH 30V 15A 8VSON |
568 |
|
Datasheet |
NexFET™ | 8-PowerTDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Asymmetrical | Logic Level Gate, 5V Drive | 30V | 15A | 14.3mOhm @ 4A, 8V | 1.2V @ 250µA | 4.6nC @ 4.5V | 662pF @ 15V | 6W | 125°C (TJ) | - | - | Surface Mount | 8-VSON (3.3x3.3) |
|
ZXMN2A04DN8TAMOSFET 2N-CH 20V 5.9A 8SO |
1,084 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 20V | 5.9A | 25mOhm @ 5.9A, 4.5V | 700mV @ 250µA (Min) | 22.1nC @ 5V | 1880pF @ 10V | 1.8W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
CSD86336Q3DTMOSFET 2N-CH 25V 20A 8VSON |
2,154 |
|
Datasheet |
NexFET™ | 8-PowerTDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | Logic Level Gate, 5V Drive | 25V | 20A (Ta) | 9.1mOhm @ 20A, 5V, 3.4mOhm @ 20A, 5V | 1.9V @ 250µA, 1.6V @ 250µA | 3.8nC @ 45V, 7.4nC @ 45V | 494pF @ 12.5V, 970pF @ 12.5V | 6W | -55°C ~ 125°C | - | - | Surface Mount | 8-VSON (3.3x3.3) |
|
ALD110902SALMOSFET 2N-CH 10.6V 8SOIC |
6,662 |
|
Datasheet |
EPAD® | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Matched Pair | - | 10.6V | - | 500Ohm @ 4.2V | 220mV @ 1µA | - | 2.5pF @ 5V | 500mW | 0°C ~ 70°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
ALD212900PALMOSFET 2N-CH 10.6V 0.08A 8PDIP |
6,486 |
|
Datasheet |
EPAD®, Zero Threshold™ | 8-DIP (0.300", 7.62mm) | Tube | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Matched Pair | Logic Level Gate | 10.6V | 80mA | 14Ohm | 20mV @ 20µA | - | 30pF @ 5V | 500mW | 0°C ~ 70°C (TJ) | - | - | Through Hole | 8-PDIP |
|
ALD110900APALMOSFET 2N-CH 10.6V 8PDIP |
4,834 |
|
Datasheet |
EPAD®, Zero Threshold™ | 8-DIP (0.300", 7.62mm) | Tube | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Matched Pair | - | 10.6V | - | 500Ohm @ 4V | 10mV @ 1µA | - | 2.5pF @ 5V | 500mW | 0°C ~ 70°C (TJ) | - | - | Through Hole | 8-PDIP |
|
|
FMM75-01FMOSFET 2N-CH 100V 75A I4-PAC |
8,600 |
|
- |
HiPerFET™ | i4-Pac™-5 | Tube | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 100V | 75A | 25mOhm @ 50A, 10V | 4V @ 4mA | 180nC @ 10V | - | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS i4-PAC™ |
|
APTM50H14FT3GMOSFET 4N-CH 500V 26A SP3 |
3,308 |
|
Datasheet |
- | SP3 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 500V | 26A | 168mOhm @ 13A, 10V | 5V @ 1mA | 72nC @ 10V | 3259pF @ 25V | 208W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP3 |
|
APTC60DSKM24T3GMOSFET 2N-CH 600V 95A SP3 |
9,170 |
|
Datasheet |
CoolMOS™ | SP3 | Tray | Active | MOSFET (Metal Oxide) | 2 N Channel (Dual Buck Chopper) | - | 600V | 95A | 24mOhm @ 47.5A, 10V | 3.9V @ 5mA | 300nC @ 10V | 14400pF @ 25V | 462W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP3 |
|
APTM50HM65FT3GMOSFET 4N-CH 500V 51A SP3 |
2,912 |
|
Datasheet |
- | SP3 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 500V | 51A | 78mOhm @ 25.5A, 10V | 5V @ 2.5mA | 140nC @ 10V | 7000pF @ 25V | 390W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP3 |
|
APTM50AM38STGMOSFET 2N-CH 500V 90A SP4 |
8,088 |
|
Datasheet |
- | SP4 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 500V | 90A | 45mOhm @ 45A, 10V | 5V @ 5mA | 246nC @ 10V | 11200pF @ 25V | 694W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
