FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RFF70N06/3MOSFET N-CH 60V 25A |
8,532 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FF45MR12W1M1B11BOMA1MOSFET 2N-CH 1200V AG-EASY1BM-2 |
12,634 |
|
Datasheet |
CoolSiC™+ | Module | Bulk | Obsolete | Silicon Carbide (SiC) | 2 N-Channel (Dual) | - | 1200V (1.2kV) | 25A (Tj) | 45mOhm @ 25A, 15V (Typ) | 5.55V @ 10mA | 62nC @ 15V | 1840pF @ 800V | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | AG-EASY1BM-2 |
|
DF23MR12W1M1PB11BPSA1MOSFET 2N-CH 1200V 25A AG-EASY1B |
7,380 |
|
Datasheet |
EasyPACK™ | Module | Bulk | Obsolete | Silicon Carbide (SiC) | 2 N-Channel (Dual) | - | 1200V (1.2kV) | 25A (Tj) | 45mOhm @ 25A, 15V | 5.55V @ 10mA | 62nC @ 15V | 1840pF @ 800V | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | AG-EASY1B-2 |
|
FF23MR12W1M1B11BOMA1MOSFET 2N-CH 1200V 50A MODULE |
492 |
|
Datasheet |
CoolSiC™+ | Module | Tray | Obsolete | Silicon Carbide (SiC) | 2 N-Channel (Dual) | - | 1200V (1.2kV) | 50A | 23mOhm @ 50A, 15V | 5.55V @ 20mA | 125nC @ 15V | 3950pF @ 800V | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | Module |
|
|
FS45MR12W1M1B11BOMA1MOSFET 6N-CH 1200V AG-EASY1BM-2 |
202 |
|
Datasheet |
CoolSiC™+ | Module | Tray | Obsolete | Silicon Carbide (SiC) | 6 N-Channel (3-Phase Bridge) | - | 1200V (1.2kV) | 25A (Tj) | 45mOhm @ 25A, 15V (Typ) | 5.55V @ 10mA | 62nC @ 15V | 1840pF @ 800V | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | AG-EASY1BM-2 |
|
FF11MR12W1M1PB11BPSA1MOSFET 2N-CH 1200V AG-EASY1B |
3,496 |
|
Datasheet |
EasyDUAL™ | Module | Tray | Obsolete | Silicon Carbide (SiC) | 2 N-Channel (Dual) | - | 1200V (1.2kV) | 100A (Tj) | 11.3mOhm @ 100A, 15V | 5.55V @ 40mA | 248nC @ 15V | 7360pF @ 800V | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | AG-EASY1B-2 |
|
FF6MR12KM1BOSA1MOSFET 2N-CH 1200V 250A AG-62MM |
18,326 |
|
Datasheet |
CoolSiC™ | Module | Bulk | Obsolete | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 250A (Tc) | 5.81mOhm @ 250A, 15V | 5.15V @ 80mA | 496nC @ 15V | 14700pF @ 800V | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | AG-62MM |
|

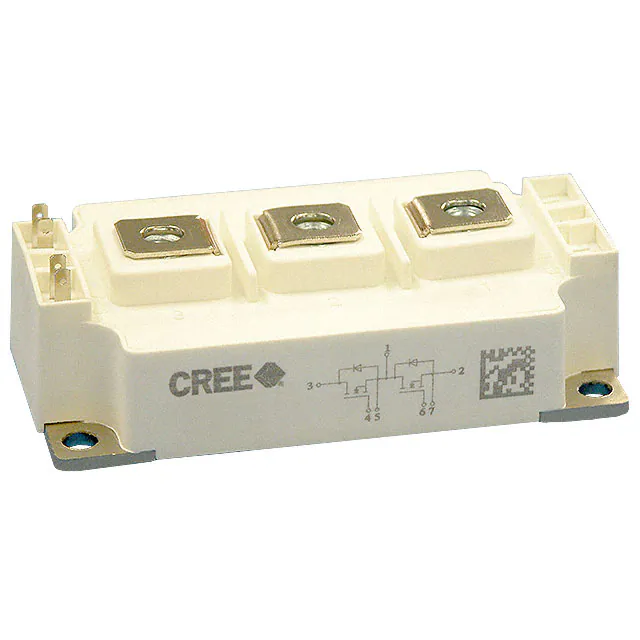

CAS120M12BM2MOSFET 2N-CH 1200V 193A MODULE |
234 |
|
Datasheet |
Z-Rec® | Module | Bulk | Last Time Buy | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 193A (Tc) | 16mOhm @ 120A, 20V | 2.6V @ 6mA (Typ) | 378nC @ 20V | 6470pF @ 800V | 925W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | Module |
|
BSO4804HUMA2MOSFET 2N-CH 30V 8A 8DSO |
17,732 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 30V | 8A (Ta) | 20mOhm @ 8A, 10V | 2V @ 30µA | 17nC @ 5V | 870pF @ 25V | 2W | -55°C ~ 150°C | - | - | Surface Mount | PG-DSO-8 |
|
CTLDM304P-M832DS TRMOSFET 2P-CH 30V 4.2A TLM832DS |
5,922 |
|
Datasheet |
- | 8-TDFN Exposed Pad | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | - | 30V | 4.2A | 70mOhm @ 4.2A, 10V | 1.3V @ 250µA | 6.4nC @ 4.5V | 760pF @ 15V | 1.65W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TLM832DS |
|
G1NP02LLEMOSFET 20V 1.3A SOT23-6L |
300,000 |
|
Datasheet |
TrenchFET® | SOT-23-6 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | - | - | 20V | 1.3A (Tc), 1.1A (Tc) | 210mOhm @ 650mA, 4.5V, 460mOhm @ 500mA, 4.5V | 1V @ 250µA, 800mV @ 250µA | 1nC @ 4.5V, 1.22nC @ 4.5V | 146pF @ 10V, 177pF @ 10V | 1.25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-6L |
|
|
NTND31200PZTAGMOSFET P-CH |
1,848,842 |
|
Datasheet |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
G4614MOSFET N+P-CH 40V/-40V 6A/-7A SO |
8,000 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | - | - | - | - | 35mOhm @ 3A, 10V, 35mOhm @- 2A, -10V | 2.5V @ 250µA | 15nC @ 10V, 25nC @ -10V | 523pF @ 20V, 1217pF @ -20V | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
|
G300N04S2MOSFET 2N-CH 40V 5.5A 8SOP |
24,000 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel | - | 40V | 5.5A (Tc) | 30mOhm @ 3A, 10V | 2.5V @ 250µA | 10nC @ 10V | 522pF @ 20V | 1.25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
PMCXB1000UEZMOSFET 30V |
390,000 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NVJD4152PT1GMOSFET 2P-CH 20V 0.88A SC88 |
68,548 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Bulk | Active | MOSFET (Metal Oxide) | 2 P-Channel | - | 20V | 880mA (Ta) | 260mOhm @ 880mA, 4.5V | 1.2V @ 250µA | 2.2nC @ 4.5V | 155pF @ 20V | 272mW (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SC-88/SC70-6/SOT-363 |
|
|
6706AMOSFET 30V 6.5A 8SOP |
40,000 |
|
Datasheet |
TrenchFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | - | - | 30V | 6.5A (Tc), 5A (Tc) | 30mOhm @ 5A, 10V, 60mOhm @ 4A, 10V | 2V @ 250µA, 2.5V @ 250µA | 5.2nC @ 10V, 9.2nC @ 10V | 255pF @ 15V, 520pF @ 15V | 2W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
G4953SMOSFET 2P-CH 30V 5A 8SOP |
40,000 |
|
Datasheet |
TrenchFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | - | - | 30V | 5A (Tc) | 45mOhm @ 5A, 10V | 3V @ 250µA | 11nC @ 10V | 520pF @ 15V | 1.6W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
|
G800N06S2MOSFET 2N-CH 60V 3A 8SOP |
16,000 |
|
Datasheet |
TrenchFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | - | - | 60V | 3A (Tc) | 80mOhm @ 3A, 10V | 1.2V @ 250µA | 6nC @ 10V | 458pF @ 30V | 1.7W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
|
G1K8P06S2MOSFET 60V 3.2A 8SOP |
8,000 |
|
Datasheet |
TrenchFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | - | - | 60V | 3.2A (Tc) | 170mOhm @ 1A, 10V | 2.5V @ 250µA | 11.3nC @ 10V | 594pF @ 30V | 2W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
