FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FDS8936AMOSFET 2N-CH 30V 6A 8SOIC |
151,712 |
|
Datasheet |
PowerTrench® | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 30V | 6A (Ta) | 28mOhm @ 6A, 10V | 3V @ 250µA | 27nC @ 10V | 650pF @ 15V | 900mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
TT8J21TRMOSFET 2P-CH 20V 2.5A 8TSST |
6,054 |
|
Datasheet |
- | 8-SMD, Flat Leads | Tape & Reel (TR) | Last Time Buy | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate | 20V | 2.5A | 68mOhm @ 2.5A, 4.5V | 1V @ 1mA | 12nC @ 4.5V | 1270pF @ 10V | 650mW | 150°C (TJ) | - | - | Surface Mount | 8-TSST |
|
SH8K3TB1MOSFET 2N-CH 30V 7A 8SOP |
3,008 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Not For New Designs | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 30V | 7A (Ta) | 24mOhm @ 7A, 10V | 2.5V @ 1mA | 11.8nC @ 5V | 600pF @ 10V | 2W (Ta) | 150°C | - | - | Surface Mount | 8-SOP |
|
|
TT8J2TRMOSFET 2P-CH 30V 2.5A 8TSST |
11,998 |
|
Datasheet |
- | 8-SMD, Flat Leads | Tape & Reel (TR) | Last Time Buy | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate | 30V | 2.5A | 84mOhm @ 2.5A, 10V | 2.5V @ 1mA | 4.8nC @ 5V | 460pF @ 10V | 1.25W | 150°C (TJ) | - | - | Surface Mount | 8-TSST |
|
AON6992MOSFET 2N-CH 30V 19A/31A 8DFN |
11,218 |
|
Datasheet |
- | 8-PowerWDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Asymmetrical | Logic Level Gate | 30V | 19A, 31A | 5.2mOhm @ 20A, 10V | 2.2V @ 250µA | 13nC @ 10V | 820pF @ 15V | 3.1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN (5x6) |
|
G450N10D52MOSFET 100V 35A 8DFN |
9,800 |
|
Datasheet |
- | 8-PowerTDFN | Cut Tape (CT) | Active | - | - | - | 100V | 35A (Tc) | 45mOhm @ 10A, 10V | 2.5V @ 250µA | 26nC @ 10V | 2196pF @ 50V | 80W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN (4.9x5.75) |
|
NTLUD3A50PZTAGMOSFET 2P-CH 20V 2.8A 6UDFN |
3,960 |
|
Datasheet |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate | 20V | 2.8A | 50mOhm @ 4A, 4.5V | 1V @ 250µA | 10.4nC @ 4.5V | 920pF @ 15V | 500mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-UDFN (2x2) |
|
NTMD4820NR2GMOSFET 2N-CH 30V 4.9A 8SOIC |
16,598 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 30V | 4.9A | 20mOhm @ 7.5A, 10V | 3V @ 250µA | 7.7nC @ 4.5V | 940pF @ 15V | 750mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
PJQ5866A_R2_00001MOSFET 2N-CH 60V 7A 8DFN |
5,456 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 60V | 7A (Ta), 40A (Tc) | 17mOhm @ 20A, 10V | 2.5V @ 250µA | 13.5nC @ 4.5V | 1574pF @ 25V | 1.7W (Ta), 56W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN5060B-8 |
|
EFC2K102NUZTDGMOSFET 2N-CH 12V 33A 10WLCSP |
9,790 |
|
- |
- | 10-SMD, No Lead | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Common Drain | Logic Level Gate, 2.5V Drive | 12V | 33A (Ta) | 2.65mOhm @ 5A, 4.5V | 1.3V @ 1mA | 42nC @ 3.8V | - | 3.1W (Ta) | 150°C (TJ) | - | - | Surface Mount | 10-WLCSP (2.98x1.49) |
|
|
SI9945BDY-T1-GE3MOSFET 2N-CH 60V 5.3A 8SOIC |
1,300 |
|
Datasheet |
TrenchFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Last Time Buy | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 60V | 5.3A | 58mOhm @ 4.3A, 10V | 3V @ 250µA | 20nC @ 10V | 665pF @ 15V | 3.1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
FDME1023PZTMOSFET 2P-CH 20V 2.6A 6MICROFET |
12,794 |
|
Datasheet |
PowerTrench® | 6-UFDFN Exposed Pad | Tape & Reel (TR) | Last Time Buy | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate | 20V | 2.6A | 142mOhm @ 2.3A, 4.5V | 1V @ 250µA | 7.7nC @ 4.5V | 405pF @ 10V | 600mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-MicroFET (1.6x1.6) |
|
|
RFIS70N06SMMOSFET N-CH 60V 70A |
2,000 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

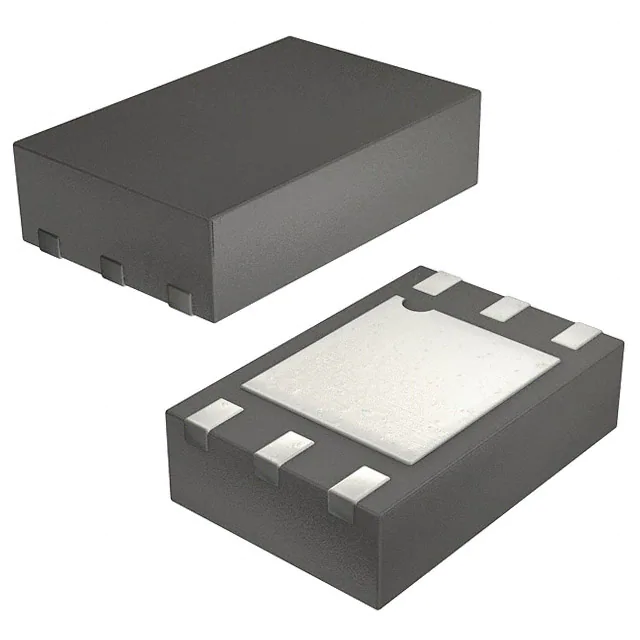

FDMB2307NZMOSFET 2N-CH 6MLP |
17,750 |
|
Datasheet |
PowerTrench® | 6-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Common Drain | Logic Level Gate | - | - | - | - | 28nC @ 5V | - | 800mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-MLP (2x3) |
|
|
G60N04D52MOSFET 40V 35A 8DFN |
10,000 |
|
Datasheet |
TrenchFET® | 8-PowerTDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | - | - | 40V | 35A (Tc) | 9mOhm @ 20A, 10V | 2.5V @ 250µA | 27nC @ 10V | 1998pF @ 20V | 20W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN (4.9x5.75) |
|
RF1S40N10LEMOSFET N-CH 100V 40A |
2,736 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FDS4897CMOSFET N/P-CH 40V 6.2A 8SOIC |
1,780 |
|
Datasheet |
PowerTrench® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel | Logic Level Gate | 40V | 6.2A, 4.4A | 29mOhm @ 6.2A, 10V | 3V @ 250µA | 20nC @ 10V | 760pF @ 20V | 900mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
MCQ4828A-TPMOSFET 2N-CH 60V 4.5A 8SOP |
72,440 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 60V | 4.5A (Ta) | 56mOhm @ 4.5A, 10V | 3V @ 250µA | 10.5nC @ 10V | 540pF @ 30V | 1.25W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
SP8K1TBMOSFET 2N-CH 30V 5A 8SOP |
4,172 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 30V | 5A | 51mOhm @ 5A, 10V | 2.5V @ 1mA | 5.5nC @ 5V | 230pF @ 10V | 2W | 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
SIZ342DT-T1-GE3MOSFET 2N-CH 30V 15.7A 8PWR33 |
18,028 |
|
Datasheet |
TrenchFET® | 8-PowerWDFN | Tape & Reel (TR) | Obsolete | - | 2 N-Channel (Dual) | - | 30V | 15.7A (Ta), 100A (Tc) | 11.5mOhm @ 14A, 10V | 2.4V @ 250µA | 20nC @ 10V | 650pF @ 15V | 3.6W, 4.3W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-Power33 (3x3) |
