FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FW803-TL-EMOSFET N-CH |
20,000 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FDQ7238ASMOSFET 2N-CH 30V 14A/11A 14SOIC |
10,000 |
|
Datasheet |
PowerTrench® | 14-SOIC (0.154", 3.90mm Width) | Bulk | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 30V | 14A, 11A | 13.2mOhm @ 11A, 10V | 3V @ 250µA | 24nC @ 10V | 920pF @ 15V | 1.3W, 1.1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 14-SOIC |
|
HAT2218R-EL-EMOSFET 2N-CH 30V 7.5A/8A 8SOP |
7,962 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Bulk | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Asymmetrical | Logic Level Gate, 4.5V Drive | 30V | 7.5A, 8A | 24mOhm @ 3.75A, 10V | - | 4.6nC @ 4.5V | 630pF @ 10V | 1.5W | 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
FDG8850NZMOSFET 2N-CH 30V 0.75A SC88 |
6,724 |
|
Datasheet |
PowerTrench® | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Last Time Buy | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 30V | 750mA | 400mOhm @ 750mA, 4.5V | 1.5V @ 250µA | 1.44nC @ 4.5V | 120pF @ 10V | 300mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-88 (SC-70-6) |
|
|
FDG6304PMOSFET 2P-CH 25V 0.41A SC88 |
3,406 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Last Time Buy | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate | 25V | 410mA | 1.1Ohm @ 410mA, 4.5V | 1.5V @ 250µA | 1.5nC @ 4.5V | 62pF @ 10V | 300mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-88 (SC-70-6) |
|
|
GSFN0207MOSFET 2P-CH 20V 7.5A 8PPAK |
11,800 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 P-Channel | - | 20V | 7.5A (Tc) | 33mOhm @ 4A, 4.5V | 1V @ 250µA | 25nC @ 4.5V | 2100pF @ 15V | 25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PPAK (3.15x3.1) |
|
NDC7002NMOSFET 50V 0.51A SOT23-6 |
9,384 |
|
Datasheet |
UMW | SOT-23-6 | Tape & Reel (TR) | Active | - | - | - | 50V | 510mA (Ta) | 2Ohm @ 510mA, 10V | 2.5V @ 250µA | 1nC @ 10V | 20pF @ 25V | 700mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-6 |
|
BSO604NS2XUMA1MOSFET 2N-CH 55V 5A 8DSO |
7,960 |
|
Datasheet |
OptiMOS™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 55V | 5A | 35mOhm @ 2.5A, 10V | 2V @ 30µA | 26nC @ 10V | 870pF @ 25V | 2W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-DSO-8 |
|
RFD20N03SM9AR4770MOSFET N-CH 30V 20A |
3,156 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
DMC3021LK4-13MOSFET N/P-CH 30V 9.4A TO252-4L |
14,206 |
|
Datasheet |
- | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Not For New Designs | MOSFET (Metal Oxide) | N and P-Channel, Common Drain | Logic Level Gate | 30V | 9.4A, 6.8A | 21mOhm @ 7A, 10V | 2.1V @ 250µA | 17.4nC @ 10V | 751pF @ 10V | 2.7W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252-4L |
|
FDMS9600SMOSFET 2N-CH 30V 12A/16A 8MLP |
15,152 |
|
Datasheet |
PowerTrench® | 8-PowerWDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 30V | 12A, 16A | 8.5mOhm @ 12A, 10V | 3V @ 250µA | 13nC @ 4.5V | 1705pF @ 15V | 1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-MLP (5x6), Power56 |
|
DMC1030UFDBQ-7MOSFET N/P-CH 12V 5.1A 6UDFN |
13,740 |
|
Datasheet |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Not For New Designs | MOSFET (Metal Oxide) | N and P-Channel Complementary | - | 12V | 5.1A | 34mOhm @ 4.6A, 4.5V | 1V @ 250µA | 23.1nC @ 10V | 1003pF @ 6V | 1.36W | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | U-DFN2020-6 (Type B) |
|
FDMS3600ASMOSFET 2N-CH 25V 15A/30A POWER56 |
15,880 |
|
Datasheet |
PowerTrench® | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Asymmetrical | Logic Level Gate | 25V | 15A, 30A | 5.6mOhm @ 15A, 10V | 2.7V @ 250µA | 27nC @ 10V | 1770pF @ 13V | 2.2W, 2.5W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | Power56 |
|

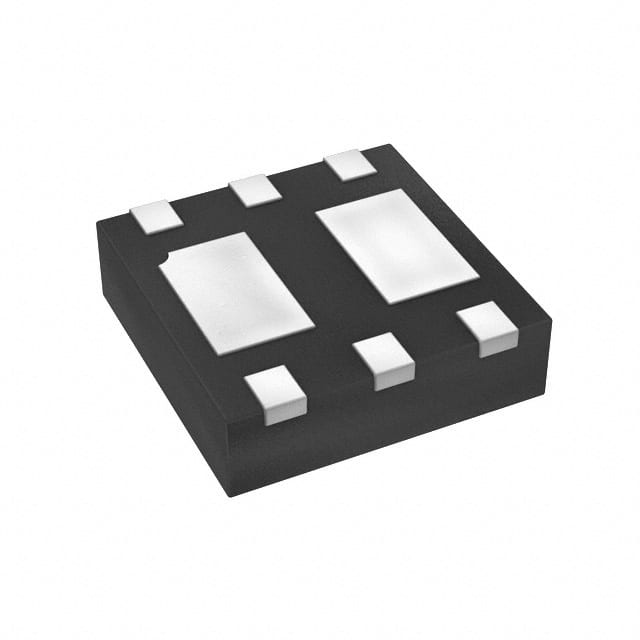

PJQ2800_R1_00001MOSFET 2N-CH 20V 5.2A 6DFN |
6,000 |
|
Datasheet |
- | 6-VDFN Exposed Pad | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 20V | 5.2A (Ta) | 32mOhm @ 5.2A, 4.5V | 900mV @ 250µA | 6.3nC @ 4.5V | 515pF @ 10V | 1.45W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN2020-6L |
|
|
UPA2756GR-E1-ATMOSFET 2N-CH 60V 4A 8PSOP |
4,456 |
|
Datasheet |
- | 8-SOIC (0.173", 4.40mm Width) | Bulk | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 60V | 4A | 105mOhm @ 2A, 10V | 2.5V @ 1mA | 6nC @ 10V | 260pF @ 10V | 2W | 150°C (TJ) | - | - | Surface Mount | 8-PSOP |
|
|
FW356-TL-EMOSFET N/P-CH 60V 5A 8SOP |
4,000 |
|
Datasheet |
- | 8-SOIC (0.173", 4.40mm Width) | Bulk | Active | MOSFET (Metal Oxide) | N and P-Channel | - | 60V | 5A (Ta), 3.5A (Ta) | 145mOhm @ 2A, 10V | 2.6V @ 1mA | 22nC @ 10V | 990pF @ 20V | 2.3W (Ta) | 150°C | - | - | Surface Mount | 8-SOP |
|
|
MCQ07NP03A-TPMOSFET N/P-CH 30V 7A 8SOP |
3,196 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | N and P-Channel | - | 30V | 7A | 18mOhm @ 6A, 10V, 23mOhm @ 6A, 10V | 2.2V @ 250µA, 2.5V @ 250µA | 12.22nC @ 10V, 28.5nC @ 10V | 526pF @ 15V, 1497pF @ 15V | 1.9W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
|
IRF640ACP001MOSFET N-CH 200V |
2,500 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
IRF6802SDTRPBFMOSFET 2N-CH 25V 16A DIRECTFET |
10,290 |
|
Datasheet |
DirectFET™ | DirectFET™ Isometric SA | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 25V | 16A (Ta), 57A (Tc) | 4.2mOhm @ 16A, 10V | 2.1V @ 35µA | 13nC @ 4.5V | 1350pF @ 13V | 1.7W (Ta), 21W (Tc) | -40°C ~ 150°C (TJ) | - | - | Surface Mount | DirectFET™ Isometric SA |
|
G05N06S2MOSFET 2N-CH 60V 5A 8SOP |
7,386 |
|
Datasheet |
TrenchFET® | 8-SOIC (0.154", 3.90mm Width) | Cut Tape (CT) | Active | MOSFET (Metal Oxide) | 2 N-Channel | - | 60V | 5A (Tc) | 35mOhm @ 5A, 4.5V | 2.5V @ 250µA | 22nC @ 10V | 1374pF @ 30V | 3.1W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
