PLDs (Programmable Logic Device)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Programmable Type | Number of Macrocells | Voltage - Input | Speed | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PALCE20V8H-25JC/4EE PLD, 25NS, PAL-TYPE PQCC28 |
110,004 |
|
Datasheet |
PAL® | 28-LCC (J-Lead) | Bulk | Active | Not Verified | PAL | 8 | 4.75V ~ 5.25V | 25 ns | Surface Mount | 28-PLCC (11.51x11.51) |
|
PALCE20V8-25JCQELECTRICALLY ERASABLE PAL DEVIC |
2,220 |
|
- |
* | - | Bulk | Active | Not Verified | - | - | - | - | - | - |
|
PALCE16V8H-7PC/5EE PLD, 7.5NS, PAL-TYPE, CMOS |
86,622 |
|
Datasheet |
PAL® | 20-DIP | Bulk | Active | Not Verified | PAL | 8 | 4.75V ~ 5.25V | 7.5 ns | Through Hole | 20-PDIP |
|
PALCE16V8H-15JC/4EE PLD, 15NS, PAL-TYPE |
91,060 |
|
Datasheet |
PAL® | 20-LCC (J-Lead) | Bulk | Active | Not Verified | PAL | 8 | 4.75V ~ 5.25V | 15 ns | Surface Mount | 20-PLCC (9x9) |
|
GAL16V8QS-25QVIIC CPLD 8MC 25NS 20PLCC |
10,664 |
|
Datasheet |
GAL®16V8 | 20-LCC (J-Lead) | Bulk | Active | Not Verified | EE PLD | 8 | - | - | Surface Mount | 20-PLCC (8.89x8.89) |
|
PALCE16V8H-5JC/5EE PLD, 5NS, PAL-TYPE |
80,386 |
|
Datasheet |
PAL® | 20-LCC (J-Lead) | Bulk | Active | Not Verified | PAL | 8 | 4.75V ~ 5.25V | 5 ns | Surface Mount | 20-PLCC (9x9) |
|
|
GAL20V8QS-25LVIIC CPLD 8MC 25NS 28PLCC |
4,308 |
|
Datasheet |
GAL®20V8QS | 28-LCC (J-Lead) | Bulk | Active | Not Verified | EE PLD | 8 | - | - | Surface Mount | 28-PLCC (11.43x11.43) |
|
|
PALCE20V8H-10JC/4EE PLD, 10NS, PAL-TYPE PQCC28 |
88,298 |
|
Datasheet |
PAL® | 28-LCC (J-Lead) | Bulk | Active | Not Verified | PAL | 8 | 4.75V ~ 5.25V | 10 ns | Surface Mount | 28-PLCC (11.51x11.51) |
|
|
GAL16V8QS-20LVCIC CPLD 8MC 20NS 20PLCC |
3,280 |
|
Datasheet |
GAL®16V8 | 20-LCC (J-Lead) | Bulk | Active | Not Verified | EE PLD | 8 | - | - | Surface Mount | 20-PLCC (8.89x8.89) |
|

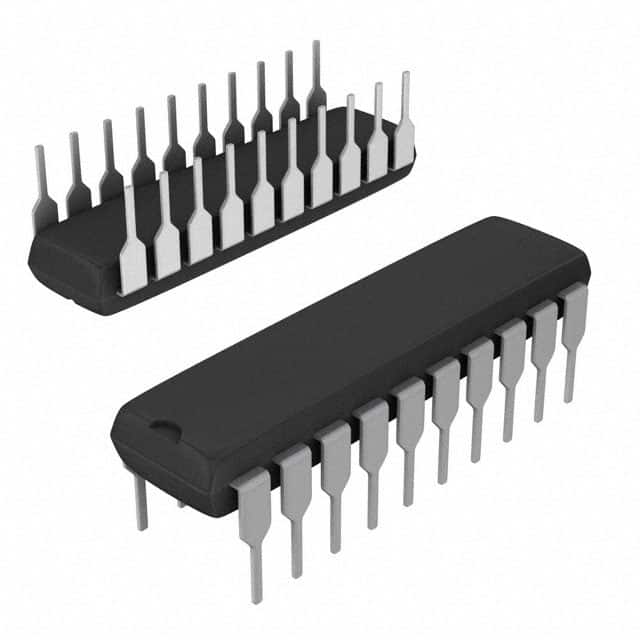

PAL16R8B2CNVANTIS PLD |
15,212 |
|
Datasheet |
PAL16R8 | - | Bulk | Obsolete | Not Verified | PAL | 8 | 5V | 35 ns | Through Hole | - |
|
|
GAL16V8A-15LVIIC CPLD 8MC 15NS 20PLCC |
58,060 |
|
Datasheet |
GAL®16V8 | 20-LCC (J-Lead) | Bulk | Active | Not Verified | EE PLD | 8 | - | - | Surface Mount | 20-PLCC (8.89x8.89) |
|
|
PALCE22V10H-15JC/4EE PLD, 15NS, PAL-TYPE PQCC28 |
156,488 |
|
Datasheet |
PAL® | 28-LCC (J-Lead) | Bulk | Active | Not Verified | PAL | 10 | 4.75V ~ 5.25V | 15 ns | Surface Mount | 28-PLCC (11.51x11.51) |
|
|
PALCE22V10Q-25JC/4EE PLD, 25NS, PAL-TYPE PQCC28 |
163,752 |
|
Datasheet |
PAL® | 28-LCC (J-Lead) | Bulk | Active | Not Verified | PAL | 10 | 4.5V ~ 5.5V | 25 ns | Surface Mount | 28-PLCC (11.51x11.51) |
|
PALCE22V10Q-25PC/4EE PLD, 25NS, PAL-TYPE |
403,432 |
|
Datasheet |
PAL® | 24-DIP (0.300", 7.62mm) | Bulk | Active | Not Verified | PAL | 10 | 4.5V ~ 5.5V | 25 ns | Through Hole | 24-PDIP |
|
|
PALCE16V8Q-10JC/5EE PLD, 10NS, PAL-TYPE |
53,024 |
|
Datasheet |
PAL® | 20-LCC (J-Lead) | Bulk | Active | Not Verified | PAL | 8 | 4.75V ~ 5.25V | 10 ns | Surface Mount | 20-PLCC (9x9) |
|
|
GAL16V8-20LVCIC CPLD 8MC 20NS 20PLCC |
8,472 |
|
Datasheet |
GAL®16V8 | 20-LCC (J-Lead) | Bulk | Active | Not Verified | EE PLD | 8 | - | - | Surface Mount | 20-PLCC (8.89x8.89) |
|
|
GAL20V8QS-15LVIEE PLD, 15NS, PAL-TYPE PQCC28 |
3,290 |
|
Datasheet |
GAL®20V8QS | 28-LCC (J-Lead) | Bulk | Active | Not Verified | EE PLD | 8 | 4.5V ~ 5.5V | 15 ns | Surface Mount | 28-PLCC (11.43x11.43) |
|
|
PALCE20RA10H-20PCEE PLD, 20NS, PAL-TYPE |
14,614 |
|
Datasheet |
PAL® | 24-DIP (0.300", 7.62mm) | Bulk | Active | Not Verified | PAL | 10 | 4.75V ~ 5.25V | 20 ns | Through Hole | 24-PDIP |
|
|
EP224LC-12OT PLD, 12NS, PAL-TYPE PQCC28 |
36,068 |
|
Datasheet |
- | 28-LCC (J-Lead) | Bulk | Active | Not Verified | EPLD | 8 | 4.75V ~ 5.25V | 12 ns | Surface Mount | 28-PLCC |
|

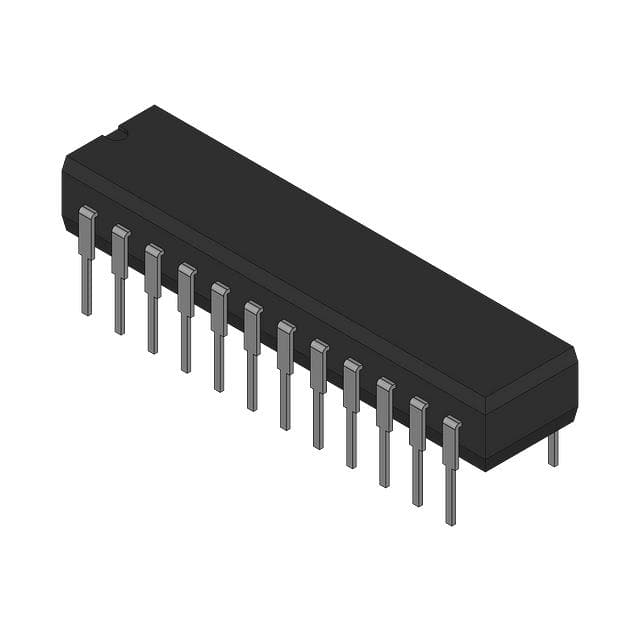

EP224PC-12OT PLD, 12NS, PAL-TYPE |
28,812 |
|
Datasheet |
- | 24-DIP | Bulk | Active | Not Verified | EPLD | 8 | 4.75V ~ 5.25V | 12 ns | Through Hole | 24-PDIP |
