FPGAs (Field Programmable Gate Array)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Number of LABs/CLBs | Number of Logic Elements/Cells | Total RAM Bits | Number of I/O | Number of Gates | Voltage - Supply | Mounting Type | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5SGXEB9R2H43C2NIC FPGA 600 I/O 1760HBGA |
6,346 |
|
Datasheet |
Stratix® V GX | 1760-BBGA, FCBGA | Tray | Obsolete | Not Verified | 317000 | 840000 | 53248000 | 600 | - | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 1760-HBGA (45x45) |
|
|
5SGXEBBR2H43C2NIC FPGA 600 I/O 1760HBGA |
7,552 |
|
Datasheet |
Stratix® V GX | 1760-BBGA, FCBGA | Tray | Obsolete | Not Verified | 359200 | 952000 | 53248000 | 600 | - | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 1760-HBGA (45x45) |
|
5SGXEA7K2F40C2NIC FPGA 696 I/O 1517FBGA |
8,722 |
|
Datasheet |
Stratix® V GX | 1517-BBGA, FCBGA | Tray | Obsolete | Not Verified | 234720 | 622000 | 51200000 | 696 | - | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 1517-FBGA (40x40) |
|
5SGXEA9K2H40C2NIC FPGA 696 I/O 1517HBGA |
2,962 |
|
Datasheet |
Stratix® V GX | 1517-BBGA, FCBGA | Tray | Obsolete | Not Verified | 317000 | 840000 | 53248000 | 696 | - | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 1517-HBGA (45x45) |
|
|
5SGSED8K2F40C2NIC FPGA 696 I/O 1517FBGA |
2,638 |
|
Datasheet |
Stratix® V GS | 1517-BBGA, FCBGA | Tray | Obsolete | Not Verified | 262400 | 695000 | 51200000 | 696 | - | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 1517-FBGA (40x40) |
|
|
5SGXEABK2H40C2NIC FPGA 696 I/O 1517HBGA |
2,308 |
|
Datasheet |
Stratix® V GX | 1517-BBGA, FCBGA | Tray | Obsolete | Not Verified | 359200 | 952000 | 53248000 | 696 | - | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 1517-HBGA (45x45) |
|
|
5SGSMD5K2F40C2NIC FPGA 696 I/O 1517FBGA |
9,630 |
|
Datasheet |
Stratix® V GS | 1517-BBGA, FCBGA | Tray | Obsolete | Not Verified | 172600 | 457000 | 39936000 | 696 | - | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 1517-FBGA (40x40) |
|
|
5SGSMD4K2F40C2NIC FPGA 696 I/O 1517FBGA |
7,222 |
|
Datasheet |
Stratix® V GS | 1517-BBGA, FCBGA | Tray | Obsolete | Not Verified | 135840 | 360000 | 19456000 | 696 | - | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 1517-FBGA (40x40) |
|
|
5SGSED6K2F40C2NIC FPGA 696 I/O 1517FBGA |
5,226 |
|
Datasheet |
Stratix® V GS | 1517-BBGA, FCBGA | Tray | Obsolete | Not Verified | 220000 | 583000 | 46080000 | 696 | - | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 1517-FBGA (40x40) |
|
|
5SGXEA5K2F40C2NIC FPGA 696 I/O 1517FBGA |
2,466 |
|
Datasheet |
Stratix® V GX | 1517-BBGA, FCBGA | Tray | Obsolete | Not Verified | 185000 | 490000 | 46080000 | 696 | - | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 1517-FBGA (40x40) |
|
|
5SGXEA4K2F40C2NIC FPGA 696 I/O 1517FBGA |
2,654 |
|
Datasheet |
Stratix® V GX | 1517-BBGA, FCBGA | Tray | Obsolete | Not Verified | 158500 | 420000 | 37888000 | 696 | - | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 1517-FBGA (40x40) |
|
|
5SGXEA3K2F40C2NIC FPGA 696 I/O 1517FBGA |
3,874 |
|
Datasheet |
Stratix® V GX | 1517-BBGA, FCBGA | Tray | Obsolete | Not Verified | 128300 | 340000 | 19456000 | 696 | - | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 1517-FBGA (40x40) |
|
LCMXO640C-5FN256CIC FPGA 159 I/O 256FBGA |
9,408 |
|
Datasheet |
MachXO | 256-BGA | Tray | Obsolete | Not Verified | 80 | 640 | - | 159 | - | 1.71V ~ 3.465V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 256-FPBGA (17x17) |
|
|
LCMXO640E-4F256IIC FPGA 159 I/O 256FBGA |
9,416 |
|
Datasheet |
MachXO | 256-BGA | Tray | Obsolete | Not Verified | 80 | 640 | - | 159 | - | 1.14V ~ 1.26V | Surface Mount | -40°C ~ 100°C (TJ) | - | - | 256-FPBGA (17x17) |
|
LFSC3GA40E-5FF1020IIC FPGA 562 I/O 1020BGA |
8,860 |
|
Datasheet |
SC | 1020-BBGA, FCBGA | Tray | Obsolete | Not Verified | 10000 | 40000 | 4075520 | 562 | - | 0.95V ~ 1.26V | Surface Mount | -40°C ~ 105°C (TJ) | - | - | 1020-OFCBGA (33x33) |
|
|
LFSCM3GA40EP1-7FF1020CIC FPGA 562 I/O 1020BGA |
6,052 |
|
Datasheet |
SCM | 1020-BBGA, FCBGA | Tray | Obsolete | Not Verified | 10000 | 40000 | 4075520 | 562 | - | 0.95V ~ 1.26V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 1020-OFCBGA (33x33) |
|

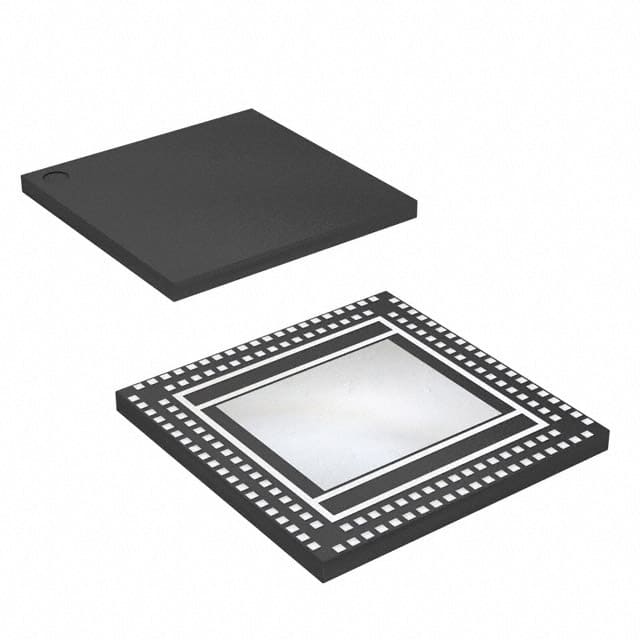

EP4CGX15BN11C7NIC FPGA 72 I/O 148QFN |
9,680 |
|
Datasheet |
Cyclone® IV GX | 148-WFQFN Dual Rows, Exposed Pad | Tray | Obsolete | Not Verified | 900 | 14400 | 552960 | 72 | - | 1.16V ~ 1.24V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 148-QFN (11x11) |
|
|
EP4CGX15BN11I7NIC FPGA 72 I/O 148QFN |
4,242 |
|
Datasheet |
Cyclone® IV GX | 148-WFQFN Dual Rows, Exposed Pad | Tray | Obsolete | Not Verified | 900 | 14400 | 552960 | 72 | - | 1.16V ~ 1.24V | Surface Mount | -40°C ~ 100°C (TJ) | - | - | 148-QFN (11x11) |
|
XC3S1400AN-4FG484CIC FPGA 372 I/O 484FBGA |
6,172 |
|
Datasheet |
Spartan®-3AN | 484-BBGA | Tray | Obsolete | Not Verified | 2816 | 25344 | 589824 | 372 | 1400000 | 1.14V ~ 1.26V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 484-FBGA (23x23) |
|
|
XC3S1400AN-4FG484IIC FPGA 372 I/O 484FBGA |
8,132 |
|
Datasheet |
Spartan®-3AN | 484-BBGA | Tray | Obsolete | Not Verified | 2816 | 25344 | 589824 | 372 | 1400000 | 1.14V ~ 1.26V | Surface Mount | -40°C ~ 100°C (TJ) | - | - | 484-FBGA (23x23) |
