FPGAs (Field Programmable Gate Array)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Number of LABs/CLBs | Number of Logic Elements/Cells | Total RAM Bits | Number of I/O | Number of Gates | Voltage - Supply | Mounting Type | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EP20K1000CF33C7IC FPGA 708 I/O 1020FBGA |
6,452 |
|
Datasheet |
APEX-20K® | 1020-BBGA, FCBGA | Bulk | Active | Not Verified | 3840 | 38400 | 327680 | 708 | 1772000 | 1.71V ~ 1.89V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 1020-FBGA (33x33) |
|
|
EP2S180F1020C5IC FPGA 742 I/O 1020FBGA |
630 |
|
Datasheet |
Stratix® II | 1020-BBGA, FCBGA | Bulk | Active | Not Verified | 8970 | 179400 | 9383040 | 742 | - | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 1020-FBGA (33x33) |
|
EP1S80F1508I7NIC FPGA 1508FBGA |
4,050 |
|
Datasheet |
Stratix® | 1508-BBGA, FCBGA | Bulk | Active | Not Verified | - | - | - | - | - | 1.425V ~ 1.575V | Surface Mount | -40°C ~ 100°C (TJ) | - | - | 1508-FBGA (30x30) |
|
|
EP2S180F1508C5IC FPGA 1170 I/O 1508FBGA |
1,276 |
|
Datasheet |
Stratix® II | 1508-BBGA, FCBGA | Bulk | Active | Not Verified | 8970 | 179400 | 9383040 | 1170 | - | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 1508-FBGA (40x40) |
|
|
EP2S180F1508C4IC FPGA 1170 I/O 1508FBGA |
5,364 |
|
Datasheet |
Stratix® II | 1508-BBGA, FCBGA | Bulk | Active | Not Verified | 8970 | 179400 | 9383040 | 1170 | - | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 1508-FBGA (40x40) |
|
|
EP1S80F1020C5IC FPGA 773 I/O 1020FBGA |
370 |
|
Datasheet |
Stratix® | 1020-BBGA, FCBGA | Bulk | Active | Not Verified | 7904 | 79040 | 7427520 | 773 | - | 1.425V ~ 1.575V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 1020-FBGA (33x33) |
|
XC3130-PC44CPHXC3130 - XC3000 SERIES FIELD PRO |
1,584 |
|
Datasheet |
XC3100 | 44-LCC (J-Lead) | Bulk | Active | Not Verified | 100 | 100 | 22176 | 34 | 2000 | 4.75V ~ 5.25V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 44-PLCC (16.59x16.59) |
|

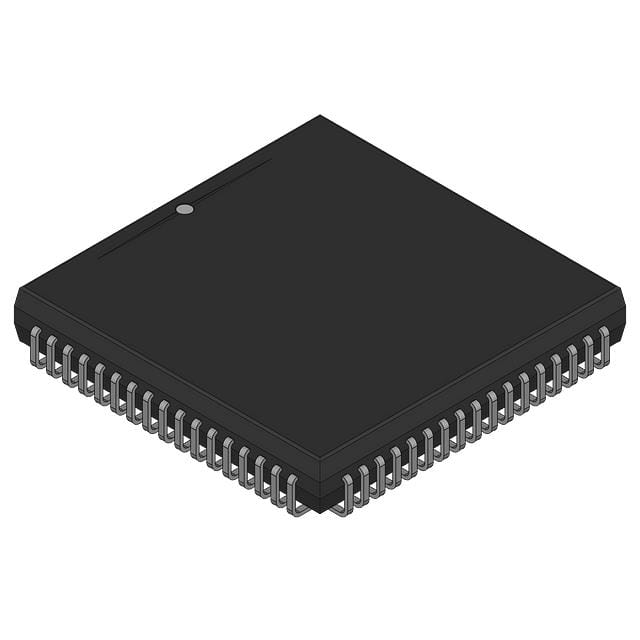

XC3130-PC68CPHXC3130 - XC3000 SERIES FIELD PRO |
5,794 |
|
Datasheet |
XC3100 | 68-LCC (J-Lead) | Bulk | Active | Not Verified | 100 | 100 | 22176 | 58 | 2000 | 4.75V ~ 5.25V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 68-PLCC (24.23x24.23) |
|
XC3130-PQ100CPHXC3130 - XC3000 SERIES FIELD PRO |
510 |
|
Datasheet |
XC3100 | 100-BQFP | Bulk | Active | Not Verified | 100 | 100 | 22176 | 80 | 2000 | 4.75V ~ 5.25V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 100-PQFP (20x14) |
|
XC3130-PQ100IPHXC3130 - XC3000 SERIES FIELD PRO |
282 |
|
Datasheet |
XC3100 | 100-BQFP | Bulk | Active | Not Verified | 100 | 100 | 22176 | 80 | 2000 | 4.5V ~ 5.5V | Surface Mount | -40°C ~ 100°C (TJ) | - | - | 100-PQFP (20x14) |
|
XC3142-TQ144IPHXC3142 - XC3000 SERIES FIELD PRO |
880 |
|
Datasheet |
XC3100 | 144-LQFP Exposed Pad | Bulk | Active | Not Verified | 144 | 144 | 30784 | 96 | 3000 | 4.5V ~ 5.5V | Surface Mount | -40°C ~ 100°C (TJ) | - | - | 144-TQFP (20x20) |
|
|
XC3142-PQ100CPHXC3142 - XC3000 SERIES FIELD PRO |
3,882 |
|
Datasheet |
XC3100 | 100-BQFP | Bulk | Active | Not Verified | 144 | 144 | 30784 | 82 | 3000 | 4.75V ~ 5.25V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 100-PQFP (20x14) |
|

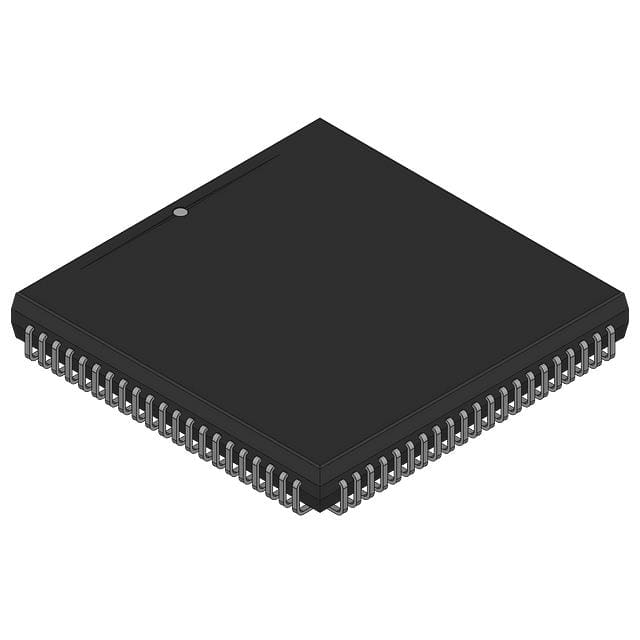

XC3130-PC84CPHXC3130 - XC3000 SERIES FIELD PRO |
852 |
|
Datasheet |
XC3100 | 84-LCC (J-Lead) | Bulk | Active | Not Verified | 100 | 100 | 22176 | 74 | 2000 | 4.75V ~ 5.25V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 84-PLCC (29.31x29.31) |
|
|
XC3130-PG84CPHXC3130 - XC3000 SERIES FIELD PRO |
426 |
|
Datasheet |
XC3100 | 84-BCPGA | Bulk | Active | Not Verified | 100 | 100 | 22176 | 74 | 2000 | 4.75V ~ 5.25V | Through Hole | 0°C ~ 85°C (TJ) | - | - | 84-CPGA (28x28) |
|
OR2C08A4BA256-DBOR2C08 - FIELD PROGRAMMABLE GATE |
638 |
|
Datasheet |
ORCA™2 | 256-BGA | Bulk | Active | Not Verified | - | 784 | 12544 | 221 | 21600 | 4.75V ~ 5.25V | Surface Mount | 0°C ~ 70°C (TA) | - | - | 256-PBGA (27x27) |
|
|
OR2T04A2T100-DBOR2T04 - FIELD PROGRAMMABLE GATE |
626 |
|
Datasheet |
ORCA™2 | 100-LQFP | Bulk | Active | Not Verified | - | 400 | 6400 | 77 | 11000 | 3V ~ 3.6V | Surface Mount | 0°C ~ 70°C (TA) | - | - | 100-TQFP (14x14) |
|
XC3164-PG132CPHXC3164 - XC3000 SERIES FIELD PRO |
604 |
|
Datasheet |
XC3100 | 132-BCPGA | Bulk | Active | Not Verified | 224 | 224 | 46064 | 110 | 4500 | 4.25V ~ 5.25V | Through Hole | 0°C ~ 70°C (TA) | - | - | 132-CPGA (37.08x37.08) |
|
|
XC3190-PP175CPHXC3190 - XC3000 SERIES FIELD PRO |
6,694 |
|
Datasheet |
XC3100 | 175-BPGA | Bulk | Active | Not Verified | 320 | - | 64160 | 144 | - | 4.75V ~ 5.25V | Through Hole | 0°C ~ 70°C (TA) | - | - | 175-PGA (42.16x42.16) |
|
|
XC3190-PG175CPHXC3190 - XC3000 SERIES FIELD PRO |
2,668 |
|
Datasheet |
XC3100 | 175-BCPGA | Bulk | Active | Not Verified | 320 | - | 64160 | 144 | - | 4.75V ~ 5.25V | Through Hole | 0°C ~ 70°C (TA) | - | - | 175-CPGA (42.16x42.16) |
|

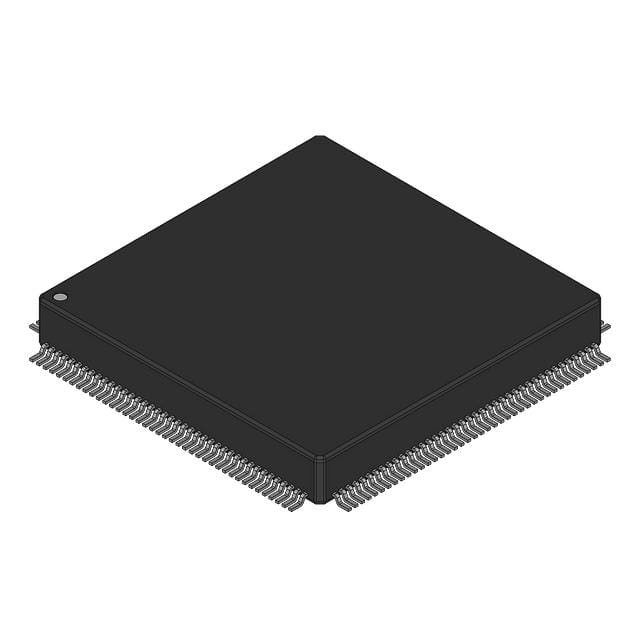

XC3190-PQ160CPHXC3190 - XC3000 SERIES FIELD PRO |
566 |
|
Datasheet |
XC3100 | 160-BQFP | Bulk | Active | Not Verified | 320 | - | 64160 | 138 | - | 4.75V ~ 5.25V | Surface Mount | 0°C ~ 70°C (TA) | - | - | 160-PQFP (28x28) |
