CPLDs (Complex Programmable Logic Devices)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Programmable Type | Delay Time tpd(1) Max | Voltage Supply - Internal | Number of Logic Elements/Blocks | Number of Macrocells | Number of Gates | Number of I/O | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EPM7256ERC208-20IC CPLD 256MC 20NS 208RQFP |
2,240 |
|
Datasheet |
MAX® 7000 | 208-BFQFP Exposed Pad | Bulk | Active | Not Verified | EE PLD | 20 ns | 4.75V ~ 5.25V | 16 | 256 | 5000 | 164 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 208-RQFP (28x28) |
|
EPM7128EQC160-7IC CPLD 128MC 7.5NS 160QFP |
780 |
|
Datasheet |
MAX® 7000 | 160-BQFP | Bulk | Active | Not Verified | EE PLD | 7.5 ns | 4.75V ~ 5.25V | 8 | 128 | 2500 | 100 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 160-PQFP (28x28) |
|
LC5512B-45Q208CIC CPLD 512MC 4.5NS 208QFP |
6,348 |
|
Datasheet |
ispMACH® 5000B | 208-BFQFP | Bulk | Active | Not Verified | In System Programmable | 4.5 ns | 2.3V ~ 2.7V | 68 | 512 | - | 144 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 208-PQFP (28x28) |
|
LC51024MV-52F672CIC CPLD 1024MC 5.2NS 672FPBGA |
6,812 |
|
Datasheet |
ispXPLD® 5000MV | 672-BBGA | Tray | Obsolete | Not Verified | In System Programmable | 5.2 ns | 3V ~ 3.6V | 32 | 1024 | - | 381 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 672-FPBGA (27x27) |
|
|
EPM7512BQC208-6IC CPLD 512MC 208QFP |
354 |
|
Datasheet |
MAX® 7000B | 208-BFQFP | Bulk | Active | Not Verified | In System Programmable | - | 2.375V ~ 2.625V | 32 | 512 | 10000 | 176 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 208-PQFP (28x28) |
|
LC5768MV-75FN256CIC CPLD 768MC 7.5NS 256FPBGA |
9,648 |
|
Datasheet |
ispXPLD® 5000MV | 256-BGA | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 3V ~ 3.6V | 24 | 768 | - | 193 | 0°C ~ 90°C (TJ) | - | - | Surface Mount | 256-FPBGA (17x17) |
|
EPM7512BBC256-7IC CPLD 512MC 7.5NS 256BGA |
2,552 |
|
Datasheet |
MAX® 7000B | 256-LBGA | Bulk | Active | Not Verified | In System Programmable | 7.5 ns | 2.375V ~ 2.625V | 32 | 512 | 10000 | 212 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 256-BGA (27x27) |
|
|
EPM7512BFC256-7NIC CPLD 512MC 7.5NS 256FBGA |
2,412 |
|
Datasheet |
MAX® 7000B | 256-BGA | Bulk | Active | Not Verified | In System Programmable | 7.5 ns | 2.375V ~ 2.625V | 32 | 512 | 10000 | 212 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 256-FBGA (17x17) |
|

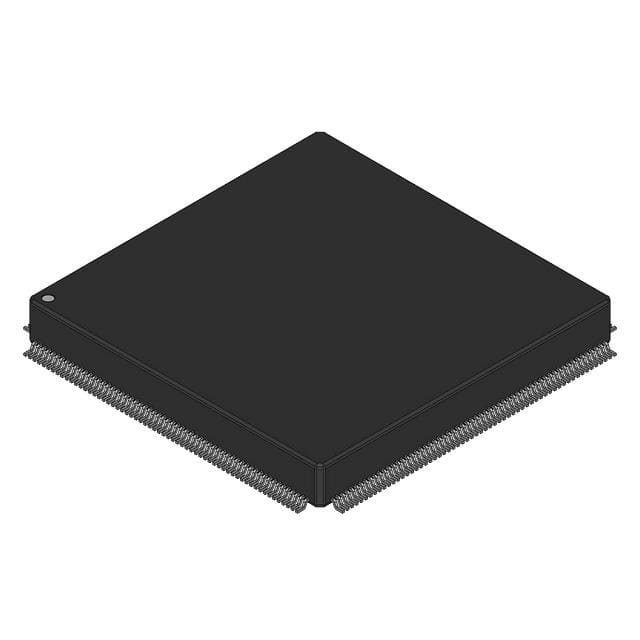

EPM9480RC240-15IC CPLD 480MC 15NS 240RQFP |
1,354 |
|
Datasheet |
MAX® 9000 | 240-BFQFP | Tray | Obsolete | Not Verified | In System Programmable | 15 ns | 4.75V ~ 5.25V | 30 | 480 | 10000 | 175 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 240-RQFP (32x32) |
|
ISPLSI81080V-60LB272IIN SYSTEM PROGRAMMABLE SUPERBIG |
614 |
|
Datasheet |
ispLSI ® 8000V | 272-BBGA | Bulk | Active | Not Verified | In System Programmable | 15 ns | 3V ~ 3.6V | - | 1080 | - | 192 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 272-BGA (27x27) |
|
EPM7512BUC169-7IC CPLD 512MC 7.5NS 169UBGA |
522 |
|
Datasheet |
MAX® 7000B | 169-LFBGA | Bulk | Active | Not Verified | In System Programmable | 7.5 ns | 2.375V ~ 2.625V | 32 | 512 | 10000 | 141 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 169-UBGA (11x11) |
|
ISPLSI81080V-125LB492IC CPLD 1080MC 8.5NS 272BGA |
418 |
|
Datasheet |
ispLSI ® 8000V | 272-BBGA | Bulk | Active | Not Verified | In System Programmable | 8.5 ns | 3V ~ 3.6V | - | 1080 | - | 360 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 272-BGA (27x27) |
|
|
EPM7512BFC256-5NIC CPLD 512MC 5.5NS 256FBGA |
2,136 |
|
Datasheet |
MAX® 7000B | 256-BGA | Bulk | Active | Not Verified | In System Programmable | 5.5 ns | 2.375V ~ 2.625V | 32 | 512 | 10000 | 212 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 256-FBGA (17x17) |
|
|
EPM7512AEBI256-10IC CPLD 512MC 10NS 256FBGA |
2,330 |
|
Datasheet |
MAX® 7000A | 256-BGA | Bulk | Active | Not Verified | In System Programmable | 10 ns | 3V ~ 3.6V | 32 | 512 | 10000 | 212 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 256-FBGA (17x17) |
|
ISPLSI81080V-125LB272IC CPLD 1080MC 14.5NS 272BGA |
748 |
|
Datasheet |
ispLSI® 8000 | 272-BBGA | Bulk | Active | Not Verified | In System Programmable | 14.5 ns | 3V ~ 3.6V | - | 1080 | - | 192 | 0°C ~ 70°C | - | - | Surface Mount | 272-BGA (27x27) |
|
|
EPM7512BQC208-5IC CPLD 512MC 5.5NS 208QFP |
598 |
|
Datasheet |
MAX® 7000B | 208-BFQFP | Bulk | Active | Not Verified | In System Programmable | 5.5 ns | 2.375V ~ 2.625V | 32 | 512 | 10000 | 176 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 208-PQFP (28x28) |
|
|
ISPLSI81080V-90LB492IC CPLD 1080MC 10NS 272BGA |
594 |
|
Datasheet |
ispLSI ® 8000V | 272-BBGA | Bulk | Active | Not Verified | In System Programmable | 10 ns | 3V ~ 3.6V | - | 1080 | - | 360 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 272-BGA (27x27) |
|
LC51024VG-75F484IIC CPLD 1024MC 7.5NS 484FPBGA |
9,808 |
|
Datasheet |
ispMACH™ 5000VG | 484-BBGA | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 3V ~ 3.6V | 32 | 1024 | - | 304 | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 484-FPBGA (23x23) |
|
|
MACH130-20/BXAIC CPLD 64MC 20NS 84CQFP |
762 |
|
Datasheet |
- | 84-CQFP | Bulk | Active | Not Verified | EE PLD | 20 ns | 4.5V ~ 5.5V | 26 | 64 | - | 64 | -55°C ~ 125°C (TA) | - | - | Surface Mount | 84-CQFP |
|
|
EPM7256EGC192-20EE PLD, 20NS, 256-CELL, CMOS, CP |
7,950 |
|
Datasheet |
MAX® 7000 | 208-BFQFP Exposed Pad | Tray | Active | Not Verified | EE PLD | 20 ns | 4.75V ~ 5.25V | 16 | 256 | 5000 | 164 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 208-RQFP (28x28) |
