CPLDs (Complex Programmable Logic Devices)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Programmable Type | Delay Time tpd(1) Max | Voltage Supply - Internal | Number of Logic Elements/Blocks | Number of Macrocells | Number of Gates | Number of I/O | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EPM7128BFC169-4IC CPLD 128MC 4NS 169UBGA |
9,202 |
|
Datasheet |
MAX® 7000B | 169-LFBGA | Tray | Obsolete | Not Verified | In System Programmable | 4 ns | 2.375V ~ 2.625V | 8 | 128 | 2500 | 100 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 169-UBGA (11x11) |
|
|
EPM7128BFC169-7IC CPLD 128MC 7.5NS 169UBGA |
4,492 |
|
Datasheet |
MAX® 7000B | 169-LFBGA | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 2.375V ~ 2.625V | 8 | 128 | 2500 | 100 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 169-UBGA (11x11) |
|

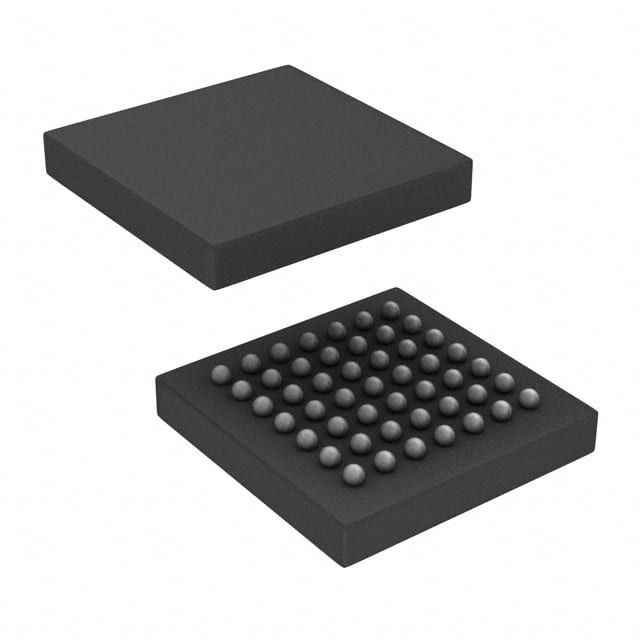

EPM7128BFC49-10IC CPLD 128MC 10NS 49UBGA |
8,850 |
|
Datasheet |
MAX® 7000B | 49-LFBGA | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 2.375V ~ 2.625V | 8 | 128 | 2500 | 41 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 49-UBGA (7x7) |
|
|
EPM7128BFC49-4IC CPLD 128MC 4NS 49UBGA |
4,782 |
|
Datasheet |
MAX® 7000B | 49-LFBGA | Tray | Obsolete | Not Verified | In System Programmable | 4 ns | 2.375V ~ 2.625V | 8 | 128 | 2500 | 41 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 49-UBGA (7x7) |
|
EPM7128BLC84-10IC CPLD 128MC 10NS 84PLCC |
3,354 |
|
- |
MAX® 7000B | 84-LCC (J-Lead) | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 2.375V ~ 2.625V | 8 | 128 | 2500 | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 84-PLCC (29.31x29.31) |
|
|
EPM7128ELC84-10PIC CPLD 128MC 10NS 84PLCC |
8,432 |
|
Datasheet |
MAX® 7000 | 84-LCC (J-Lead) | Tray | Obsolete | Not Verified | EE PLD | 10 ns | 4.75V ~ 5.25V | 8 | 128 | 2500 | 68 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 84-PLCC (29.31x29.31) |
|
|
EPM7128ELC84-10YYIC CPLD 128MC 10NS 84PLCC |
6,094 |
|
Datasheet |
MAX® 7000 | 84-LCC (J-Lead) | Tray | Obsolete | Not Verified | EE PLD | 10 ns | 4.75V ~ 5.25V | 8 | 128 | 2500 | 68 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 84-PLCC (29.31x29.31) |
|
|
EPM7128ELC84-15YYIC CPLD 128MC 15NS 84PLCC |
3,174 |
|
Datasheet |
MAX® 7000 | 84-LCC (J-Lead) | Tray | Obsolete | Not Verified | EE PLD | 15 ns | 4.75V ~ 5.25V | 8 | 128 | 2500 | 68 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 84-PLCC (29.31x29.31) |
|
|
EPM7128ELC84-7MMIC CPLD 128MC 7.5NS 84PLCC |
3,594 |
|
Datasheet |
MAX® 7000 | 84-LCC (J-Lead) | Tray | Obsolete | Not Verified | EE PLD | 7.5 ns | 4.75V ~ 5.25V | 8 | 128 | 2500 | 68 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 84-PLCC (29.31x29.31) |
|
|
EPM7128ELC84-7YYIC CPLD 128MC 7.5NS 84PLCC |
6,442 |
|
Datasheet |
MAX® 7000 | 84-LCC (J-Lead) | Tray | Obsolete | Not Verified | EE PLD | 7.5 ns | 4.75V ~ 5.25V | 8 | 128 | 2500 | 68 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 84-PLCC (29.31x29.31) |
|
EPM7128EQC100-10NCIC CPLD 128MC 10NS 100QFP |
3,436 |
|
Datasheet |
MAX® 7000 | 100-BQFP | Tray | Obsolete | Not Verified | EE PLD | 10 ns | 4.75V ~ 5.25V | 8 | 128 | 2500 | 84 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-PQFP (20x14) |
|
|
EPM7128EQC100-10PYIC CPLD 128MC 10NS 100QFP |
3,850 |
|
Datasheet |
MAX® 7000 | 100-BQFP | Tray | Obsolete | Not Verified | EE PLD | 10 ns | 4.75V ~ 5.25V | 8 | 128 | 2500 | 84 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-PQFP (20x14) |
|
|
EPM7128EQC100-10YYIC CPLD 128MC 10NS 100QFP |
6,944 |
|
Datasheet |
MAX® 7000 | 100-BQFP | Tray | Obsolete | Not Verified | EE PLD | 10 ns | 4.75V ~ 5.25V | 8 | 128 | 2500 | 84 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-PQFP (20x14) |
|
|
EPM7128EQC100-12YYIC CPLD 128MC 12NS 100QFP |
5,174 |
|
Datasheet |
MAX® 7000 | 100-BQFP | Tray | Obsolete | Not Verified | EE PLD | 12 ns | 4.75V ~ 5.25V | 8 | 128 | 2500 | 84 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-PQFP (20x14) |
|
|
EPM7128EQC100-15YYIC CPLD 128MC 15NS 100QFP |
3,040 |
|
Datasheet |
MAX® 7000 | 100-BQFP | Tray | Obsolete | Not Verified | EE PLD | 15 ns | 4.75V ~ 5.25V | 8 | 128 | 2500 | 84 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-PQFP (20x14) |
|
|
EPM7128EQC100-20YYIC CPLD 128MC 20NS 100QFP |
5,678 |
|
Datasheet |
MAX® 7000 | 100-BQFP | Tray | Obsolete | Not Verified | EE PLD | 20 ns | 4.75V ~ 5.25V | 8 | 128 | 2500 | 84 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-PQFP (20x14) |
|
|
EPM7128EQC100-7YYIC CPLD 128MC 7.5NS 100QFP |
9,268 |
|
Datasheet |
MAX® 7000 | 100-BQFP | Tray | Obsolete | Not Verified | EE PLD | 7.5 ns | 4.75V ~ 5.25V | 8 | 128 | 2500 | 84 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-PQFP (20x14) |
|
EPM7128EQC160-15MMIC CPLD 128MC 15NS 160QFP |
3,310 |
|
Datasheet |
MAX® 7000 | 160-BQFP | Tray | Obsolete | Not Verified | EE PLD | 15 ns | 4.75V ~ 5.25V | 8 | 128 | 2500 | 100 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 160-PQFP (28x28) |
|
|
EPM7128EQC160-15YYIC CPLD 128MC 15NS 160QFP |
2,744 |
|
Datasheet |
MAX® 7000 | 160-BQFP | Tray | Obsolete | Not Verified | EE PLD | 15 ns | 4.75V ~ 5.25V | 8 | 128 | 2500 | 100 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 160-PQFP (28x28) |
|
|
EPM7128EQC160-20YYIC CPLD 128MC 20NS 160QFP |
9,792 |
|
Datasheet |
MAX® 7000 | 160-BQFP | Tray | Obsolete | Not Verified | EE PLD | 20 ns | 4.75V ~ 5.25V | 8 | 128 | 2500 | 100 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 160-PQFP (28x28) |
