CPLDs (Complex Programmable Logic Devices)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Programmable Type | Delay Time tpd(1) Max | Voltage Supply - Internal | Number of Logic Elements/Blocks | Number of Macrocells | Number of Gates | Number of I/O | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EPM7512BFC256-10IC CPLD 512MC 10NS 256FBGA |
9,658 |
|
Datasheet |
MAX® 7000B | 256-BGA | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 2.375V ~ 2.625V | 32 | 512 | 10000 | 212 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 256-FBGA (17x17) |
|
EPM7512BFC256-5NIC CPLD 512MC 5.5NS 256FBGA |
2,014 |
|
Datasheet |
MAX® 7000B | 256-BGA | Tray | Obsolete | Not Verified | In System Programmable | 5.5 ns | 2.375V ~ 2.625V | 32 | 512 | 10000 | 212 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 256-FBGA (17x17) |
|
|
EPM7512BFI256-7IC CPLD 512MC 7.5NS 256FBGA |
3,096 |
|
Datasheet |
MAX® 7000B | 256-BGA | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 2.375V ~ 2.625V | 32 | 512 | 10000 | 212 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 256-FBGA (17x17) |
|

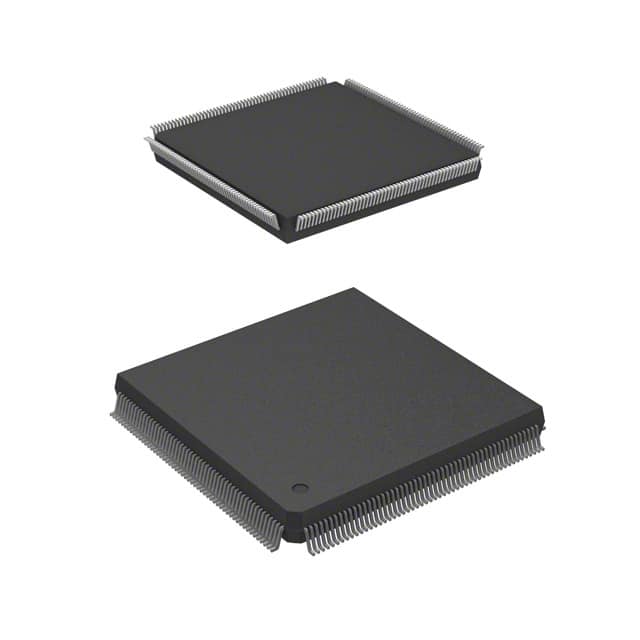

EPM7512BQC208-10IC CPLD 512MC 10NS 208QFP |
7,438 |
|
Datasheet |
MAX® 7000B | 208-BFQFP | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 2.375V ~ 2.625V | 32 | 512 | 10000 | 176 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 208-PQFP (28x28) |
|
EPM7512BTC144-10IC CPLD 512MC 10NS 144TQFP |
9,898 |
|
Datasheet |
MAX® 7000B | 144-LQFP | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 2.375V ~ 2.625V | 32 | 512 | 10000 | 120 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 144-TQFP (20x20) |
|
EPM7512BTC144-5IC CPLD 512MC 5.5NS 144TQFP |
9,184 |
|
Datasheet |
MAX® 7000B | 144-LQFP | Tray | Obsolete | Not Verified | In System Programmable | 5.5 ns | 2.375V ~ 2.625V | 32 | 512 | 10000 | 120 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 144-TQFP (20x20) |
|
|
EPM7512BTC144-7IC CPLD 512MC 7.5NS 144TQFP |
6,226 |
|
Datasheet |
MAX® 7000B | 144-LQFP | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 2.375V ~ 2.625V | 32 | 512 | 10000 | 120 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 144-TQFP (20x20) |
|
EPM7512BUC169-10IC CPLD 512MC 10NS 169UBGA |
9,578 |
|
Datasheet |
MAX® 7000B | 169-LFBGA | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 2.375V ~ 2.625V | 32 | 512 | 10000 | 141 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 169-UBGA (11x11) |
|
|
EPM7512BUC169-5IC CPLD 512MC 5.5NS 169UBGA |
3,216 |
|
Datasheet |
MAX® 7000B | 169-LFBGA | Tray | Obsolete | Not Verified | In System Programmable | 5.5 ns | 2.375V ~ 2.625V | 32 | 512 | 10000 | 141 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 169-UBGA (11x11) |
|
EPM7512BUC169-7IC CPLD 512MC 7.5NS 169UBGA |
9,344 |
|
Datasheet |
MAX® 7000B | 169-LFBGA | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 2.375V ~ 2.625V | 32 | 512 | 10000 | 141 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 169-UBGA (11x11) |
|
|
EPM7512BUC169-7NIC CPLD 512MC 7.5NS 169UBGA |
3,076 |
|
Datasheet |
MAX® 7000B | 169-LFBGA | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 2.375V ~ 2.625V | 32 | 512 | 10000 | 141 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 169-UBGA (11x11) |
|
EPM9320ALC84-10IC CPLD 320MC 10NS 84PLCC |
9,346 |
|
Datasheet |
MAX® 9000A | 84-LCC (J-Lead) | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 4.75V ~ 5.25V | 20 | 320 | 6000 | 60 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 84-PLCC (29.31x29.31) |
|
|
EPM9320ALC84-10NIC CPLD 320MC 10NS 84PLCC |
3,506 |
|
Datasheet |
MAX® 9000A | 84-LCC (J-Lead) | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 4.75V ~ 5.25V | 20 | 320 | 6000 | 60 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 84-PLCC (29.31x29.31) |
|
|
EPM9320ALI84-10IC CPLD 320MC 10NS 84PLCC |
3,496 |
|
Datasheet |
MAX® 9000A | 84-LCC (J-Lead) | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 4.5V ~ 5.5V | 20 | 320 | 6000 | 60 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 84-PLCC (29.31x29.31) |
|

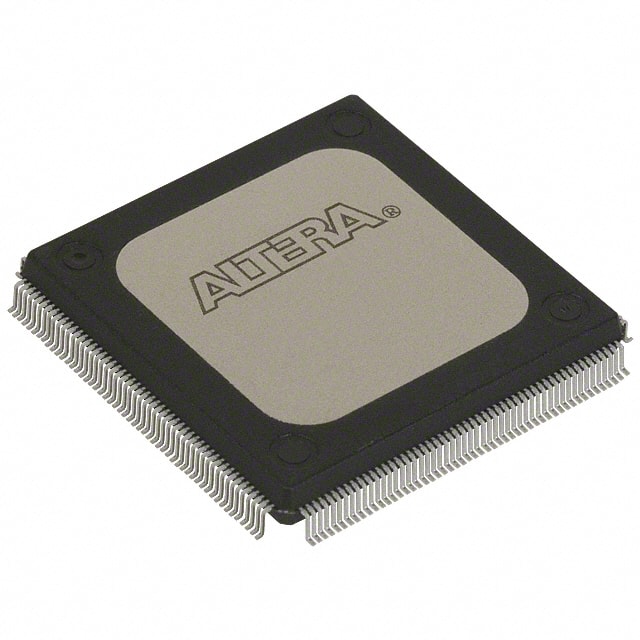

EPM9320ARC208-10IC CPLD 320MC 10NS 208RQFP |
4,956 |
|
Datasheet |
MAX® 9000A | 208-BFQFP Exposed Pad | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 4.75V ~ 5.25V | 20 | 320 | 6000 | 132 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 208-RQFP (28x28) |
|
|
EPM9320ARC208-10NIC CPLD 320MC 10NS 208RQFP |
4,298 |
|
Datasheet |
MAX® 9000A | 208-BFQFP Exposed Pad | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 4.75V ~ 5.25V | 20 | 320 | 6000 | 132 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 208-RQFP (28x28) |
|
|
EPM9320ARI208-10IC CPLD 320MC 10NS 208RQFP |
4,620 |
|
Datasheet |
MAX® 9000A | 208-BFQFP Exposed Pad | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 4.5V ~ 5.5V | 20 | 320 | 6000 | 132 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 208-RQFP (28x28) |
|
|
EPM9320LC84-20IC CPLD 320MC 20NS 84PLCC |
8,208 |
|
Datasheet |
MAX® 9000 | 84-LCC (J-Lead) | Tray | Obsolete | Not Verified | In System Programmable | 20 ns | 4.75V ~ 5.25V | 20 | 320 | 6000 | 60 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 84-PLCC (29.31x29.31) |
|
|
EPM9320LI84-20IC CPLD 320MC 20NS 84PLCC |
9,178 |
|
Datasheet |
MAX® 9000 | 84-LCC (J-Lead) | Tray | Obsolete | Not Verified | In System Programmable | 20 ns | 4.5V ~ 5.5V | 20 | 320 | 6000 | 60 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 84-PLCC (29.31x29.31) |
|
|
EPM9320RC208-15IC CPLD 320MC 15NS 208RQFP |
3,272 |
|
Datasheet |
MAX® 9000 | 208-BFQFP Exposed Pad | Tray | Obsolete | Not Verified | In System Programmable | 15 ns | 4.75V ~ 5.25V | 20 | 320 | 6000 | 132 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 208-RQFP (28x28) |
