Electric Double Layer Capacitors (EDLC), Supercapacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Termination | Mounting Type | Package / Case | Lead Spacing | Size / Dimension | Height - Seated (Max) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FC0H473ZFTBR24CAP 47MF -20% +80% 5.5V SMD |
17,150 |
|
Datasheet |
FC | Tape & Reel (TR) | Active | 47 mF | -20%, +80% | 5.5 V | 50Ohm @ 1kHz | - | SMD (SMT) Tabs | Surface Mount | Radial, Can - SMD | - | 0.413" Dia (10.50mm) | 0.217" (5.50mm) | -25°C ~ 70°C |
|
RSCBJ1055R5L08015TCAP 1F -20% +80% 5.5V T/H |
31,332 |
|
Datasheet |
DBJ | Bulk | Not For New Designs | 1 F | -20%, +80% | 5.5 V | 75Ohm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.846" Dia (21.50mm) | 0.315" (8.00mm) | -10°C ~ 85°C |
|
DGH504Q5R5CAP 500MF -10%, +30% 5.5V TH |
81,586 |
|
Datasheet |
DGH | Bulk | Active | 500 mF | -10%, +30% | 5.5 V | 400mOhm @ 1kHz | 1500 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.472" (12.00mm) | 0.669" L x 0.335" W (17.00mm x 8.50mm) | 0.748" (19.00mm) | -40°C ~ 85°C |
|
DGH106Q2R7CAPACITOR 10F -10%, +30% 2.7V TH |
28,078 |
|
Datasheet |
DGH | Bulk | Active | 10 F | -10%, +30% | 2.7 V | 40mOhm @ 1kHz | 1500 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.260" (32.00mm) | -40°C ~ 85°C |
|
TPL-25/16X26FCAP 25F -10% +20% 2.7V T/H |
99,664 |
|
Datasheet |
TPL | Bulk | Active | 25 F | -10%, +20% | 2.7 V | 28mOhm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.083" (27.50mm) | -40°C ~ 85°C |
|
HV0830-2R7605-RCAP 6F -10% +30% 2.7V T/H |
1,802 |
|
Datasheet |
HV | Bulk | Active | 6 F | -10%, +30% | 2.7 V | 40mOhm @ 100Hz | 1000 Hrs @ 65°C | PC Pins | Through Hole | Radial, Can | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 1.220" (31.00mm) | -40°C ~ 65°C |
|
TPLH-2R7/30WR16X26CAP 30F 2.7V THROUGH HOLE |
4,782 |
|
Datasheet |
TPLH-Radial | Bulk | Active | 30 F | - | 2.7 V | 16mOhm @ 1kHz | 1500 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.102" (28.00mm) | -40°C ~ 85°C |
|
BCAP0005 P300 X11CAP 5F 3V WIRE LEAD |
7,852 |
|
Datasheet |
XP | Bulk | Active | 5 F | - | 3 V | 45mOhm | - | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | -40°C ~ 65°C |
|
BCAP0005 P270 X01CAP 5F -10% +20% 2.7V T/H |
17,584 |
|
Datasheet |
XP | Bulk | Active | 5 F | -10%, +20% | 2.7 V | 45mOhm | - | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | -40°C ~ 65°C |
|

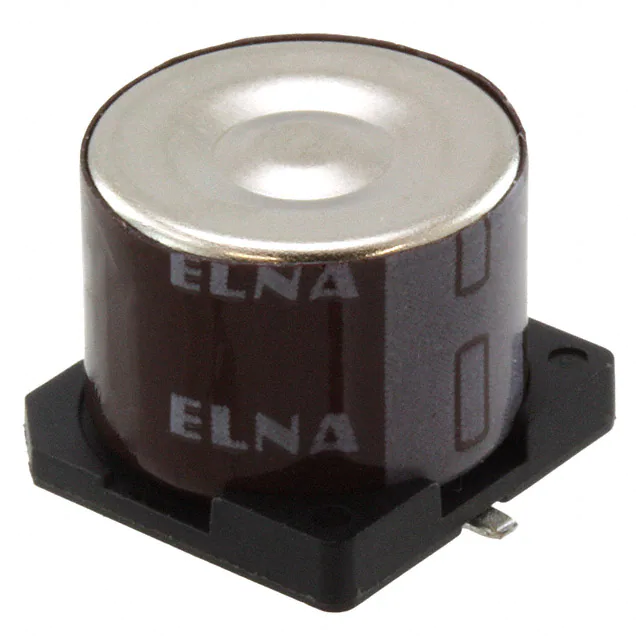

RSCVL2245R5G10012TCAP 220MF -20% +80% 5.5V SMD |
8,696 |
|
Datasheet |
DVL | Tape & Reel (TR) | Not For New Designs | 220 mF | -20%, +80% | 5.5 V | 45Ohm | 1000 Hrs @ 85°C | SMD (SMT) Tabs | Surface Mount | Radial, Can - SMD | - | 0.492" Dia (12.50mm) | 0.413" (10.50mm) | -40°C ~ 85°C |
|
FT0H104ZFCAP 100MF -20% +80% 5.5V T/H |
14,114 |
|
Datasheet |
FT | Bulk | Active | 100 mF | -20%, +80% | 5.5 V | 16Ohm @ 1kHz | - | PC Pins | Through Hole | Radial, Can | 0.200" (5.08mm) | 0.453" Dia (11.50mm) | 0.335" (8.50mm) | -40°C ~ 85°C |
|
EDC224Z5R5HCAP 220MF -20% +80% 5.5V T/H |
14,968 |
|
Datasheet |
EDC | Bulk | Active | 220 mF | -20%, +80% | 5.5 V | 75Ohm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Axial, Can - Horizontal | 0.394" (10.00mm) | 0.453" Dia (11.50mm) | 0.236" (6.00mm) | -25°C ~ 70°C |
|
EDC224Z5R5VCAP 220MF -20% +80% 5.5V T/H |
10,246 |
|
Datasheet |
EDC | Bulk | Active | 220 mF | -20%, +80% | 5.5 V | 75Ohm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Axial, Can - Vertical | 0.197" (5.00mm) | 0.453" Dia (11.50mm) | 0.512" (13.00mm) | -25°C ~ 70°C |
|
EDS224Z3R6HCAP 220MF -20% +80% 3.6V T/H |
8,336 |
|
Datasheet |
EDS | Bulk | Active | 220 mF | -20%, +80% | 3.6 V | 75Ohm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Axial, Can - Horizontal | 0.394" (10.00mm) | 0.453" Dia (11.50mm) | 0.236" (6.00mm) | -25°C ~ 85°C |
|
TPLC-3R8/30MR8X25CAP LITH HYBRID 30F 3.8V T/H |
304 |
|
Datasheet |
TPLC | Tray | Active | 30 F | ±20% | 3.8 V | 250mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 1.063" (27.00mm) | -15°C ~ 70°C |
|
|
FC0H104ZFTBR24CAP 100MF -20% +80% 5.5V SMD |
7,342 |
|
Datasheet |
FC | Tape & Reel (TR) | Active | 100 mF | -20%, +80% | 5.5 V | 25Ohm @ 1kHz | - | SMD (SMT) Tabs | Surface Mount | Radial, Can - SMD | - | 0.413" Dia (10.50mm) | 0.217" (5.50mm) | -25°C ~ 70°C |
|
|
BCAP0010 P300 X11CAP 10F 3V THROUGH HOLE |
10,326 |
|
Datasheet |
XP | Bulk | Active | 10 F | - | 3 V | 25mOhm | - | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.240" (31.50mm) | -40°C ~ 65°C |
|
|
FC0H224ZFTBR24CAP 220MF -20% +80% 5.5V SMD |
31,280 |
|
Datasheet |
FC | Tape & Reel (TR) | Active | 220 mF | -20%, +80% | 5.5 V | 25Ohm @ 1kHz | - | SMD (SMT) Tabs | Surface Mount | Radial, Can - SMD | - | 0.413" Dia (10.50mm) | 0.335" (8.50mm) | -25°C ~ 70°C |
.jpg)
|
CPM3225A-2KCAP 11.5MF 2.6V SMD |
11,892 |
|
- |
CPM | Tape & Reel (TR) | Active | 11.5 mF | - | 2.6 V | - | - | - | Surface Mount | 1210 (3225 Metric) | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.039" (1.00mm) | - |
|
EDC334Z5R5VCAP 330MF -20% +80% 5.5V T/H |
48,612 |
|
Datasheet |
EDC | Bulk | Active | 330 mF | -20%, +80% | 5.5 V | 75Ohm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Axial, Can - Vertical | 0.197" (5.00mm) | 0.453" Dia (11.50mm) | 0.512" (13.00mm) | -25°C ~ 70°C |
