RF Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Type | Voltage - Peak Reverse (Max) | Current - Max | Capacitance @ Vr, F | Resistance @ If, F | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DMJ4103-000X-BAND,RINGQUAD,N-TYPE,HIGH DR |
19,252 |
|
Datasheet |
DMJ | Die | Tray | Active | Schottky - Ring | - | 100 mA | - | - | 75 mW | -65°C ~ 175°C (TA) | - | - | Die |
|
|
L8107RRF PIN DIODE 90V 1W CERAMIC MELF |
9,822 |
|
Datasheet |
- | SQ-MELF | Tape & Reel (TR) | Active | PIN - Single | 90V | 50 mA | 0.6pF @ 40V, 100MHz | 1.5Ohm @ 50mA, 100MHz | 1 W | 175°C (TJ) | - | - | MELF |
|
|
CDB7619-000RF DIODE SCHOTTKY 3V CHIP |
19,354 |
|
Datasheet |
- | Die | Bulk | Active | Schottky - Single | 3V | - | 0.1pF @ 0V, 10MHz | 40Ohm @ 10mA, 10MHz | - | - | - | - | Chip |
|
|
CDF7623-000SI SCHOTTKY CHIP |
15,302 |
|
Datasheet |
- | Die | Bulk | Active | Schottky - Single | 2V | 100 mA | 0.3pF @ 0V, 1MHz | - | 75 mW | -55°C ~ 150°C (TA) | - | - | Die |
|
|
CDE7618-000SILICON CHIP CAPACITOR |
14,450 |
|
Datasheet |
- | Die | Bulk | Active | Schottky - Single | 2V | 100 mA | 0.1pF @ 0V, 1MHz | - | 75 mW | -55°C ~ 150°C (TA) | - | - | Die |
|
|
CME7660-000SCH CHIP SIL |
6,342 |
|
Datasheet |
- | Die | Bulk | Active | Schottky - Single | 2V | 100 mA | 0.15pF @ 0V, 1MHz | - | 75 mW | -55°C ~ 150°C (TA) | - | - | Die |
|
|
SMP1300-94DIODE |
16,364 |
|
- |
* | - | Cut Tape (CT) | Active | - | - | - | - | - | - | - | - | - | - |
|
|
CLA4611-000RF DIODE PIN 180V 870MW DIE |
10,794 |
|
Datasheet |
- | Die | Bulk | Active | PIN - Single | 180V | 200 mA | 0.2pF @ 38V, 1MHz | 1.2Ohm @ 10mA, 500MHz | 870 mW | -65°C ~ 175°C (TJ) | - | - | Die |
|
|
GE12MPS06Q650V 12A PQFN 8X8 SIC SCHOTTKY M |
16,880 |
|
Datasheet |
MPS™ | 4-PowerVSFN | Tape & Reel (TR) | Active | Schottky - Single | 650V | 12 A | - | - | - | - | - | - | 4-QFN (8x8) |
.jpg)
|

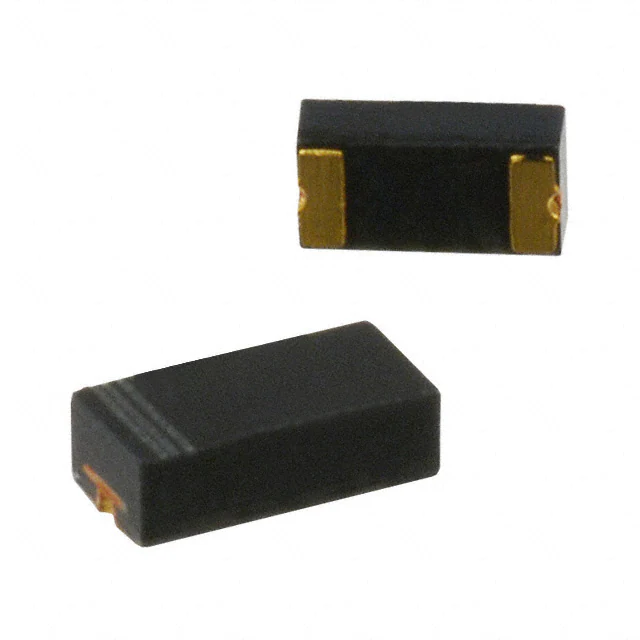

CPINF5204-HFRF DIODE PIN 180V 500MW 1005 |
16,016 |
|
Datasheet |
- | 1005 (2512 Metric) | Tape & Reel (TR) | Obsolete | PIN - Single | 180V | - | 0.9pF @ 40V, 100MHz | 750mOhm @ 50mA, 100MHz | 500 mW | 150°C (TJ) | - | - | 1005/SOD-323F |
|
LXS101-23-0DIODE SCHOTTKY 8V 1A SOT23-3 |
9,442 |
|
- |
LSX | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Schottky - Single | 8V | 1 A | 1pF @ 0V, 1MHz | - | 250 mW | -55°C ~ 125°C | - | - | SOT-23-3 |
|
|
L8104-240RRF PIN DIODE 240V 3W CERAMIC MEL |
11,164 |
|
Datasheet |
- | SQ-MELF | Tape & Reel (TR) | Active | PIN - Single | 240V | 50 mA | 1.2pF @ 40V, 100MHz | 750mOhm @ 50mA, 100MHz | 3 W | 175°C (TJ) | - | - | MELF |
|
|
MADP-042505-13060PPOCKETTAPE,SURMOUNT,PIM |
7,492 |
|
Datasheet |
- | Die | Bulk | Active | PIN - Single | 80V | 250 mA | 0.4pF @ 40V, 1MHz | 760mOhm @ 50mA, 1GHz | - | 175°C (TJ) | - | - | Die |
|
|
GMP4211-GM1SI PIN NON HERMETIC PLASTIC SMT |
15,974 |
|
Datasheet |
GIGAMITE® | 0805 (2012 Metric) | Tape & Reel (TR) | Active | PIN - Single | 100V | - | 0.18pF @ 10V, 1MHz | 2Ohm @ 20mA, 100MHz | - | -55°C ~ 125°C | - | - | 0805 |
|
|
LXS101-23-0/TRDIODE SCHOTTKY 8V 1A SOT23-3 |
5,396 |
|
- |
LSX | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Schottky - Single | 8V | 1 A | 1pF @ 0V, 1MHz | - | 250 mW | -55°C ~ 125°C | - | - | SOT-23-3 |
|
MPP4206-206SI PIN NON HERMETIC MMSM |
7,056 |
|
Datasheet |
GIGAMITE® | 0402 (1005 Metric) | Tray | Active | PIN - Single | 200V | - | 0.15pF @ 10V, 1MHz | 2.5Ohm @ 10mA, 100MHz | - | - | - | - | 0402 |
|
|
CLA4605-108RF DIODE PIN 30V 250MW |
15,094 |
|
Datasheet |
- | SMD 1.83mm x 1.43mm | Tape & Reel (TR) | Obsolete | PIN - Single | 30V | 150 mA | 0.28pF @ 10V, 1MHz | 2.7Ohm @ 10mA, 100MHz | 250 mW | -55°C ~ 150°C (TA) | - | - | - |
|
GMP4215-GM1/TRSI PIN NON HERMETIC PLASTIC SMT |
18,302 |
|
Datasheet |
GIGAMITE® | 0805 (2012 Metric) | Tape & Reel (TR) | Active | PIN - Single | 100V | - | 0.6pF @ 10V, 1MHz | 500mOhm @ 20mA, 100MHz | - | -55°C ~ 125°C | - | - | 0805 |
|
|
GMP4202-GM1/TRSI PIN NON HERMETIC PLASTIC SMT |
10,232 |
|
Datasheet |
GIGAMITE® | 0805 (2012 Metric) | Tape & Reel (TR) | Active | PIN - Single | 75V | - | 0.25pF @ 10V, 1MHz | 1Ohm @ 20mA, 100MHz | - | -55°C ~ 125°C | - | - | 0805 |
|
|
GMP4212-GM1/TRSI PIN NON HERMETIC PLASTIC SMT |
8,250 |
|
Datasheet |
GIGAMITE® | 0805 (2012 Metric) | Tape & Reel (TR) | Active | PIN - Single | 100V | - | 0.25pF @ 10V, 1MHz | 1.5Ohm @ 20mA, 100MHz | - | -55°C ~ 125°C | - | - | 0805 |
