RF Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Type | Voltage - Peak Reverse (Max) | Current - Max | Capacitance @ Vr, F | Resistance @ If, F | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MA47223DIODE,PIN,MODULE,SI,ODS144 |
3,312 |
|
- |
MA47223 | Stud | Bulk | Active | PIN - Single | 500V | - | 20pF @ 50V, 1MHz | 600mOhm @ 100mA, 500MHz | 7.5 W | -65°C ~ 150°C | - | - | - |
|
MA4PK3003DIODE,PIN,BONDED,STRIPLINE,SI |
6,410 |
|
- |
KILOVOLT™ | Die | Bulk | Active | PIN - Single | 3000V | 25 A | 4pF @ 100V, 1MHz | 250mOhm @ 500mA, 4MHz | 50 W | -65°C ~ 175°C (TA) | - | - | Die |
|
CLA4603-085LFRF DIODE PIN 45V 2W 3QFN |
19,908 |
|
Datasheet |
- | 2-VDFN Exposed Pad | Tape & Reel (TR) | Active | PIN - Single | 45V | 1.5 A | 0.4pF @ 6V, 1MHz | 2Ohm @ 10mA, 100MHz | 2 W | 175°C (TJ) | - | - | 3-QFN (2x2) |
|
|
CLA4606-085LFRF DIODE PIN 75V 3W 3QFN |
4,850 |
|
Datasheet |
- | 2-VDFN Exposed Pad | Tape & Reel (TR) | Active | PIN - Single | 75V | 1.5 A | 0.38pF @ 6V, 1MHz | 2Ohm @ 10mA, 100MHz | 3 W | 175°C (TJ) | - | - | 3-QFN (2x2) |
|
|
CLA4605-085LFRF DIODE PIN 60V 1W 3QFN |
8,528 |
|
Datasheet |
- | 2-VDFN Exposed Pad | Tape & Reel (TR) | Active | PIN - Single | 60V | 1.5 A | 0.45pF @ 6V, 1MHz | 2Ohm @ 10mA, 500MHz | 1 W | 175°C (TJ) | - | - | 3-QFN (2x2) |
|
|
CLA4608-085LFRF DIODE PIN 180V 2W 3QFN |
8,090 |
|
Datasheet |
- | 2-VDFN Exposed Pad | Tape & Reel (TR) | Active | PIN - Single | 180V | 1.5 A | 0.65pF @ 38V, 1MHz | 1.2Ohm @ 10mA, 500MHz | 2 W | 175°C (TJ) | - | - | 3-QFN (2x2) |
|
|
SMP1330-085LFRF DIODE PIN 50V 3W 3QFN |
10,870 |
|
Datasheet |
- | 2-VDFN Exposed Pad | Tape & Reel (TR) | Active | PIN - Single | 50V | 200 mA | 1pF @ 0V, 1MHz | 2Ohm @ 10mA, 100MHz | 3 W | 175°C (TJ) | - | - | 3-QFN (2x2) |
|
|
CLA4609-086LFRF DIODE PIN 250V 3QFN |
10,084 |
|
Datasheet |
- | 2-VDFN Exposed Pad | Tape & Reel (TR) | Active | PIN - Single | 250V | 200 mA | 0.14pF @ 6V, 1MHz | 1.5Ohm @ 10mA, 500MHz | - | 175°C (TJ) | - | - | 3-QFN (2x2) |
|
|
CLA4610-085LFRF DIODE PIN 120V 10W 3QFN |
13,804 |
|
Datasheet |
- | 2-VDFN Exposed Pad | Tape & Reel (TR) | Active | PIN - Single | 120V | 100 mA | 0.32pF @ 6V, 1MHz | 2.2Ohm @ 10mA, 500MHz | 10 W | 175°C (TJ) | - | - | 3-QFN (2x2) |
|

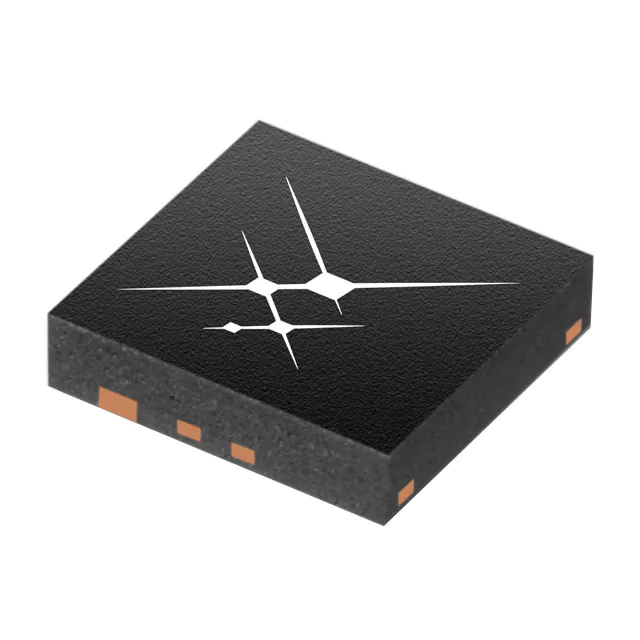

SKY16602-632LFRF DIODE PIN 20V 12W 2MLP |
18,774 |
|
Datasheet |
- | 2-UDFN Exposed Pad | Tape & Reel (TR) | Active | PIN - Single | 20V | 50 mA | - | - | 12 W | -40°C ~ 85°C (TA) | - | - | 2-MLP (2.3x2.3) |
|
LM200802-M-A-300-TLIMITER,SURFACE MOUNT MODULE,CS3 |
16,454 |
|
Datasheet |
- | 2-SMD, No Lead | Tube | Active | PIN - Single | - | - | - | - | - | 175°C (TJ) | - | - | CS300 |
|
MADL-011014-001000LIMITER HIGH POWER,1.0-2.0GHZ,HE |
5,954 |
|
Datasheet |
- | 2-SMD, No Lead | Tray | Active | PIN - 1 Pair Series Connection | - | - | - | - | 320 W | 175°C (TJ) | - | - | SMD |
|
MA4E1339B1-287TSCHOTTKY PLASTIC LEAD-FREE |
8,410 |
|
Datasheet |
MA4E1339 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Schottky - 1 Pair Series Connection | 20V | 30 mA | 1.2pF @ 0V, 1MHz | - | 250 mW | -55°C ~ 125°C (TJ) | - | - | SOT-23 |
|
DSG9500-000RF DIODE PIN 100V 250MW |
4,190 |
|
Datasheet |
- | - | Tray | Active | PIN - Single | 100V | - | 0.025pF @ 50V, 1MHz | 4Ohm @ 50mA, 100MHz | 250 mW | -65°C ~ 150°C (TA) | - | - | - |
|
CLA4606-000DIODE LIMITER SILICON 45-75V |
7,724 |
|
Datasheet |
CLA | Die | Tray | Active | PIN - Single | 75V | 200 mA | - | 2Ohm @ 10mA, 1MHz | 650 mW | -65°C ~ 175°C (TJ) | - | - | Die |
|
|
CLA4608-000DIODE LIMITER SILICON 120-180V |
6,044 |
|
Datasheet |
CLA | Die | Tray | Active | PIN - Single | 180V | 200 mA | - | 1.2Ohm @ 10mA, 1MHz | 850 mW | -65°C ~ 175°C (TJ) | - | - | Die |
|
|
CLA4610-000RF DIODE PIN 120V 620MW DIE |
19,052 |
|
Datasheet |
- | Die | Tray | Active | PIN - Single | 120V | 200 mA | 0.12pF @ 6V, 1MHz | 2.2Ohm @ 10mA, 500MHz | 620 mW | -65°C ~ 175°C (TJ) | - | - | Die |
|
MA4GP907GAAS,FLIPCHIP,PIN |
9,124 |
|
Datasheet |
- | Die | Tray | Active | PIN - Single | 50V | - | 0.03pF @ 10V, 1MHz | 7Ohm @ 10mA, 1GHz | 250 mW | 175°C (TJ) | - | - | Chip |
|
|
UMX512SI PPIN HERMETIC MELF |
16,470 |
|
Datasheet |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - |
|
PMBD353,215RF DIODE SCHOTTKY 4V TO236AB |
6,064 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Schottky - 1 Pair Series Connection | 4V | 30 mA | 1pF @ 0V, 1MHz | - | - | 100°C (TJ) | Automotive | AEC-Q100 | TO-236AB |
