Bridge Rectifiers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Type | Technology | Voltage - Peak Reverse (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Current - Reverse Leakage @ Vr | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DF150AB80BRIDGE RECT 3PHASE 800V 150A |
11,278 |
|
Datasheet |
- | Module | Active | Three Phase | Standard | 800 V | 150 A | 1.2 V @ 150 A | 15 mA @ 800 V | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | - | |
|
|
DF150AB160BRIDGE RECT 3PHASE 1.6KV 150A |
11,684 |
|
Datasheet |
- | Module | Active | Three Phase | Standard | 1.6 kV | 150 A | 1.2 V @ 150 A | 15 mA @ 1600 V | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | - | |
|
VS-60MT100KPBFBRIDGE RECT 3PHASE 1KV 60A MT-K |
4,590 |
|
Datasheet |
- | MT-K Module | Tray | Active | Three Phase | Standard | 1 kV | 60 A | - | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | MT-K |
|
|
VS-60MT140KPBFBRIDGE RECT 3P 1.4KV 60A MT-K |
15,896 |
|
Datasheet |
- | MT-K Module | Tray | Active | Three Phase | Standard | 1.4 kV | 60 A | - | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | MT-K |
|
|
70MT80KBBRIDGE RECT 3PHASE 800V 70A MTK |
13,712 |
|
Datasheet |
- | MTK | Bulk | Obsolete | Three Phase | Standard | 800 V | 70 A | - | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | MTK |
|
|
60MT100KBBRIDGE RECT 3PHASE 1KV 60A MTK |
16,876 |
|
Datasheet |
- | MTK | Bulk | Obsolete | Three Phase | Standard | 1 kV | 60 A | - | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | MTK |
|
|
60MT120KBBRIDGE RECT 3PHASE 1.2KV 60A MTK |
7,244 |
|
Datasheet |
- | MTK | Bulk | Obsolete | Three Phase | Standard | 1.2 kV | 60 A | - | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | MTK |
|
|
60MT140KBBRIDGE RECT 3PHASE 1.4KV 60A MTK |
13,590 |
|
Datasheet |
- | MTK | Bulk | Obsolete | Three Phase | Standard | 1.4 kV | 60 A | - | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | MTK |
|
|
60MT160KBBRIDGE RECT 3PHASE 1.6KV 60A MTK |
10,222 |
|
Datasheet |
- | MTK | Bulk | Obsolete | Three Phase | Standard | 1.6 kV | 60 A | - | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | MTK |
|
|
60MT80KBBRIDGE RECT 3PHASE 800V 60A MTK |
6,338 |
|
Datasheet |
- | MTK | Bulk | Obsolete | Three Phase | Standard | 800 V | 60 A | - | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | MTK |
|
|
70MT120KBBRIDGE RECT 3PHASE 1.2KV 70A MTK |
13,030 |
|
Datasheet |
- | MTK | Bulk | Obsolete | Three Phase | Standard | 1.2 kV | 70 A | - | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | MTK |
|
|
70MT160KBBRIDGE RECT 3PHASE 1.6KV 70A MTK |
10,132 |
|
Datasheet |
- | MTK | Bulk | Obsolete | Three Phase | Standard | 1.6 kV | 70 A | - | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | MTK |
|

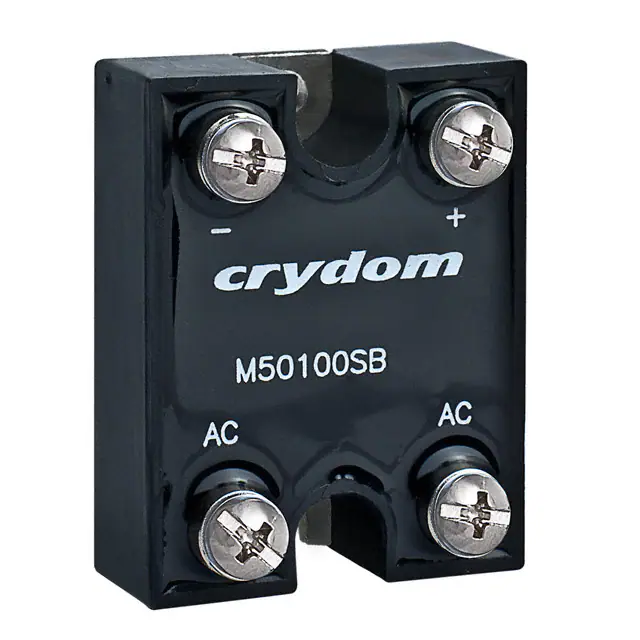

M50100SB800BRIDGE RECT 1P 800V 100A MODULE |
7,574 |
|
Datasheet |
- | Module | Bulk | Obsolete | Single Phase | Standard | 800 V | 100 A | 1.2 V @ 100 A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount | Module |
|
|
VS-70MT80KPBFBRIDGE RECT 3PHASE 800V 70A MT-K |
19,472 |
|
Datasheet |
- | MT-K Module | Tray | Active | Three Phase | Standard | 800 V | 70 A | - | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | MT-K |
|

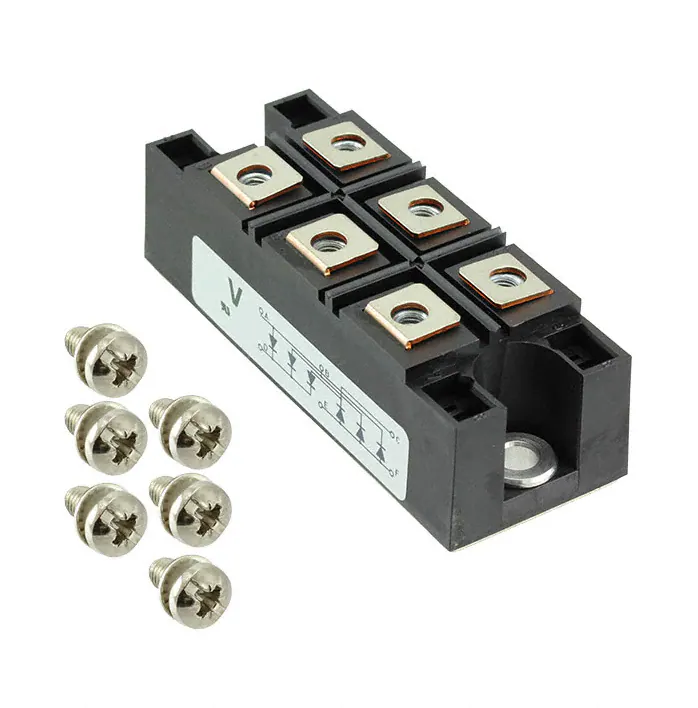

VS-90MT100KPBFBRIDGE RECT 3PHASE 1KV 90A MT-K |
6,636 |
|
Datasheet |
- | MT-K Module | Tray | Active | Three Phase | Standard | 1 kV | 90 A | - | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | MT-K |
|
|
VS-90MT140KPBFBRIDGE RECT 3P 1.4KV 90A MT-K |
18,770 |
|
Datasheet |
- | MT-K Module | Tray | Active | Three Phase | Standard | 1.4 kV | 90 A | - | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | MT-K |
|
|
APTDF100H601GBRIDGE RECT 1PHASE 600V 135A SP1 |
5,940 |
|
Datasheet |
- | SP1 | Bulk | Active | Single Phase | Standard | 600 V | 135 A | 2 V @ 100 A | 250 µA @ 600 V | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP1 |
|
|
APTDR40X1601GBRIDGE RECT 3PHASE 1.6KV 40A SP1 |
17,394 |
|
Datasheet |
- | SP1 | Bulk | Active | Three Phase | Standard | 1.6 kV | 40 A | 1.3 V @ 40 A | 20 µA @ 1600 V | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP1 |
|

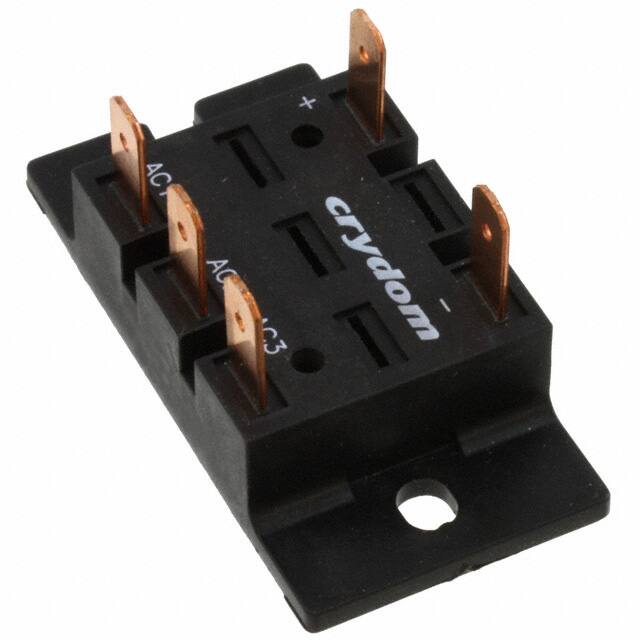

T483ABRIDGE RECT 1P 200V 10A MODULE |
17,146 |
|
Datasheet |
- | Module | Bulk | Not For New Designs | Single Phase | Standard | 200 V | 10 A | - | 25 µA @ 100 V | - | - | - | Surface Mount | Module |
|
|
APTDF100H120GBRIDGE RECT 1P 1.2KV 120A SP4 |
13,552 |
|
Datasheet |
- | SP4 | Bulk | Discontinued at Digi-Key | Single Phase | Standard | 1.2 kV | 120 A | 3 V @ 100 A | 100 µA @ 1200 V | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP4 |
