Digital to Analog Converters (DAC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Number of Bits | Number of D/A Converters | Settling Time | Output Type | Differential Output | Data Interface | Reference Type | Voltage - Supply, Analog | Voltage - Supply, Digital | INL/DNL (LSB) | Architecture | Operating Temperature | Supplier Device Package | Mounting Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DAC7512E/250IC DAC 12BIT V-OUT 8VSSOP |
1,292 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Not Verified | 12 | 1 | 10µs | Voltage - Buffered | No | SPI, DSP | Supply | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±8 (Max), ±1 (Max) | String DAC | -40°C ~ 105°C | 8-VSSOP | Surface Mount | - | - |
|
AD5612BKSZ-2500RL7IC DAC 10BIT V-OUT SC70-6 |
2,424 |
|
Datasheet |
nanoDAC® | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Not Verified | 10 | 1 | 10µs | Voltage - Buffered | No | I2C | Supply | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.5 (Max), ±1 (Max) | String DAC | -40°C ~ 125°C | SC-70-6 | Surface Mount | - | - |
|
TLC7524EDIC DAC 8BIT A-OUT 16SOIC |
7,320 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Bulk | Active | Not Verified | 8 | 1 | 100ns | Current - Unbuffered | Yes | Parallel | External | 5V, 14.5V ~ 15.5V | 5V, 14.5V ~ 15.5V | ±0.5 (Max), ±2.5 (Max) | R-2R | -40°C ~ 85°C | 16-SOIC | Surface Mount | - | - |
|
BH2221FV-E2IC DAC 8BIT V-OUT 20SSOP |
8,640 |
|
Datasheet |
- | 20-LSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Not Verified | 8 | 12 | 100µs | Voltage - Buffered | No | SPI | - | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±1.5 (Max), ±1 (Max) | R-2R | -20°C ~ 85°C | 20-SSOP-B | Surface Mount | - | - |
|
LTC2630ISC6-HZ10#TRMPBFIC DAC 10BIT V-OUT SC70-6 |
702 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Not Verified | 10 | 1 | 4.4µs (Typ) | Voltage - Buffered | No | SPI | Internal, Supply | 5V | 5V | ±0.2, ±0.5 (Max) | - | -40°C ~ 85°C | SC-70-6 | Surface Mount | - | - |
|
LTC7106IDDB#TRPBFIC DAC 7BIT A-OUT 10DFN |
6,580 |
|
Datasheet |
- | 10-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | 7 | 1 | - | Current - Unbuffered | No | I2C | External | 2.5V ~ 5.5V | - | ±1, ±0.3 | Current Source | -40°C ~ 125°C (TJ) | 10-DFN (3x2) | Surface Mount | - | - |
|
|
LTC7106IDDB#TRMPBFIC DAC 7BIT A-OUT 10DFN |
2,054 |
|
Datasheet |
- | 10-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | 7 | 1 | - | Current - Unbuffered | No | I2C | External | 2.5V ~ 5.5V | - | ±1, ±0.3 | Current Source | -40°C ~ 125°C (TJ) | 10-DFN (3x2) | Surface Mount | - | - |
|
|
LTC2630HSC6-LZ10#TRMPBFIC DAC 10BIT V-OUT SC70-6 |
2,000 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Not Verified | 10 | 1 | 3.9µs (Typ) | Voltage - Buffered | No | SPI | Internal, Supply | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.2, ±0.5 (Max) | - | -40°C ~ 125°C | SC-70-6 | Surface Mount | - | - |
|
|
LTC2630CSC6-LM12#TRMPBFIC DAC 12BIT V-OUT SC70-6 |
1,378 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Not Verified | 12 | 1 | 4.4µs (Typ) | Voltage - Buffered | No | SPI | Internal, Supply | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±1, ±1 (Max) | - | 0°C ~ 70°C | SC-70-6 | Surface Mount | - | - |
|
LMP92066PWPIC DAC 12BIT V-OUT 16HTSSOP |
658 |
|
Datasheet |
- | 16-PowerTSSOP (0.173", 4.40mm Width) | Tube | Active | Not Verified | 12 | 2 | 250µs (Typ) | Voltage - Buffered | No | I2C | Internal | 5V | 5V | -1.93/+1 (Max), -0.99/+1 (Max) | Oversampling Interpolating DAC | -40°C ~ 125°C | 16-HTSSOP | Surface Mount | - | - |
|
MCP47CMB04-20E/STIC DAC 8BIT V-OUT 20TSSOP |
592 |
|
Datasheet |
MCP | 20-TSSOP (0.173", 4.40mm Width) | Tube | Active | Not Verified | 8 | 4 | 16µs (Typ) | Voltage - Buffered | No | I2C | External, Internal, Supply | 1.8V ~ 5.5V | 1.8V ~ 5.5V | ±0.1, ±0.1 | R-2R | -40°C ~ 125°C | 20-TSSOP | Surface Mount | - | - |
|
|
MCP48CMB04-20E/STIC DAC 8BIT V-OUT 20TSSOP |
282 |
|
Datasheet |
MCP | 20-TSSOP (0.173", 4.40mm Width) | Tube | Active | Not Verified | 8 | 4 | 16µs (Typ) | Voltage - Buffered | No | SPI | External, Internal, Supply | 1.8V ~ 5.5V | 1.8V ~ 5.5V | ±0.1, ±0.1 | R-2R | -40°C ~ 125°C | 20-TSSOP | Surface Mount | - | - |
|
AD5450YUJZ-REEL7IC DAC 8BIT A-OUT TSOT23-8 |
5,086 |
|
Datasheet |
- | SOT-23-8 Thin, TSOT-23-8 | Tape & Reel (TR) | Active | Not Verified | 8 | 1 | 110ns | Current - Unbuffered | No | SPI, DSP | External | 2.5V ~ 5.5V | 2.5V ~ 5.5V | ±0.25 (Max), ±0.5 (Max) | R-2R | -40°C ~ 125°C | TSOT-23-8 | Surface Mount | - | - |
|
LTC2635CUD-LMO8#PBFIC DAC 8BIT V-OUT 16QFN |
242 |
|
Datasheet |
- | 16-WFQFN Exposed Pad | Tube | Active | Not Verified | 8 | 4 | 3.5µs (Typ) | Voltage - Buffered | No | I2C | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.05, ±0.5 (Max) | - | 0°C ~ 70°C | 16-QFN (3x3) | Surface Mount | - | - |
|

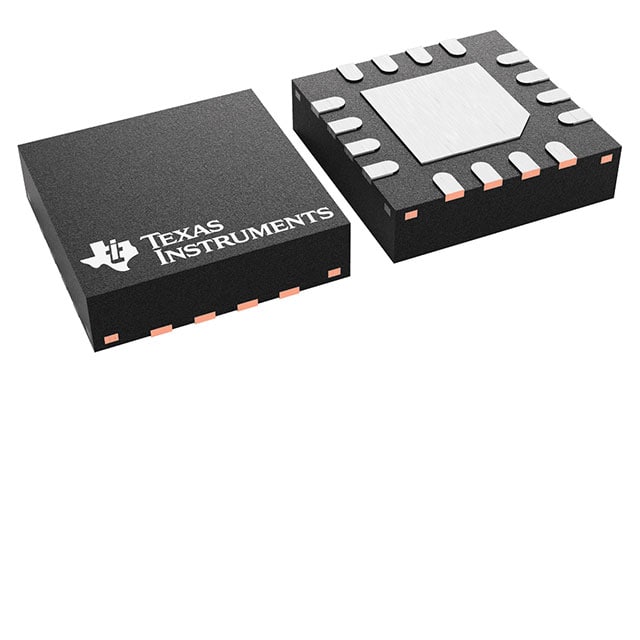

DAC63002RTERIC DAC 12BIT V OR A-OUT 16WQFN |
5,290 |
|
Datasheet |
- | 16-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | 12 | 2 | 25µs (V), 60µs (A) | Voltage or Current - Buffered | No | I2C, SPI | External | 1.7V ~ 5.5V | 1.7V ~ 5.5V | ±4 (Max), ±1 (Max) | String DAC | -40°C ~ 125°C | 16-WQFN (3x3) | Surface Mount | - | - |
|
TLV5626CDRIC DAC 8BIT V-OUT 8SOIC |
4,290 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | 8 | 2 | 5.5µs | Voltage - Buffered | No | SPI | External, Internal | 2.7V ~ 3.3V, 5V | 2.7V ~ 3.3V, 5V | ±0.4, ±0.1 | String DAC | 0°C ~ 70°C | 8-SOIC | Surface Mount | - | - |
|
LTC2631ITS8-LM10#TRMPBFIC DAC 10BIT V-OUT TSOT23-8 |
670 |
|
Datasheet |
- | SOT-23-8 Thin, TSOT-23-8 | Tape & Reel (TR) | Active | Not Verified | 10 | 1 | 3.8µs (Typ) | Voltage - Buffered | No | I2C | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.2, ±0.5 (Max) | - | -40°C ~ 85°C | TSOT-23-8 | Surface Mount | - | - |
|
|
LTC2631ITS8-LZ10#TRMPBFIC DAC 10BIT V-OUT TSOT23-8 |
650 |
|
Datasheet |
- | SOT-23-8 Thin, TSOT-23-8 | Tape & Reel (TR) | Active | Not Verified | 10 | 1 | 3.8µs (Typ) | Voltage - Buffered | No | I2C | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.2, ±0.5 (Max) | - | -40°C ~ 85°C | TSOT-23-8 | Surface Mount | - | - |
|
TLC7528EDWIC DAC 8BIT A-OUT 20SOIC |
1,020 |
|
Datasheet |
- | 20-SOIC (0.295", 7.50mm Width) | Bulk | Active | Not Verified | 8 | 2 | 100ns | Current - Unbuffered | No | Parallel | External | 5V ~ 15V | 5V ~ 15V | ±0.5 (Max), ±0.5 (Max) | R-2R | -40°C ~ 85°C | 20-SOIC | Surface Mount | - | - |
|
DAC104S085QIMM/NOPBIC DAC 10BIT V-OUT 10VSSOP |
9,042 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Not Verified | 10 | 4 | 6µs | Voltage - Buffered | No | SPI, DSP | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.7, +0.08/-0.03 | String DAC | -40°C ~ 125°C | 10-VSSOP | Surface Mount | Automotive | AEC-Q100 |
