Crystals
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Load Capacitance | ESR (Equivalent Series Resistance) | Operating Mode | Operating Temperature | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
XRCHA20M000F0A01R0CRYSTAL 20.0000MHZ 8PF SMD |
5,574 |
|
Datasheet |
XRCHA | 2-SMD, No Lead | Tape & Reel (TR) | Last Time Buy | MHz Crystal | 20 MHz | ±100ppm | ±100ppm | 8pF | 80 Ohms | Fundamental | -40°C ~ 125°C | AEC-Q200 | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|
|
XRCHA24M000F0A01R0CRYSTAL 24.0000MHZ 8PF SMD |
8,432 |
|
Datasheet |
XRCHA | 2-SMD, No Lead | Tape & Reel (TR) | Last Time Buy | MHz Crystal | 24 MHz | ±100ppm | ±100ppm | 8pF | 80 Ohms | Fundamental | -40°C ~ 125°C | AEC-Q200 | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|
ST3215SB32768A0HPWBBCRYSTAL 32.7680KHZ 5PF SMD |
5,440 |
|
Datasheet |
ST3215SB, Kyocera | 2-SMD, No Lead | Tape & Reel (TR) | Obsolete | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 5pF | 70 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.035" (0.90mm) |
|
|
017124CRYSTAL 4.90625MHZ SURFACE MOUNT |
13,902 |
|
Datasheet |
- | - | Tape & Reel (TR) | Obsolete | MHz Crystal | 4.90625 MHz | - | - | - | - | Fundamental | - | - | Surface Mount | - | - | - |
|
ABM12W-27.0000MHZ-4-B1U-T3CRYSTAL 27.0000MHZ 4PF SMD |
17,194 |
|
Datasheet |
ABM12W | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 27 MHz | ±10ppm | ±10ppm | 4pF | 150 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.063" L x 0.047" W (1.60mm x 1.20mm) | 0.016" (0.40mm) |
|
NX5032SD-9.84375M-STD-CSY-1CRYSTAL 9.84375MHZ 12PF SMD |
8,260 |
|
- |
NX3225SC | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | MHz Crystal | 9.84375 MHz | ±50ppm | ±15ppm | 12pF | 150 Ohms | Fundamental | -40°C ~ 125°C | AEC-Q200 | Surface Mount | - | 0.193" L x 0.122" W (4.90mm x 3.10mm) | 0.039" (1.00mm) |
|
|
NX5032SD-13.56MHZ-STD-CSY-1CRYSTAL 13.5600MHZ 12PF SMD |
17,722 |
|
- |
NX3225SC | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | MHz Crystal | 13.56 MHz | ±50ppm | ±15ppm | 12pF | 120 Ohms | Fundamental | -40°C ~ 125°C | AEC-Q200 | Surface Mount | - | 0.193" L x 0.122" W (4.90mm x 3.10mm) | 0.039" (1.00mm) |
|
NX5032SD-20MHZ-STD-CSY-1CRYSTAL 20.0000MHZ 12PF SMD |
11,832 |
|
- |
NX3225SC | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | MHz Crystal | 20 MHz | ±50ppm | ±15ppm | 12pF | 80 Ohms | Fundamental | -40°C ~ 125°C | AEC-Q200 | Surface Mount | - | 0.193" L x 0.122" W (4.90mm x 3.10mm) | 0.039" (1.00mm) |
|

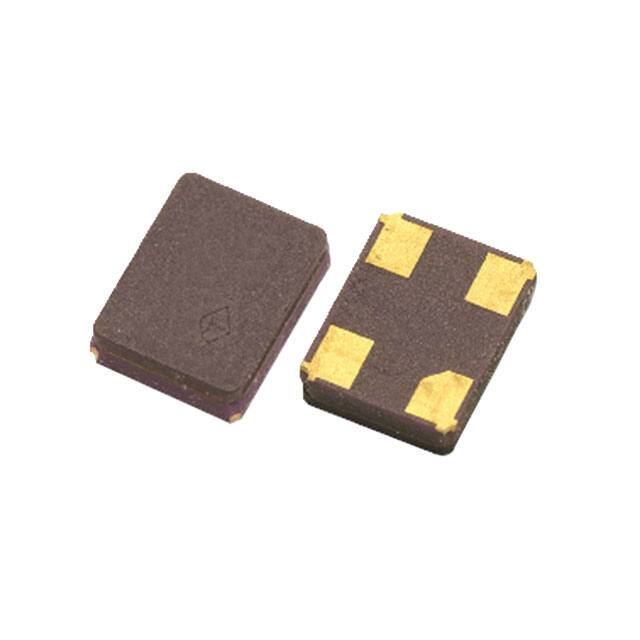

X2HCCCNANF-12.000000CRYSTAL 12.0000MHZ 20PF SMD |
17,996 |
|
Datasheet |
X2 | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | MHz Crystal | 12 MHz | ±20ppm | ±20ppm | 20pF | 170 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|

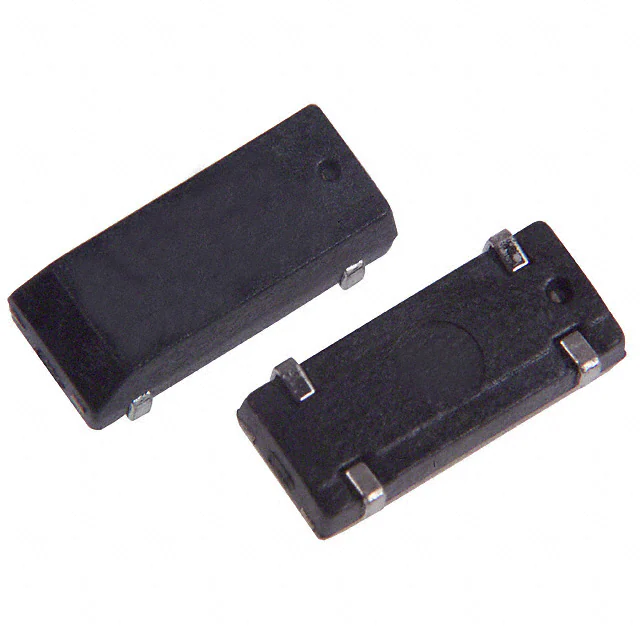

CM200S-32.768KDZF-UTCRYSTAL 32.7680KHZ 12.5PF SMD |
18,486 |
|
Datasheet |
CM200S | 4-SOJ, 5.50mm pitch | Tape & Reel (TR) | Obsolete | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 50 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.311" L x 0.146" W (7.90mm x 3.70mm) | 0.098" (2.50mm) |
|
|
CM200S-32.768KDZB-UTCRYSTAL 32.7680KHZ 6PF SMD |
18,442 |
|
Datasheet |
CM200S | 4-SOJ, 5.50mm pitch | Tape & Reel (TR) | Obsolete | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 6pF | 50 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.311" L x 0.146" W (7.90mm x 3.70mm) | 0.098" (2.50mm) |
|
ABLS-9.84375MHZ-10-R20-D-TCRYSTAL 9.84375MHZ 10PF SMD |
16,750 |
|
Datasheet |
ABLS(RF) | HC-49/US | Tape & Reel (TR) | Obsolete | MHz Crystal | 9.84375 MHz | ±50ppm | ±50ppm | 10pF | 20 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.449" L x 0.185" W (11.40mm x 4.70mm) | 0.165" (4.20mm) |
|
CM200C32768DZFTCRYSTAL 32.7680KHZ 12.5PF SMD |
8,430 |
|
Datasheet |
CM200C | 4-SOJ, 5.50mm pitch | Tape & Reel (TR) | Obsolete | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 50 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.315" L x 0.150" W (8.00mm x 3.80mm) | 0.100" (2.55mm) |
|
7B-19.200MAAE-TCRYSTAL 19.2000MHZ 12PF SMD |
19,896 |
|
Datasheet |
7B | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | MHz Crystal | 19.2 MHz | ±30ppm | ±30ppm | 12pF | 40 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.041" (1.05mm) |
|
|
7B-24.576MAAE-TCRYSTAL 24.5760MHZ 12PF SMD |
6,194 |
|
Datasheet |
7B | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | MHz Crystal | 24.576 MHz | ±30ppm | ±30ppm | 12pF | 40 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.041" (1.05mm) |
|
CX3225GB13560D0HEQCCCRYSTAL 13.5600MHZ 8PF SMD |
15,280 |
|
Datasheet |
CX3225GB, Kyocera | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 13.56 MHz | ±30ppm | ±20ppm | 8pF | 250 Ohms | Fundamental | -10°C ~ 70°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
|
CX3225GB14318D0HEQCCCRYSTAL 14.31818MHZ 8PF SMD |
5,822 |
|
Datasheet |
CX3225GB, Kyocera | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 14.31818 MHz | ±30ppm | ±20ppm | 8pF | 100 Ohms | Fundamental | -10°C ~ 70°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
|
CX3225GB14745D0HEQCCCRYSTAL 14.7456MHZ 8PF SMD |
11,274 |
|
Datasheet |
CX3225GB, Kyocera | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 14.7456 MHz | ±30ppm | ±20ppm | 8pF | 100 Ohms | Fundamental | -10°C ~ 70°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
|
CX3225GB19200D0HEQCCCRYSTAL 19.2000MHZ 8PF SMD |
18,900 |
|
Datasheet |
CX3225GB, Kyocera | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 19.2 MHz | ±30ppm | ±20ppm | 8pF | 80 Ohms | Fundamental | -10°C ~ 70°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
|
CX3225GB20000D0HEQCCCRYSTAL 20.0000MHZ 8PF SMD |
8,680 |
|
Datasheet |
CX3225GB, Kyocera | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 20 MHz | ±30ppm | ±20ppm | 8pF | 60 Ohms | Fundamental | -10°C ~ 70°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
