Crystals
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Load Capacitance | ESR (Equivalent Series Resistance) | Operating Mode | Operating Temperature | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECS-160-12-33-AGN-TRCRYSTAL 16.0000MHZ 12PF SMD |
18,290 |
|
Datasheet |
ECX-32 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 16 MHz | ±30ppm | ±25ppm | 12pF | 80 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
CM13032768DZFTCRYSTAL 32.7680KHZ 12.5PF SMD |
17,284 |
|
Datasheet |
CM130 | 4-SMD, Flat Lead, 3 Leads | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 65 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.264" L x 0.055" W (6.70mm x 1.40mm) | 0.055" (1.40mm) |
.jpg)
|
ABM8-27.120MHZ-10-D1G-TCRYSTAL 27.1200MHZ 10PF SMD |
16,876 |
|
Datasheet |
ABM8 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 27.12 MHz | ±15ppm | ±10ppm | 10pF | 50 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
ECS-80-20-5PXDU-TRCRYSTAL 8.0000MHZ 20PF SMD |
122,538 |
|
Datasheet |
CSM-7X-DU | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 8 MHz | ±100ppm | ±30ppm | 20pF | 60 Ohms | Fundamental | -55°C ~ 125°C | - | Surface Mount | - | 0.449" L x 0.189" W (11.40mm x 4.80mm) | 0.169" (4.30mm) |
|
ECS-160-9-33B-CTP-TRCRYSTAL 16MHZ 9PF SMD |
37,908 |
|
Datasheet |
ECS-33B | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 16 MHz | ±20ppm | ±10ppm | 9pF | 60 Ohms | Fundamental | -40°C ~ 105°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
Q 0,032768-JTX310-12,5-20-T1-HMR-LFCRYSTAL 32.7680KHZ 12.5PF SMD |
125,512 |
|
Datasheet |
JTX310 | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 70 kOhms | Fundamental | -40°C ~ 85°C | AEC-Q200 | Surface Mount | - | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.035" (0.90mm) |
|

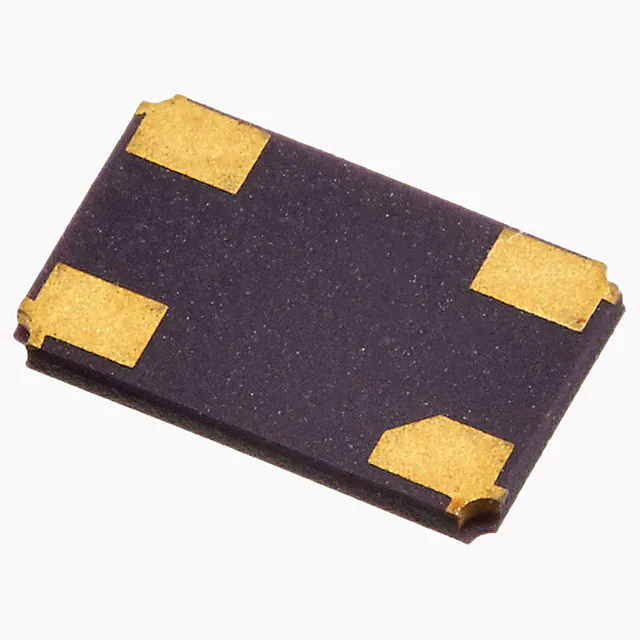

H130B-8.000-18-3030-EXT-TRCRYSTAL 8.0000MHZ 18PF SMD |
6,000 |
|
Datasheet |
H130B | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 8 MHz | ±30ppm | ±30ppm | 18pF | 85 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.039" (1.00mm) |
|
ABS25-32.768KHZ-TCRYSTAL 32.7680KHZ 12.5PF SMD |
199,520 |
|
Datasheet |
ABS25 | 4-SOJ, 5.50mm pitch | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 50 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.315" L x 0.150" W (8.00mm x 3.80mm) | 0.098" (2.50mm) |
|

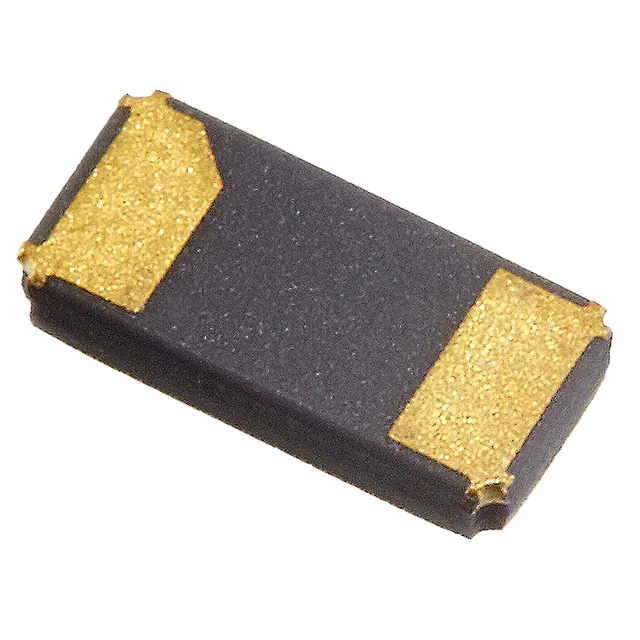

RT3215-32.768-12.5-TRCRYSTAL 32.7680KHZ 12.5PF SMD |
156,042 |
|
Datasheet |
RT3215 | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 70 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.035" (0.90mm) |
|
MS3V-T1R-32.768KHZ-9PF-20PPM-TA-QCCRYSTAL 32.7680KHZ 9PF SMD |
138,654 |
|
Datasheet |
MS3V | Cylindrical Can, Radial | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 9pF | 65 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.205" L x 0.055" W (5.20mm x 1.40mm) | 0.058" (1.48mm) |
|
STDCSK4-25MCRYSTAL 25.0000MHZ 8PF SMD |
40,036 |
|
Datasheet |
NX5032GA | 2-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 25 MHz | ±30ppm | ±20ppm | 8pF | 50 Ohms | Fundamental | -10°C ~ 70°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.059" (1.50mm) |
|
|
CM315H32768DZFTCRYSTAL 32.7680KHZ 12.5PF SMD |
21,668 |
|
Datasheet |
CM315H | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 90 kOhms | Fundamental | -40°C ~ 125°C | AEC-Q200 | Surface Mount | - | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.035" (0.90mm) |
|
|
ECS-250-20-33-JTN-TRCRYSTAL 25.0000MHZ 20PF SMD |
21,348 |
|
Datasheet |
ECX-32 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 25 MHz | ±20ppm | ±20ppm | 20pF | 40 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
MS3V-T1R-32.768KHZ-7PF-20PPM-TA-QCCRYSTAL 32.7680KHZ 7PF SMD |
2,534 |
|
Datasheet |
MS3V | Cylindrical Can, Radial | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 7pF | 65 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.205" L x 0.055" W (5.20mm x 1.40mm) | 0.058" (1.48mm) |
|
445I23D25M00000CRYSTAL 25.0000MHZ 18PF SMD |
440,886 |
|
Datasheet |
445 | 2-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 25 MHz | ±30ppm | ±20ppm | 18pF | 40 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.053" (1.35mm) |
|
ECS-271.2-10-37-CKM-TRCRYSTAL 27.1200MHZ 10PF SMD |
80,616 |
|
Datasheet |
ECX-1637 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 27.12 MHz | ±10ppm | ±10ppm | 10pF | 60 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.022" (0.55mm) |
|
ABM10-166-12.000MHZ-T3CRYSTAL 12.0000MHZ 8PF SMD |
69,700 |
|
Datasheet |
ABM10 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 12 MHz | ±10ppm | ±10ppm | 8pF | 125 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.028" (0.70mm) |
|
830108178109WE-XTAL QUARTZ CRYSTAL 16.0 MHZ; |
20,858 |
|
Datasheet |
IQXC-42 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 16 MHz | ±20ppm | ±10ppm | 8pF | 200 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.020" (0.50mm) |
|
|
RT3215-32.768-9-TRCRYSTAL 32.7680KHZ 9PF SMD |
20,800 |
|
Datasheet |
RT3215 | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 9pF | 70 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.035" (0.90mm) |
|
VXM7-9013-25M0000000CRYSTAL 25.0000MHZ SMD |
9,266 |
|
Datasheet |
VXM7 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 25 MHz | - | ±20ppm | - | 60 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
