Crystals
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Load Capacitance | ESR (Equivalent Series Resistance) | Operating Mode | Operating Temperature | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM8V-T1A-32.768KHZ-12.5PF-20PPM-TA-QCCRYSTAL 32.7680KHZ 12.5PF SMD |
77,530 |
|
Datasheet |
CM8V | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 70 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.024" (0.60mm) |
|
|
CM8V-T1A-32.768KHZ-6PF-20PPM-TA-QCCRYSTAL 32.7680KHZ 6PF SMD |
76,246 |
|
Datasheet |
CM8V | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 6pF | 70 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.024" (0.60mm) |
|
LNCD1-48MCRYSTAL 48.0000MHZ 8PF SMD |
72,762 |
|
Datasheet |
NX5032GA | 2-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 48 MHz | ±50ppm | ±50ppm | 8pF | 50 Ohms | Fundamental | -10°C ~ 70°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.059" (1.50mm) |
|
HCM4924000000ABJTCRYSTAL 24.0000MHZ 18PF SMD |
70,048 |
|
Datasheet |
HCM49 | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 24 MHz | ±50ppm | ±30ppm | 18pF | 50 Ohms | Fundamental | -10°C ~ 60°C | - | Surface Mount | - | 0.449" L x 0.185" W (11.40mm x 4.70mm) | 0.169" (4.30mm) |
|
|
LNCD1-24MCRYSTAL 24.0000MHZ 8PF SMD |
63,778 |
|
Datasheet |
NX5032GA | 2-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 24 MHz | ±50ppm | ±50ppm | 8pF | 70 Ohms | Fundamental | -10°C ~ 70°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.059" (1.50mm) |
|
ECS-80-18-33-JGN-TRCRYSTAL 8.0000MHZ 18PF SMD |
53,462 |
|
Datasheet |
ECX-32 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 8 MHz | ±30ppm | ±20ppm | 18pF | 400 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
HCM497372800ABJTCRYSTAL 7.3728MHZ 18PF SMD |
47,538 |
|
Datasheet |
HCM49 | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 7.3728 MHz | ±50ppm | ±30ppm | 18pF | 100 Ohms | Fundamental | -10°C ~ 60°C | - | Surface Mount | - | 0.449" L x 0.185" W (11.40mm x 4.70mm) | 0.169" (4.30mm) |
|
|
LNCD1-12MCRYSTAL 12.0000MHZ 8PF SMD |
39,344 |
|
Datasheet |
NX5032GA | 2-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 12 MHz | ±50ppm | ±50ppm | 8pF | 120 Ohms | Fundamental | -10°C ~ 70°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.059" (1.50mm) |
.jpg)
|
ABM8-25.000MHZ-D2Y-TCRYSTAL 25.0000MHZ 18PF SMD |
38,066 |
|
Datasheet |
ABM8 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 25 MHz | ±30ppm | ±20ppm | 18pF | 50 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
.jpg)
|
CX3225SB16000D0GZJC1CRYSTAL 16.0000MHZ 8PF SMD |
183,094 |
|
Datasheet |
CX3225SB, Kyocera | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 16 MHz | ±15ppm | ±15ppm | 8pF | 60 Ohms | Fundamental | -10°C ~ 75°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.024" (0.60mm) |
|
ECS-.327-7-34B-C-TRCRYSTAL 32.7680KHZ 7PF SMD |
149,508 |
|
Datasheet |
ECX-31B | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±10ppm | 7pF | 70 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.035" (0.90mm) |
|

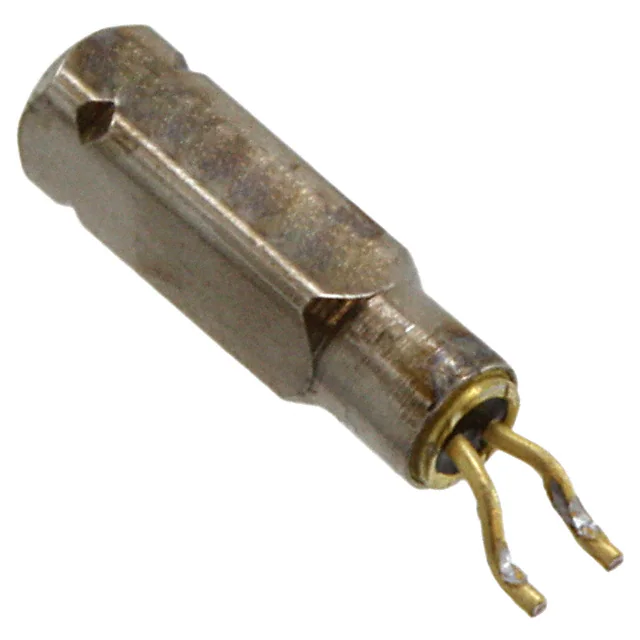

AB26TRQ-32.768KHZ-TCRYSTAL 32.7680KHZ 12.5PF SMD |
67,286 |
|
Datasheet |
AB26TRQ | Cylindrical Can, Radial | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 50 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.264" L x 0.055" W (6.70mm x 1.40mm) | 0.058" (1.48mm) |
|
|
CX3225SB12000D0GZJC1CRYSTAL 12.0000MHZ 8PF SMD |
58,246 |
|
Datasheet |
CX3225SB, Kyocera | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 12 MHz | ±15ppm | ±15ppm | 8pF | 150 Ohms | Fundamental | -10°C ~ 75°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.024" (0.60mm) |
|
|
CX3225SB14745H0KPQCCCRYSTAL 14.7450MHZ 12PF SMD |
50,360 |
|
Datasheet |
CX3225SB, Kyocera | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 14.745 MHz | - | ±30ppm | 12pF | 80 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.024" (0.60mm) |
|
ECS-36-18-4XCRYSTAL 3.6864MHZ 18PF TH |
33,532 |
|
Datasheet |
HC-49USX | HC-49/US | Bulk | Active | MHz Crystal | 3.6864 MHz | ±50ppm | ±30ppm | 18pF | 200 Ohms | Fundamental | -10°C ~ 70°C | - | Through Hole | - | 0.447" L x 0.183" W (11.35mm x 4.65mm) | 0.138" (3.50mm) |
|
|
ECS-40-20-4XCRYSTAL 4.0000MHZ 20PF TH |
31,010 |
|
Datasheet |
HC-49USX | HC-49/US | Bulk | Active | MHz Crystal | 4 MHz | ±50ppm | ±30ppm | 20pF | 150 Ohms | Fundamental | -10°C ~ 70°C | - | Through Hole | - | 0.447" L x 0.183" W (11.35mm x 4.65mm) | 0.138" (3.50mm) |
|
ECS-200-18-30B-AGN-TRCRYSTAL 20.0000MHZ 18PF SMD |
100,388 |
|
Datasheet |
ECX-53B | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 20 MHz | ±30ppm | ±25ppm | 18pF | 40 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.033" (0.85mm) |
|
|
CS15202-12MCRYSTAL 12.0000MHZ 8PF SMD |
61,556 |
|
Datasheet |
NX3225SA | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 12 MHz | ±15ppm | ±15ppm | 8pF | 100 Ohms | Fundamental | -10°C ~ 75°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.024" (0.60mm) |
|
|
ECS-250-20-30B-TRCRYSTAL 25.0000MHZ 20PF SMD |
59,156 |
|
Datasheet |
ECX-53B | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 25 MHz | ±50ppm | ±30ppm | 20pF | 30 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.033" (0.85mm) |
|
ABM8W-16.0000MHZ-8-K1Z-T3CRYSTAL 16.0000MHZ 8PF SMD |
44,576 |
|
Datasheet |
ABM8W | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 16 MHz | ±50ppm | ±10ppm | 8pF | 70 Ohms | Fundamental | -40°C ~ 125°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.030" (0.75mm) |
