Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

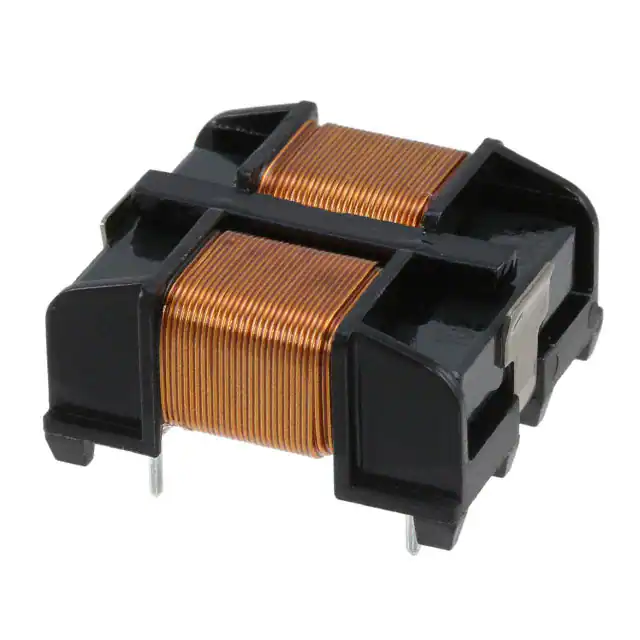

PLY17BN1721R5B2BCMC 1.5A 2LN TH |
2,414 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 1.5A | - | - | 300V | -25°C ~ 60°C | - | - | - | - | - |
|
|
PLY17BN2921R2B2BCMC 1.2A 2LN TH |
7,004 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 1.2A | - | - | 300V | -25°C ~ 60°C | - | - | - | - | - |
|
|
PLY17BN3721R0B2BCMC 1A 2LN TH |
9,780 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 1A | - | - | 300V | -25°C ~ 60°C | - | - | - | - | - |
|
|
PLY17BN4912R4B2BCMC 2.4A 2LN TH |
9,884 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 2.4A | - | - | 300V | -25°C ~ 60°C | - | - | - | - | - |
|
|
PLY17BN5620R8B2BCMC 800MA 2LN TH |
2,086 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 800mA | - | - | 300V | -25°C ~ 60°C | - | - | - | - | - |
|
|
PLY17BN7820R7B2BCMC 700MA 2LN TH |
2,776 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 700mA | - | - | 300V | -25°C ~ 60°C | - | - | - | - | - |
|
|
PLY17BN9320R6B2BCMC 600MA 2LN TH |
5,628 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 600mA | - | - | 300V | -25°C ~ 60°C | - | - | - | - | - |
|
|
PLY17BN9612R0B2BCMC 2A 2LN TH |
9,808 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 2A | - | - | 300V | -25°C ~ 60°C | - | - | - | - | - |
|
|
PLY17BS1121R8B2BCMC 1.8A 2LN TH |
6,158 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 1.8A | - | - | 250V | -25°C ~ 60°C | - | - | - | - | - |
|
|
PLY17BS1721R5B2BCMC 1.5A 2LN TH |
7,368 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 1.5A | - | - | 250V | -25°C ~ 60°C | - | - | - | - | - |
|
|
PLY17BS2921R2B2BCMC 1.2A 2LN TH |
8,364 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 1.2A | - | - | 250V | -25°C ~ 60°C | - | - | - | - | - |
|
|
PLY17BS3721R0B2BCMC 1A 2LN TH |
9,716 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 1A | - | - | 250V | -25°C ~ 60°C | - | - | - | - | - |
|
|
PLY17BS4912R4B2BCMC 2.4A 2LN TH |
5,494 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 2.4A | - | - | 250V | -25°C ~ 60°C | - | - | - | - | - |
|
|
PLY17BS5620R8B2BCMC 800MA 2LN TH |
4,320 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 800mA | - | - | 250V | -25°C ~ 60°C | - | - | - | - | - |
|
|
PLY17BS7820R7B2BCMC 700MA 2LN TH |
3,118 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 700mA | - | - | 250V | -25°C ~ 60°C | - | - | - | - | - |
|
|
PLY17BS9320R6B2BCMC 600MA 2LN TH |
8,634 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 600mA | - | - | 250V | -25°C ~ 60°C | - | - | - | - | - |
|
|
PLY17BS9612R0B2BCMC 2A 2LN TH |
7,816 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 2A | - | - | 250V | -25°C ~ 60°C | - | - | - | - | - |
|

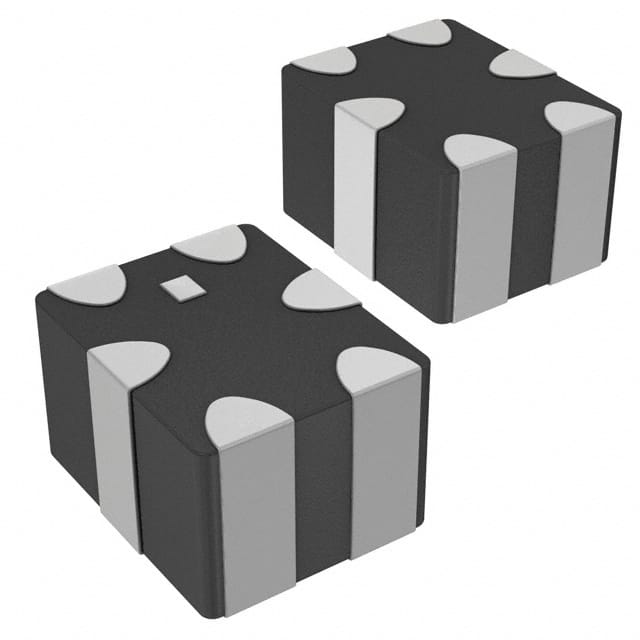

LXES11DAA2-135CMC |
3,178 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
LXES21DAA4-136CMC 60MA 4LN SMD |
6,440 |
|
Datasheet |
- | Signal Line | 4 | 60 Ohms @ 100 MHz | - | 60mA | 3Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
CMF-0033CMC 3.3MH 800MA 2LN TH |
4,668 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 3.3 mH @ 1 kHz | 800mA | 440mOhm | - | 250V | - | - | - | - | - | - |
