Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

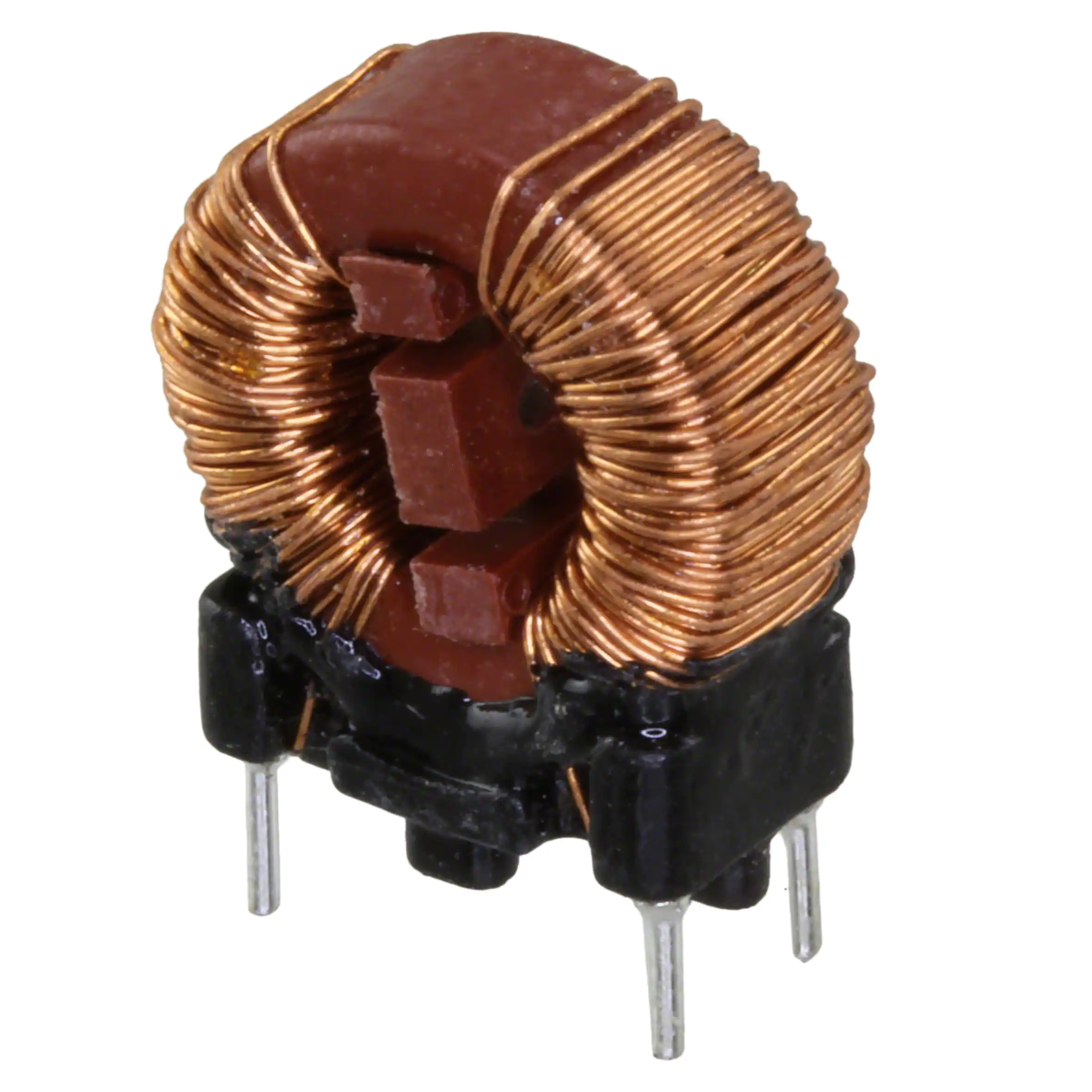

744821120CMC 20MH 500MA 2LN TH |
12,806 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 20 mH @ 10 kHz | 500mA | 1Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
B82723A2602N001CMC 1MH 6A 2LN TH |
7,044 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 6A | 22mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

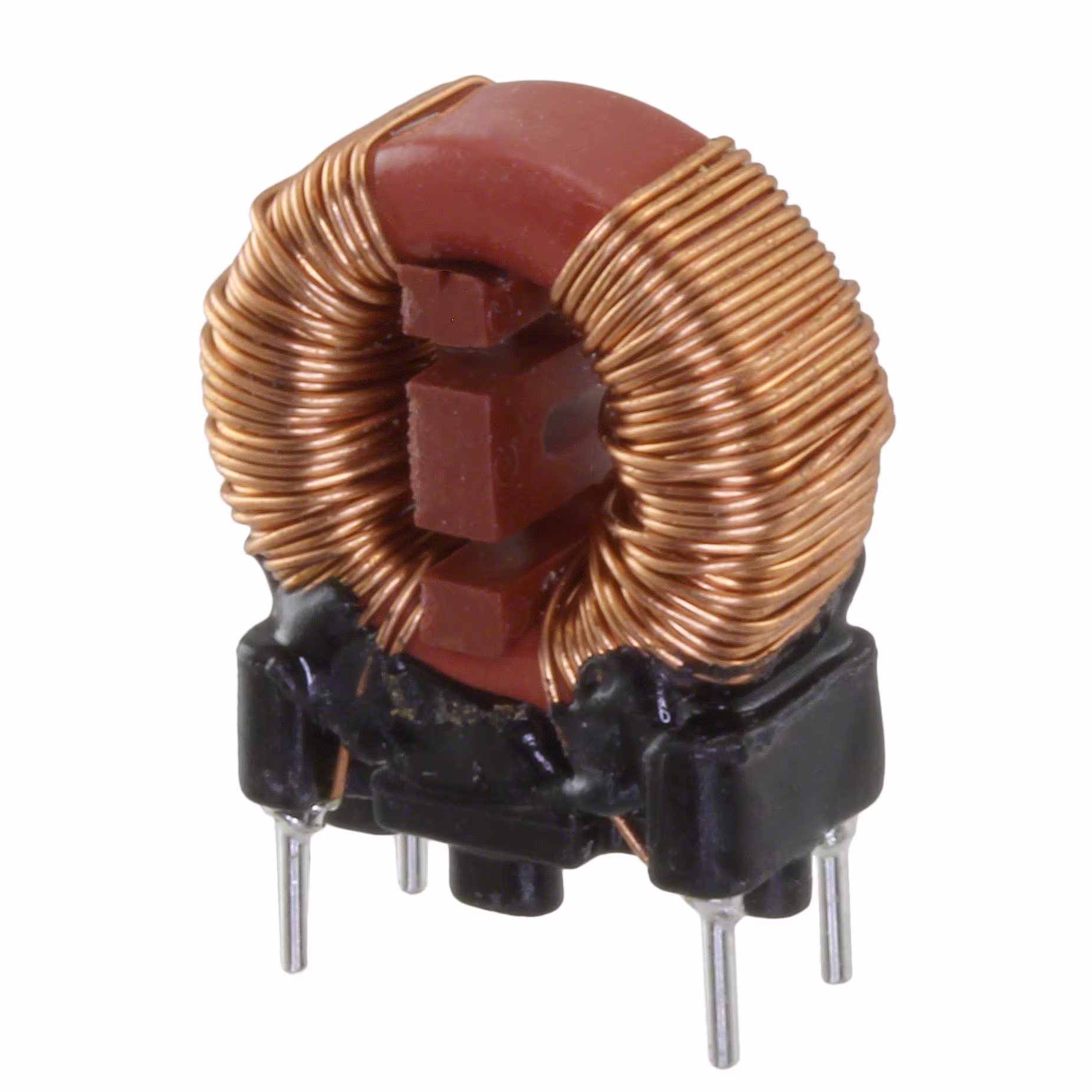

744821110CMC 10MH 700MA 2LN TH |
4,100 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 700mA | 350mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
744821240CMC 4MH 1.5A 2LN TH |
2,372 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4 mH @ 10 kHz | 1.5A | 140mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
744821201CMC 1MH 2A 2LN TH |
2,220 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 2A | 45mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
23Z104SMNLTCMC 4LN SMD |
384 |
|
Datasheet |
8-SOIC (0.265", 6.73mm Width) | Signal Line | 4 | - | - | - | 200mOhm | - | - | - | - | - | - | - | - |
|
B82724J2602N041CMC 3.3MH 6A 2LN TH |
2,942 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 6A | 25mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82724J8162N040CMC 47MH 1.6A 2LN TH |
1,036 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 47 mH @ 10 kHz | 1.6A | - | 800V | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

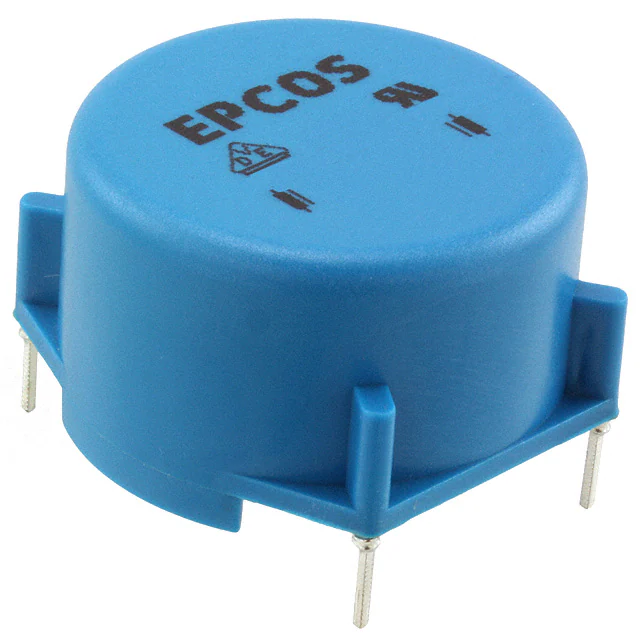

B82724A2142N001CMC 27MH 1.4A 2LN TH |
4,158 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 1.4A | 460mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
744821039CMC 39MH 300MA 2LN TH |
9,946 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 39 mH @ 10 kHz | 300mA | - | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

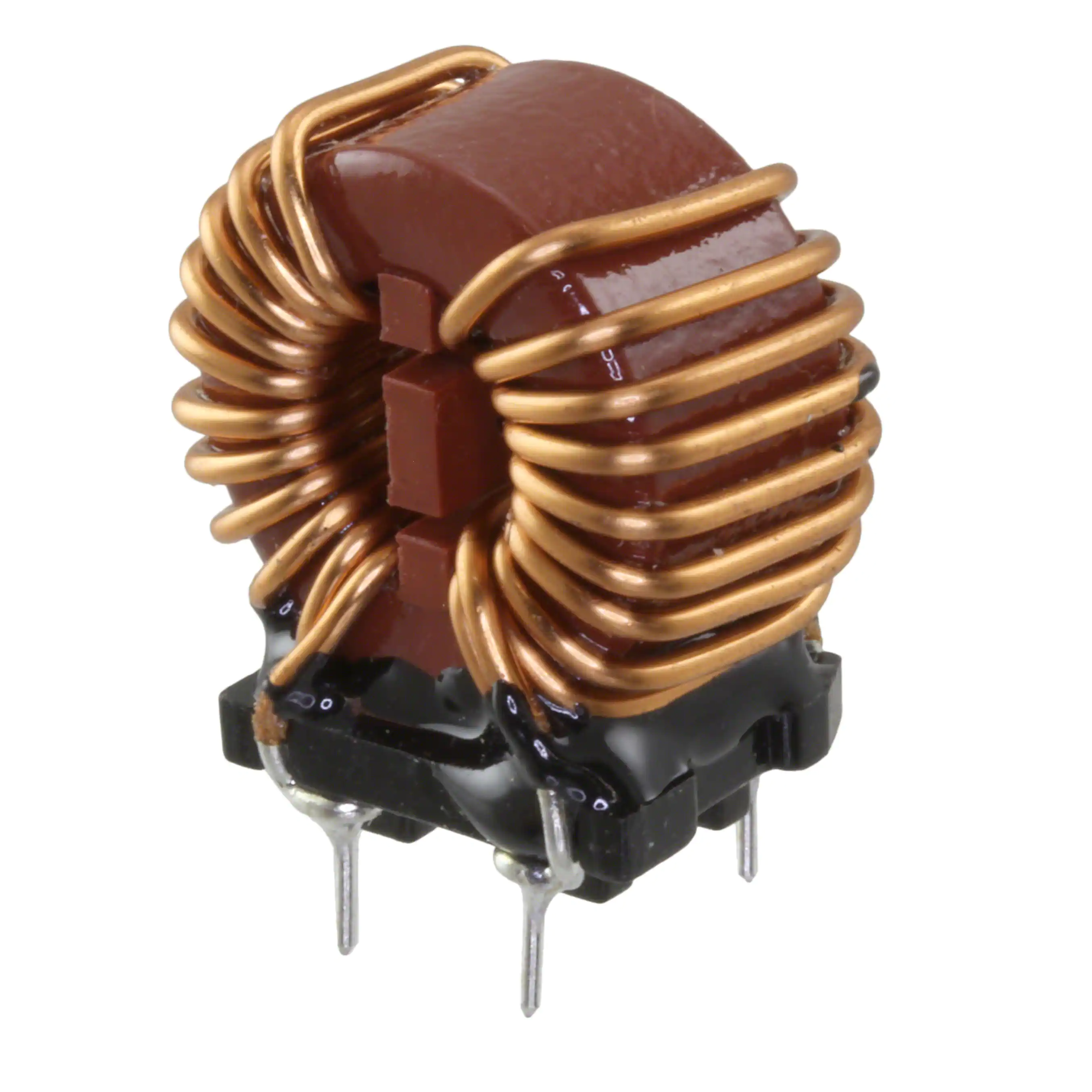

744821150CMC 5MH 1A 2LN TH |
4,858 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 10 kHz | 1A | - | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
744862250CMC 25MH 250MA 2LN TH |
1,380 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 25 mH @ 10 kHz | 250mA | 3.6Ohm | - | 400V | -40°C ~ 125°C | - | - | - | - | - |
|
PMC9539.903NLCMC 25A 2LN 250 OHM TH |
2,404 |
|
Datasheet |
Radial - 4 Leads | - | 2 | 250 Ohms @ 2.1 MHz | - | 25A | 1.3mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SC-02-10GSCMC 1MH 2A 2LN TH |
3,024 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 2A | 80mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|

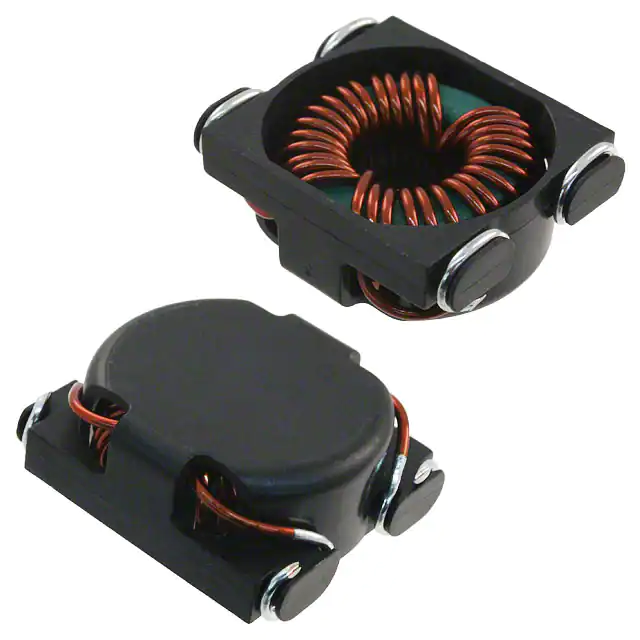

P0469NLCMC 11.6A 2LN SMD |
656 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 11.6A | 10mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
|
CMS2-2-RCMC 40UH 4.4A 2LN SMD |
2,776 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 40 µH @ 100 kHz | 4.4A | 8mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|
PG1265NLCMC 20A 2LN SMD |
624 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | - | 20A | 4.1mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
B4003NLCMC 2LN SMD |
1,576 |
|
Datasheet |
Vertical, 8 Flat Lead | Signal Line | 2 | - | - | - | 1Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|

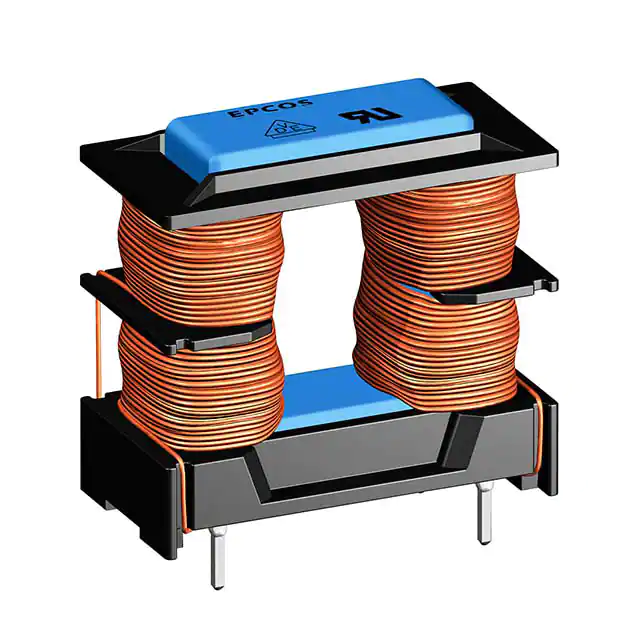

B82733V2142B001CMC 27MH 1.4A 2LN TH |
900 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 1.4A | 440mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
DKFP-6248-02D5CMC 2A 2LN TH |
328 |
|
Datasheet |
Nonstandard | - | 2 | - | - | 2A | 50mOhm | - | 250V | -40°C ~ 125°C | - | UR | - | - | - |
