Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLF9UBH203WK1CMC 180MA 2LN 150K OHM TH |
9,026 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | 150 kOhms @ 500 kHz | - | 180mA | 6.5Ohm | 50V | - | -25°C ~ 105°C | - | - | - | - | - |
|
TLF9UBH802WK1CMC 300MA 2LN 40K OHM TH |
5,122 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | 40 kOhms @ 700 kHz | - | 300mA | 3Ohm | 50V | - | -25°C ~ 105°C | - | - | - | - | - |
|

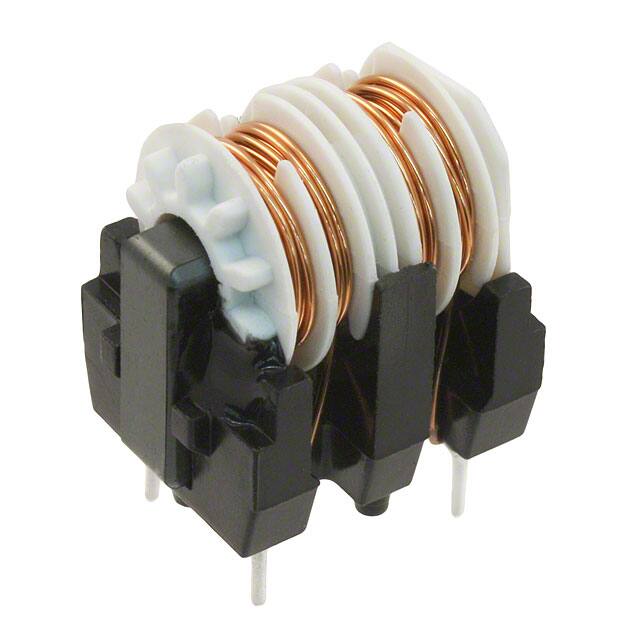

TLF14CB1021R5K1CMC 1MH 1.5A 2LN TH |
4,534 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 1.5A | 100mOhm | - | 250V | -25°C ~ 105°C | - | - | - | - | - |
|
TLF14CB2221R2K1CMC 2.2MH 1.2A 2LN TH |
5,300 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 1 kHz | 1.2A | 180mOhm | - | 250V | -25°C ~ 105°C | - | - | - | - | - |
|

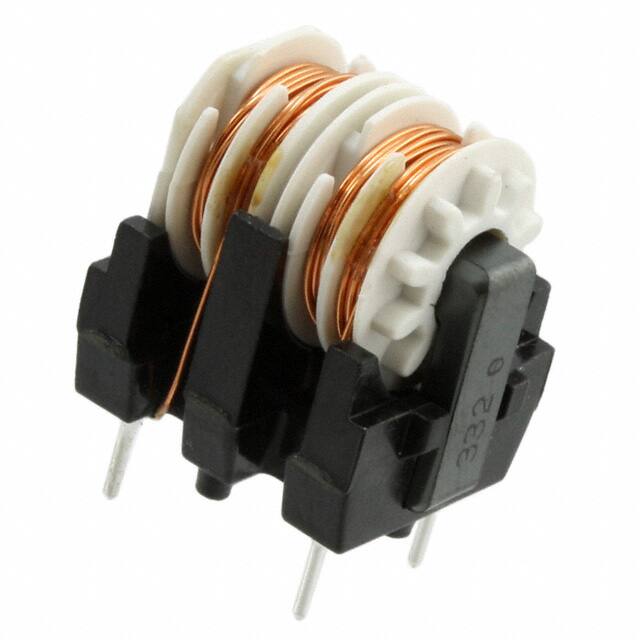

TLF14CB3321R0K1CMC 3.3MH 1A 2LN TH |
2,898 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 1 kHz | 1A | 320mOhm | - | 250V | -25°C ~ 105°C | - | - | - | - | - |
|
TLF14CB4721R0K1CMC 4.7MH 1A 2LN TH |
4,592 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4.7 mH @ 1 kHz | 1A | 380mOhm | - | 250V | -25°C ~ 105°C | - | - | - | - | - |
|
TLF14CB5620R8K1CMC 800MA 2LN TH |
4,270 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 800mA | 420mOhm | - | 250V | -25°C ~ 105°C | - | - | - | - | - |
|
TLF14CB6820R8K1CMC 800MA 2LN TH |
5,570 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 800mA | 600mOhm | - | 250V | -25°C ~ 105°C | - | - | - | - | - |
|
TLF14CB1030R7K1CMC 700MA 2LN TH |
5,040 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 700mA | 850mOhm | - | 250V | -25°C ~ 105°C | - | - | - | - | - |
|
TLF14CB2230R4K1CMC 400MA 2LN TH |
6,492 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 400mA | 1.7Ohm | - | 250V | -25°C ~ 105°C | - | - | - | - | - |
|
TLF14CB2730R4K1CMC 400MA 2LN TH |
7,344 |
|
- |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 400mA | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
TLF14CB3330R3K1CMC 300MA 2LN TH |
7,244 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 300mA | 2.7Ohm | - | 250V | -25°C ~ 105°C | - | - | - | - | - |
|
TLF14CB4730R2K1CMC 200MA 2LN TH |
4,190 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 200mA | 3.6Ohm | - | 250V | -25°C ~ 105°C | - | - | - | - | - |
|
TLF14CB6830R2K1CMC 68MH 200MA 2LN TH |
5,216 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 68 mH @ 1 kHz | 200mA | 6.5Ohm | - | 250V | -25°C ~ 105°C | - | - | - | - | - |
|
TLF14CBH1021R5K1CMC 1MH 1.5A 2LN TH |
3,514 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 1.5A | 100mOhm | - | 250V | -25°C ~ 105°C | - | - | - | - | - |
|
TLF14CBH2221R2K1CMC 2.2MH 1.2A 2LN TH |
7,922 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 1 kHz | 1.2A | 180mOhm | - | 250V | -25°C ~ 105°C | - | - | - | - | - |
|
TLF14CBH3321R0K1CMC 3.3MH 1A 2LN TH |
3,066 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 1 kHz | 1A | 320mOhm | - | 250V | -25°C ~ 105°C | - | - | - | - | - |
|
|
TLF14CBH4721R0K1CMC 1A 2LN TH |
5,570 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 1A | 380mOhm | - | 250V | -25°C ~ 105°C | - | - | - | - | - |
|
|
TLF14CBH5620R8K1CMC 5.6MH 800MA 2LN TH |
8,648 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5.6 mH @ 1 kHz | 800mA | 420mOhm | - | 250V | -25°C ~ 105°C | - | - | - | - | - |
|
|
TLF14CBH6820R8K1CMC 6.8MH 800MA 2LN TH |
8,534 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 1 kHz | 800mA | 600mOhm | - | 250V | -25°C ~ 105°C | - | - | - | - | - |
