Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMF61-2203SMLFCOMMON MODE TRANSFORMER CHOKE |
9,148 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 220 µH @ 10 kHz | 1A | 60mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CMF61-1504SMCOMMON MODE TRANSFORMER CHOKE |
6,530 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 1.5 mH @ 10 kHz | 240mA | 500mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CMF61-2204SMCOMMON MODE TRANSFORMER CHOKE |
3,210 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 2.2 mH @ 10 kHz | 180mA | 750mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CMF61-2203SMCOMMON MODE TRANSFORMER CHOKE |
2,460 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 220 µH @ 10 kHz | 1A | 60mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CMF61-2502SMCOMMON MODE TRANSFORMER CHOKE |
8,672 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 25 µH @ 10 kHz | 3A | 10mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
CMT908-V2-BCMC 4MH 5.2A 2LN TH ESD |
9,978 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4 mH @ 10 kHz | 5.2A | 40mOhm | - | 1500V (1.5kV) | -40°C ~ 125°C | - | CSA, IEC, UL, VDE | - | - | - |
|
|
CMT908-V3-BCMC 8MH 3.2A 2LN TH ESD |
5,874 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 8 mH @ 10 kHz | 3.2A | 120mOhm | - | 1500V (1.5kV) | -40°C ~ 125°C | - | CSA, IEC, UL, VDE | - | - | - |
|
|
CMF3-2504SMCOMMON MODE TRANSFORMER CHOKE |
5,438 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 2.5 mH @ 1 kHz | 2.2A | 150mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
CMT-8109CMC 30MH 2.3A 2LN TH ESD |
7,570 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 30 mH @ 1 kHz | 2.3A | 330mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|

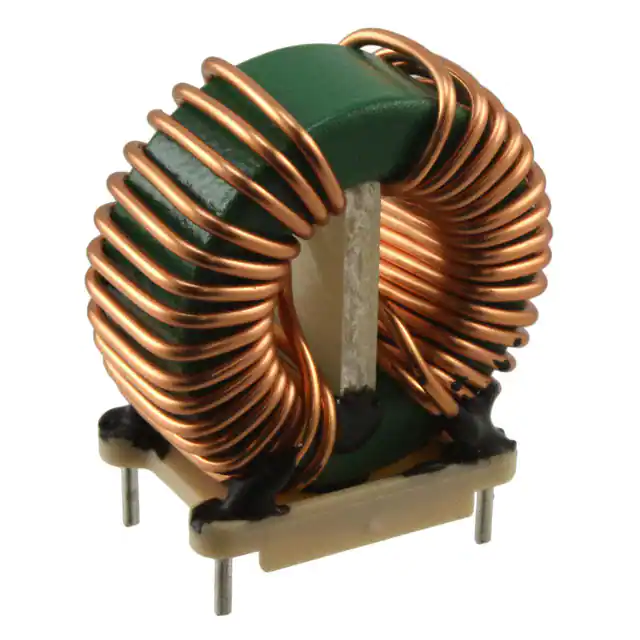

CMT-8114CMC 2.5MH 12.5A 2LN TH ESD |
3,540 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.5 mH @ 1 kHz | 12.5A | 11mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|
CMT-8109-BCMC 30MH 2.3A 2LN TH ESD |
8,988 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 30 mH @ 1 kHz | 2.3A | 330mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|
CMT-8110-BCMC 20MH 2.9A 2LN TH ESD |
8,320 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 20 mH @ 1 kHz | 2.9A | 210mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|
CMT-8111-BCMC 12MH 4A 2LN TH ESD |
4,638 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 12 mH @ 1 kHz | 4A | 110mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|
CMT-8112-BCMC 8MH 5.6A 2LN TH ESD |
4,228 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 8 mH @ 1 kHz | 5.6A | 55mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|
CMT-8113-BCMC 5MH 8.9A 2LN TH ESD |
5,230 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 1 kHz | 8.9A | 22mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|
CMT-8114-BCMC 2.5MH 12.5A 2LN TH ESD |
3,470 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.5 mH @ 1 kHz | 12.5A | 11mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|
CMT-8115-BCMC 1.2MH 16A 2LN TH ESD |
7,658 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.2 mH @ 1 kHz | 16A | 6mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|
CAV-7.5-3.3CMC 3.3MH 7.5A 2LN TH |
9,882 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | - | 3.3 mH @ 10 kHz | 7.5A | 16mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
DSO1-25-0001CMC 1.4A 2LN TH |
8,436 |
|
Datasheet |
Radial | - | 2 | - | - | 1.4A | 200mOhm | 600V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
FE3X033-10-7NLCMC 8A 3LN TH |
2,538 |
|
Datasheet |
- | - | 3 | - | - | 8A | 14mOhm (Typ) | - | 500V | 0°C ~ 60°C | - | - | - | - | - |
