Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LF2420NP-452CMC 4.5MH 1.5A 2LN TH |
5,636 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4.5 mH @ 1 kHz | 1.5A | 210mOhm | - | - | - | - | - | - | - | - |
|
|
LF2420NP-103CMC 10MH 1A 2LN TH |
6,622 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 1 kHz | 1A | 470mOhm | - | - | - | - | - | - | - | - |
|
|
LF2420NP-153CMC 15MH 800MA 2LN TH |
6,208 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 15 mH @ 1 kHz | 800mA | 730mOhm | - | - | - | - | - | - | - | - |
|
|
LF2420NP-203CMC 20MH 700MA 2LN TH |
9,176 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 20 mH @ 1 kHz | 700mA | 870mOhm | - | - | - | - | - | - | - | - |
|
|
LF2420NP-353CMC 35MH 600MA 2LN TH |
9,256 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 35 mH @ 1 kHz | 600mA | 1.58Ohm | - | - | - | - | - | - | - | - |
|

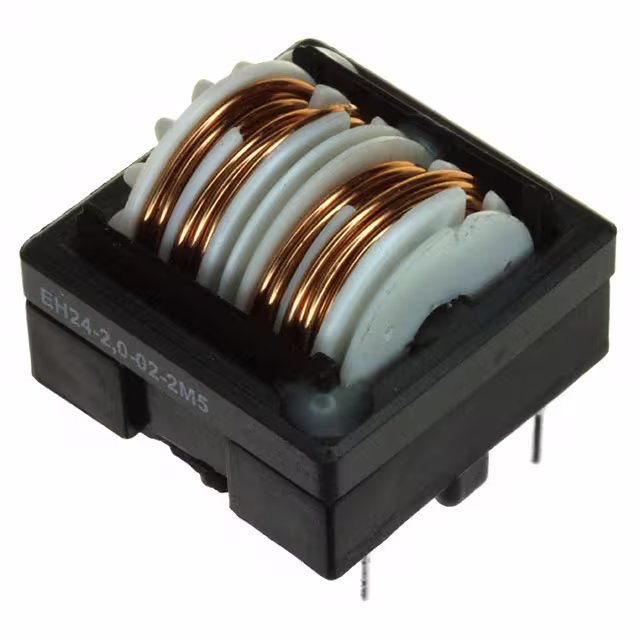

EH24-2.0-02-2M5CMC 2.5MH 2A 2LN TH |
8,750 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2.5 mH @ 400 Hz | 2A | 62mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
TF2514HU-101Y7R0-01CMC 7A 2LN TH |
5,988 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 7A | 10mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
CC1812C513R-00CMC 51UH 200MA 2LN 3.5KOHM SMD |
9,686 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | 3.5 kOhms @ 40 MHz | 51 µH @ 100 kHz | 200mA | 500mOhm | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
B82722J2501N022CMC 47MH 500MA 2LN TH |
4,466 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 47 mH @ 10 kHz | 500mA | 1.5Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82734R2701B030CMC 68MH 700MA 2LN TH |
7,278 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 68 mH @ 10 kHz | 700mA | 1.45Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82734W2202B030CMC 20MH 2A 2LN TH |
4,990 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 20 mH @ 10 kHz | 2A | 240mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82734W2701B030CMC 68MH 700MA 2LN TH |
9,116 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 68 mH @ 10 kHz | 700mA | 1.45Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
UU10LFNP-B332CMC 3.3MH 650MA 2LN TH |
4,614 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 1 kHz | 650mA | 710mOhm | - | - | - | - | - | - | - | - |
|
|
UU10LFNP-B682CMC 6.8MH 430MA 2LN TH |
9,724 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 1 kHz | 430mA | 1.26Ohm | - | - | - | - | - | - | - | - |
|
|
UU10LFNP-B123CMC 12MH 340MA 2LN TH |
8,774 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 12 mH @ 1 kHz | 340mA | 2.2Ohm | - | - | - | - | - | - | - | - |
|
|
UU10LFNP-B223CMC 22MH 250MA 2LN TH |
4,706 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 22 mH @ 1 kHz | 250mA | 3.64Ohm | - | - | - | - | - | - | - | - |
|
|
UU10LFNP-B333CMC 33MH 200MA 2LN TH |
3,202 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 33 mH @ 1 kHz | 200mA | 5.74Ohm | - | - | - | - | - | - | - | - |
|
|
UU10LFNP-B513CMC 51MH 150MA 2LN TH |
7,898 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 51 mH @ 1 kHz | 150mA | 9.12Ohm | - | - | - | - | - | - | - | - |
|
UU10LFBNP-B682COMMON MODE CHOKE |
3,882 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 1 kHz | 430mA | 1.313Ohm | - | - | - | - | - | - | - | - |
|
|
UU10LFBNP-B333COMMON MODE CHOKE |
9,714 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 33 mH @ 1 kHz | 200mA | 5.818Ohm | - | - | - | - | - | - | - | - |
