Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCR19XV-300-1R9A003JVCMC 56UH 30A 2LN TH AEC-Q200 |
2,136 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 56 µH @ 100 kHz | 30A | 0.747mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
PH9455.155NLCMC 1.62MH 19A 2LN 1.8K OHM TH |
4,746 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | 1.8 kOhms @ 10 MHz | 1.62 mH @ 10 MHz | 19A | 3.2mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

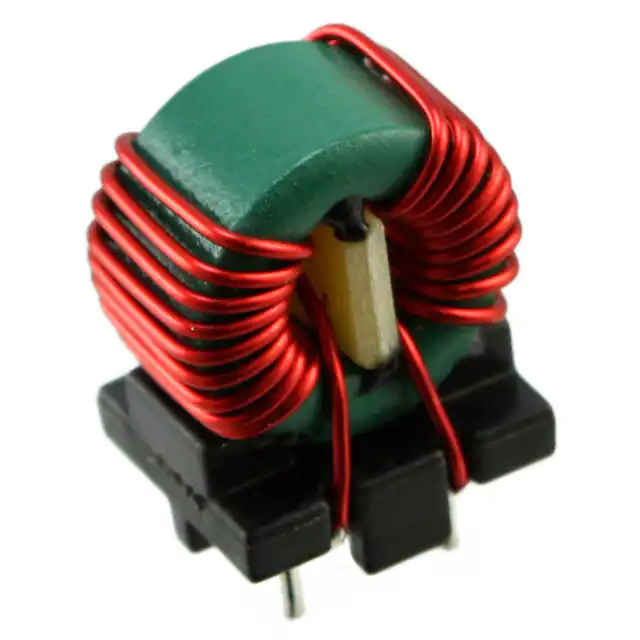

744842565CMC 65UH 5A 2LN TH |
9,552 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 65 µH @ 100 kHz | 5A | 14.3mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

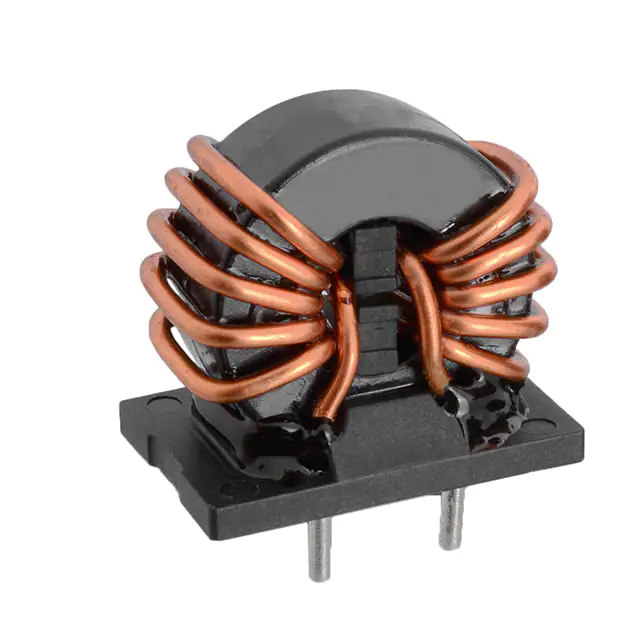

7448025003CMC 2.5MH 5A 2LN TH |
4,550 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.5 mH @ 10 kHz | 5A | 15mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
7448027001CMC 1MH 7A 2LN TH |
7,326 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 7A | 6mOhm | - | 300V | -55° C ~ 125°C | - | - | - | - | - |
|
CMX1211Z680B-10CMC 68UH 50A 2LN SMD |
4,392 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 68 µH @ 100 kHz | 50A | 0.56mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
SCF19XV-300-1R9A003JHCMC 110UH 30A 2LN TH AEC-Q200 |
3,018 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 110 µH @ 100 kHz | 30A | 0.767mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
B82725V2103U040CMC 5MH 11.5A 2LN TH |
5,982 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 10 kHz | 11.5A | 8.2mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
SCF25XV-280-2R1A005JHCMC 600UH 28A 2LN TH AEC-Q200 |
6,736 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 600 µH @ 100 kHz | 28A | 1.44mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
B82746S6702A040CMC 6.2MH 8A 3LN TH |
5,736 |
|
Datasheet |
Vertical, 6 PC Pin | Power Line | 3 | - | 6.2 mH @ 10 kHz | 8A | 18mOhm (Typ) | - | 440/250V | -40°C ~ 125°C | - | UR | - | - | - |
|
36-00029-01CMC 350UH 40A 2LN TH |
6,470 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 350 µH @ 1 kHz | 40A | 2.2mOhm | 250V | - | - | - | - | - | - | - |
|
RT8132-16-3M0CMC 3MH 16A 3LN TH |
5,148 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 3 mH @ 100 kHz | 16A | 8mOhm (Typ) | - | 600V | -40°C ~ 100°C | - | - | - | - | - |
|
CM6350R-155CMC 1.5MH 750MA 2LN SMD |
4,330 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 1.5 mH @ 10 kHz | 750mA | 190mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
7448061507CMC 7MH 15A 2LN TH |
8,772 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 7 mH @ 10 kHz | 15A | 9.5mOhm | - | 300V | -55° C ~ 125°C | - | - | - | - | - |
|
7448061309CMC 9MH 13A 2LN TH |
4,202 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 9 mH @ 10 kHz | 13A | 15mOhm | - | 300V | -55° C ~ 125°C | - | - | - | - | - |
|
CM6460R-104CMC 100UH 7A 2LN SMD |
6,028 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 100 µH @ 10 kHz | 7A | 6mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
744839010400CMC 10.5MH 40A 3LN TH |
7,060 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 10.5 mH @ 10 kHz | 40A | 3.2mOhm | - | 760V | -40°C ~ 125°C | - | - | - | - | - |
|
SDCW2012C-2-900TFCMC 330MA 2LN 90 OHM SMD |
5,434 |
|
Datasheet |
0805 (2012 Metric), 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 330mA | 350mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
SS11VL-08083CMC 8.3MH 800MA 2LN TH |
7,530 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 8.3 mH @ 1 kHz | 800mA | 740mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
AWCU00453226104TM2CMC 100UH 200MA 2LN SMD AEC-Q200 |
9,566 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 100 µH @ 1 MHz | 200mA | 2Ohm | 50V | - | -50°C ~ 150°C | - | - | - | Automotive | AEC-Q200 |
