Clock Generators, PLLs, Frequency Synthesizers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Type | PLL | Input | Output | Number of Circuits | Ratio - Input:Output | Differential - Input:Output | Frequency - Max | Divider/Multiplier | Voltage - Supply | Operating Temperature | Mounting Type | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI5344B-D-GMRIC CLOCK MULTIPLIER 44QFN |
14,370 |
|
Datasheet |
- | 44-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Clock Multiplier, Jitter Attenuator | Yes | Clock, Crystal, LVCMOS | CML, HCSL, LVCMOS, LVDS, LVPECL | 1 | 4:4 | Yes/Yes | 350MHz | Yes/No | 1.71V ~ 1.89V, 3.14V ~ 3.47V | -40°C ~ 85°C (TA) | Surface Mount | - | - | 44-QFN (7x7) |
|
AD9522-3BCPZIC CLOCK GENERATOR 64LFCSP |
8,938 |
|
Datasheet |
- | 64-VFQFN Exposed Pad, CSP | Tray | Active | Not Verified | Clock Generator, Fanout Distribution | Yes | CMOS, LVDS, LVPECL | CMOS, LVDS | 1 | 2:12, 2:24 | Yes/Yes | 2.25GHz | Yes/No | 3.135V ~ 3.465V | -40°C ~ 85°C | Surface Mount | - | - | 64-LFCSP-VQ (9x9) |
|
LMK05028RGCTIC CLOCK SYNCHRONIZER 64VQFN |
4,254 |
|
Datasheet |
- | 64-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Clock Synchronizer | Yes | CML, HCSL, LVDS, LVPECL | CML, HCSL, LVCMOS, LVDS, LVPECL | 2 | 4:8 | Yes/Yes | 200MHz, 750MHz | Yes/Yes | 1.71V ~ 1.89V, 2.375V ~ 2.625V, 3.135V ~ 3.465V | -40°C ~ 85°C | Surface Mount | - | - | 64-VQFN (9x9) |
|
SI5396D-A-GMIC CLOCK MULTIPLIER 64QFN |
1,370 |
|
Datasheet |
DSPLL® | 64-VFQFN Exposed Pad | Tray | Active | Not Verified | Clock Multiplier, Jitter Attenuator | Yes | LVCMOS, Crystal | CML, HCSL, LVCMOS, LVDS, LVPECL | 1 | 4:12 | Yes/Yes | 350MHz | Yes/No | 1.71V ~ 1.89V, 3.14V ~ 3.47V | -40°C ~ 85°C (TA) | Surface Mount | - | - | 64-QFN (9x9) |
|
AD9546BCPZIC CLOCK SYNCHRONIZER 48LFCSP |
2,824 |
|
Datasheet |
- | 48-WFQFN Exposed Pad, CSP | Tray | Active | Not Verified | Clock Synchronizer | Yes | Clock | Clock, CML, HCSL | 2 | 2:6 | Yes/Yes | 2.415GHz | Yes/Yes | 1.71V ~ 1.89V, 1.71V ~ 3.465V | -40°C ~ 85°C (TA) | Surface Mount | - | - | 48-LFCSP (7x7) |
|
SI5396A-A-GMIC CLOCK MULTIPLIER 44QFN |
818 |
|
Datasheet |
DSPLL® | 44-VFQFN Exposed Pad | Tray | Active | Not Verified | Clock Multiplier, Jitter Attenuator | Yes | LVCMOS, Crystal | CML, HCSL, LVCMOS, LVDS, LVPECL | 1 | 4:4 | Yes/Yes | 720MHz | Yes/No | 1.71V ~ 1.89V, 3.14V ~ 3.47V | -40°C ~ 85°C (TA) | Surface Mount | - | - | 44-QFN (7x7) |
|
|
SI5342H-D-GMIC CLOCK MULTIPLIER 44QFN |
2,058 |
|
Datasheet |
- | 44-VFQFN Exposed Pad | Tray | Active | Not Verified | Clock Multiplier, Jitter Attenuator | Yes | CML, LVCMOS, LVDS, LVPECL, Crystal | CML, HCSL, LVCMOS, LVDS, LVPECL | 1 | 2:2 | Yes/Yes | 717.5MHz, 2.75GHz | Yes/No | 1.71V ~ 1.89V, 3.14V ~ 3.47V | -40°C ~ 85°C (TA) | Surface Mount | - | - | 44-QFN (7x7) |
|
SI5326B-C-GMIC CLOCK MULTIPLIER 36QFN |
1,194 |
|
Datasheet |
DSPLL® | 36-VFQFN Exposed Pad | Tray | Active | Not Verified | Clock Multiplier, Jitter Attenuator | Yes | LVCMOS, LVDS, LVPECL, Crystal | CML, LVCMOS, LVDS, LVPECL | 1 | 3:2 | Yes/Yes | 808MHz | Yes/Yes | 1.71V ~ 3.63V | -40°C ~ 85°C | Surface Mount | - | - | 36-QFN (6x6) |
|
LMK04610RTQTIC JITTER CLEANER 56QFN |
1,236 |
|
Datasheet |
- | 56-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Jitter Cleaner | Yes | CML, LVCMOS, LVDS, LVPECL | HCSL, LVDS, LVPECL | 1 | 2:10 | Yes/Yes | 6.175GHz | Yes/No | 1.7V ~ 3.465V | -40°C ~ 85°C | Surface Mount | - | - | 56-QFN (8x8) |
|
8A34002E-000NLG8IC CLOCK SYNCHRONIZER 72VFQFPN |
4,794 |
|
Datasheet |
- | 72-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Clock Synchronizer | Yes | Clock | CML, HCSL, HSTL, LVCMOS, LVDS, LVPECL, SSTL | 4 | 7:8 | Yes/Yes | 1GHz | Yes/No | 1.71V ~ 3.465V | -40°C ~ 85°C (TA) | Surface Mount | - | - | 72-VFQFPN (10x10) |
|
|
SI5396C-A-GMIC CLOCK MULTIPLIER 64QFN |
550 |
|
Datasheet |
DSPLL® | 64-VFQFN Exposed Pad | Tray | Active | Not Verified | Clock Multiplier, Jitter Attenuator | Yes | LVCMOS, Crystal | CML, HCSL, LVCMOS, LVDS, LVPECL | 1 | 4:12 | Yes/Yes | 720MHz | Yes/No | 1.71V ~ 1.89V, 3.14V ~ 3.47V | -40°C ~ 85°C (TA) | Surface Mount | - | - | 64-QFN (9x9) |
|
LMK5B33414RGCTIC CLOCK SYNCHRONIZER 64VQFN |
416 |
|
Datasheet |
- | 64-VFQFN Exposed Pad | Tape & Reel (TR) | Active | - | Clock Synchronizer and Jitter Cleaner | Yes | HCSL, LVCMOS, LVDS, LVPECL, Crystal | CML, LVCMOS, LVDS, LVPECL | 1 | 4:14 | Yes/Yes | 25MHz, 200MHz, 400MHz, 1.25GHz | Yes/No | 3.135V ~ 3.465V | -40°C ~ 85°C | Surface Mount | - | - | 64-VQFN (9x9) |
|
8A34001E-000AJG8IC CLOCK SYNCHRONIZER 144CABGA |
2,822 |
|
Datasheet |
- | 144-TFBGA | Tape & Reel (TR) | Active | Not Verified | Clock Synchronizer | Yes | Clock | CML, HCSL, HSTL, LVCMOS, LVDS, LVPECL, SSTL | 8 | 8:12 | Yes/Yes | 1GHz | Yes/No | 1.71V ~ 3.465V | -40°C ~ 85°C (TA) | Surface Mount | - | - | 144-CABGA (10x10) |
|

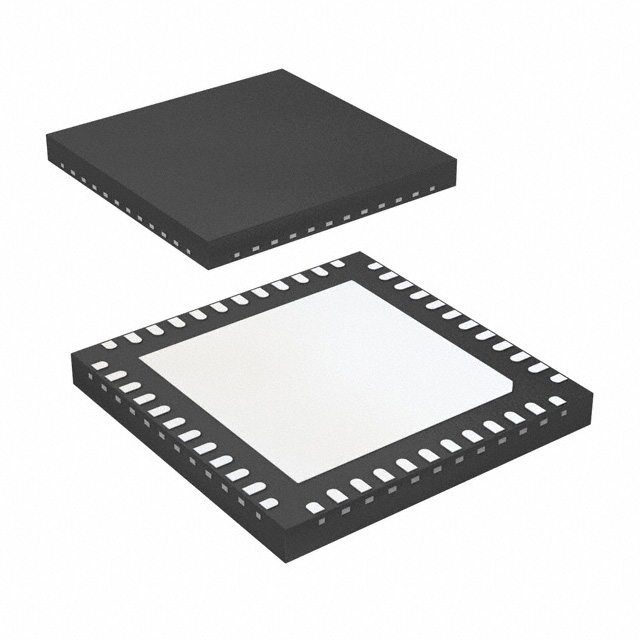

8V97003NLGIIC JITTER ATTEN 48VFQFPN |
280 |
|
Datasheet |
- | 48-VFQFN Exposed Pad | Tray | Active | Not Verified | Jitter Attenuator | Yes | LVCMOS, LVDS, LVPECL | LVCMOS | 1 | 1:2 | Yes/Yes | 18GHz | Yes/No | 3.135V ~ 3.465V | -40°C ~ 85°C (TA) | Surface Mount | - | - | 48-VFQFPN (7x7) |
|
74HC4046APW,118IC PHASE LOCK LOOP 16TSSOP |
9,780 |
|
Datasheet |
74HC | 16-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Not Verified | Phase Lock Loop (PLL) | Yes | Clock | Clock | 1 | 2:3 | No/No | 21MHz | No/No | 3V ~ 6V | -40°C ~ 125°C | Surface Mount | - | - | 16-TSSOP |
|
PL611-01-N12MC-RIC FREQ SYNTH 8MSOP |
24,116 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Not Verified | Frequency Synthesizer | Yes with Bypass | Clock | Clock | 1 | 1:2 | No/No | 22.579MHz, 24MHz, 24.576MHz | Yes/No | 2.25V ~ 3.63V | 0°C ~ 70°C | Surface Mount | - | - | 8-MSOP |
|
|
PL611-01-N12MCIC FREQ SYNTH 8MSOP |
16,554 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Active | Not Verified | Frequency Synthesizer | Yes with Bypass | Clock | Clock | 1 | 1:2 | No/No | 22.579MHz, 24MHz, 24.576MHz | Yes/No | 2.25V ~ 3.63V | 0°C ~ 70°C | Surface Mount | - | - | 8-MSOP |
|
2305-1HDCGIIC ZD BUFFER 8SOIC |
3,464 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Not Verified | Zero Delay Buffer | Yes with Bypass | LVTTL | CMOS, LVCMOS, TTL | 1 | 1:5 | No/No | 133MHz | No/No | 3V ~ 3.6V | -40°C ~ 85°C | Surface Mount | - | - | 8-SOIC |
|
CD4046BPWIC PHASE LOCK LOOP 16TSSOP |
3,102 |
|
Datasheet |
- | 16-TSSOP (0.173", 4.40mm Width) | Bulk | Active | Not Verified | Phase Lock Loop (PLL) | Yes | CMOS | CMOS | 1 | 1:1 | No/No | 2.4MHz | Yes/No | 3V ~ 18V | -55°C ~ 125°C | Surface Mount | - | - | 16-TSSOP |
|
|
CD74HC4046APWIC PHASE LOCK LOOP 16TSSOP |
2,674 |
|
Datasheet |
74HC | 16-TSSOP (0.173", 4.40mm Width) | Tube | Active | Not Verified | Phase Lock Loop (PLL) | Yes | CMOS | CMOS | 1 | 1:4 | No/No | 38MHz | No/No | 2V ~ 6V | -55°C ~ 125°C | Surface Mount | - | - | 16-TSSOP |
