Application Specific Clock/Timing
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | PLL | Main Purpose | Input | Output | Number of Circuits | Ratio - Input:Output | Differential - Input:Output | Frequency - Max | Voltage - Supply | Operating Temperature | Mounting Type | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
954226AGLFIC TIMING CTRL HUB P4 56-TSSOP |
4,026 |
|
Datasheet |
- | 56-TFSOP (0.240", 6.10mm Width) | Bulk | Obsolete | Not Verified | No | Intel CPU-M, Intel CPU, PCI Express (PCIe) | Clock, Crystal | Clock | 1 | - | No/Yes | 400MHz | 3.3V | 0°C ~ 70°C | Surface Mount | - | - | 56-TSSOP |
|
842S104EGLFCLOCK SYNTHESIZER/JITTER CLEANER |
18,204 |
|
- |
- | - | Tube | Obsolete | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
9DB823BGLFIC PC CLOCK 3.3V 48-TSSOP |
5,228 |
|
Datasheet |
- | 48-TFSOP (0.240", 6.10mm Width) | Tube | Obsolete | Not Verified | Yes | Intel QPI, PCI Express (PCIe) | HCSL | HCSL | 1 | 1:9 | Yes/Yes | 400MHz | 3.135V ~ 3.465V | 0°C ~ 70°C | Surface Mount | - | - | 48-TSSOP |
|
952906AFLFCLOCK GENERATORS & SUPPORT PRODU |
5,540 |
|
Datasheet |
TCH™ | 48-BSSOP (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | Yes | Intel CPU, Timing Control Hub™ | Crystal | Clock | 1 | 1:22 | No/Yes | 460MHz | 3.135V ~ 3.465V | 0°C ~ 70°C | Surface Mount | - | - | 48-SSOP |
|
|
9SQL4958BNDGI8IC CLOCK GENERATOR 48-VFQFPN |
4,068 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9LP525BF-2LFIC PC MAIN CLOCK CK505 56-SSOP |
2,656 |
|
Datasheet |
- | 56-BSSOP (0.295", 7.50mm Width) | Bulk | Obsolete | Not Verified | Yes | Intel CPU Servers | Crystal | Clock | 1 | 1:19 | No/Yes | 100MHz | 3.135V ~ 3.465V | 0°C ~ 70°C | Surface Mount | - | - | 56-SSOP |
|
|
MAX8915AIWW+TIC CCD CLOCK DRIVER WLP |
7,080 |
|
- |
* | - | Tape & Reel (TR) | Obsolete | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
557GI-08LFIC MUX 2:1 PCI-EXPRESS 16-TSSOP |
9,200 |
|
Datasheet |
- | 16-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | Not Verified | No | PCI Express (PCIe) | HCSL, LVDS | HCSL, LVDS | 1 | 2:1 | Yes/Yes | 200MHz | 3.135V ~ 3.465V | -40°C ~ 85°C | Surface Mount | - | - | 16-TSSOP |
|
9DB306BLLFIC JITTER ATTENUATOR 28TSSOP |
9,432 |
|
Datasheet |
- | 28-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | Not Verified | Yes | PCI Express (PCIe) | HCSL, LVDS, LVHSTL, LVPECL, SSTL | LVPECL | 1 | 1:6 | Yes/Yes | 140MHz | 2.97V ~ 3.63V | 0°C ~ 70°C | Surface Mount | - | - | 28-TSSOP |
|
DS1081LE+IC CLOCK MOD SS 8-TSSOP |
7,918 |
|
Datasheet |
- | 8-TSSOP (0.173", 4.40mm Width) | Bulk | Obsolete | Not Verified | Yes | LCD Panels | Clock | LVCMOS | 1 | 1:1 | No/No | 134MHz | 3V ~ 3.6V | -40°C ~ 125°C | Surface Mount | - | - | 8-TSSOP |
|
MPC940LACIC CLK FANOUT BUFFER 1:18 32LQFP |
9,294 |
|
Datasheet |
- | 32-LQFP | Bulk | Obsolete | Not Verified | No | Intel CPU Servers | LVCMOS, LVPECL | LVCMOS | 1 | 2:18 | Yes/No | 250MHz | 2.375V ~ 3.465V | 0°C ~ 70°C | Surface Mount | - | - | 32-TQFP (7x7) |
|
9FGL0251BKILFIC CLK GENERATOR 24QFN |
4,722 |
|
- |
- | 24-VFQFN Exposed Pad | Tray | Obsolete | Not Verified | Yes | PCI Express (PCIe) | Clock, Crystal | HCSL, LVCMOS | 1 | 1:2 | No/Yes | 100MHz | 3.14V ~ 3.47V | -40°C ~ 85°C | Surface Mount | - | - | 24-QFN (4x4) |
|
|
9DB834AGLFCLOCK SYNTHESIZE/GENERATOR/PLL |
9,724 |
|
- |
- | 48-TFSOP (0.240", 6.10mm Width) | Bulk | Obsolete | Not Verified | Yes | PCI Express (PCIe) | HCSL | HCSL | 1 | 1:8 | Yes/Yes | 166MHz | 3.135V ~ 3.465V | 0°C ~ 70°C (TA) | Surface Mount | - | - | 48-TSSOP |
|
NB3N3010BDGIC CLOCK GENERATOR PLL 8SOIC |
8,456 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Bulk | Obsolete | Not Verified | No | USB Applications | Clock | LVCMOS | 1 | 1:2 | No/No | 12.288MHz | 3.135V ~ 3.465V | 0°C ~ 85°C | Surface Mount | - | - | 8-SOIC |
|
|
82V3352EDGTELECOM CIRCUIT, 1-FUNC, CMOS, P |
10,344 |
|
- |
- | 64-TQFP Exposed Pad | Tray | Obsolete | Not Verified | Yes | Ethernet, SONET/SDH, Stratum | CMOS, LVDS, PECL | CMOS, LVDS, PECL | 1 | 3:2 | Yes/Yes | 622.08MHz | 3V ~ 3.6V | -40°C ~ 85°C (TA) | Surface Mount | - | - | 64-TQFP (10x10) |
|
CY28517ZXCPROCESSOR CLOCK GENERATOR |
7,300 |
|
Datasheet |
- | 28-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | Not Verified | Yes | PCI Express (PCIe) | Crystal | CMOS | 1 | 1:8 | No/Yes | 100MHz | 3V ~ 3.6V | 5°C ~ 65°C | Surface Mount | - | - | 28-TSSOP |
|
DS1052U-100+IC PROG PWM 5BIT 100KHZ 8-USOP |
3,114 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Obsolete | Not Verified | No | - | - | - | 1 | 2:1 | No/No | 100kHz | 2.7V ~ 5.5V | -40°C ~ 85°C | Surface Mount | - | - | 8-uMAX/uSOP |
|
SI52131-A11AGMRIC PCIE EXPRESS 2OUTPUT 24QFN |
5,000 |
|
Datasheet |
- | 24-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Yes | PCI Express (PCIe), Clock Generator | Clock, Crystal | Clock | 1 | 1:3 | No/Yes | 200MHz | 3.135V ~ 3.465V | -40°C ~ 85°C | Surface Mount | - | - | 24-QFN (4x4) |
|

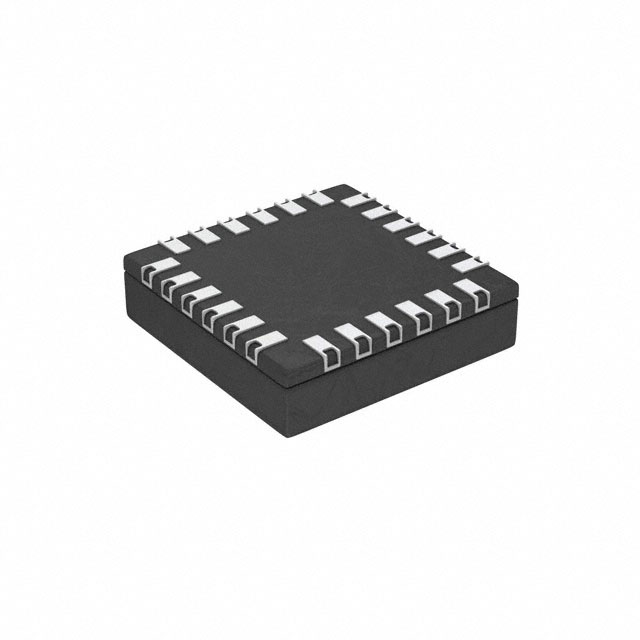

LV5609LP-EIC CLOCK DRIVER VERTICAL 24VCT |
4,198 |
|
- |
- | 24-VFQFN Exposed Pad | Tray | Obsolete | Not Verified | No | CCD | CMOS | CMOS | 1 | 7:5 | No/No | - | 2V ~ 5.5V | -20°C ~ 80°C | Surface Mount | - | - | 24-VCT (3.5x3.5) |
|
954141CFLFIC TIMING CTRL HUB P4 56-SSOP |
9,648 |
|
Datasheet |
- | 56-BSSOP (0.295", 7.50mm Width) | Bulk | Obsolete | Not Verified | No | Intel CPU Servers | - | Clock | 1 | - | - | - | 3.3V | 0°C ~ 70°C | Surface Mount | - | - | 56-SSOP |
