Application Specific Clock/Timing
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | PLL | Main Purpose | Input | Output | Number of Circuits | Ratio - Input:Output | Differential - Input:Output | Frequency - Max | Voltage - Supply | Operating Temperature | Mounting Type | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ICS954147BFLFIC TIMING CTRL HUB P4 56-SSOP |
5,424 |
|
Datasheet |
- | 56-BSSOP (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | No | Intel CPU, PCI Express (PCIe) | - | Clock | 1 | - | - | - | 3.3V | 0°C ~ 70°C | Surface Mount | - | - | 56-SSOP |
|
|
ICS954148AFLFIC TIMING CTRL HUB P4 56-SSOP |
5,802 |
|
Datasheet |
- | 56-BSSOP (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | No | Intel CPU, PCI Express (PCIe) | - | Clock | 1 | - | - | - | 3.3V | 0°C ~ 70°C | Surface Mount | - | - | 56-SSOP |
|
|
ICS954148AFLFTIC TIMING CTRL HUB P4 56-SSOP |
2,742 |
|
Datasheet |
- | 56-BSSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | No | Intel CPU, PCI Express (PCIe) | - | Clock | 1 | - | - | - | 3.3V | 0°C ~ 70°C | Surface Mount | - | - | 56-SSOP |
|
954201BGLFIC TIMING CTRL HUB P4 56-TSSOP |
2,304 |
|
Datasheet |
TCH™ | 56-TFSOP (0.240", 6.10mm Width) | Tube | Obsolete | Not Verified | Yes | Intel CPU, PCI Express (PCIe), Timing Control Hub™ | Crystal | Clock | 1 | 1:19 | No/Yes | 400MHz | 3.135V ~ 3.465V | 0°C ~ 70°C | Surface Mount | - | - | 56-TSSOP |
|
|
954204CGLNTIC TIMING CTRL HUB P4 56-TSSOP |
9,298 |
|
- |
TCH™ | 56-TFSOP (0.240", 6.10mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | Yes | Intel CPU-M, Intel CPU, PCI Express (PCIe), Timing Control Hub™ | Crystal | Clock | 1 | 1:18 | No/Yes | 400MHz | 3.135V ~ 3.465V | 0°C ~ 70°C | Surface Mount | - | - | 56-TSSOP |
|
|
954206AGLFIC TIMING CTRL HUB P4 56-TSSOP |
5,576 |
|
- |
- | 56-TFSOP (0.240", 6.10mm Width) | Tube | Obsolete | Not Verified | No | Intel CPU-M, Intel CPU, PCI Express (PCIe) | - | Clock | 1 | - | - | 400MHz | 3.3V | 0°C ~ 70°C | Surface Mount | - | - | 56-TSSOP |
|
|
954206AGLFTIC TIMING CTRL HUB P4 56-TSSOP |
5,988 |
|
- |
- | 56-TFSOP (0.240", 6.10mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | No | Intel CPU-M, Intel CPU, PCI Express (PCIe) | - | Clock | 1 | - | - | 400MHz | 3.3V | 0°C ~ 70°C | Surface Mount | - | - | 56-TSSOP |
|
|
954206BGLFIC TIMING CTRL HUB P4 56-TSSOP |
3,216 |
|
- |
TCH™ | 56-TFSOP (0.240", 6.10mm Width) | Tube | Obsolete | Not Verified | Yes | Intel CPU-M, Intel CPU, PCI Express (PCIe), Timing Control Hub™ | Crystal | Clock | 1 | 1:19 | No/Yes | 400MHz | 3.135V ~ 3.465V | 0°C ~ 70°C | Surface Mount | - | - | 56-TSSOP |
|
|
954206BGLFTIC TIMING CTRL HUB P4 56-TSSOP |
4,116 |
|
- |
TCH™ | 56-TFSOP (0.240", 6.10mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | Yes | Intel CPU-M, Intel CPU, PCI Express (PCIe), Timing Control Hub™ | Crystal | Clock | 1 | 1:19 | No/Yes | 400MHz | 3.135V ~ 3.465V | 0°C ~ 70°C | Surface Mount | - | - | 56-TSSOP |
|
|
954226AGLFTIC TIMING CTRL HUB P4 56-TSSOP |
8,930 |
|
Datasheet |
- | 56-TFSOP (0.240", 6.10mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | No | Intel CPU-M, Intel CPU, PCI Express (PCIe) | Clock, Crystal | Clock | 1 | - | No/Yes | 400MHz | 3.3V | 0°C ~ 70°C | Surface Mount | - | - | 56-TSSOP |
|
|
ICS954227CGLFIC TIMING CTRL HUB P4 56-TSSOP |
6,304 |
|
- |
- | 56-TFSOP (0.240", 6.10mm Width) | Tube | Obsolete | Not Verified | No | Intel CPU-M, Intel CPU | - | Clock | 1 | - | - | 400MHz | 3.3V | 0°C ~ 70°C | Surface Mount | - | - | 56-TSSOP |
|
ICS954309BKLFIC TIMING CTRL HUB P4 64-VFQFPN |
2,736 |
|
Datasheet |
TCH™ | 64-VFQFN Exposed Pad | Tray | Obsolete | Not Verified | Yes | Intel CPU-M, Intel CPU, PCI Express (PCIe), Timing Control Hub™ | Crystal | Clock | 1 | 1:20 | No/Yes | 400MHz | 3.135V ~ 3.465V | 0°C ~ 70°C | Surface Mount | - | - | 64-VFQFPN (9x9) |
|
954310BGLFIC TIMING CTRL HUB P4 64-TSSOP |
8,764 |
|
Datasheet |
- | 64-TFSOP (0.240", 6.10mm Width) | Tube | Obsolete | Not Verified | No | Intel CPU-M, Intel CPU, PCI Express (PCIe) | - | Clock | 1 | - | - | - | 3.3V | 0°C ~ 70°C | Surface Mount | - | - | 64-TSSOP |
|
|
954310BGLFTIC TIMING CTRL HUB P4 64-TSSOP |
9,614 |
|
Datasheet |
- | 64-TFSOP (0.240", 6.10mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | No | Intel CPU-M, Intel CPU, PCI Express (PCIe) | - | Clock | 1 | - | - | - | 3.3V | 0°C ~ 70°C | Surface Mount | - | - | 64-TSSOP |
|
ICS95V2F857AGLFIC CLK BUF DDR 233MHZ 1CIRC |
3,780 |
|
Datasheet |
- | 48-TFSOP (0.240", 6.10mm Width) | Tube | Obsolete | Not Verified | Yes | Memory, DDR | LVCMOS | SSTL-2 | 1 | 1:10 | No/Yes | 233MHz | 2.3V ~ 2.7V | 0°C ~ 85°C | Surface Mount | - | - | 48-TSSOP |
|

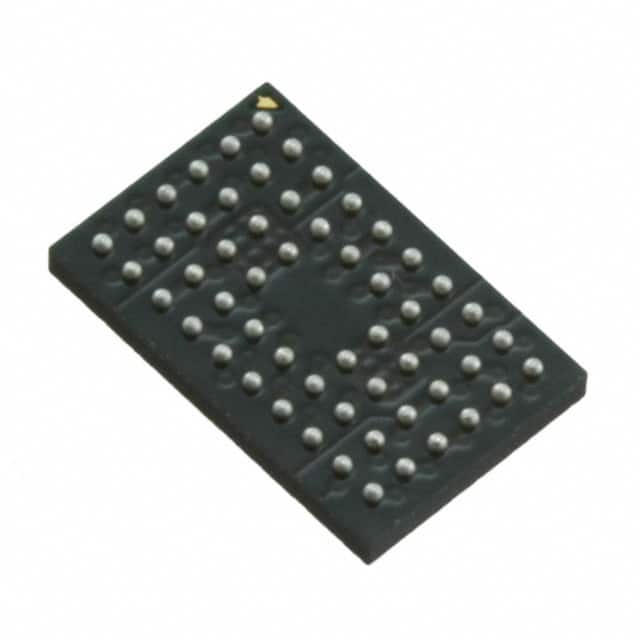

95V2F857AHLFIC CLK BUF DDR 233MHZ 1CIRC |
4,062 |
|
Datasheet |
- | 56-TFBGA | Tray | Obsolete | Not Verified | Yes | Memory, DDR | LVCMOS | SSTL-2 | 1 | 1:10 | No/Yes | 233MHz | 2.3V ~ 2.7V | 0°C ~ 85°C | Surface Mount | - | - | 56-CABGA (4.5x7.0) |
|
|
95V2F857AHLFTIC CLK BUF DDR 233MHZ 1CIRC |
6,964 |
|
Datasheet |
- | 56-TFBGA | Tape & Reel (TR) | Active | Not Verified | Yes | Memory, DDR | LVCMOS | SSTL-2 | 1 | 1:10 | No/Yes | 233MHz | 2.3V ~ 2.7V | 0°C ~ 85°C | Surface Mount | - | - | 56-CABGA (4.5x7.0) |
|
95V847AGLFIC CLK BUF DDR 233MHZ 1CIRC |
4,642 |
|
- |
- | 24-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | Not Verified | Yes | Memory, DDR | Clock | SSTL-2 | 1 | 1:5 | Yes/Yes | 233MHz | 2.3V ~ 2.7V | 0°C ~ 85°C | Surface Mount | - | - | 24-TSSOP |
|
|
95V847AGLFTIC CLK BUF DDR 233MHZ 1CIRC |
8,312 |
|
- |
- | 24-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | Yes | Memory, DDR | Clock | SSTL-2 | 1 | 1:5 | Yes/Yes | 233MHz | 2.3V ~ 2.7V | 0°C ~ 85°C | Surface Mount | - | - | 24-TSSOP |
|
|
95V857AGILFIC CLK BUF DDR 233MHZ 1CIRC |
9,642 |
|
Datasheet |
- | 48-TFSOP (0.240", 6.10mm Width) | Tube | Obsolete | Not Verified | Yes | Memory, DDR | Clock | SSTL-2 | 1 | 1:10 | Yes/Yes | 233MHz | 2.3V ~ 2.7V | -40°C ~ 85°C | Surface Mount | - | - | 48-TSSOP |
