Chassis Mount Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Temperature Coefficient | Operating Temperature | Features | Coating, Housing Type | Mounting Feature | Size / Dimension | Height - Seated (Max) | Lead Style | Failure Rate | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VNC201022701JBVNC 20X102 2K7 5% BO64 |
4,530 |
|
Datasheet |
VNC | Radial, Tubular | Box | Active | 2.7 kOhms | ±5% | 85W | Wirewound | ±75ppm/°C | -55°C ~ 450°C | - | Vitreous Enamel Coated | Brackets (not included) | 0.906" Dia x 3.996" L (23.00mm x 101.50mm) | - | Solder Lugs | - | - | - |
|
|
VNC201021201JBVNC 20X102 1K2 5% BO64 |
7,820 |
|
Datasheet |
VNC | Radial, Tubular | Box | Active | 1.2 kOhms | ±5% | 85W | Wirewound | ±75ppm/°C | -55°C ~ 450°C | - | Vitreous Enamel Coated | Brackets (not included) | 0.906" Dia x 3.996" L (23.00mm x 101.50mm) | - | Solder Lugs | - | - | - |
|
LPS0300H2200KBLPS 300 H 220U 10% BO15 E |
7,514 |
|
Datasheet |
LPS 300 | Box | Bulk | Active | 220 Ohms | ±10% | 300W | Thick Film | ±150ppm/°C | -55°C ~ 120°C | Non-Inductive | - | Flanges | 2.362" L x 2.244" W (60.00mm x 57.00mm) | 1.055" (26.80mm) | M4 Threaded | - | - | - |
|
|
LPS0300H4703KBLPS 300 H 470K 10% BO15 E |
4,110 |
|
Datasheet |
LPS 300 | Box | Bulk | Active | 470 kOhms | ±10% | 300W | Thick Film | ±150ppm/°C | -55°C ~ 120°C | Non-Inductive | - | Flanges | 2.362" L x 2.244" W (60.00mm x 57.00mm) | 1.055" (26.80mm) | M4 Threaded | - | - | - |
|
|
LPS0300H2202KBLPS 300 H 22K 10% BO15 E |
4,010 |
|
Datasheet |
LPS 300 | Box | Bulk | Active | 22 kOhms | ±10% | 300W | Thick Film | ±150ppm/°C | -55°C ~ 120°C | Non-Inductive | - | Flanges | 2.362" L x 2.244" W (60.00mm x 57.00mm) | 1.055" (26.80mm) | M4 Threaded | - | - | - |
|
|
LPS0300H6802KBLPS 300 H 68K 10% BO15 E |
5,724 |
|
Datasheet |
LPS 300 | Box | Bulk | Active | 68 kOhms | ±10% | 300W | Thick Film | ±150ppm/°C | -55°C ~ 120°C | Non-Inductive | - | Flanges | 2.362" L x 2.244" W (60.00mm x 57.00mm) | 1.055" (26.80mm) | M4 Threaded | - | - | - |
|
|
LPS0300H3303KBLPS 300 H 330K 10% BO15 E |
6,590 |
|
Datasheet |
LPS 300 | Box | Bulk | Active | 330 kOhms | ±10% | 300W | Thick Film | ±150ppm/°C | -55°C ~ 120°C | Non-Inductive | - | Flanges | 2.362" L x 2.244" W (60.00mm x 57.00mm) | 1.055" (26.80mm) | M4 Threaded | - | - | - |
|
|
Y07331K33333T9LVFP-3T 1K33333 0.01% |
5,778 |
|
Datasheet |
VFP-3 | Radial | Bulk | Active | 1.33333 kOhms | ±0.01% | 10W | Metal Foil | ±2ppm/°C | -55°C ~ 150°C | Current Sense, Non-Inductive | - | Flanges | 1.575" L x 0.276" W (40.01mm x 7.01mm) | 0.803" (20.40mm) | 2-Terminal | - | - | - |
|
|
Y073312K0000T0LVFP-3 12K000 0.01% |
7,120 |
|
Datasheet |
VFP-3 | Radial | Bulk | Active | 12 kOhms | ±0.01% | 10W | Metal Foil | ±2ppm/°C | -55°C ~ 150°C | Current Sense, Non-Inductive | - | Flanges | 1.575" L x 0.276" W (40.01mm x 7.01mm) | 0.803" (20.40mm) | 2-Terminal | - | - | - |
|
|
Y07331K61333T9LVFP-3T 1K61333 0.01% |
8,266 |
|
Datasheet |
VFP-3 | Radial | Bulk | Active | 1.61333 kOhms | ±0.01% | 10W | Metal Foil | ±2ppm/°C | -55°C ~ 150°C | Current Sense, Non-Inductive | - | Flanges | 1.575" L x 0.276" W (40.01mm x 7.01mm) | 0.803" (20.40mm) | 2-Terminal | - | - | - |
|
|
RER70F3R32PC02RES CHAS MNT 3.32 OHM 1% 20W |
9,976 |
|
Datasheet |
RER70 | Axial, Box | Bulk | Active | 3.32 Ohms | ±1% | 20W | Wirewound | ±50ppm/°C | -55°C ~ 250°C | Non-Inductive | Aluminum | Flanges | 1.062" L x 1.080" W (26.97mm x 27.43mm) | 0.561" (14.25mm) | Solder Lugs | P (0.1%) | Military | MIL-PRF-39009 |
|
RER70F1500RC02RES CHAS MNT 150 OHM 1% 20W |
7,082 |
|
Datasheet |
RER70 | Axial, Box | Bulk | Active | 150 Ohms | ±1% | 20W | Wirewound | ±20ppm/°C | -55°C ~ 250°C | Non-Inductive | Aluminum | Flanges | 1.062" L x 1.080" W (26.97mm x 27.43mm) | 0.561" (14.25mm) | Solder Lugs | R (0.01%) | Military | MIL-PRF-39009 |
|
|
RER70F2001RC02RES CHAS MNT 2K OHM 1% 20W |
3,480 |
|
Datasheet |
RER70 | Axial, Box | Bulk | Active | 2 kOhms | ±1% | 20W | Wirewound | ±20ppm/°C | -55°C ~ 250°C | Non-Inductive | Aluminum | Flanges | 1.062" L x 1.080" W (26.97mm x 27.43mm) | 0.561" (14.25mm) | Solder Lugs | R (0.01%) | Military | MIL-PRF-39009 |
|
|
RER70F2210RC02RES CHAS MNT 221 OHM 1% 20W |
2,154 |
|
Datasheet |
RER70 | Axial, Box | Bulk | Active | 221 Ohms | ±1% | 20W | Wirewound | ±20ppm/°C | -55°C ~ 250°C | Non-Inductive | Aluminum | Flanges | 1.062" L x 1.080" W (26.97mm x 27.43mm) | 0.561" (14.25mm) | Solder Lugs | R (0.01%) | Military | MIL-PRF-39009 |
|

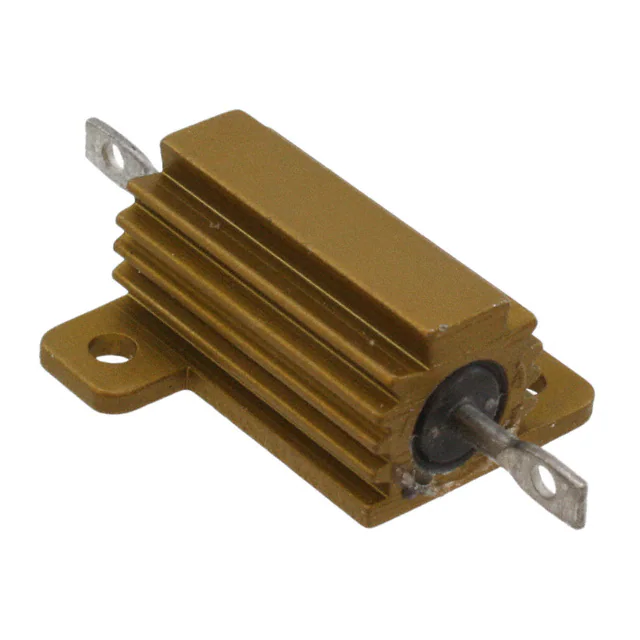

RER70F3R01RC02RES CHAS MNT 3.01 OHM 1% 20W |
6,330 |
|
Datasheet |
RER70 | Axial, Box | Bulk | Active | 3.01 Ohms | ±1% | 20W | Wirewound | ±50ppm/°C | -55°C ~ 250°C | Non-Inductive | Aluminum | Flanges | 1.062" L x 1.080" W (26.97mm x 27.43mm) | 0.561" (14.25mm) | Solder Lugs | R (0.01%) | Military | MIL-PRF-39009 |
|
|
RER70F68R1RC02RES CHAS MNT 68.1 OHM 1% 20W |
7,190 |
|
Datasheet |
RER70 | Axial, Box | Bulk | Active | 68.1 Ohms | ±1% | 20W | Wirewound | ±20ppm/°C | -55°C ~ 250°C | Non-Inductive | Aluminum | Flanges | 1.062" L x 1.080" W (26.97mm x 27.43mm) | 0.561" (14.25mm) | Solder Lugs | R (0.01%) | Military | MIL-PRF-39009 |
|
RER75F7501RC02RES CHAS MNT 7.5K OHM 1% 30W |
6,964 |
|
Datasheet |
RER75 | Axial, Box | Bulk | Active | 7.5 kOhms | ±1% | 30W | Wirewound | ±20ppm/°C | -55°C ~ 250°C | Non-Inductive | Aluminum | Flanges | 1.968" L x 1.140" W (49.99mm x 28.96mm) | 0.625" (15.87mm) | Solder Lugs | R (0.01%) | Military | MIL-PRF-39009 |
|
|
RER75FR787RC02RES CHAS MNT 0.787 OHM 1% 30W |
3,254 |
|
Datasheet |
RER75 | Axial, Box | Bulk | Active | 787 mOhms | ±1% | 30W | Wirewound | ±100ppm/°C | -55°C ~ 250°C | Non-Inductive | Aluminum | Flanges | 1.968" L x 1.140" W (49.99mm x 28.96mm) | 0.625" (15.87mm) | Solder Lugs | R (0.01%) | Military | MIL-PRF-39009 |
|
|
RER75FR750PC02RES CHAS MNT 0.75 OHM 1% 30W |
9,372 |
|
Datasheet |
RER75 | Axial, Box | Bulk | Active | 750 mOhms | ±1% | 30W | Wirewound | ±100ppm/°C | -55°C ~ 250°C | Non-Inductive | Aluminum | Flanges | 1.968" L x 1.140" W (49.99mm x 28.96mm) | 0.625" (15.87mm) | Solder Lugs | P (0.1%) | Military | MIL-PRF-39009 |
|
|
RER75FR750RC02RES CHAS MNT 0.75 OHM 1% 30W |
3,100 |
|
Datasheet |
RER75 | Axial, Box | Bulk | Active | 750 mOhms | ±1% | 30W | Wirewound | ±100ppm/°C | -55°C ~ 250°C | Non-Inductive | Aluminum | Flanges | 1.968" L x 1.140" W (49.99mm x 28.96mm) | 0.625" (15.87mm) | Solder Lugs | R (0.01%) | Military | MIL-PRF-39009 |
