Chassis Mount Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Temperature Coefficient | Operating Temperature | Features | Coating, Housing Type | Mounting Feature | Size / Dimension | Height - Seated (Max) | Lead Style | Failure Rate | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AH1002R200JE66AH100 2.2 5% E66 E3 |
2,652 |
|
Datasheet |
AH | Axial, Box | Bulk | Active | 2.2 Ohms | ±5% | 100W | Wirewound | ±100ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 2.598" L x 1.890" W (66.00mm x 48.00mm) | 1.024" (26.00mm) | Solder Lugs | - | - | - |
|
|
AH10033R00JE66AH100 33 5% E66 E3 |
5,538 |
|
Datasheet |
AH | Axial, Box | Bulk | Active | 33 Ohms | ±5% | 100W | Wirewound | ±100ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 2.598" L x 1.890" W (66.00mm x 48.00mm) | 1.024" (26.00mm) | Solder Lugs | - | - | - |
|
|
AH1003R300JE66AH100 3.3 5% E66 E3 |
9,742 |
|
Datasheet |
AH | Axial, Box | Bulk | Active | 3.3 Ohms | ±5% | 100W | Wirewound | ±100ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 2.598" L x 1.890" W (66.00mm x 48.00mm) | 1.024" (26.00mm) | Solder Lugs | - | - | - |
|
|
AH10047R00JE66AH100 47 5% E66 E3 |
6,094 |
|
Datasheet |
AH | Axial, Box | Bulk | Active | 47 Ohms | ±5% | 100W | Wirewound | ±100ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 2.598" L x 1.890" W (66.00mm x 48.00mm) | 1.024" (26.00mm) | Solder Lugs | - | - | - |
|
|
AH10068R00JE66AH100 68 5% E66 E3 |
7,244 |
|
Datasheet |
AH | Axial, Box | Bulk | Active | 68 Ohms | ±5% | 100W | Wirewound | ±100ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 2.598" L x 1.890" W (66.00mm x 48.00mm) | 1.024" (26.00mm) | Solder Lugs | - | - | - |
|
|
RH50680R0FS03SFERNICE FIXED RESISTORS |
7,944 |
|
- |
* | - | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RH5047000FS03SFERNICE FIXED RESISTORS |
7,982 |
|
- |
* | - | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RH50820R0FS03SFERNICE FIXED RESISTORS |
6,084 |
|
- |
* | - | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RH50900R0FS03SFERNICE FIXED RESISTORS |
4,472 |
|
- |
* | - | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RH50700R0FS03SFERNICE FIXED RESISTORS |
2,110 |
|
- |
* | - | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RH5022001FS03SFERNICE FIXED RESISTORS |
3,136 |
|
- |
* | - | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RH5033000FS03SFERNICE FIXED RESISTORS |
7,348 |
|
- |
* | - | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RH5012001FS03SFERNICE FIXED RESISTORS |
9,332 |
|
- |
* | - | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RH5027001FS03SFERNICE FIXED RESISTORS |
6,616 |
|
- |
* | - | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RH5030001FS03SFERNICE FIXED RESISTORS |
3,092 |
|
- |
* | - | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RH2547001FS03RH 25 47K 1% BA10 E1 |
9,606 |
|
Datasheet |
RH | Axial, Box | Bulk | Active | 47 kOhms | ±1% | 25W | Wirewound | ±25ppm/°C | -55°C ~ 200°C | Moisture Resistant | - | Flanges | 1.102" L x 1.083" W (28.00mm x 27.50mm) | - | Solder Lugs | - | - | - |
|
EVRT170EN2R2JERES CHAS MNT 2.2 OHM 5% 200W |
4,758 |
|
Datasheet |
Euro-Power | Radial, Tubular | Bulk | Active | 2.2 Ohms | ±5% | 200W | Wirewound | ±400ppm/°C | -55°C ~ 350°C | Flame Retardant Coating, Moisture Resistant, Safety | Vitreous Enamel Coated | Brackets (not included) | 1.004" Dia x 6.693" L (25.50mm x 170.00mm) | - | Solder Lugs | - | - | - |
|

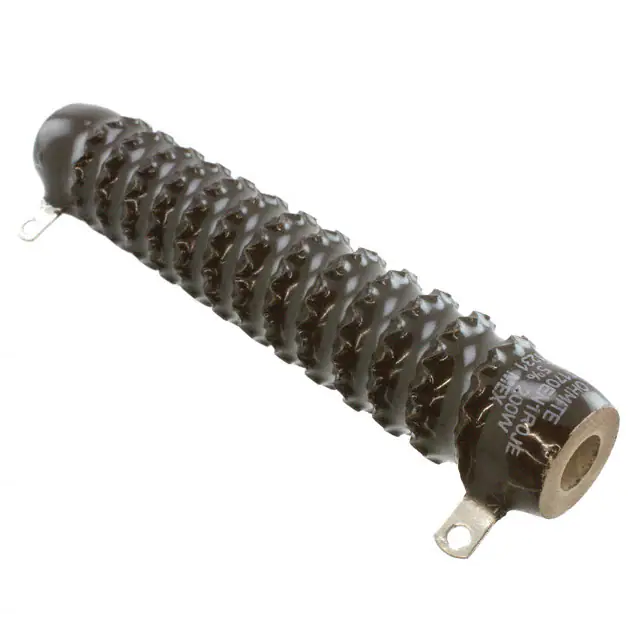

EVRT170EN1R0JERES CHAS MNT 1 OHM 5% 200W |
8,968 |
|
Datasheet |
Euro-Power | Radial, Tubular | Bulk | Active | 1 Ohms | ±5% | 200W | Wirewound | ±400ppm/°C | -55°C ~ 350°C | Flame Retardant Coating, Moisture Resistant, Safety | Vitreous Enamel Coated | Brackets (not included) | 1.004" Dia x 6.693" L (25.50mm x 170.00mm) | - | Solder Lugs | - | - | - |
|
WFH90L4R7KERES CHAS MNT 4.7 OHM 10% 90W |
4,574 |
|
Datasheet |
WFH | Radial, Rectangular Case | Bulk | Active | 4.7 Ohms | ±10% | 90W | Wirewound | - | -40°C ~ 220°C | - | Aluminum | Flanges | 2.756" L x 2.008" W (70.00mm x 51.00mm) | 0.496" (12.60mm) | Solder Lugs | - | - | - |
|
RER60F3R48RC02RES CHAS MNT 3.48 OHM 1% 5W |
9,962 |
|
Datasheet |
RER60 | Axial, Box | Bulk | Active | 3.48 Ohms | ±1% | 5W | Wirewound | ±50ppm/°C | -55°C ~ 250°C | Non-Inductive | Aluminum | Flanges | 0.600" L x 0.646" W (15.24mm x 16.41mm) | 0.335" (8.51mm) | Solder Lugs | R (0.01%) | Military | MIL-PRF-39009 |
